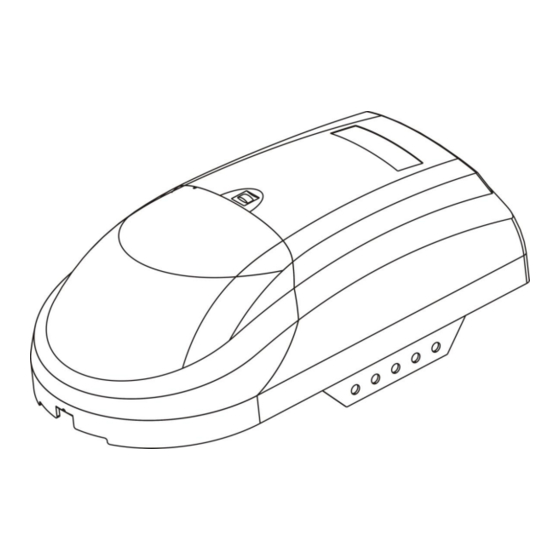

Sectional and Tilting Door Opener
Installation Instructions and User Guide
600E
800E
1000E
S/N
WARNING
Please read the manual carefully before installation and use. The installation of your
new door opener must be carried out by a technically qualified or licensed person.
Attempting to install or repair the door opener without suitable technical qualification
may result in severe personal injury, death and / or property damage.
Advertisement
Table of Contents
Related Manuals for Etdoor ET-600E
Summary of Contents for Etdoor ET-600E
- Page 1 Sectional and Tilting Door Opener Installation Instructions and User Guide 600E 800E 1000E WARNING Please read the manual carefully before installation and use. The installation of your new door opener must be carried out by a technically qualified or licensed person. Attempting to install or repair the door opener without suitable technical qualification may result in severe personal injury, death and / or property damage.
-
Page 2: Table Of Contents
CONTENTS Important safety recommendations...…………………………….……………………………..1 Basic function introduction………………………………………………………………………..2 Special function introduction……………………………………………………………………..2 Installation......………………………………………….…………………………..3 Installation (aluminum track)………………………………………….………………………….4 Installation (steel track)………………………………………….…………………………….….5 Installation (sectional steel track)………………………………………………………………..6 Installation recommendations……………………………………………………………………8 Basic function setting and applying……………………………………………………………..9 Special function introduction and application………………………………………….………11 Manual disengagement…………………………………………………………………………..13 Maintenance……………………………………………………………………………………..13 Final notes….………………………………………..…………………………………………..14 Important information for the user……………………………………………………………..14 Packing list…………………………………………………………………………………..…..14 Technical specifications……………………………………………………………………..…...15... -
Page 3: Important Safety Recommendations
Important safety recommendations FAILURE TO COMPLY WITH THE FOLLOWING SAFETY RECOMMENDATIONS MAY RESULT IN SERIOUS PERSONAL INJURY, DEATH AND / OR PROPERTY DAMAGE. 1. PLEASE READ CAREFULLY AND ADHERE TO ALL SAFETY AND INSTALLATION RECOMMENDATIONS. 2. The opener is designed and manufactured to meet local regulations. The installer must be familiar with local regulations required in respect of the installation of the opener. -
Page 4: Basic Function Introduction
adjustment is needed since a fault in the installation or an incorrectly balanced door may cause injury. Each month check that the drive reverses when the door contacts a 50 mm high object placed on the floor. Adjust if necessary and recheck since an incorrect adjustment may present a hazard, for drives incorporating an entrapment protection system depending on contact with the bottom edge of the door. -
Page 5: Installation
Installation 1) Read the instruction carefully. 2) Make sure the door structure is solid and suitable to be motor driven. 3) Make sure when the door is moving there are no friction point. The door must be properly balanced and must be easily lowered and raised by hand. Fig.1 Fig.1 Referring to Fig. -
Page 6: Installation(Aluminum Track)
Installation(aluminum track) 5) Photo beam (RX/TX Type) Fig.4 Before attaching the U brackets (E) (Fig. 4) screw an inverted nut (6mm) (D) on each stud then position the brackets (E) on the studs and secure them in-place using a second 6mm-nut and then lock the brackets to the rail by tightening the inverted lock nuts (D). -
Page 7: Installation (Steel Track)
Installation (steel track) Fig. 6 1. Fixing the track bracket to the wall 2cm-15cm over the shaft or intermediate bracket (depending on the actual installation space). 2. Fixing the steel track to the wall bracket with axis pin. (Fig. 6) 3. -
Page 8: Installation (Sectional Steel Track)
Installation (sectional steel track) The middle rail The end rail The first sleeve Fig. 7 The top rail The middle rail The end rail The second sleeve The first sleeve Fig. 8 Fig. 9... - Page 9 Fig. 10 19MM Fig. 11 1. As Fig.7, slide the end rail into the 1st sleeve, slide the middle rail into the 1st sleeve; 2. As Fig.8, slide the 2nd sleeve to the other end of middle rail, slide the top rail into the 2nd sleeve;...
-
Page 10: Installation Recommendations
Installation recommendations there are specific standards that have to be strictly followed regarding the safety Remember rules of electrical installations and automatic gates and doors. As for the legal requirements and standards that must be adhered to, please take notice of the following points to ensure maximum safety and reliability of your installation. -
Page 11: Basic Function Setting And Applying
Basic function setting and applying 1. Travel limit setting Opening & closing force self-learning Press ‘SET’ button and hold on until the LED displays figure ‘1’, then adjust the up limit by pressing ‘up’ button. Fine-tuning ‘up’ or ‘down’ button to determine the final up limit position then press ‘set’... - Page 12 4. Auto-close setting Press ‘UP’ button and hold on until the LED displays ‘-’. Press ‘up’ button once, the auto-close time will increase 1 minute, the maximum time is 9 minutes. Press ‘down’ button the auto-close time decrease 1 minute. The auto-close function will be turned off when LED displays 0.
-
Page 13: Special Function Introduction And Application
Special function introduction and application 1. The O/S/C interface available Add another O/S/C button to open or close the door. 2. The photo beam interface available When connecting pulsed quantity control infrared sensor, wiring as Fig.12. When infrared sensor is controlled by switch value, wiring as Fig.13. Notice: Close the photo beam function when you don’t use photo beam sensor. - Page 14 Fig. 14 Fig. 15...
-
Page 15: Manual Disengagement
Manual disengagement The opener is equipped with a manual release cord to disengage shuttle and move door by hand while holding the handle down (Fig 16). Pull on the handle to disengage the shuttle. To re-engage the door simply run opener in automatic mode or move door by hand until the trolley engages in the chain shuttle. -
Page 16: Final Notes
Final notes This manual is only used by technical persons who are qualified to carry out the installation. No given information in this manual can be considered of any interest to the end user. It is important for the installer to show their clients correct operation using of the opener including the using of manual disengagement cord. -
Page 17: Technical Specifications
Technical specifications Model ET-600E ET-800E ET-1000E Power Input: 200-240V AC 50/60Hz 200-240V AC 50/60Hz 200-240V AC 50/60Hz Output power: 150W 235W 245W Max force: 600N 800N 1000N Open/Close speed: 0.15m/s 0.15m/s 0.15m/s Lamp: LED，24V DC LED，24V DC LED，24V DC Light time:...
