Summary of Contents for AxonKids Babyfix base

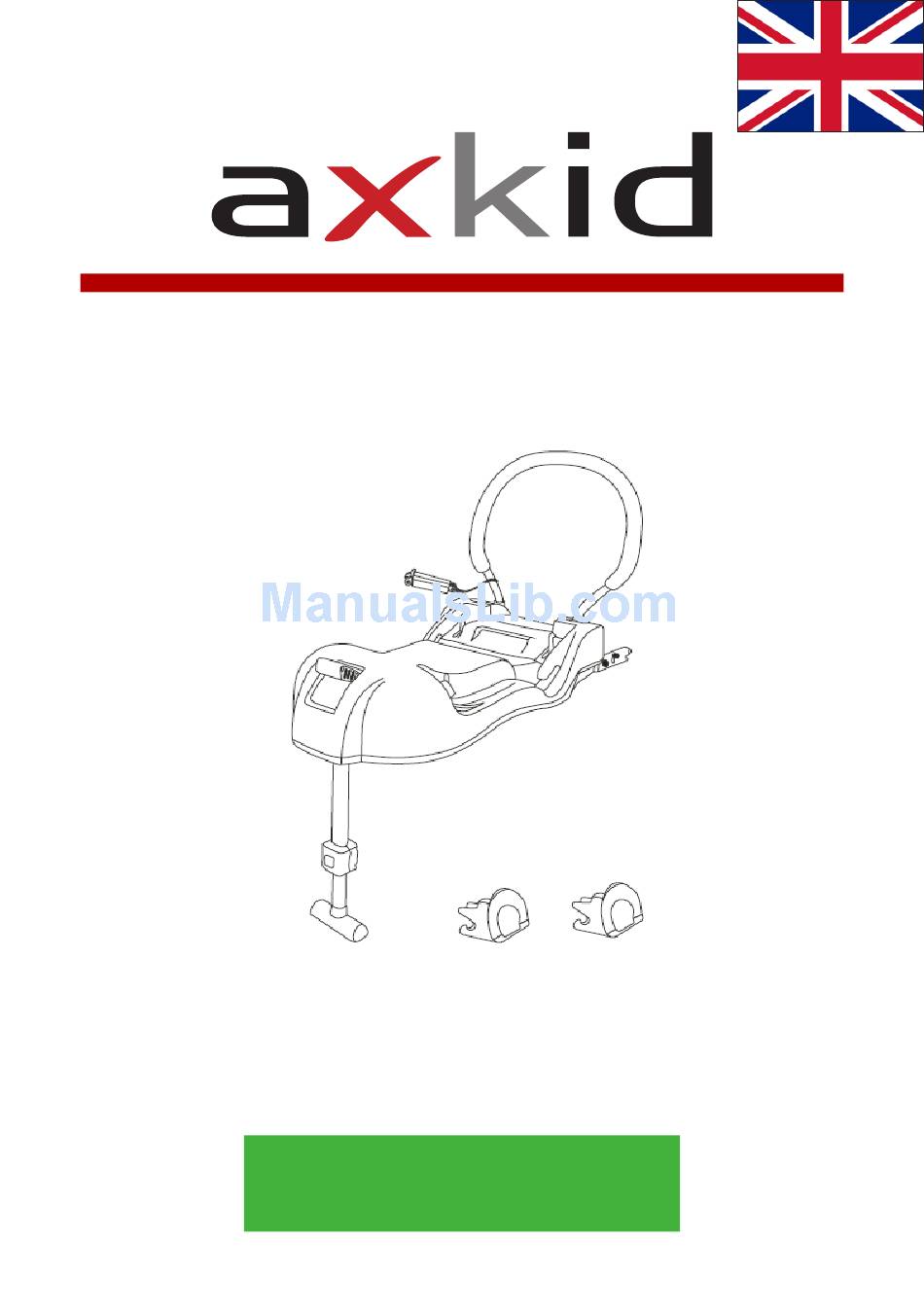

- Page 1 Instruction manual Babyfix base Base For babies weighing up to 13kg Tested and approved according to ECE R44 / 04...
- Page 2 This base has been developed to be used both with ISOFIX-system and with fastening manually by the belts. Babyfix base has a ”semi-universal group 0+” ap- proval for a child who weighs up to 13 kg and approved ISO/R1 holders.
- Page 3 The parts of the base 1. Backrest 2. ISOFIX guiding arms 3. Fixationhooks for the car belt 4. Leading covers for ISOFIX 5. Releasebutton for childseat 6. Adjustment button for the supportleg 7. Supportleg 8. Belt lock-off...
- Page 4 Assemble the base 1. Attach the belt lock-off to the backsupport. Insert the two legs of the back support and fixate to the base with the screws included in the box. 2. If ISOFIX holding system should be used you need to fold them out ac- cording to picture above.
- Page 5 Attaching base to the car seat You could use either the belts of the car or the ISOFIX holding system to fixate the base to the car seat, depen- dent of your car specifications. If you are uncertain of which system to use check your car manual for information.
- Page 6 Using the base with ISOFIX 1. Assemble the leading covers for the ISOFIX holding system to the car, pic 1. 2. Extent the two ISOFIX holders legs and assemble them into the lead- ing covers which you assembled in first step, picture 2 and 3.
- Page 7 Attaching and removing baby seat 1. Press down the baby seat until you hear a click sound. Check if the baby seat has locked correctly by pull- ing the handle upwards, the seat should not detach from the base. 2. Then push down the handle to position B like in the picture to the right.
- Page 8 3. Press the release button in the leg and push the leg upwards to bundle it up together, picture 2. 4. Fold the leg together underneath the base and secure it according to pic- ture 4. Producer: Axonkids AB Box 188 53322 Götene www.axonkids.com...
