X-Core XVR264_04C User Manual

4ch dvr
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User Manual
XVR264_04C v1.0
─ 4CH DVR ─
This document contains preliminary information and subject to change without notice.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XVR264_04C and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for X-Core XVR264_04C

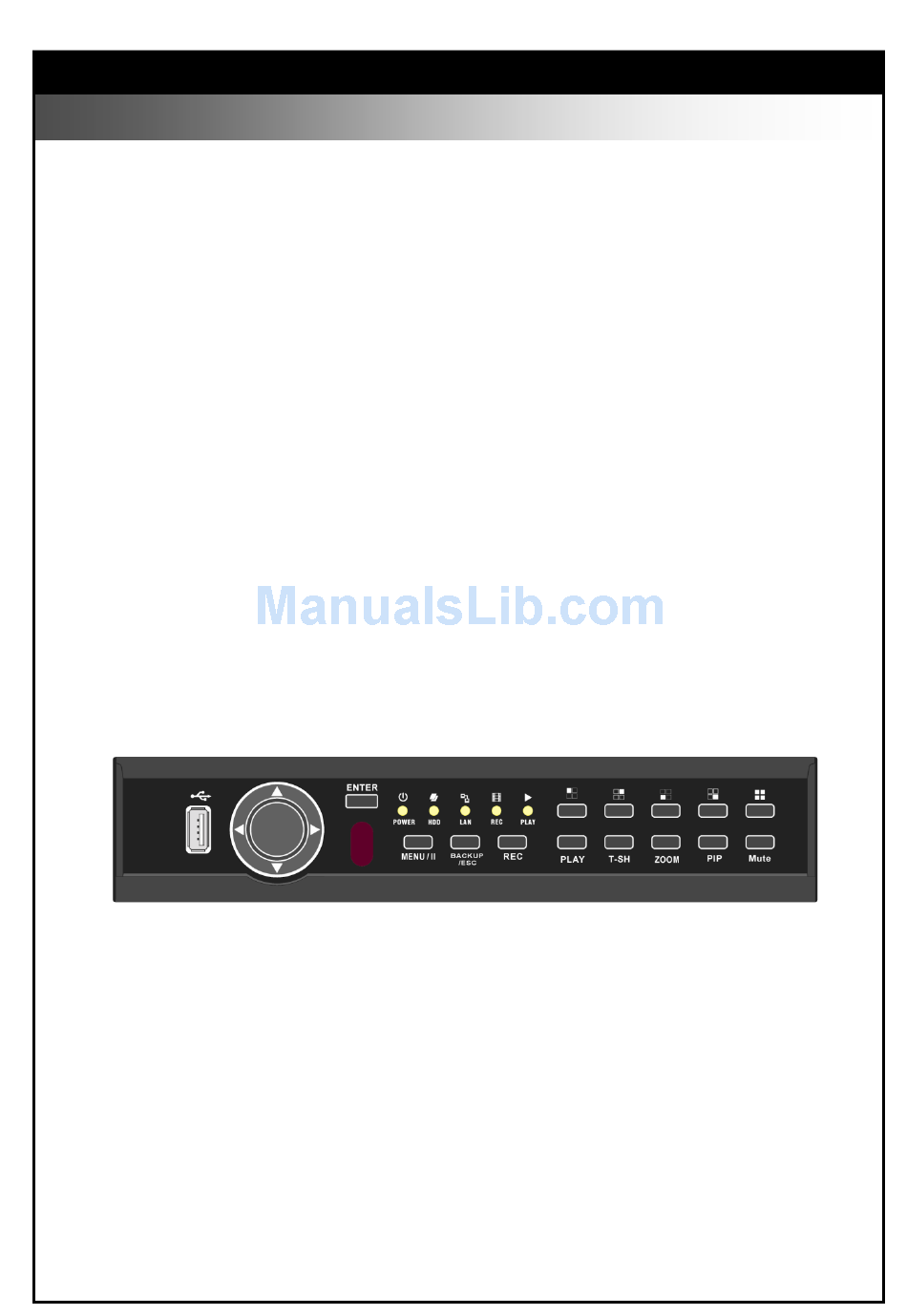

  • Page 1 User Manual XVR264_04C v1.0 ─ 4CH DVR ─ This document contains preliminary information and subject to change without notice.
  • Page 2 WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. NOTE: This equipment has been tested and found to comply with the limits for a class digital device, pursuant to part 15 of the FCC Rules.

  • Page 3: Table Of Contents

    Table of Contents CHAPTER 1 PACKING DETAIL AND INSTALLATION _____________________ 6     1-1 PACKING ___________________________________________________ 6   1-2 Hard Disk Installation ________________________________________ 7 CHAPTER 2 PANEL LOCATION ________________________________________ 9     2-1 FRONT PANEL CONTROLS ___________________________________ 9   2-2 REAR PANEL CONNECTORS _________________________________ 10 CHAPTER 3 LIVE, PLAYBACK AND PTZ OPERATIONS _________________ 11  ...
  • Page 4   6-1 AP Software Installation and instruction ______________________ 45   6-2 How to do remote monitoring through IE _____________________ 47 6-3 How to do remote monitoring through JPEG VIEWER(Only Monitor   Function) _____________________________________________________ 48   6-4 AP Software Operation ______________________________________ 50 CHAPTER 7 SPECIFICAITONS _______________________________________ 51  ...
  • Page 5   9-5 Main Display _______________________________________________ 88   9-5.1 Audio Control _________________________________________ 88   9-5.2 eMAP Display _________________________________________ 89   9-5.3 PTZ Control ___________________________________________ 90   9-6 Operation Bar ______________________________________________ 91   9-6.1 User administration ____________________________________ 92   9-6.2 DVR Administration ____________________________________ 93  ...

  • Page 6: Chapter 1 Packing Detail And Installation

    CHAPTER 1 PACKING DETAIL AND INSTALLATION 1-1 PACKING 1. DVR 2. Quick Start 3. IR Remote Control 4. SATA Cord 1pcs 5. CD 6.Screws x4 7. Power Adaptor Note: Standard shipping products include neither HDD nor DVD R/W 2010.08.31 XVR264-04C User Manual V1.0...

  • Page 7: Hard Disk Installation

    1-2 Hard Disk Installation Step１)：Take out the screws as pictures show。 Back panel 3 screws Left 1 screw Right 1 screw Step 2 ) ：Open the cover follow the arrow direction。 2010.08.31 XVR264-04C User Manual V1.0...
  • Page 8 Step３)：Connect SATA & Power wire to Hard Disk and put it on right position of the bottom case。 Step４)：Fix the Hard Disk with four screws on the bottom case as the picture indicated。 Step５)：Put the cover back and fix it with 5 screws as Step 1 indicated. Note: After installation, please initialize Hard Disk before starting to record.

  • Page 9: Chapter 2 Panel Location

    CHAPTER 2 PANEL LOCATION 2-1 FRONT PANEL CONTROLS ⑫ ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ Port for USB external devices. ① USB 2.0 In SETUP mode, press to move cursor down. In PLAYBACK mode, ②...

  • Page 10: Rear Panel Connectors

    2-2 REAR PANEL CONNECTORS ③ ④ ① ② ⑤ ⑥ ⑦ ⑧ ⑨ DC 12V power jack ① DC 12V MAIN/SPOT monitor BNC Video output ② VIDEO OUT For cameras BNC input ，4 ports ③ VIDEO IN ④ AUDIO IN RCA input( For CH1) ⑤...

  • Page 11: Chapter 3 Live, Playback And Ptz Operations

    CHAPTER 3 LIVE, PLAYBACK AND PTZ OPERATIONS The IR remote control and mouse operate differently under each mode; this chapter describes the functions of them under three different modes: LIVE, PLAYBACK and PTZ. 3-1 LIVE Mode You can monitor all the channels, listen to audio signal and have some related operations under LIVE mode.
  • Page 12 Table 3-1.2 Graphical icons that will display after right-clicking your mouse under LIVE mode. Icon Description Resting the cursor on this icon will bring up the following four menu icons. Main menu. Search menu. Backup menu. PTZ mode. Turn on/off recording. Playback.
  • Page 13 Table 3-1.3 Description of on screen graphical icons in LIVE mode Icon Description Recording is on Schedule Recording is on Live Audio is on Live Audio is off Motion detected on the channel Video loss detected on the channel USB device detected Connected to the LAN cable.

  • Page 14: Playback Mode

    3-2 PLAYBACK Mode Switch to PLAYBACK mode by pressing “PLAY” under the LIVE mode, the graphical icon will show up on the upper center of the screen and the operation panel ( see below picture) will show up at right lower corner of the screen. You can drag the panel by mouse to place it on any location of your screen.
  • Page 15 Table 3-2.2 The mouse operation under the PLAYBACK mode. Icon Description 」 Fast rewind 「 」Fast forward 「 Play/pause ／ 「▲ / SLOW」 ，slow playback 「▼ / ■」stop playback Playback channel by channel with snap shot display Full screen display Quad display Zoom-in display If you want to monitor single channel, please choose a channel and click left butt...

  • Page 16: Ptz Mode

    3-3 PTZ Mode Switch to the PTZ mode by pressing “PTZ” button under the LIVE mode. The PTZ icon will appear on upper left side of screen and the control panel will appear on the down right side of screen. Table 3-3.2 Mouse operation under the PTZ mode Icon Description...

  • Page 17: Chapter 4 Main Menu Setup

    CHAPTER 4 MAIN MENU SETUP To enter the main menu and set up DVR, log-in account and user password are required. The default password of the administrator is “123456”. Please check the “Account Setup” for related setup of other log-in users. Table 4-0.1 Some definition of virtual keyboard.

  • Page 18: Record Setup

    Table 4-0.2 The operation of remote control under the setting menu Item Description Switch to different options under one item Switch to different items MENU Save setup and back to LIVE mode Back to Upper level of menu without saving ENTER Enter the menu, or display virtual keyboard PS.

  • Page 19: 4-1.1 Quality & Frame Rate Setup

    4-1.1 Quality & Frame Rate Setup Item Description Normal setup/ Select recording mode event setup Select recording resolution: NTSC:352x240, 704x240, 704x480 Resolution PAL:352X288,704X288,704X576 You can setup quality and FPS separately for record type. Record Type Check/uncheck the box enable/disable selected channel recording Select quality: Below Basic/ Basic/ Normal/ High/ Highest Quality Select recording frame rate.

  • Page 20: 4-2.1 Motion Setup

    4-2.1 MOTION SETUP Item Description When motion detect，the number of seconds continuous alarm Alarm Duration(Seconds) You can setup independently for each channel. Check the box to Enable/Disable motion detection for each channel. Enable Drag the white bar or press ◀ ▶ to set up Sensitivity from valu e 1 to 10 for each channel.

  • Page 21: Schedule Setup

    Item Description Switch between “select” and “deselect” for cursor-dragging function Mask Mouse Selection Select entire screen as detection area. All Area Detection Deselect entire detection area. Mask All Area Continue setup Continue Save setup and leave Exit & Save Cancel setup and leave Exit &...

  • Page 22: 4-3.1 Schedule Record Setup

    4-3.1 Schedule Record Setup Click on the time on the left side. The setup menu will be displayed. You can have detail setup by dates, Time and event. 4-3.2 Holiday Setup Since holidays are different by different country and region, you can setup the holiday of your location accordingly.

  • Page 23: Camera Setup

    4-4 CAMERA SETUP Item Description You can setup independently for each channel. Check the box to Enable/Disable mask function for LIVE mode Mask Drag the bar or press ◀ ▶ to adjust Sharpness of your camera from Sharpness value 0 to 15. The default value is 1. Drag the bar or press ◀...

  • Page 24: Account Setup

    4-5 ACCOUNT SETUP The Account Setup menu is used to provide role-based permission independently setting for each user (maximum of 4 users) to access DVR over network. The default admin account and password is “admin” and “123456” (The default password remains the same after firmware upgrade) Item Description Check to activate the user’s account.

  • Page 25: 4-5.2 User Picture Setup

    4-5.2 User Picture Setup User can select picture wished to be changed to from hard drive. 4-6 NETWORKING SETUP Item Description Setup mode for network connection: (ADSL、DHCP、LAN、3G). Connect type Enter to set up HTTP HTTP Setup Enter to set up DDNS DDNS Setup Enter to set up mail Mail Setup...

  • Page 26: 4-6.1 Networking Setup

    4-6.1 NETWORKING SETUP There are three ways to connect to the network as followed. 4-6.1.1 DHCP When DHCP is selected, IP address will be assigned by DHCP server automatically. 4-6.1.2 LAN Select LAN for network connection, the following information is required. Item Description Enter IP address provided by ISP...

  • Page 27: 4-6.1.3 Adsl

    4-6.1.3 ADSL Select ADSL for network connection, the following information is required. Item Description Enter user name provided by ISP User Name Enter password provided by ISP Password 4-6.1.4 3G Select 3G for network connection, the following information is required. Item Description Dial-up Number，Determined as the ISP...

  • Page 28: 4-6.2 Http Setup

    Item Description Enable advance setting Enable Enter ISP username User Name Enter ISP password Password Enter the ISP provides a fixed IP address。 IP Address (if the client uses the Internet only need to enter a fixed IP) PS：This feature currently only supports the Huawei 3G card 4-6.2 HTTP Setup Item Description...

  • Page 29: 4-6.3 Ddns Setup

    4-6.3 DDNS Setup Item Description Enable/disable DDNS function. Enable DDNS Enter the registered SMTP Server: DDNS Server 、 、 DYNDNS.ORG 、 NO-IP.ORG 、 3322.ORG ez-dns＊ I-DVR.NET＊ Enter the completed registered SMTP Server. Host Name (Including username + Server) If the user name is h.264 and you choose i-dvr as your server, you should enter: h.264.i-dvr.net Enter user name.

  • Page 30: 4-6.4 Mail Setup

    4-6.4 Mail Setup When event occurs (VLOSS, MOTION), email will be sent to the receiver account automatically. Item Description Check the box to enable/disable E-mal Notification function. Enable E-mail Notification Enter to set up SMTP Server name. SMTP Server (Varies according to the user) Enter to set up User Name.

  • Page 31: Ptz & Rs485 Setup

    4-7 PTZ & RS485 SETUP The DVR allows users to control PTZ functions of your camera. To enable PTZ function, the 485 cable should be connected to the RS-485 port of DVR. Item Description Click the box to Enable/Disable PTZ function for each channel. Enable PTZ Set up the protocol of PTZ cam.

  • Page 32: System Setup

    4-8 SYSTEM SETUP Item Description The name of DVR will be shown when users login from remote access. DVR Name The location of DVR will be shown when users login from remote access DVR Location Click or press ▼ to select OSD language. Language Default ID is 0.

  • Page 33: 4-8.2 Date/Time Setup

    Item Description Set up duration time in seconds for the interval between channels Auto-Seq Interval under Auto-Seq mode. Turn On / Off OSD display Show OSD Turn On / Off DVR illustration and record status display Show DVR Status Turn On / Off date and time display Show Date/Time Turn On / Off channel name display Show Channel Name...

  • Page 34: 4-8.2.1 Change Date & Time

    4-8.2.1 CHANGE DATE & TIME Setup date and time of DVR manually according to user’s local time. 4-8.2.2 TIME ZONE AND DAYLIGHT SAVING TIME SETUP Set up time zone and activate Daylight Saving Time function according to user’s DVR location. Item Description Enter to modify GMT from GMT- 13 to GMT+ 13...

  • Page 35: 4-8.2.3 Internet Time Setup

    4-8.2.3 INTERNET TIME SETUP Synchronize your DVR time with internet time server. Item Description Check to enable DVR automatic synchronization function. Effective by this option selected, DVR will automatically Automatic synchronize the time upon rebooting or by every 24 hours after Synchronization booting.
  • Page 36 Item Description Enable/Disable keystrokes. Key Tone Enable/Disable buzzer operation when the alarm is triggered for Buzzer HDD Error, Motion and Vloss (Video Loss). 2010.08.31 XVR264-04C User Manual V1.0...

  • Page 37: Utility Setup

    4-9 UTILITY SETUP Item Description Select to enter hard disk initialization menu. Please stop HDD Initialization recording before entering this menu. Enter the menu, system will show all the data (model ,volume ) of HDD that installed in DVR. Check the HDD you’d like to initialize then press “Start”.

  • Page 38: Diagnostic

    4-10 DIAGNOSTIC Item Description The current firmware version of DVR Version The connected IP address of DVR. If disconnected from network, the screen will display” NETWORK DISCONNECT”. MAC Address of DVR HDD number HDD Status HDD Capacity Volume Percentage of space used on HDD. Used Rate Shows HDD status.

  • Page 39: Chapter 5 Backup & Search

    CHAPTER 5 BACKUP & SEARCH 5-1 BACKUP SETUP User can backup any segment of recorded data in a specified time frame. To do so, either a CD R/W or storage device, like USB, must be connected to the DVR. The format of backup file is IRF file that can be played by both “Ifileplay”...
  • Page 40 iFileplay Use Method Step 1: install 「iFileplay」 software to your PC. You can get 「 iFileplay」 file from the CD with DVR Packing. PS: When you using USB to backup file, iFileplay.exe will copy to USB with the backup file automatically. Step 2：Setup「ifileplaypack.exe」...
  • Page 41 Step 4：Ifileplay software will play the backup file automatically. Step 5：If there is no display on the screen, The backup file is not our DVR recording format. Please check it. 2010.08.31 XVR264-04C User Manual V1.0...

  • Page 42: Search Setup

    5-2 SEARCH SETUP Item Description Event search menu Event Search Enter time search menu Time Search 5-2.1 EVENT SEARCH The DVR automatically records events with type, time and channel information included. If there is recording data for an event, a yellow signal will be shown on the left side of time information.

  • Page 43: 5-2.1.1 Criteria Setup For Event Search

    Item Description Setup conditions of event search Criteria Switch between pages of events Page Date/time when event occurred. Date/Time Event type, defined as following Motion Detected MOTION Video Loss Video Loss user log-in over the network Remote Login user log-out over the network Remote Logout Event Type DVR Power on...

  • Page 44: 5-2.2 Time Search

    5-2.2 TIME SEARCH TIME SEARCH can search for the specific time of recording data to playback. Press “Enter” or left click on the desired date to playback. Note that dates with recording data are marked with a red square “ “System will start playing back according to the date you selected.

  • Page 45: Chapter 6 Remote Software Installation And Setup

    CHAPTER 6 Remote Software Installation and Setup 6-1 AP Software Installation and instruction AP software:「DVR Remote Desktop」can allow you to remotely access and control the DVR from PC. p.s. Operation system currently supports Windows XP SP2 and above and Window s Vista, Windows 7 Step One：Enter the IP address of DVR in IE browser Step Two: Windows as below will show up.
  • Page 46 Step Four: Run or Save our AP software. Step Five: If you choose to run the software, Start window will be shown up. Please enter information of login DVR: IP, Port, Username and Password, or choose “Play Recorded File” to open backup files in your PC. Step Six: You’ve logged into the DVR 2010.08.31 XVR264-04C User Manual V1.0...

  • Page 47: How To Do Remote Monitoring Through Ie

    6-2 How to do remote monitoring through IE Step One：Enter the IP address of DVR in IE browser. The address appeared in this image is only for demonstration. Actual address is depending on the setup of on-site DVR. Step Two: Windows as below will show up. Please enter the user name and password. Default user name and password is admin/123456.

  • Page 48: How To Do Remote Monitoring Through Jpeg Viewer(Only Monitor Function)

    Step Four: DVR images appear. 6-3 How to do remote monitoring through JPEG VIEWER(Only Monitor Fun ction) Step One：Enter the IP address of DVR in IE browser. The address appeared in this image is only for demonstration. Actual address is depending on the setup of on-site DVR. Step Two: Windows as below will show up.
  • Page 49 Step Three: Click on “Jpeg Viewer” Step Four: DVR images appear. PS : Only for viewer, without any operation function. 2010.08.31 XVR264-04C User Manual V1.0...

  • Page 50: Ap Software Operation

    6-4 AP Software Operation Open the file “DVRemoteDesktop.exe”; enter the information of DVR “IP address”, “Port” “Username” and “Password” and click “OK”. You should be able to login DVR successfully and start to use the software. The default username and password is 「admin/ 123456」 “DVRemoteDesktop.exe”...

  • Page 51: Chapter 7 Specificaitons

    CHAPTER 7 SPECIFICAITONS 1. VIDEO Input Level 1.0 Vp-p±10% Composite, 75Ω Balanced NTSC 120fps Display Speed 100fps NTSC 720(H) X 480(V) Display Resolution 704(H) X 576(V) Monitor Output 2Vp-p Composite, 75Ω Balanced 2. RECORDING Compression Method H.264 Recording Speed Refer to table 7-1 NTSC 704 X 480, 704 X 240, 352 X 240 Recording Resolution...
  • Page 52 Dimension 225(W) x 215(D) x 46(H) mm Weight 0.95kg ( without HDD) 9. BACKUP USB Stick Video Data, Audio BACKUP Network Video Data, Audio 10. SEARCHING & PLAYBACK Searching Type Event/ Time Playback speed 120 FPS 11. MULTI-REMOTE SURVEILLANCE Monitoring Environment Web / Client Software(CMS) Max.

  • Page 53: Chapter 8 Mobile Application Installation And Usage

    CHAPTER 8 MOBILE APPLICATION INSTALLATION AND USAGE You can remotely monitor all channels of DVR through your mobile device. The required mobile application is from DVR manufacturer and it supports mobile OS for both Windows mobile 5.0 above and Symbian. Please confirm network function of DVR has been activated before mobile connection: Main menu Network Setup...

  • Page 54: 8-1.2 Mobile Application Operation

    8-1.2 Mobile Application Operation After the installation, enter the Program Files menu in your mobile device to run a file called “DVRH264”. Select “Menu” at the right lower corner of your mobile screen, 4 commands, Login Add Modify and Delete, will show up.

  • Page 55: 8-1.2.3 Modify The Login Information Of Dvr

    8-1.2.3 Modify the Login Information of DVR You can use the “Modify” command to change the login information of DVR. The dialogue is identical to that of the “Add” command. 8-1.2.4 Delete the Login Information of DVR “Delete” command can be used to remove the DVR information if it is no longer useful. Select the DVR on the name list then choose “Delete”...

  • Page 56: 8-1.3.1 Scroll The Image

    8-1.3.1 Scroll the Image You can use the keypad on your mobile device to scroll the image if it’s oversized. Action Scroll Up Scroll Left Scroll Right Scroll Down 8-1.3.2 Image Quality Setup Select “Quality” under the “Menu” There will be 5 levels for your to choose: Low、 Normal、Middle、High and Highest.

  • Page 57: 8-1.3.4 Size Of Image

    8-1.3.4 Size of Image The screen size of different mobile device can be different. You can select “Size” under the “Menu” to choose from “Original” or “Fit Screen” to resize the display image. Item Description Original The image will be shown in original size.

  • Page 58: Mobile Application Installation And Operation For Windows Mobile

    8-2 Mobile Application Installation and Operation for Windows Mobile There is one application for Window Mobile OS. The one for H.264 compression can transfer both audio and video signal to your mobile device. System Requirement: Mobile device OS：Windows mobile system 5.0 above. Mobile device need to support internet: GPRS／3G／Wifi…...

  • Page 59: 8-2.2 Mobile Application Operation

    8-2.2 Mobile Application Operation After the installation, enter the Program Files menu in your mobile device to file named “DVRU264Pocket” and run “H264Pocket”program. This application allows you to remotely logon and monitor DVR. Press “OK” to bring up the operation menu, see below chart to further information. Item Function Description...

  • Page 60: 8-2.3 Operation Under The Live Monitoring

    8-2.3 Operation under the LIVE monitoring. After successful log on the DVR, press “View” to bring up operation menu. You can choose the channel, resize the image, choose the quality, and turn on/off the status bar, alarm, full screen display….etc Item Function Description...

  • Page 61: Google Android Phone Os Application And Operation

    8-3 Google Android Phone OS application and operation System requirements： Mobile Device operation platform：Google Android System。 Internet needed for Mobile device operation platform (GPRS/ 3G/ Wifi…etc.) In order to remote log in to DVR to live monitoring through mobile device, first of all, please follow the instructions for software installation: Step 1: Google Phone applications will copy and extract to the PC (or NB).
  • Page 62 Step 3: Click the implementation of the "gphone" directory → tools → installapk.bat This step will install Google phone software directly connected to the Gphone. After installation, please press any key to exit. Step 4: In Gphone mobile , click , look and perform "Androidh264".
  • Page 63 Step 5: Click "Menu" → Add new DVR Name, IP location, Port, User name and Password, enter the complete click Login. Step 6: Wait for a moment that will occur real-time video (according to the actual network speed, connection time needed may vary). Click the top "AndroidH264 (Press Menu)"...

  • Page 64: Blackberry Operation System Software Installation And Operation

    8-4 Blackberry Operation System Software Installation and Operation System requirements： Mobile Device operation platform：Blackberry 9000 Internet needed for Mobile device operation platform (GPRS/ 3G/ Wifi…etc.) Software：Blackberry Desktop Manager v4.6 or above 8-4-1 Software installation In order to remote log in to DVR to live monitoring through mobile device, first of all, please follow the instructions for software installation: Step One: Visit Blackberry official website http://na.blackberry.com/eng/services/desktop/...
  • Page 65 Step Three：Run ”Application Loader” Step Four: Run “Add/Remove Applications” Step Five: Please copy”dvrh264.alx” and “dvrh264.cod” to PC. The software is available in the User CD that comes with each of DVR. 2010.08.31 XVR264-04C User Manual V1.0...
  • Page 66 Step Six: Find “dvrh264.alx” in Blackberry Desktop Manager . After activating the software, press “Next.” The software will be installed in Blackberry automatically. Remove USB cable after installation. Step Seven: After the software is installed completely, enter “Download” menu in the mobile device and execute program, “H264MIDlet”...

  • Page 67: 8-4.2 Application Software Operation

    8-4.2 Application Software Operation 8-4.2.1 Add new log-in DVR In order to connect to DVR, please input DVR information to the mobile device. Press “option” → “Add”, and then enter “DVR IP,” “port,” “log-in account,” and, ”log-in password.” Press “ok” to save. 8-4.2.2 Log in onto the DVR Multiple DVR information can be saved with this software, therefore, please choose the DVR that’s wished to be connected.

  • Page 68: 8-4.2.3 Modify The Login Information Of Dvr

    8-4.2.3 Modify the Login Information of DVR If DVR log-in information is wished to be modified, please select the DVR. Enter “Option” → “Modify” for editing the existing data. Press “OK” when it’s finished. 8-4.2.4 Delete DVR Existing Record (Connection Information) If DVR connection information is no longer needed, please select the DVR.

  • Page 69: 8-4.3.3 Image Rotation

    8-4.3.2 Image size Due to the variety sizes of mobile device screens, this software offers two different methods for image display. Press “Size” in menu, and then there will be options, “Original” and “Fit Screen” available to choose from. Option Description Original Image appears as its original size.

  • Page 70: Iphone Software Installation And Operation

    8-5 iPhone Software installation and operation 8-5.1 iTune software installation and registration STEP1: Download iTunes Visit Apple website http://www.apple.com/itunes/ to download & install the iTunes. Step 2 Register iTunes Store 2.1.1 Run the installed iTunes, you might need to create an account to visit iTunes store firstly.
  • Page 71 Step 3: Continue 2.1.3 Select & continue Step 4: Select & Continue 2.1.4 Fill in your personal info & continue. 2010.08.31 XVR264-04C User Manual V1.0...
  • Page 72 Step 5: Fill in your personal info & continue. Please note that the options of Payment Method are different from different regions, please select another payment method. Don’t worry, “SCDVR” is a free software & you don’t need to pay for it. Step 6: Finished the register, go to your email box to verify your account.
  • Page 73 Step 8: It will connect to the iTunes store and turn to iTunes interface. Step 9: Sign in your account. Step 10: The register of your iTunes store account has been done. 2010.08.31 XVR264-04C User Manual V1.0...

  • Page 74: 8-5.2 "Scdvr" Software Installation ( From Itunes )

    8-5.2 “scdvr” software installation ( From iTunes ) Step 1: Click iTunes Store(1), then input “scdvr” into the search bar(2) on the right upper corner and press Enter. Step 2: You will find the ScDvr icon displayed as below. Click the icon and it will turn to the download page. Click the “FREE APP” button to download the file.
  • Page 75 Step 4: Connect your iPhone to the computer, you will find your Device displayed on the left si debar. Select the DEVICES ID(1), and then click “Applications” option(2). Select the “Sy nc Applications” & “ScDvr” and then click “Sync” button(4). ＊...

  • Page 76: 8-5.3 "Scdvr" Software Installation ( From App Store )

    8-5.3 “scdvr” software installation ( From App Store ) Step 1: iPhone connect to internet ( GPRS/3G/Wifi…), and run App Store program. Step 2: Search the “Scdvr’’ program. 2010.08.31 XVR264-04C User Manual V1.0...
  • Page 77 Step 3: Show Scdvr information & “Free” icon. Step 4: Press “Free” icon till it become “Install” then click and run install progra 2010.08.31 XVR264-04C User Manual V1.0...
  • Page 78 Step 5: Sign in Username & Password. Step 6: Wait process complete. iPhone will generate a new ScDvr program. 2010.08.31 XVR264-04C User Manual V1.0...

  • Page 79: 8-5.4 How To Operate "Scdvr" Program

    8-5.4 How to operate “ScDvr” program. Run ScDvr program in the beginning. 8-5.4.1 Add new DVR information. When you use ScDvr program first time, you must enter and save DVR’s information. Pl ease press the “Add” then enter the DVR’s Name/ IP/ Port/ Username/ Password, after t hese information fill.

  • Page 80: 8-5.4.2 How To Log In Dvr

    8-5.4.2 How to log in DVR. “ScDvr” can store many DVR’s information, You can choose the DVR you need and pre ss “GO” to log in. The login take time depend on network bandwidth. Live view will appear when login suc cessfully.

  • Page 81: 8-5.5 How To Use Scdvr To Live Monitor

    8-5.5 How to use ScDvr to Live monitor. 8.5.5.1 Live display When Live view, click the lower window. A control table will appear. You can switch the Live View from CH1~CH4 and on/off the voice. Press the “Uidvr”. You can back to the previous page.

  • Page 82: Chapter 9 Cms Installation And Usage Guide

    CHAPTER 9 CMS INSTALLATION AND USAGE GUIDE 9-1 CMS Installation System Requirement: Intel Pentium 4 processor or equivalent. ＊ Microsoft Windows Vista、Windows XP、Windows 2003 Server. ＊ Besides OS and other required APs, there will be 512MB remaining memory needed or above. ＊...
  • Page 83 6. Select ‘Close’ to finish installation when the “Installation Complete” window shows. 2010.08.31 XVR264-04C User Manual V1.0...

  • Page 84: Instruction For Log-In Failure To Cms After Upgrade

    Instruction for Log-in Failure to CMS after Upgrade Log in to CMS with the default account and password after CMS upgrade. If an error message occurs as shown in the image, please follow the instruction to solve the error. Step 1: Please enter file manager to enter folder, “Windows” and then folder “Systme32” (ex:C:\Windows\System32) Step 2: Locate file, “iCMS.dat”...

  • Page 85: Cms Login And Environment

    9-2 CMS LOGIN AND ENVIRONMENT To enter CMS, the administrator’s user name and password are required. The defaults are ‘admin’ and ‘123456’. After successful login, the following image shows on your screen: ③ ① ② ④ ⑤ Information about DVRs, groups and events. ①...

  • Page 86: Dvrs, Groups & Events

    9-3 DVRs, Groups & Events Icon Description View list of logged in DVR／ Group. View Logs: list all the event information of DVR ／ 9-3.1 View DVR Group List Single left click on ‘DVR’ or ‘Group’ will expand/collapse the entire DVRs and groups list.

  • Page 87: 9-3.2 View Event Logs

    9-3.2 View Event Logs Under this page, all the events of a DVR can be expanded/collapsed in the order of Re mote in/Remote out, Video Loss, Motion, Sensor, Others (Power Reset, Key Lock, Key Unlock, HD Full). 9-4 Local PC Information and Control Located at the left lower corner of the screen, please see the chart below: Icon Function...

  • Page 88: Main Display

    9-5 Main Display The main display area is where the live image of DVR is shown. You can drag to change the location of screen for each channel and turn on/off audio signal with mouse-click. 9-5.1 Audio Control In live mode, you can turn on/off the audio signal of Ch1~Ch4: 」Audio signal is On 「...

  • Page 89: 9-5.2 Emap Display

    9-5.2 eMAP Display In Live mode, pressing will bring the e-MAP drag-down menu. If the channel has been set up to use e-MAP, the menu will show all the e-MAP titles that have been entitled to this channel; otherwise, “No eMaps” will be shown. Please check “9-6.4 eMAP administration”...

  • Page 90: 9-5.3 Ptz Control

    9-5.3 PTZ Control In the main display, right click on the channel will bring up PTZ control panel as below. Icon Description 8 direction key Rotate the PTZ ZOOM+：Zoom in ZOOM : Zoom out Setup the PTZ spot as pre-set N. FOCUS+ : Focus in FOCUS-：Focus out Move to pre-set N.

  • Page 91: Operation Bar

    9-6 Operation Bar 10 Operations to be listed as below: Table 9-6.1 description of 10 operations: Icon Description User Administration. Please see “9-6.1 User administration” DVR Administration. Please see “9-6.2 DVR Administration” Group Administration. Please see “9-6.3 Group Administration” eMap Administration. Please see “9-6.4 eMap Administration”. Remote Playback.

  • Page 92: 9-6.1 User Administration

    9-6.1 User administration Before the CMS can be used on a PC, user accounts should be added with proper authority. Each user should also be assigned a password and optionally a description. If a user does not have certain authority assigned, he/she will not be able to operate the corresponding function on the Operation Bar.

  • Page 93: 9-6.2 Dvr Administration

    9-6.2 DVR Administration DVR connections can be added to or deleted from the CMS and their information can be edited. DVR’s channel names can be entered here or downloaded from the DVR by pressing ‘From Select “OK” to save the information. DVR’.
  • Page 94 3. Check the specific channels that you’d like them to be included in the group. To include all channels of a DVR, just check the DVR.(1 Group up to select 64 camera) 4. Click “OK” to return to the previous window. 5.

  • Page 95: 9-6.4 Emap Administration

    9-6.4 eMap Administration If geographical locations are relevant, or if it is desired to use a picture as the background, eMap can be used for the purpose. With eMap, the background picture can be picked by the user and channels from multiple DVRs can be placed and dragged around on the picture. Steps to follow: 1.
  • Page 96 5. Click OK to save. 2010.08.31 XVR264-04C User Manual V1.0...

  • Page 97: 9-6.5 Remote Play

    9-6.5 Remote Play Video images recorded on a DVR can be displayed on a remote CMS. With Remote Play function, select a DVR and a display mode on top of the screen. After the recorded segments are listed below, double click on one to show its image on the right. Icon Description Start playing.

  • Page 98: 9-6.6 Hdd Playback

    9-6.6 HDD Playback You can directly play the recording data in the HDD that’s uninstalled from DVR by CMS. See the picture below, the left part of screen is recording data in list that’s separated by hour and the right part is main display. You can change the display modes and play files fast forward or rewind.

  • Page 99: 9-6.7 File Playback

    9-6.7 File Playback You can play the recorded .irf files by “File Play” in CMS. It allows you to change the display mode, forward or rewind the file and drag the time bar. Icon Description Start playing. Pause. Stop playback. Fast forward.

  • Page 100: 9-6.8 Event Playback

    9-6.8 Event Playback Event recordings on the DVR can be played back in CMS. Steps to follow: 1. Select a DVR and a display mode. 2. Select a date. 3. Double click an event and play back the images on the right. Use buttons at the bottom to control the playback.

  • Page 101: 9-6.10 Recording Data

    9-6.10 Recording Data It can play all the recording files you’ve recorded in line in “Recording Data”. You can play or delete them here. Steps to follow: 1. Choose the recording time at upper left corner, it will be played on the main display. 2.

  • Page 102: Appendixⅰ I-Dvr.net Registration

    APPENDIXⅠ I-DVR.NET REGISTRATION DDNS Registration on I-DVR.NET In the package of each DVR, you will find a sticker shows account information including username and password that allows users to login I-DVR.NET for registration. To register DDNS on I-DVR.NET, please follow the steps as shown. Step 1.
  • Page 103 Step 4. Enter DVR →Main Menu → Network Setup → DDNS. Activate DDNS functions and input related information. DDNS work properly when this option selected. This part of the information required and the same within the i-dvr.net Step 5.Back to the i-dvr.net, on this page by pressing "F5: Refresh", IP will be automatically updated into the DVR of the real IP location.

  • Page 104: Appendixⅱ Ez-Dns Registration

    APPENDIXⅡ ez-dns REGISTRATION DDNS Registration on ez-dns.com In addition to I-DVR.NET the Company, the other has a ez-dns.com server may be used.. To register DDNS on ez-dns.com, please follow the steps as shown. Step 1. Please open IE browser and then enter “ http://ez-dns.com ”...
  • Page 105 Step 3. The “host.domain” column will show up the setup just entered. Next, enter the DVR the same time setting the DDNS client machine information If DDNS set up at DVR side successfully, the website will update the IP information in 10 minute.
  • Page 106 DDNS work properly when this option selected. This part of the information required and the same within the ez-dns.com Step 5.Back to the ez-dns.com, on this page by pressing "F5: Refresh", IP will be automatically updated into the DVR of the real IP location. 2010.08.31 XVR264-04C User Manual V1.0...

  • Page 107: Appendixⅲ Remote Monitoring Ie Activex Control Installation Instruction

    APPENDIXⅢ Remote Monitoring IE ActiveX Control Installation Instruction When using IE for remote monitoring for the first time, IE ActiveX Control is needed to be downloaded. 1. When remote monitoring on IE for the first time, an alert message occurs “Install ActiveX control”...
  • Page 108 4. After installation, IE remote monitoring image appears. 5. If message, “Your security Settings do not allow web sites to use ActiveX controls installed on your computer.” pops on when logging in, please follow the next instruction. 6. First select “Tools” on the tool bar and then select “Internet Options” 2010.08.31 XVR264-04C User Manual V1.0...
  • Page 109 7. Select Security →Trusted Sites → Sites 8. Enter DVR address (This address is only for demonstration. Please use the address depends on the setup of on-site DVR.) into the blanks shown in picture, and then press “add.” 2010.08.31 XVR264-04C User Manual V1.0...
  • Page 110 9. Newly added website will appear at the trusted web sites list. Press close. 10. Go back to IE window, press refresh button or F5. 2010.08.31 XVR264-04C User Manual V1.0...

Table of Contents
