Summary of Contents for Lite-Purter ECP-105T
-

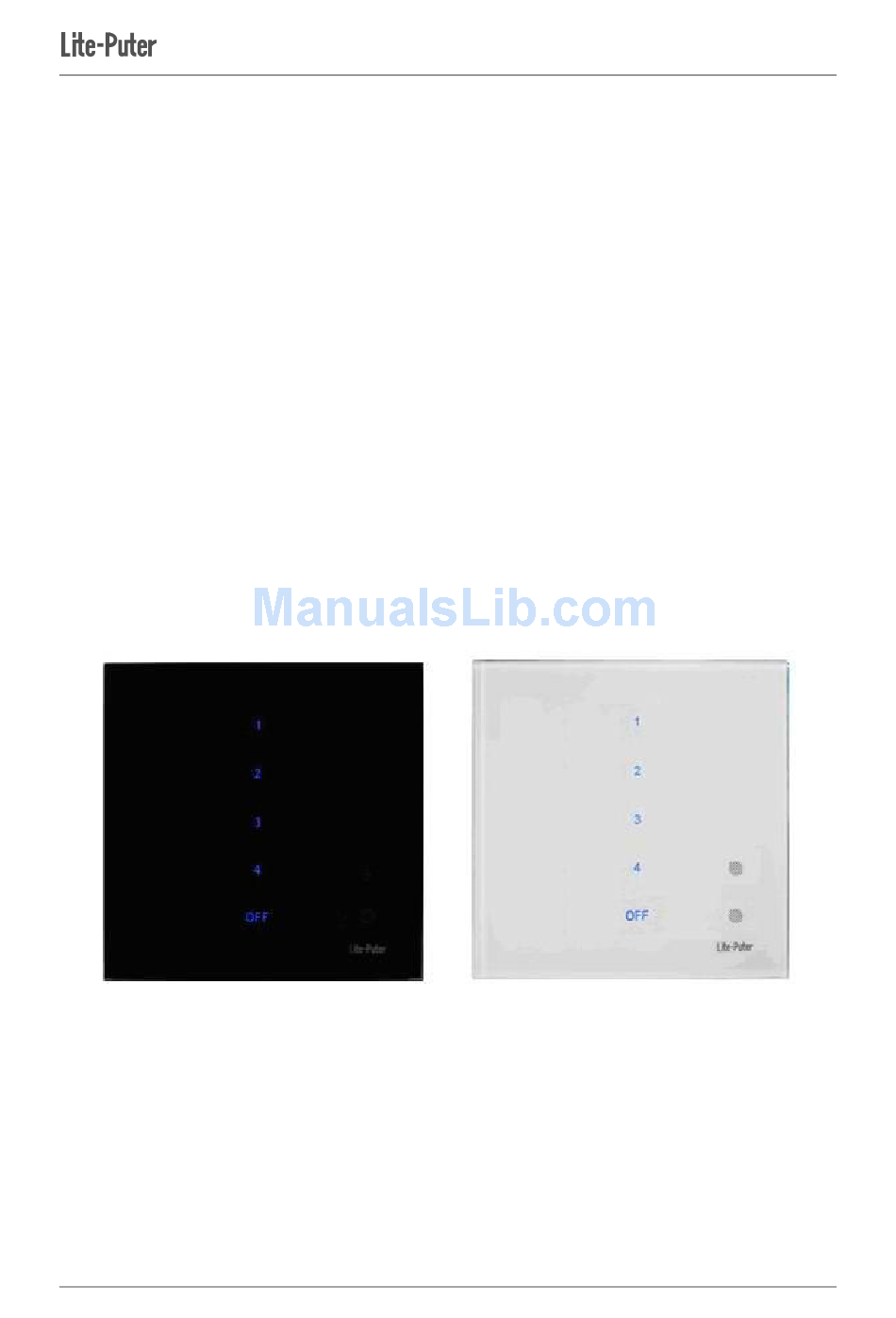

Page 1: Touch Panel
User Manual ECP-105T Touch Panel ECP-105T [EUM-C]... -
Page 2: Table Of Contents
..............................5 CENE ECALL 2-3 K ..........................6 NLOCK UNCTION 2-4 IR R ............................6 EMOTE ONTROL 2-5 B ............................. 6 RIGHTNESS NDUCTION 2-6 D ............................7 ONTACT NPUTS APPENDIX: BINARY CODE PRINCIPAL ....................10 LIMITED WARRANTY ..........................11 ECP-105T [EUM-C]... -
Page 3: Introduction
1. Introduction 1-1 Feature In multi-zone mode, one ECP-105T can control 1-8 zones at the same time. Can recall 4 scenes. 256 level dimming solutions enable more complicated lighting change. Lock/unlock setting. IR remote control Two dry contacts input. 1-2 Specification... - Page 4 Rear Side: Scene 1- 4 OFF button Panel light window IR window DIP switch ECP-105T [EUM-C]...
-
Page 5: Open The Upper Cover
1-4 Open the Upper Cover ：with screwdriver 1-5 System Diagram ECP-105T [EUM-C]... -
Page 6: Operation
(Zone 1) 2-1-2 Purpose of Zone Setting One ECP-105T can control 1-8 zones at the same time in EDX, before using the panels, be confirm the zone controlled by each panel. ECP-105T has two control modes: single-zone mode and multi-zone mode. -
Page 7: Zone Setting Mode Of Dip
The user can cancel the zone setting value if each of DIP is OFF. 2-2 Scene Recall Press【1……4】to recall the scene. For instance: press【1】 to recall Scene 1, and【1】shows red back light. In FADE state (by fault): press 【1……4】to show scene in FADE(in/out); Quick double click 【1……4】to recall scene. ECP-105T [EUM-C]... -
Page 8: Key Lock/Unlock Function
DIP10/OFF: turn off IR remote control function. 2-5 Brightness Induction ECP-105T auto-induce environment brightness and adjust brightness of the panel according to the brightness of surrounding environment. The stronger the bright is, the brighter the panel instructor is, and vice versa. -
Page 9: Dry Contact Inputs
The SC 6 will be recalled by actuating input 2; SC OFF will be recalled by disconnecting input 2 for 30s. In NEX: 1. Set ECP-105T single zone, the zone is 01 STEP1：Send command of SERVICE18 by actuating input 1; DP-E700 executes the command of SERVICE18: 80 01 55 01 00 12 00 00 05 STEP2：Send command of SERVICE19 by disconnecting input 1;... - Page 10 80 01 55 01 00 15 00 00 05 2. Set ECP-105T single zone, the zone is 02 STEP1：Send command of SERVICE22 by actuating input 1; DP-E700 executes the command of SERVICE22: 80 02 55 01 00 16 00 00 05 STEP2：Send command of SERVICE23 by disconnecting input 1;...
- Page 11 SERVICE33: 80 04 55 01 00 21 00 00 05 5. Set ECP-105T single zone as 5-128 or multi-zone as 1-8: Set zone of ECP-105T is 8(single/multi-zone) STEP1：Send command of recalling SC5 by actuating input 1; DP-E700 executes SC5 of Zone 8;...
-
Page 12: Appendix: Binary Code Principal
10000100 01000100 11000100 00100100 10100100 01100100 11100100 00010100 10010100 010101000 11010100 00110100 10110100 01110100 11110100 00001100 10001100 01001100 11001100 00101100 10101100 01101100 11101100 00011100 10011100 01011100 10011100 00111100 10111100 … … 11111111 ※ 0 = DIP/OFF; 1= DIP/ON. ECP-105T [EUM-C]... -
Page 13: Limited Warranty
Address: 11F, No. 189, Gangqian Rd., Neihu Dist., Taipei City 11494, Taiwan. Tel: +886-2-27998099 Fax: +886-2-27993828 Website: www.liteputer.com.tw E-mail: sales@liteputer.com.tw Shanghai Factory： Lite-Puter Technology（Shanghai）Co.,Ltd. Address: Building B5, No. 298, Lane 3509, Hongmei S. Road, Shanghai, China Zip Code:201108 Tel: +86-21-54408210 Fax: +86-21-64978079 Website: www.liteputer.com.tw E-mail: sales_china@liteputer.com.tw ECP-105T [EUM-C]...
