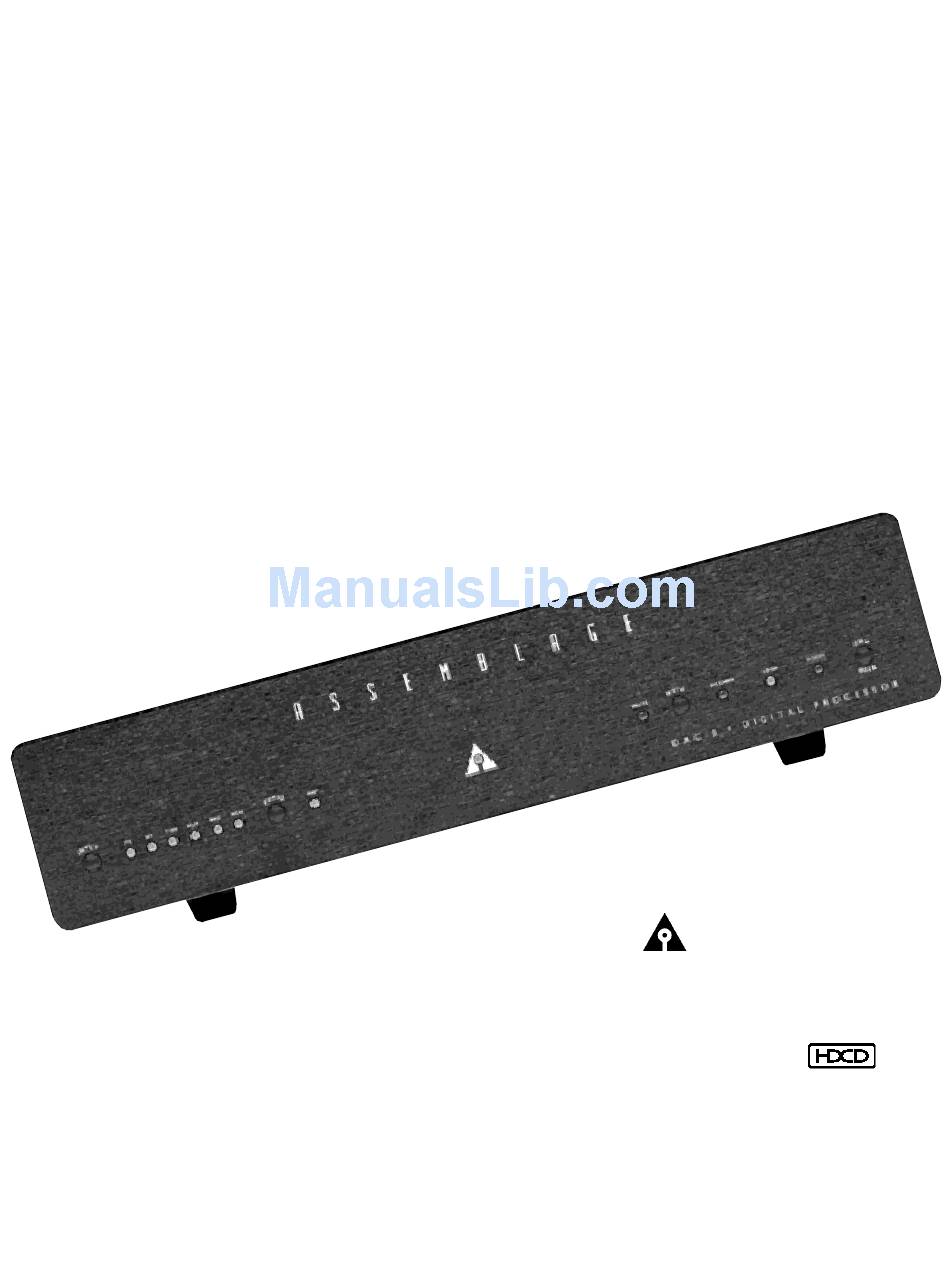

C o n s t ruction and Operating Manu a l
L
®
D
D
T L P
T H

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DAC-3 and is the answer not in the manual?

Questions and answers

Summary of Contents for assemblage DAC-3

  • Page 1 C o n s t ruction and Operating Manu a l ® T L P...

  • Page 2: Table Of Contents

    When constructing this kit, take care that the assembly steps are followed precisely. Take extra care when completing Step 6; if these steps are executed incorrectly, damage to the DAC-3 may result when the unit receives power. Under no circumstances does The Parts Connection or Sonic Frontiers, International assume liability or responsibility for injury or damages sustained in the operation or assembly of this equipment, or for damages to any equipment connected to it.

  • Page 3: Parts List

    Parts List The following list of parts are separated into groups, one for each circuit board type and chassis assembly. This is where the parts will be installed or used. Please check the package to ensure that all parts listed are present and accounted for. Please note that some substitutions may be made at any time for a component value that may enhance or will maintain the original circuit operation.
  • Page 4 Item/Value Unit / Reference Designators #6 Internal Tooth lock washer Under screws Sig. 8” ( Solid Core 22awg Tinned Copper CN103, CN104 Digital Inputs Sig. 7.5” ( ) Teflon Clear Sleeving 18awg CN103, CN104 Digital Inputs Nylon Spacer H-P Optical Mounting Parts for the Left &...
  • Page 5 Item/Value Unit / Reference Designators Capacitors 120pF (C460 under pcb as noted in text) 10nF C401-416 100nF C429-434, C445, C447-452, C455-458 220nF C454 Parts for the Power Supply Board: (Continued) Item/Value Unit / Reference Designators Resistors - 1/4 Metal Film 1% 100R R427 243R...
  • Page 6 Item/Value Unit / Reference Designators Fuse Cover Boot F101 1 in Heat Shrink Tubing R431 Hardware 4-40 X 3/8" philips PH SS Screws U401-6 Heatsinks #4 Kepnuts U401-6 Heatsinks 6-32 1/4" Zinc Screws Holds PCB to Chassis Standoff's #6 External Tooth lock washer Under Screws Item/Value Unit / Reference Designators...

  • Page 7: Tools Required

    Tools Required In addition to the parts supplied in the kit, you will need any or all of the following tools to complete the construction of the DAC-3 kit. Solder Sucker Pencil tip soldering iron of good quality (900 F tip temperature max.)

  • Page 8: Dac-3 Functions

    This coool blue LED will light when the DAC-3 is The switch is a push-on push-off type button.The power plugged in and switched on while receiving AC power. to the DAC-3 is completely turned off while the switch is in the out position.
  • Page 9 Connection Functions N - Optical-ST Digital Input Plug in a digital source that has a ST-Optical digital output here. I - AC Power Cord Socket Plug in the female end of the detachable power cord O - Optical-Toslink Digital Input here.

  • Page 10: What's Going On In Your Dac-3

    What’s going on in your DAC-3 Crystal CS8414 Input Pacific Microsonics Receiver-reclocks incoming PMD-100 Digital Filter digital signal ® Right DAC Output PCB and HDCD Decoder 4 layer Digital Input PCB 4 layer Left DAC Output PCB 4 layer IEC AC Input Filter -...
  • Page 11 Before-You-Start Kit Overview Before you start assembling your DAC-3, please take a few minutes to read this preface on the construction manual and the kit. Zen and the Art of Electronics Assembly: Assembling a high quality electronic device requires a certain frame of mind.The object is not to rush through and get the kit assembled as quickly as possible, but to methodically and correctly put together the pieces of this audio jigsaw puzzle.The kit could take as long as 4-6 hours to complete, so plan your...
  • Page 12 (see page 31 for details) Mechanical Assembly: The DAC-3 has been designed with ease of assembly in mind. To this extent, the chassis has been designed with built-in standoffs, to which the PC boards are attached.This allows the PC boards to be easily installed and removed.

  • Page 13: Wire Stripping

    Wire Stripping with a Knife: If you own a wire stripper, we’re assuming you know how to use it. If not, and you are new to the world of audio construction, you can use a hobby knife to do the same job. Simply cut around the insulation leaving an appropriate length for the lead, be very careful to cut only the insulator and not the wire itself.
  • Page 14 Push the soldering iron tip against the lead and the foil donut pad on the circuit board and hold fo r 2 or 3 seconds.Then apply the solder to the other side of lead, also touching the donut pad.Let the heated lead and pad melt the solder, not the iron t i p.
  • Page 15 Parts Layout: (Power supplies and Controls)

  • Page 17: Parts Layout

    Parts Layout: Left DAC Output Digital...
  • Page 18 Input Right DAC Output...

  • Page 19: Assembly Instructions

    Work along the edges to break off the rails. Collect all the 4 boards for this DAC-3 kit, they are as follows; Power Supply PCB, Left Channel DAC Output board, Right Channel DAC Output board, Digital Input board.
  • Page 20 Step 1B: The BNC connector is mounted in the 'D' shaped hole from the outside of the chassis, On the underside of the chassis there are with the nut and washer on the inside of the provisions to screw mount the E.A.R. feet. chassis.
  • Page 21 But now, we no longer need the external resistors and relays in the signal path (this is how it is done in the DAC-3 via our AUTO mode)! Step 4B:...
  • Page 22 I know, you are probably saying, "This is an into the + pad of CN203 & CN303.The BLACK Assemblage DAC and I actually get to do some wire will then occupy the - pad hole. Solder real parts stuffing? Great!" That's right, for the first...

  • Page 23: Input Ac Line Voltage Selection

    Input AC Voltage Configuration: This is a good time to configure your Assemblage 11x1N4002 D417-427 DAC-3 Power Supply to run on your area AC line 16xSF4002 or HFA4002 D401-416 ( Sig. voltage. (We still have finger room.) You have only...
  • Page 24 Step 6C: 4x Teflon Shoulder Washer U401, U402, U405, U 4 0 6 Switches & Fuse 6x Silpads U401-406 3 x Right Angle, Tact Switch SW401, SW402, SW403 6x 4-40 X 3/8" philips PH U401-406 1x DPST Push-On / Push-Off SW404 SS Screws *** Be sure that these parts are mounted firmly 6x #4 Kepnuts...

  • Page 25: Auto/ Mannual Digital Input Selection

    Automatic(A) mode. Push the Source Selector mount on the underside of the Power Supply PCB. Button, (see Page 9), once to advance the DAC-3 to the next active digital input.The DAC-3 will skip Please read these instructions before proceeding any non-active digital inputs and stop at the first with this installation.
  • Page 26 Working on the bottom of the Power Supply CATHODE, for the ROUND PCB pad marked PCB, and following the photo, solder ‘-’lead of 'C'. (We will not worry about looking for a flat the 1µF/50V cap (C459), to the bottom solder side on the LED body that may not exist, or is pad of R427.
  • Page 27 As you may have noticed, there are no other parts of the board and trim off any excess. to be attached to the Power Supply PCB, therefore it is ready to mount into the chassis to complete this 4 board Assemblage.
  • Page 28 Front Panel is installed.Can you hear holes. Some adjustment of the LED leads may the sweet sounds of the DAC-3 singing to you yet? be required to get them centered. Install the two #10-32 kepnuts to the studs of...

  • Page 29: System Connection

    System Connection: Place the DAC-3 on a solid shelf or table away from major heat sources.Plug AC cord into back of unit. Connect your I S, digital (RCA or BNC) co-ax, ST optical, Toslink optical, and/or AES/EBU interconnect from the digital output of your source(s), (CD player or transport, DAT machine, DVD player or LaserDisc player) to the corresponding digital input jacks on the DAC-3.

  • Page 30: Specifications

    A s s e m bly Guarantee - We guarantee that if you can't get the Assemblage DAC-3 running, The Pa rts Connection will! Two - Year Limited Warranty - The Pa rts Connection wa r rants to the purchaser that each Assemblage DAC-3 Digital Processor is free of m a nu fa c t u ring defects for a period of two (2) years from date of purchase.To receive this wa r ra n t y, the original purchaser must complete and mail...

  • Page 31: Schematics

    Schematics:...
  • Page 35 Toll Free Help Line If you have any questions regarding the assembly or installation of the Assemblage DAC-3, please give us a call at The Parts Connection: Toll Free: 1-800-769-0747 (U.S. and Canada) Telephone: (905) 829-5858 Facsimile: (905) 829-5388 Web Site: http://www.sonicfrontiers.com/TPC...
