R.V.R. Electronica Radio Modem Box User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Radio Modem Box

User Manual

Volume 1
Manufactured by
Italy

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Radio Modem Box and is the answer not in the manual?

Questions and answers

Summary of Contents for R.V.R. Electronica Radio Modem Box

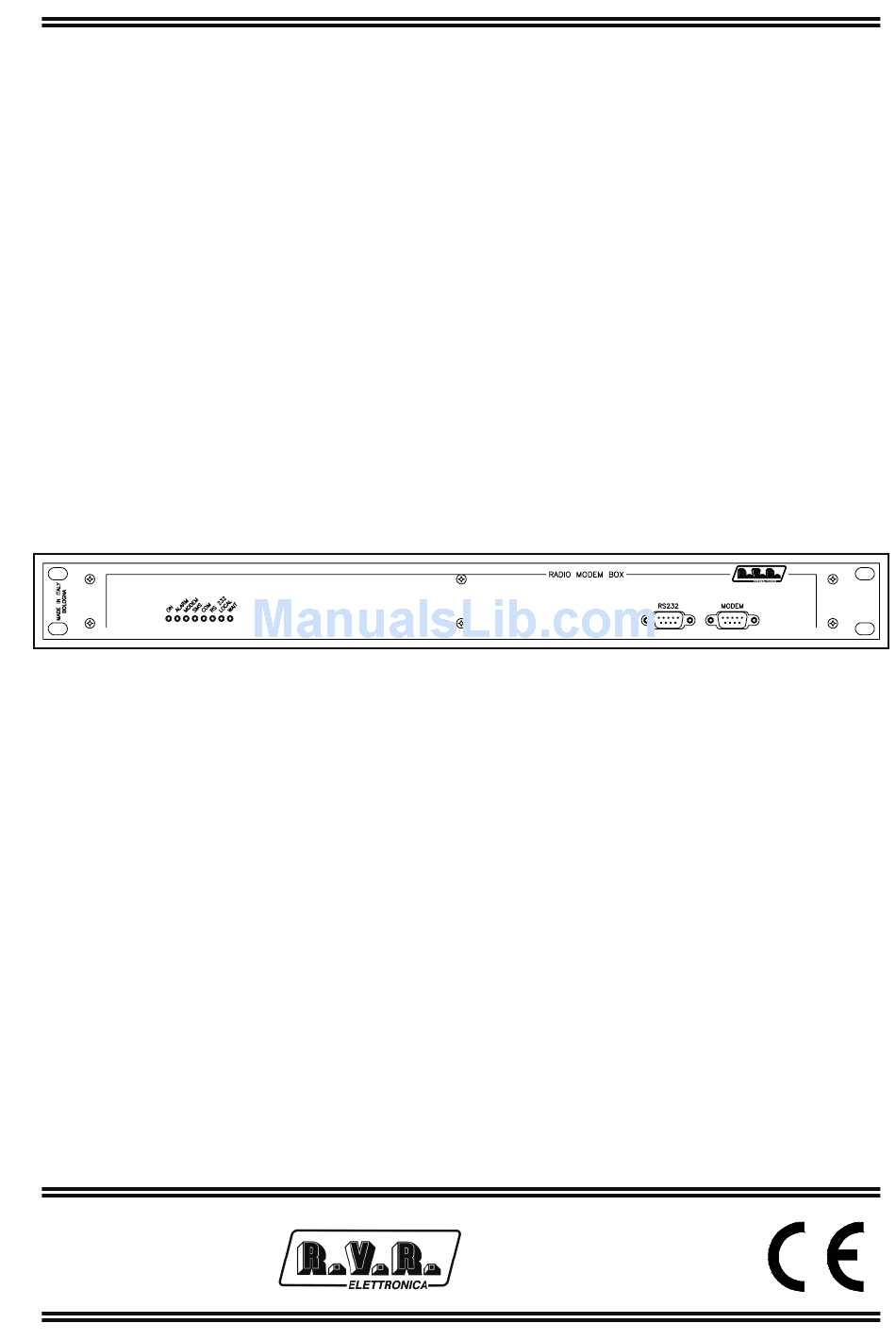

  • Page 1: User Manual

    Radio Modem Box User Manual Volume 1 Manufactured by Italy...
  • Page 2 2 4/0 6/04 1 .0 F irs t V ers io n G . D e D onn o Radio Modem Box - User Manual Version 1.0 © Copyright 2004-2004 R.V.R. Elettronica SpA Via del Fonditore 2/2c - 40138 - Bologna (Italia)

  • Page 3: Table Of Contents

    Radio Modem Box Table of Contents 1. Preliminary Instructions 2. Warranty 3. First Aid 3.1 Treatment of electrical shocks 3.2 Treatment of electrical Burns 4. General Description 4.1 Description of version with external UPS 4.2 Description of version with battery charger 5.
  • Page 4 Radio Modem Box This page was intentionally left blank Rev. 1.0 - 24/06/2004 User Manual...

  • Page 5: Preliminary Instructions

    Radio Modem Box 1. Preliminary Instructions R.V.R. Elettronica SpA WARNING: WARNING: R.V.R. Elettronica SpA 2. Warranty R.V.R. Elettronica R.V.R. Elettronica SpA R.V.R. R.V.R. Elettronica User Manual Rev. 1.0 - 24/06/04 1 / 29...

  • Page 6: First Aid

    Radio Modem Box R.V.R. Elettronica 3. First Aid 3.1 Treatment of electrical shocks 3.1.1 If the victim is not responsive Figure 1 Figure 2 Figure 3 Figure 4 Figure 2 / 29 Rev. 1.0 - 24/06/04 User Manual...

  • Page 7: Treatment Of Electrical Burns

    Radio Modem Box 3.1.2 If victim is responsive • 3.2 Treatment of electrical Burns 3.2.1 Extensive burned and broken skin • 3.2.2 Less severe burns • User Manual Rev. 1.0 - 24/06/04 3 / 29...

  • Page 8: General Description

    The front panel of Radio Modem Box features two RS232 (DB9) connectors for direct connection both to the telemetry unit and the incorporated GSM modem. The rear panel features an audio input jack to test the audio signal transmitted through the GSM modem.

  • Page 9: Description Of Version With External Ups

    Radio Modem Box 4.1 Description of version with external UPS Both Radio Modem Box and UPS (Uninterruptible Power Supply) unit are powered from the power mains (220V AC) through the "Mains In" connectors. The UPS output powers the PTX LCD or SCM-TLC as well as the Radio Modem Box through the "UPS Out"...
  • Page 10 Radio Modem Box On-line This is undoubtedly the most reliable design and ensures enhanced performance. In normal operation, the system is powered by the UPS, that prevents any interruption in the event of mains failure. This design avoids any delay in terms of load switching time.

  • Page 11: Description Of Version With Battery Charger

    Radio Modem Box 4.2 Description of version with battery charger Radio Modem Box incorporates a 24V battery with battery charger. 24V supply is controlled by a selectable internal timer (after a certain period of time, voltage is cut off to avoid running the battery flat).
  • Page 12 Radio Modem Box Example of connection of version with battery charger to a system with TLC300: RADIO MODEM BOX 220VA MAINS OUT MAINS IN 24VDC OUT RS232 24VDC IN RS232 MAINS IN TLC300 8 / 29 Rev. 1.0 - 24/06/04...

  • Page 13: Quick Guide - Installation And Use

    +& GLJ PHWHU 3-& Table 5.1 The SIM card to be inserted into Radio Modem Box must be registered for "Data & Fax Service" (see facsimile contract shown in fig. 5.1). SIM card configuration for DATA/FAX reception must meet the following specifications: - Asynchronous;...
  • Page 14 Radio Modem Box Figura 5.1 Follow the instructions provided below closely to ensure correct configuration of the connection to PTX LCD with 16-bit CPU: 10 / 29 Rev. 1.0 - 24/06/04 User Manual...
  • Page 15 "LOCAL" mode, or you will be getting alarm indications during the whole setting procedure (see PTX LCD Manual, Volume 1, Section "Alarm Config"). If the Radio Modem Box is connected to a PTX LCD, alarm time factory settings are as follows: MAINS:...

  • Page 16: Remote Alarm Reporting Configuration

    Radio Modem Box 11) Disconnect the PC connection cable and connect the supplied DB9/DB9 cable. 12) Connect the GSM modem antenna to Radio Modem Box connector "N". Use a broadband Yagi log-periodic directional antenna (700-900 MHz). 13) Select modem as "GSM" in TLC/SCM settings.
  • Page 17 Radio Modem Box Double click the green label in the top left corner of the TELECON screen and select "Eeprom" (as shown in the next figure). User Manual Rev. 1.0 - 24/06/04 13 / 29...
  • Page 18 Radio Modem Box In the open menu, press this key to view station parameters. Select the "General" data category and set the 5 parameters: • STATION ID: station identifier; • STATION NAME: (max 18 characters); • DIAL STRING: required setting for a GSM modem is ATDT;...
  • Page 19 Radio Modem Box • PHONE NUMBER: GSM phone numbers recognised by the station to which you want the alarms sent; • SMS: select "YES" to enable SMS reception; • ACS: select "YES" to enable transmission of SMS commands to system;...
  • Page 20 Radio Modem Box • ALARM NAME: Name of alarm sent with SMS (max 20 characters); • THRESHOLD: Alarm activation threshold in percent; • FRONT: 0-->1 Alarm is activated if signal exceeds set threshold; 1-->0 Alarm is activated if signal drops below set threshold;...

  • Page 21: Remote Control

    Radio Modem Box 5.3 Remote Control All parameters of the device connected to Radio Modem Box that have been enabled for telemetric control can be monitored on a PC with a suitable modem connection. The "TELECON" software establishes connection with the station through a phone line or GSM modem and enables the following remote operations: alarm reset, transmitter power on/power off, output power reduction, dummy load testing, etc.,...
  • Page 22 5.1 and 5.2 and repeat the alarm test procedure. Now run a mains failure alarm test. 1) Remove power supply from PTX LCD and Radio Modem Box at the same time. 2) PTX LCD will restart on 24V with the "Ext RF Mute" LED on.
  • Page 23 Radio Modem Box PTX LCD with amplifier Alarm name Threshold Delay time in seconds (0 = disabled) External FWD 50% External RFL Audio Mains START time (can only be set via RS232) = 60 seconds Note on audio alarm: Delay time (10 sec.) is an arbitrary value, as the alarm depends on the width of sent audio signal.

  • Page 24: Controls, Modules And Connectors

    [9] RS 232 DB9 connector connected to telemetry unit (PTX LCD/SCM-TLC <->PC). [10] MODEM connector connected to GSM Modem (PC <-> Radio Modem Box). 6.2 Rear Panel Figure 6.2 [1] MAINS IN MAINS IN VDE mains power supply connector. [2] UPS IN...

  • Page 25: Module Identification (Top View)

    DB9 connector for communication interface to external devices. [12] I C BUS DB9 connector for I C communication. 6.3 Module identification (top view) Radio Modem Box with battery charger Figura 6.3 [1] MAIN CARD Mains card SLINTBOXGSM1. [2] BATTERY Set of two 12V 2,1AH lead batteries.
  • Page 26 Radio Modem Box Radio Modem Box with UPS Figure 6.2 [1] MAIN CARD Mains card SLINTBOXGSM1. [2] MODEM Wavecom GSM modem. [3] TRANSFORMER 30VA transformer. [4] ANTENNA FILTER GSM band filter. [5] UPS IN VDE Connector for UPS input, incorporates two 1-A fuses.

  • Page 27: Connector Pinouts

    Radio Modem Box 6.4 Connector Pinouts All connectors supplied with Radio Modem Box as standard for connection to other devices are of the Pin-to-Pin type. 6.4.1 Telemetry connector 7(/(0(75,$ &RQQHWWRUH 7HOHPHWULD &RQQHWWRUH 7HOHPHWULD '% PDVFKLR '% IHPPLQD 5DGLR 0RGHP %R[...

  • Page 28: Rs232 Connector

    Radio Modem Box 6.4.2 RS232 connector 56 &RQQHWWRUH 56 &RQQHWWRUH 56 '% PDVFKLR '% IHPPLQD 5DGLR 0RGHP %R[ 7/&  6&0  /&' 6&0 1 /&' 37;/&' &38E Type: DB9 Male N.C. N.C. N.C. N.C. N.C. N.C. 6.4.3 I C Connector...

  • Page 29: Electric Diagram, Layout And Bill Of Materials

    Radio Modem Box 7. Electric diagram, layout and bill of materials User Manual Rev. 1.0 - 24/06/04 25 / 29...
  • Page 30 Radio Modem Box 26 / 29 Rev. 1.0 - 24/06/04 User Manual...
  • Page 31 Radio Modem Box .%/ .%/ 9&2// 5 + 5 + 5$)) 5$)) 5$) 5$) -60' -60' & & & & & & & & X)9 X)9 X)9 X)9 Q) Q) 1 1 6,1. &6 287 + + 7,3 7,3 6285 &6 ...
  • Page 32 Radio Modem Box 28 / 29 Layout Main card Rev. 1.0 - 24/06/04...
  • Page 33 Radio Modem Box 5DGLR 0RGHP %R[  595 6FKHGD 0DLQ  6/,17%2;*60 5HY   'DWH  ,WHP 4W\ 5HIHUHQFH 3DUW 'HVFULSWLRQ &1 '%062 &RQQHWWRUH '% PDV FV ƒ &1 '%062 &RQQHWWRUH '% PDV FV ƒ &1 &1052 &RQQHWWRUH .% ƒ S PP  SLQ &1...
