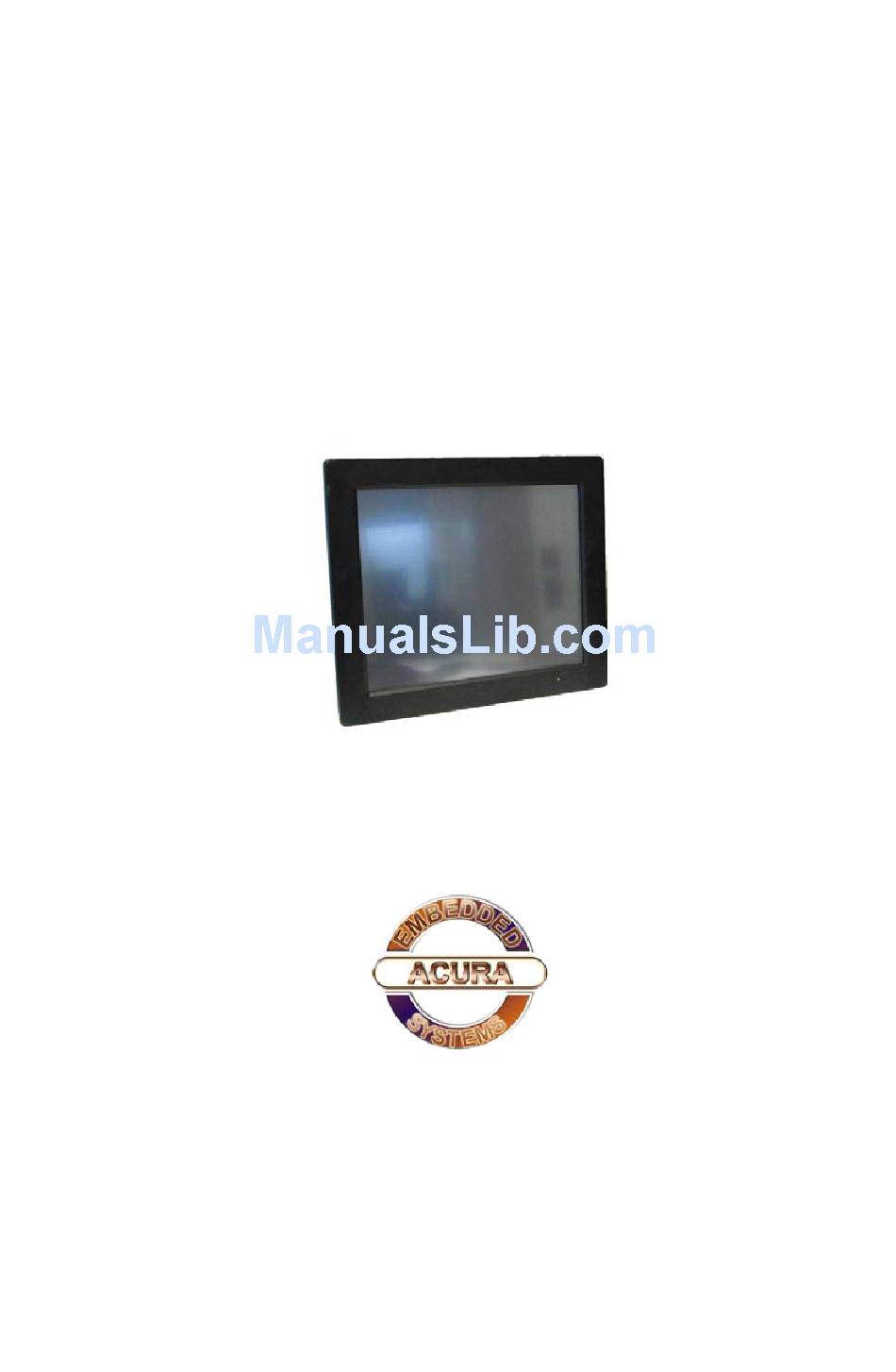

- Page 1 AcuPNL-7920 Series User's Manual AcuPNL-7920CUL Series User’s Manual Version V2.0 Updated in Jan 21/2013 Acura Embedded Systems Inc.
-
Page 2: Table Of Contents
AcuPNL-7920 Series User's Manual Table of Contents System Overview..................1 System View ................... 6 I/O connectors ..................10 VESA mount installation ................ 10 Panel mount installation ................ 11 Unpacking ....................12 Setting up the System ................12 Installing the Drivers ................13 AcuPNL-7920 BIOS setup.............. -
Page 3: System Overview
AcuPNL-7920 Series User's Manual System Overview System Specification Atom D525 1.8G 800MHz Chipset South bridge: Intel® ICH8M Audio Realtek ALC268 Audio Codec, 2+2 watts power amplifier Marvell 88E8071 Gigabit Ethernet x 1 Memory Single Channel, two DDR3 SODIMM socket support up to Intel®... - Page 4 AcuPNL-7920 Series User's Manual Touch Screen: resistive or capacitive types Type 5 wire RES Glove Any type glove Need special conductive stylus Stylus No Limitation, can Only very thin latex glove use any stylus Vandal Interface COM Port Light Transmission 80±3% 91.5% Hardness...
- Page 5 AcuPNL-7920 Series User's Manual Power Power DC-In connector x 1 (Jack with locker) Switch Reset key LED indicator Green: power On/Off Orange: HDD status on Aluminum bezel Power Input DC12V~28V Power Adapter AC 90 ~ 264V / 47 ~ 63 Hz / DC output 12V (10”,12”,15”) AC100~240V / 47 ~ 63 Hz / DC output 12V (17”)
-
Page 6: System View
AcuPNL-7920 Series User's Manual System View AcuPNL-7920-10CUL Outline Drawing (Panel Mount) - Page 7 AcuPNL-7920 Series User's Manual AcuPNL-7920-12CUL Outline Drawing (Panel Mount)
- Page 8 AcuPNL-7920 Series User's Manual AcuPNL-7920-15CUL Outline Drawing (Panel Mount)
- Page 9 AcuPNL-7920 Series User's Manual AcuPNL-7920-17CUL Outline Drawing (Panel Mount)
-
Page 10: I/O Connectors
AcuPNL-7920 Series User's Manual I/O connectors Note: Share the same place with VGA output, DVI and VGA not simultaneously VESA mount installation Please use the supplied 4 x M4-L10 screws for VESA mounting. And as below VESA mounting holder is just a diagrammatic drawing. You can choose any standard VESA 75x75 mm mounting holder to mount our machine. -
Page 11: Panel Mount Installation
AcuPNL-7920 Series User's Manual Panel mount installation 1. The Panel PC can be panel mounted and comes with brackets and screws for this purpose. The required cutout for panel mounting and maximum panel thickness is shown below. AcuPNL-7920-10 AcuPNL-7920-12 AcuPNL-7920-15 AcuPNL-7920-17 Unit: mm... -
Page 12: Unpacking
AcuPNL-7920 Series User's Manual 2. Secure the chassis to the panel by tightening the screws and brackets against the panel. Unpacking After unpacking the shipping carton, you should find these standard items: The AcuPNL-7920CUL Panel PC series Accessory box including the followings: –... -
Page 13: Installing The Drivers
AcuPNL-7920 Series User's Manual 2. Plug the appropriate end of the power cord into the power connector of the system. Then plug the other end of the power cord to an electrical outlet. 3. Press the power switch of the system to turn on the system’s power. 4. -
Page 14: Acupnl-7920 Bios Setup
AcuPNL-7920 Series User's Manual The various drivers and utilities in the disc have their own text files that help users install the drivers and understand their functions. Note: eGalax Touch driver supports both resistive and capacitive touch screens, user can find 2 touch icons shown in utility, please set up touch screen by selecting the correlative one. -
Page 15: Wake Up On Lan Function
AcuPNL-7920 Series User's Manual When you enter the Setup utility, the Main Menu screen will appear on the screen. The Main Menu allows you to select from various setup functions and exit choices. Wake UP on LAN Function Please make sure the AC power is ON before use the function. 1. - Page 16 AcuPNL-7920 Series User's Manual With the unique set of products, Acura Embedded Systems remains committed to its goal of providing trouble-free and customer-friendly service. A special customer service unit has been set up specifically to cater to our esteemed customers' needs.
