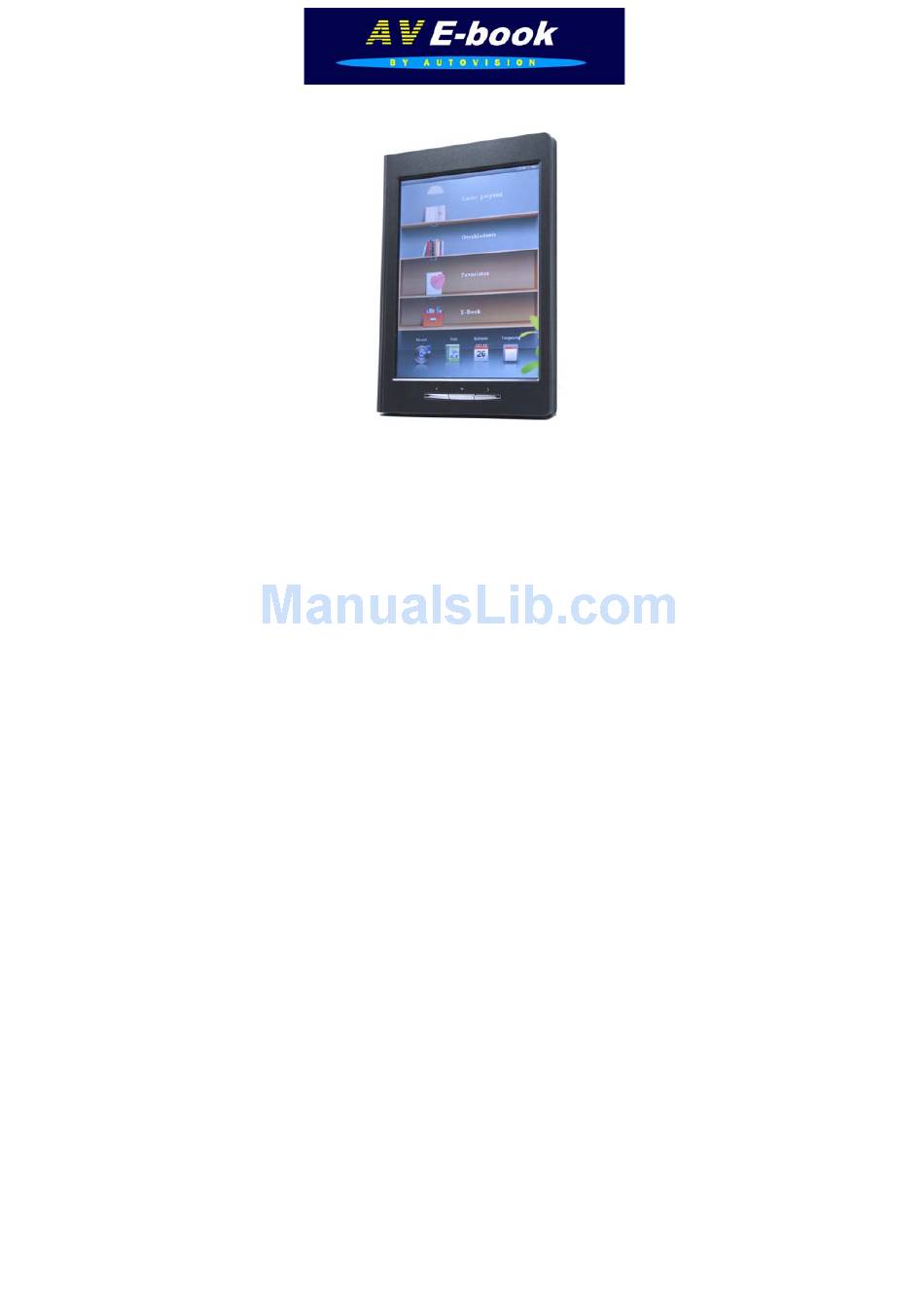

- Page 1 AV-E702T e-Book Reader with Touch Screen User’s Manual V1.1.15...
- Page 2 Introduction Thank you for purchasing this EBook Reader. This manual contains important safety information and operation instructions, so please read all these instructions carefully before using the EBook Reader and keeps it for future reference. This manual will help you use all of the exiting features to make your EBook Reading more enjoyable. We have done our best to produce a complete and accurate manual;...
-
Page 3: Table Of Contents
CONTENT Regulatory Information: FCC Part 15 / Copyright Important Safety Precautions Main Features Overview Getting Started Turn on the E-Book reader Connect to the PC & Download files from PC Information about e-Books, epub, DRM, Adobe Digital Edition Inserting Micro SD card Charging the battery Using home menu Item introduction... - Page 4 Listening to Music Playing music Music function menu Repeat / Equalizer Lyric Displaying Viewing Photos Playing a slide show Calendar / Applications / Tools Settings Brightness / Backlight time / G Sensor / Erase Activation Record / Media Lib Update / Language / Time/ Date Explorer / Calibration Touch Screen adjustment System Information Troubleshooting...
-
Page 5: Regulatory Information: Fcc Part 15 / Copyright
Regulatory Information: FCC Part 15 This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. -
Page 6: Important Safety Precautions
Copyright ® Contains Reader Mobile technology by Adobe Systems Incorporated Important Safety Precautions Always follow these basic safety precautions when using your device. This will reduce the risk of product damage and personal injury. Do not disassemble, repair or modify the device by yourself. Refer servicing to qualified personnel. Do not dispose of the device in fire to avoid explosion because the device has built-in battery. - Page 7 Be sure to back up your files. We will not be liable for the loss of data due to improper operation, repair or other causes. At full power, the prolonged listening of the walkman can damage the ear of the use. Precautions in using the headphone Do not use the headphone while driving an automobile or riding a bicycle.
-
Page 8: Main Features
Main Features 7” TFT color display 600*800 with Touch Screen (4:3) Built-in rechargeable lithium battery Reading EBook in PDF/e-PUB/TXT, FB2, HTML, MOBI format Quick reading EBook in browse history Rotate the screen to toggle between vertical and horizontal display while reading EBook Playback of WAV, APE, FLAC, OGG, MP3 and WMA audio files Multiple equalizers (EQ) sound effects Display titles, artists and albums of music files (ID3 tag) -
Page 9: Overview
Overview 1. Display screen, touch screen 2. Left key [<] 3. [ ] Exit button 4. Right key [>] 5. Earphone jack 6. Mini USB connector 7. 5V 2A DC Input socket 8. Micro SD-card slot 9. Charge indicate LED (charging red, full green) 10. -
Page 10: Getting Started
Getting Started Turn on the E-Book reader Press and hold the [ ] button to turn on the E-Book reader, if the device with low battery, plug one end of the power adaptor into the DC socket in the E-Book reader, and the other into a wall outlet. Note: To turn off the E-Book reader, please press and hold the [ ] button again. -
Page 11: Information About E-Books, Epub, Drm, Adobe Digital Edition
IMPORTENT NOTE ABOUT eBooks: EBooks in ePub format, ere secured by met DRM (Digital Rights Management) To download digital EBooks, put it on your eReader and read it, ePub format, you need the program “Adobe Digital Editions” (ADE). You can find this program via the website link: http://www.adobe.com/products/digitaleditions/help/ Download and install the program on your pc. -
Page 12: Inserting Micro Sd Card
Disconnect the device from PC After finishing transferring, please disconnect the device from the computer as the following: Left click the” ” icon at the taskbar. Click the pop-up mini-window with message of “Stop the USB Mass Storage Device –Driver (X)”. When you are prompted to remove the device, you can unplug the device safely. -
Page 13: Charging The Battery
Charging the battery The battery of the E-Book reader is charging automatically when the device is connected to the computer or connected to a wall outlet. When charging, the indicate lighter is red, and it will turn green after it full charged. -
Page 14: Using Home Menu
Using home menu 1. Press and hold the [ ] button, the home menu appears on the screen. Or, in another modes, press the [ ] button to return to the home menu. 2. There are 8 functions on the main menu: Now reading, History, My Favorite, E-Book, Music, Photo, Calendar and Tools. -
Page 15: Tips For Your Using
Tips for your using Function menu: while reading a book, watching a video, listen to music or browsing photos, you can tap the center of the screen to open function menu. Exit: press the [ ] button, you can exit and return to previous screen, hold the [ ] button you can exit to main menu directly. -
Page 16: Reading E-Book
Reading E-Book 1. In the main menu, tap and get in the EBook mode. 2. Find the desired ebook on the bookshelf and tap it twice to start reading. 3. If you have many books to looking for, then you can press [<] or [>] button and icon on the screen to switch bookshelves. -
Page 17: Now Reading
Now reading You can enter immediately the last read eBook directly through the “Now reading” function on the main menu. Reading a book from history 1. In the main menu, tap the History then you will find the book recently read. 2. -
Page 18: Ebook Function Menu
EBook function menu While reading a book, tap the center of the screen to open the EBook setting function menu, 1. Find the desired item.(include Exit, Favorite, Zoom, Goto, Brightness, Background, Bookmark, ) Menu Description Menu items Description Icon Icon items Exit Exit to previews screen... -
Page 19: Reading Ebook With Background Music
Brightness: tap the brightness icon to select the brightness while reading the ebook, and press the [OK] button to confirm. Background: tap the background icon to switch a background. This function can be only used in the TXT format Ebooks. Bookmark: tap the bookmark icon. -
Page 20: Listening To Music
Listening to Music - Playing music 1. In the main menu, find and tap the Music icon to enter your music list. 2. Find the desired audio file and tap it twice to start listening to the song. 3. If you have many songs then you can press [<] or [>] button and icon on the screen to turn to next page. -
Page 21: Playing Music
Some information explaining Place Information Place Information Place Information Music name Album name Singer Repeat mode Play mode Lyric Music function menu While tap the 2 to enter the music function menu: 1. Find and tap the desired item. 2. Tap [OK] to confirm and get in the item. Repeat Mode: find the below item and tap OK to confirm Repeat: Repeat the current song. -
Page 22: Lyric Displaying
Lyric Displaying This device supports lyrics display while music playing. Only the lyrics in LRC format can be displayed. To add lyrics to the music, take “love music. Mp3” for example: 1. Download the corresponding lyrics with extension “.lrc” from the Internet. 2. -
Page 23: Viewing Photos
Viewing Photos 1. In the main menu, find and tap the Photo icon to enter photo list screen 2. Find the desired picture file and tap it twice to start viewing the photo. 3. If you have many photos, then you can press [<] or [>] button and icon on the screen to turn to next page. -
Page 24: Calendar / Applications / Tools
Calendar Use the button to navigate among days. Press the button to exit the calendar. Tools – system settings 1. In the main menu, tap the App icon to get in the Tool function. 2. In the App function, you can select Settings/ Explorer/ Touch Adjust. 3. -
Page 25: Erase Activation Record / Media Lib Update / Language / Time/ Date
Brightness adjust the desired brightness of the tft screen Set the Backlight time (5,10,15,20,30sec or always on). Set the automatic rotation (G-sensor) When you set this function on, you can rotate the screen to toggle between vertical and horizontal display while reading a EBook Erase activation record: Tap Erase activation record tap “YES”... -
Page 26: Explorer / Calibration Touch Screen Adjustment
Explorer Tap Explorer function in the App twice. Tap twice to select memory files or card memory (if a memory card is inserted). Find the desired file or folder. If you have many files or folders in the device, then you can press [<] or [>] button and icon on the screen to turn to next page. -
Page 27: Troubleshooting
The display is not reacting correctly Align the screen, Touch adjust page 24 Files cannot be downloaded Check if the driver is installed correctly in the computer. Available on www.autovision.nl Check the connection between the device and PC. No sound from the headphone Please ensure the volume is not 0, and the connection of headphone is no problem. -
Page 28: Specifications
Specifications Model Type AV-702T 7” TFT LCD 4:3 Display Size L*W*H: (mm) 187*132*13.2mm Touch Screen Resolution 600*800 Support Card Micro SD up to 16G Power Supply AC Adapter 5V 2A Storage condition Humidity<90%,-20~60°C System Windows 7, VISTA, XP, Working condition Humidity <80%,0~45°C compatible MAC OS 10.0 and above... - Page 29 The battery / batteries should never be placed in municipal waste. Use a battery disposal facility in your neighborhood or community, if available. Implementation, changes, typographical faults under restrictions. AV G$ © 2011 V1.1.15 AV Audio® is a registered Trade Mark from Autovision UA - www.autovision.nl...
