Motion Engineering Company

Quick Start Operating Instructions

HiSpec 2

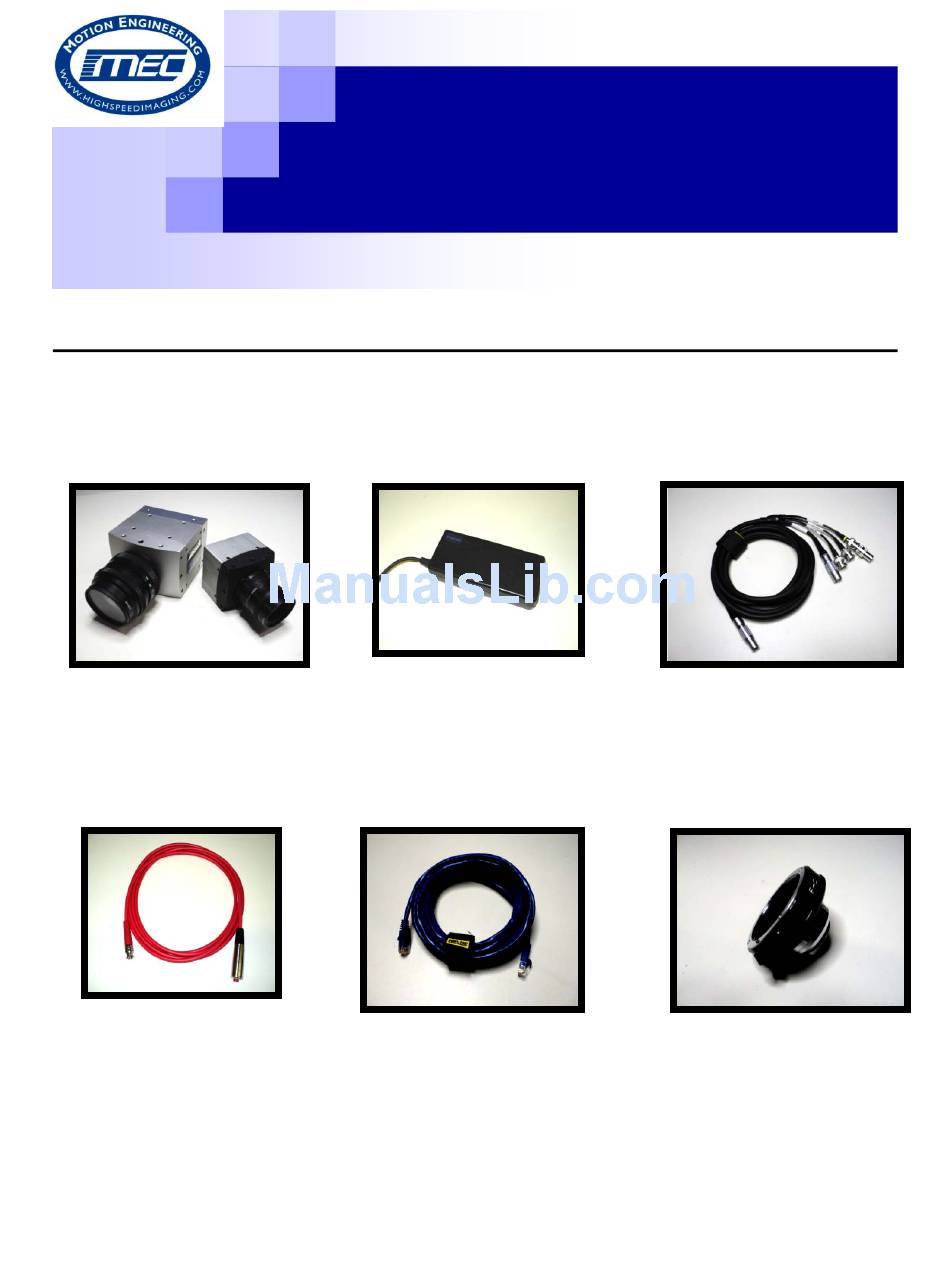

High Speed Camera System Components

AC Power

Multi-Wire Pigtail

Camera Body

Input/ Output Cable

Trigger Cable

F-C Mount Adapter

Ethernet Cable

Motion Engineering Company

17338 Westfield Park Road, Suite 4

Westfield, IN 46074

800-447-7291

Table of Contents

Need help?

Do you have a question about the HiSpec 2 and is the answer not in the manual?

Questions and answers

Summary of Contents for HEC HiSpec 2

Page 1 Motion Engineering Company Quick Start Operating Instructions HiSpec 2 High Speed Camera System Components AC Power Multi-Wire Pigtail Camera Body Input/ Output Cable Trigger Cable F-C Mount Adapter Ethernet Cable Motion Engineering Company 17338 Westfield Park Road, Suite 4 Westfield, IN 46074...
Page 2 DAMAGE TO EQUIPMENT FOR IMPROPER CONNECTION BETWEEN CAMERA, CABLES, AND COMPONENTS IS AT CUSTOMER’S RISK….See Rental Agreement for clarification. Instructions: 1. Connect the Power Supply to the Power Supply Port on the Camera Body. 2. Connect the Multi-Wire Pigtail I/O Cable to the Multi-Wire Pigtail I/O Port on the Camera Body.
Page 3 9. Attach the desired lens to the Camera Body. C-Mount Lenses connect directly to the camera (no need for adapter). Nikon F-Mount Lenses require the “F-C Mount Adapter”. 10. Once the software has loaded the camera Model, Name, and Status should be shown in the upper left had side of the window, under “Available Cameras”.
Page 4 Adjusting ROI: If adjusting the “ROI”, select the “Adjust ROI” option from Camera Settings and then edit within this menu. Then adjust with offset X/ offset Y values, moving the red or green rectangle to the desired area. When you are done editing, make sure to select “Apply ROI”.
Page 5 Ring Record Mode: If in “Ring” recording mode, image will be continuously buffering (and rewriting over itself) until you click the trigger button or use F12 for software trigger Single Record Mode: If in “Single-Record until end” mode, image will be captured until the memory buffer is full (Start) Single-Burst Trigger Mode:...
Page 6 You are able to divide the memory up to 16 same-sized memory ranges You are able to adjust Pre/Post Trigger frames be either moving scroll bar, or manually typing in desired amounts in boxes. In this example, there will be approximately 50% of the frames captured before and after trigger is initiated 14.
Page 7 option, or use “Remove All Selections” to deselect multiple sequences. Please note, using these two options will NOT delete the actual sequence, but will just deselect them. Use the “Compute Time span” to calculate the distance in time between sequences. 17.
