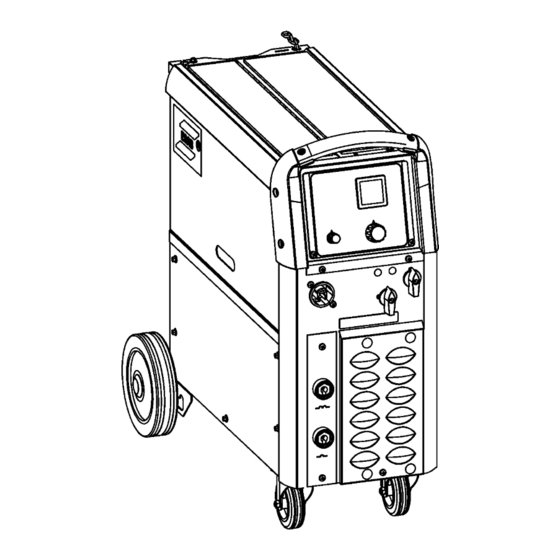

ORIGO Mig C280 PRO Instruction Manual
  1. Manuals
  2. Brands
  3. ORIGO Manuals
  4. Welding System
  5. Mig C280 PRO
  6. Instruction manual

ORIGO Mig C280 PRO Instruction Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Mig C280 PRO
Mig C340 PRO
   
Origo
Instruction manual
0349 301 111
101005
Valid for serial no. 627

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Mig C280 PRO and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ORIGO Mig C280 PRO

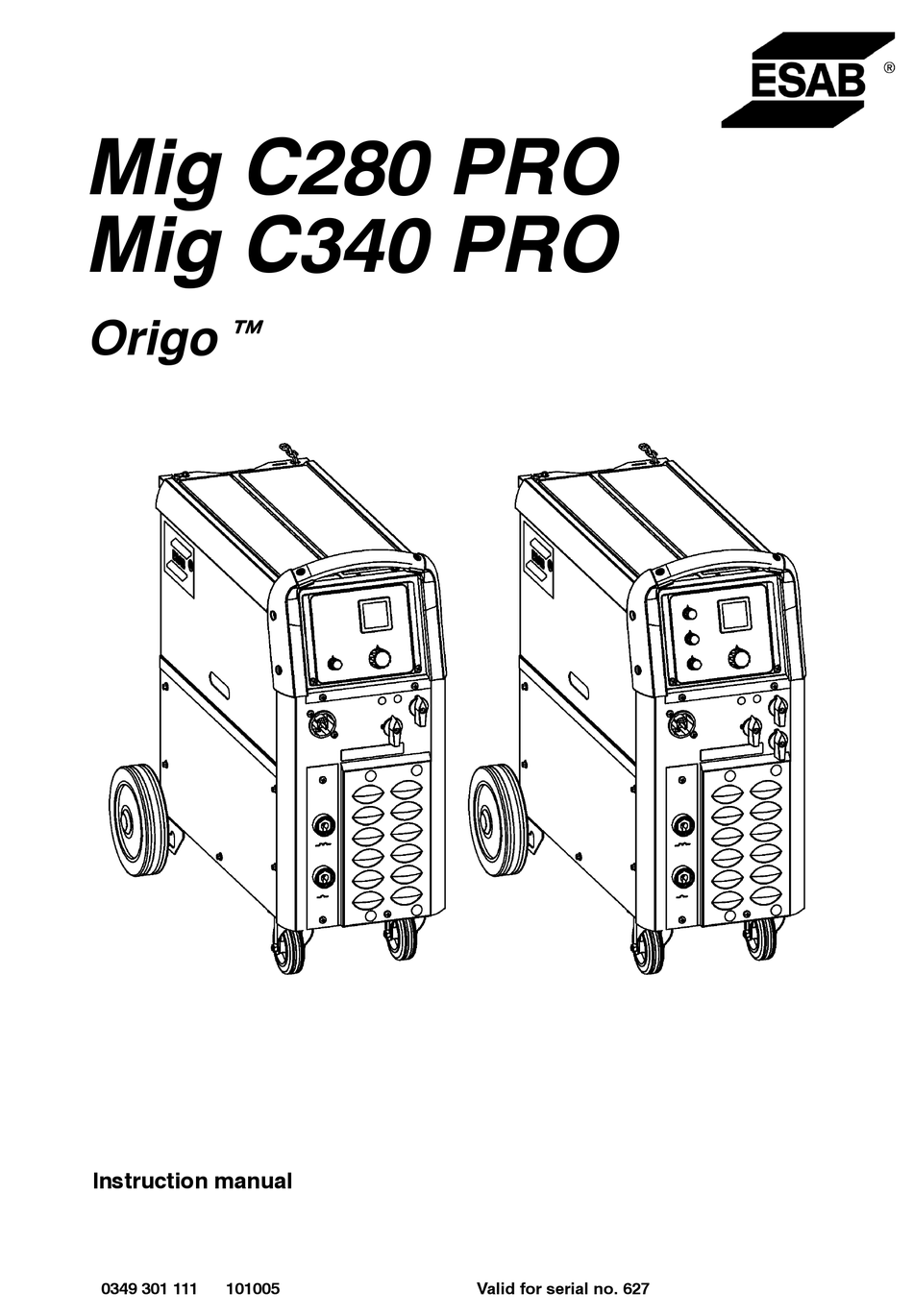

  • Page 1 Mig C280 PRO Mig C340 PRO     Origo Instruction manual 0349 301 111 101005 Valid for serial no. 627...
  • Page 2 ENGLISH ..........Rights reserved to alter specifications without notice.

  • Page 3: Table Of Contents

    ..........4.1 OrigoTM Mig C280 PRO .

  • Page 4: Directive

    ESAB AB, Welding Equipment, SE--695 81 Laxå, Sweden, gives its unreserved guarantee that weld- ing power source Origo Mig C280 PRO, Origo Mig C340 PRO from serial number 627 are con- structed and tested in compliance with the standard EN 60974--1 and EN 60974--10 in accordance with the requirements of directive (2006/95/EC) and (2004/108/EEC).
  • Page 5 CAUTION! Read and understand the instruction manual before installing or operating. WARNING Arc welding and cutting can be injurious to yourself and others. Take precausions when welding. Ask for your employer’s safety practices which should be based on manufacturers’ hazard data. ELECTRIC SHOCK - Can kill Install and earth the welding unit in accordance with applicable standards.

  • Page 6: Introduction

    3.1.1 Origo Mig C280 PRO The power source is supplied with: Welding gun PSF 250 -- 3m (Origo Mig C280 PRO 4WD -- 4,5m) Return cable 3,5m with return clamp (Origo Mig C280 PRO 4WD -- 5m) Shelf for gas cylinder Instruction manual 3.1.2...

  • Page 7: Origotm Mig C340 Pro

    91 kg Operating temperature --10 to +40 --10 to +40 Enclosure class IP 23 IP 23 Application classification Origo Mig C340 PRO Voltage 400- -415 V, 3∼ 50/60 Hz 230/400- -415/500V3∼50Hz 230/440- -460V, 3∼60Hz Permissible load at 100% duty cycle...

  • Page 8: Installation

    INSTALLATION The installation must be executed by a professional. CAUTION! This product is intended for industrial use. In a domestic environment this product may cause radio interference. It is the user’s responsibility to take adequate precautions. Placing Position the welding power source such way that its cooling air inlets and outlets are not obstructed.

  • Page 9: Assembly Of Components

    Assembly of components WARNING! During transport, the rear wheels of the power source are in their forward position. Before use, place the wheels in their rear position. Electrical installation - - 9 - - C2834Pe...

  • Page 10: Mains Power Supply

    A protective earth connection must be made, in accordance with regulations. Rating plate with supply connection data Origo Mig C280 PRO 3∼ 50 Hz 3∼ 50/60 Hz 3∼ 50 Hz 3∼ 60 Hz 3∼...

  • Page 11: Operation

    Origo Mig C340 PRO 3∼ 50 Hz 3∼ 50/60 Hz 3∼ 50 Hz 3∼ 60 Hz 3∼ 60 Hz Voltage V 400/415 440--460 Current A at 100% duty cycle at 60% duty cycle at 30% duty cycle Cable area mm...

  • Page 12: Connection And Control Devices

    Connection and control devices Mains supply switch Connection for return cable (--), low induc- tance Switch, coarse control Knob for selecting -- creep start -- ON/OFF Switch, precise control Knob for wire speed setting Indicating lamp, power supply ON Knob for selecting 2/4--stroke control mode Orange indicating lamp, overheating Knob for burn--back time setting EURO -- connector (for welding gun)

  • Page 13: Wire Feed Pressure

    Wire feed pressure Start by making sure that the wire moves smoothly through the wire guide. Then set the pressure of the wire feeder pressure roller(s). It is important that the pressure is not too great. Fig 1 Fig 2 To check that the feed pressure is set correctly, you can feed out the wire against an insulated object, e.g.

  • Page 14: Maintenance

    MAINTENANCE Regular maintenance is important for safe, reliable operation. Note! All guarantee undertakings from the supplier cease to apply if the customer himself attempts any work in the product during the guarantee period in order to rectify any faults. Inspection and cleaning Check regularly that the power source is free from dirt.

  • Page 15: Fault Tracing

    ORDERING OF SPARE PARTS Origo Mig C280 PRO, Origo Mig C340 PRO is designed and tested in accordance with the international and European standards IEC/EN 60974- -1 and EN 60974- -10. It is the obligation of the service unit which has carried out the service or repair work to make sure that the product still conforms to the said standard.

  • Page 16: Diagram

    Diagram Origo Mig C280, 400- - 415V - - 16 - - dC2834P...
  • Page 17 Origo Mig C280, 400- - 415V - - 17 - - dC2834P...
  • Page 18 Origo Mig C280, 230- - 500V - - 18 - - dC2834P...
  • Page 19 Origo Mig C280, 230- - 500V - - 19 - - dC2834P...
  • Page 20 Origo Mig C340, 400- - 415V - - 20 - - dC2834P...
  • Page 21 Origo Mig C340, 400- - 415V - - 21 - - dC2834P...
  • Page 22 Origo Mig C340, 230- - 500V - - 22 - - dC2834P...
  • Page 23 Origo Mig C340, 230- - 500V - - 23 - - dC2834P...
  • Page 24 ? 230V / 400- -415V / 440- -460V / 500V ? - - 24 - - vrC2834P...

  • Page 25: Ordering Numbers

    0349 302 890 Origo Mig C280 PRO 4WD 400--415V 3∼ ∼ ∼ ∼ 50Hz 0349 302 612 Origo Mig C280 PRO 4WD 230/400--415/500V 3∼ ∼ ∼ ∼ 50Hz; 230/440--460V 3∼ ∼ ∼ ∼ 60Hz 0349 302 452 Origo Mig C340 PRO 400--415V 3∼...

  • Page 26: Wear Components

    Origo Mig C280 PRO Wear components (W. F. Mechanism 0455 890 888) Item Denomination Ordering no. Notes Pressure roller 0455 907 001 0367 556 001 Ø 0.6--0.8mm Fe, Ss, cored wire. 0367 556 002 Ø 0.8--1.0mm Fe, Ss, cored wire.
  • Page 27 Origo Mig C340 PRO Wear components (W. F. Mechanism 0455 890 881) Item Denomination Ordering no. Notes 0369 728 001 Pressure roller 0466 262 001 Knurled 0369 557 001 Ø 0.6--0.8mm Fe, Ss, cored wire. 0369 557 002 Ø 0.8--1.0mm Fe, Ss, cored wire.
  • Page 28 Origo Mig C280 PRO, Origo Mig C340 PRO Wear components (W. F. Mechanisms 0459 000 884 & 0459 000 883) Item Denomination Ordering no. Notes 0459 052 002 Ø 0.8--1.0 mm Fe, Ss & cored wire; V--groove 0459 052 003 Ø...

  • Page 29: Accessories

    Origo Mig C280 PRO, Origo Mig C340 PRO Accessories Digital meter ......0349 302 598 Transformer kit for CO heater .
  • Page 30 ESAB subsidiaries and representative offices Europe NORWAY Asia/Pacific Representative offices AS ESAB AUSTRIA BULGARIA CHINA Larvik ESAB Ges.m.b.H ESAB Representative Office Shanghai ESAB A/P Tel: +47 33 12 10 00 Vienna- -Liesing Sofia Shanghai Fax: +47 33 11 52 03 Tel: +43 1 888 25 11 Tel/Fax: +359 2 974 42 88 Tel: +86 21 2326 3000...
