T
OOLS REQUIRED
The DMC1 installation rough-in should be made during new
construction prior to drywall installation.
Rough-in boxes are used for Door Stations, Patio Stations,
and the DMC1 Master Station. Rough-in rings are used for
the Room Stations, and in-wall speakers. In the illustration
below, rough-in components are listed in parentheses near
the model(s) they fi t.
NR8P NR8P
8" Flush Mount 8" Flush Mount
Speaker Speaker
(NR8-5) (NR8-5)
MS2SX5SC
MVC1
Volume Control
(1-Gang Box)
CAT5
DMC1
EXAMPLE
SYSTEM
DIAGRAM
This diagram is for product reference only.
Refer to the installation instructions for
product limits and specifications.
Model numbers in parentheses represent
standard rough-in components.
The tools required for the installation rough-in are:
• Power drill with 1" auger.
• #2 Phillips screwdriver
• Wire stripper/cutter
• Tape measure
• Level
Door Release Remote Power
Mechanism
Transformer
DRW
RT11
Dry Contact
Closure
Door Release
Dry Contact
Closure for
Panic Operation
Either
Antennas
Included with
Wall Housing
AM FM
Modular
Door
Chime
MC3
or
MC8
DMC1 Music/Communication System (DMC1H Housing Required)
DMCMP3 CD/MP3 Player (DMC1F Frame Required)
(DMC1HC Housing Required)

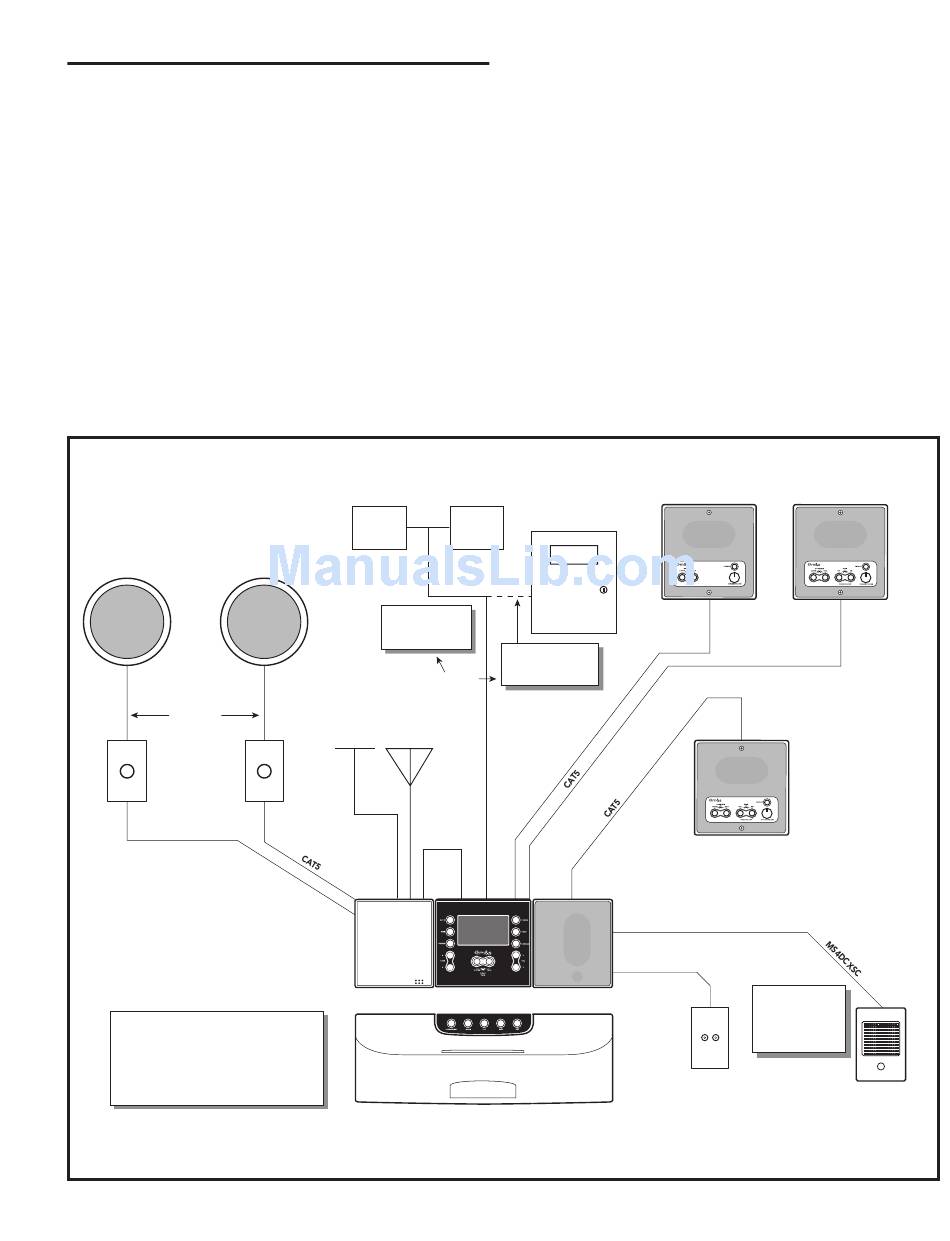

Figure 1. System Diagram
DMC1R
Standard Room Station
Security Panel
(DMC1HR)
Supports up to 15 room or patio stations and / or
(DMC1HRW or DMC1HRWS)
Audio Coax
Audio Input
Wall Plate
for External
Audio Source
DMC1RS
Standard Room Station
w/Remote Scan
(DMC1HR)
speakers (ALL TYPES 15 TOTAL)
DMC1RW
Patio Station
Door Stations
Available in
White, Bright Brass,
Antique Brass,
or Nickel
DS3B
Door Speaker
w/Bell Button
(ME3)
1
