Installation, Operation and
Maintenance Manual
US Water Oxi-Gen Iron, Sulfur
and Manganese Eradication
System
Oxi-Gen 150-OXi-2P
Oxi-Gen 150-OXi-3P
Oxi-Gen 150-OXi-4P
Oxi-Gen 150-OXi-5P
Oxi-Gen 150-OXi-6P
US Water Systems, Inc.
1209 Country Club Road
Indianapolis, IN 46234
1-800-608-8792
info@uswatersystems.com
www.uswatersystems.com
Advertisement
Table of Contents
Summary of Contents for Fusion Oxi-Gen 150-OXi-2P

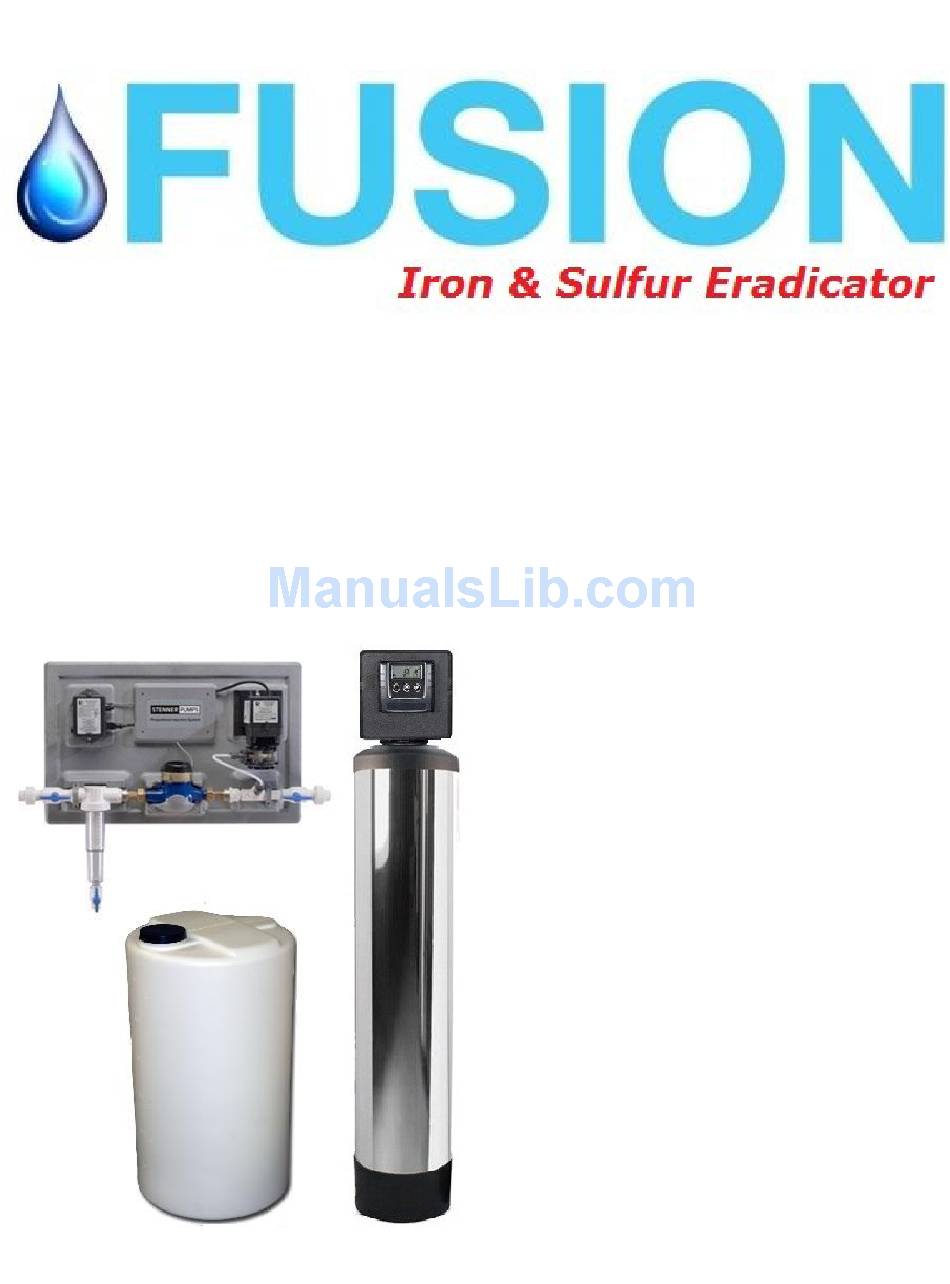

- Page 1 Installation, Operation and Maintenance Manual US Water Oxi-Gen Iron, Sulfur and Manganese Eradication System Oxi-Gen 150-OXi-2P Oxi-Gen 150-OXi-3P Oxi-Gen 150-OXi-4P Oxi-Gen 150-OXi-5P Oxi-Gen 150-OXi-6P US Water Systems, Inc. 1209 Country Club Road Indianapolis, IN 46234 1-800-608-8792 info@uswatersystems.com www.uswatersystems.com...
-
Page 2: Table Of Contents
Installation, Operation and Maintenance Manual Oxi-Gen Oxi-2P,3P,4P, 5P & 6P System Table of Contents System Overview and Specifications ..................3 How Your Oxi-Gen System Works/Backwash Frequency Table ........... 4 Stenner Injection Panel Specifications .................. 5 Injection System Installation Instructions ................6 Carbon Filter Media and Valve Installation ................ -
Page 3: System Overview And Specifications
Installation, Operation and Maintenance Manual Oxi-Gen Oxi-2P,3P,4P, 5P & 6P System System Overview and Specifications US Water has pioneered the use of hydrogen peroxide in water treatment for the eradication of iron (rust), sulfur (hydrogen sulfide odor) and manganese for nearly 20 years. It can truly be called an "Eradication System"... -
Page 4: How Your Oxi-Gen System Works/Backwash Frequency Table
Installation, Operation and Maintenance Manual Oxi-Gen Oxi-2P,3P,4P, 5P & 6P System How Your Oxi-Gen Water Treatment System Works The Oxi-Gen iron, sulfur and manganese eradication system uses Hydrogen Peroxide (H2O2) to oxidize contaminants in your water source. The chemical name for hydrogen peroxide is H2O2. -
Page 5: Stenner Injection Panel Specifications
Installation, Operation and Maintenance Manual Oxi-Gen Oxi-2P,3P,4P, 5P & 6P System System Components Stenner Proportional Injection System Specifications The Stenner Proportional Injection System delivers precise dosing proportional to the system's flow rate based on water volume. The Stenner system is perfectly suited for constant pressure (variable speed) well pumps, poultry and livestock houses, irrigation, systems with demand based backup wells and any application with varying... -
Page 6: Injection System Installation Instructions
Installation, Operation and Maintenance Manual System Components Stenner Proportional Injection System Installation Instructions Note: If there is sediment in the water, it should be removed prior to the injection system using a pleated filter and or multi-media filter. Sediment will clog the injection panel filter and could damage the water meter and pump in extreme cases. - Page 7 Installation, Operation and Maintenance Manual Oxi-Gen Oxi-2P,3P,4P, 5P & 6P System System Components 11. Plug pump back into the PCM. Plug PCM power cord into a 120V receptacle and reinstall cord cover if applicable. 12. Open the 2 ball valves slowly, pressurize system with water and turn pump power switch to "on".
-
Page 8: Carbon Filter Media And Valve Installation
Installation, Operation and Maintenance Manual Oxi-Gen Oxi-2P,3P,4P, 5P & 6P System System Components Media Installation Assembly Instructions 1. Remove the tank from carton. 2. Verify the riser is still fully engaged in the Vortech plate. 3. Place a piece of duct tape over the riser tube so no media enters the riser while filling. 4. -
Page 9: Carbon Filter Installation Instructions
Installation, Operation and Maintenance Manual Oxi-Gen Oxi-2P,3P,4P, 5P & 6P System System Components Carbon Filter Installation Instructions WATER PRESSURE: A minimum of 20 pounds of water pressure is required for regeneration valve to operate effectively. ELECTRICAL FACILITIES: An uninterrupted alternating current (A/C) supply is required. Note: Other voltages are avail- able. -
Page 10: Carbon Filter Valve Features
Installation, Operation and Maintenance Manual Oxi-Gen Oxi-2P,3P,4P, 5P & 6P System System Components Carbon Filter Control Valve Features Timer Features Parameter Data Display Display Indicator Error/ Information Icon Flow Indicator S e r v i c e I c o n x1000 Indicator Programming Icon... - Page 11 Installation, Operation and Maintenance Manual Oxi-Gen Oxi-2P,3P,4P, 5P & 6P System System Components Carbon Filter Control Valve Features Setting the Time of Day 1. Press and hold either the Up or Down buttons until the programming icon replaces the service icon and the parameter display reads TD. 2.
-
Page 12: Carbon Filter Valve Features And Programming
Installation, Operation and Maintenance Manual Oxi-Gen Oxi-2P,3P,4P, 5P & 6P System Carbon Filter Control Valve Features and Programming Control Operation During A Power Failure The SXT includes integral power backup. In the event of power failure, the control shifts into a power-saving mode. -
Page 13: Carbon Filter Valve Programming
Installation, Operation and Maintenance Manual Oxi-Gen Oxi-2P,3P,4P, 5P & 6P System Carbon Filter Control Valve Programming Master Programming Options Abbreviation Parameter Option Options Abbreviation Gallons Liters Display Format Cubic Meters dF1b Standard Downflow/Upflow Single Backwash dF2b Standard Downflow/Upflow Double Backwash Fltr Filter Valve Type... -
Page 14: Carbon Filter Start Up And Injection Panel Setting
Installation, Operation and Maintenance Manual Oxi-Gen Oxi-2P,3P,4P, 5P & 6P System Carbon Filter Start Up Procedure The water filter should be installed with the inlet, outlet, and drain connections made in accordance with the manufacturer's recommendations, and to meet applicable plumbing codes. -
Page 15: What To Expect And Routine Maintenance
Installation, Operation and Maintenance Manual Oxi-Gen Oxi-2P,3P,4P, 5P & 6P System What To Expect and Routine Maintenance Now that the Oxi-Gen system has been installed here are a few things to expect; 1. The Oxi-Gen system will produce iron, sulfur and manganese free water immediately after installation. -
Page 16: Maintenance Schedule
Installation, Operation and Maintenance Manual Oxi-Gen Oxi-2P,3P,4P, 5P & 6P System Maintenance Schedule Component Action Frequency Replacement Part # Existing Well Pressure Drain tank until the water runs 1-6 Months Tank clear. Injection Panel Sedi- Open blow down valve and 3-6 Months ment Filter flush the filter. -
Page 17: System Flow Schematic
Installation, Operation and Maintenance Manual Oxi-Gen Oxi-2P,3P,4P, 5P & 6P System Flow Schematic... -
Page 18: Warranty
Installation, Operation and Maintenance Manual Oxi-Gen Oxi-2P,3P,4P, 5P & 6P System Warranty Oxi-Gen Limited Lifetime Warranty For the lifetime of the original purchaser, at the original residential These warranties are in lieu of all other warranties expressed place of installation of this OxiGen Water Treatment System, US WA- or implied, and we do not authorize any person to assume for us any TER SYSTEMS, INC.
