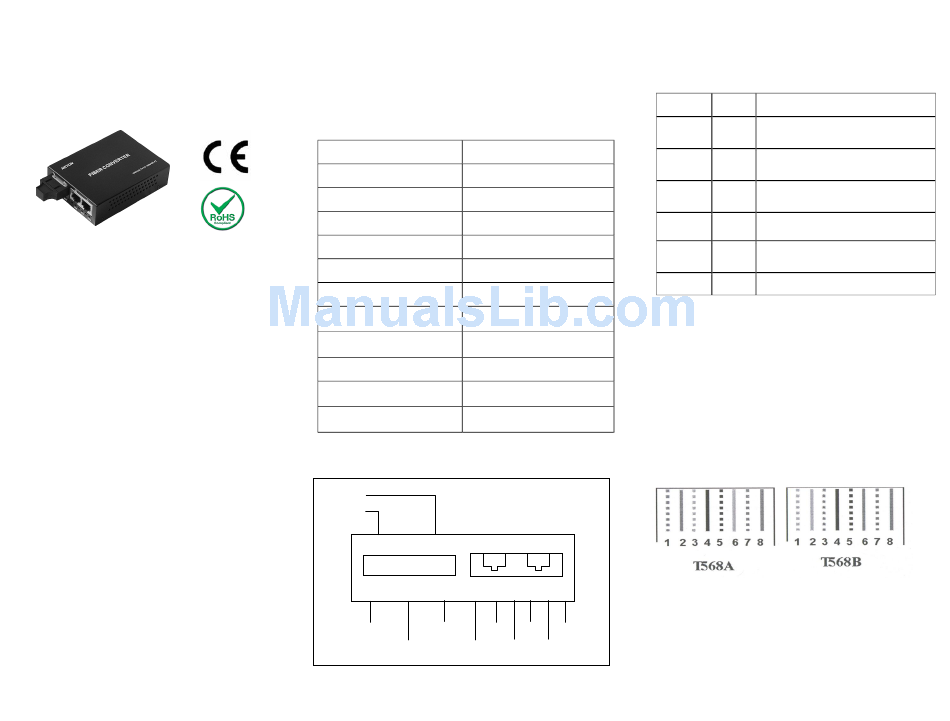

ATC Technology NMC-3301 User Manual

10/100BASE-T Fast Ethernet
Media Converter
NMC-3301 User's manual
Rev:2.1
1.Overview
The Media Converter complies with IEEE802.3,
IEEE802.3u, IEEE802.3x Standards. It is designed to
convert data signal between 100 Base-Tx and 100
Base-Fx fast Ethernet. The data signal converted by
such high performance media converter can be
transmitted up to 20Km maximum by fiber-optical
cable.
The Converter is equipped
opticconnectors (One for transmitting-Tx and another
for receiving-Rx), two RJ-45 Jacks and one external
power supply receptacle. Six LED indicators are
built-in for easy diagnosing and monitoring the status
of power, Unshielded Twisted Paired (UTP) Link, UTP
Activity, Fiber Link, Fiber Activity, Full duplex and
data rates. It can be configured automatically for Full
Duplex or Half Duplex operation.
It is compact, cost-effective, low dissipative, high reliable
and stable. It can be used in standalone applications or
Rack-Mounted applications where
converter can be inserted into a rack-mount chassis (Up
10 units) and allowing all the converters to be powered by
a single internal power supply.

2.0 Specifications:

2.1 Performance Introduction

Parameter
Data Rate(Mbps)
Optical Wavelength(nm)
Fiber Type(μm)
Connector Type
Max Distance(Km)
Power Supply
Operating Temperature
Storage Temperature
Relative Humidity
EMI and Safety
with two fiber
Dimensions
Front Panel
Receiving
Transmitting
TX
PWR
multiple media
PWR
Type
10/100
1310
Single Mode 9/125*
SC
20Km
AC110-220V/+5V DC, 1A
0-70℃
-40~80℃
5% to 90% non condensing
CE，FCC Class A
170mm×120mm×30mm
RX
SPD
L/A
SPD L/A FDX SPD L/A FDX
SPD-TP FDX-TP
SPD-FX L/A-TP
L/A-FX FDX-TP L/A-TP
SPD-TP
Led indicate
LED Color Function
Lit when fiber connection is good
L/A-FX Green
Blink when fiber data is active
SPD-FX Green Blink when fiber data is active
Lit when TP connection is good,
L/A-TP Green
Blink when TP data is active
SPD-TP Green Lit,100Mbps; Non-light 10Mbps
Lit when full-duplex mode is
FDX Green
active
PWR Green Lit when +5V power is coming up

3.0 Installing the Converter

3.1 For as a stand along unit.
3.11 Verify if the AC-DC adapter conforms to your country
AC power requirement then insert power plus
3.12 Check the type of UTP(se fig.1)
UTP complies With IEEE802.3 Standards, and has two
types:T568A T568B.
Fig.1 The type of UTP
NOTE: G: Green; O: Orange; B: Blue; P: Palm
Parallel cable: connect T568A to T568A,or T568B to
T568B
