Bright Solutions BSL1610SE Owner's Manual

Bright solutions self-contained extractor owner's manual
Hide thumbs

Advertisement

Quick Links

Download this manual
BSL1610SE
(03-13)
www.mybrightsolutions.com
VV67149BSL

Advertisement

loading

Related Manuals for Bright Solutions BSL1610SE

Summary of Contents for Bright Solutions BSL1610SE

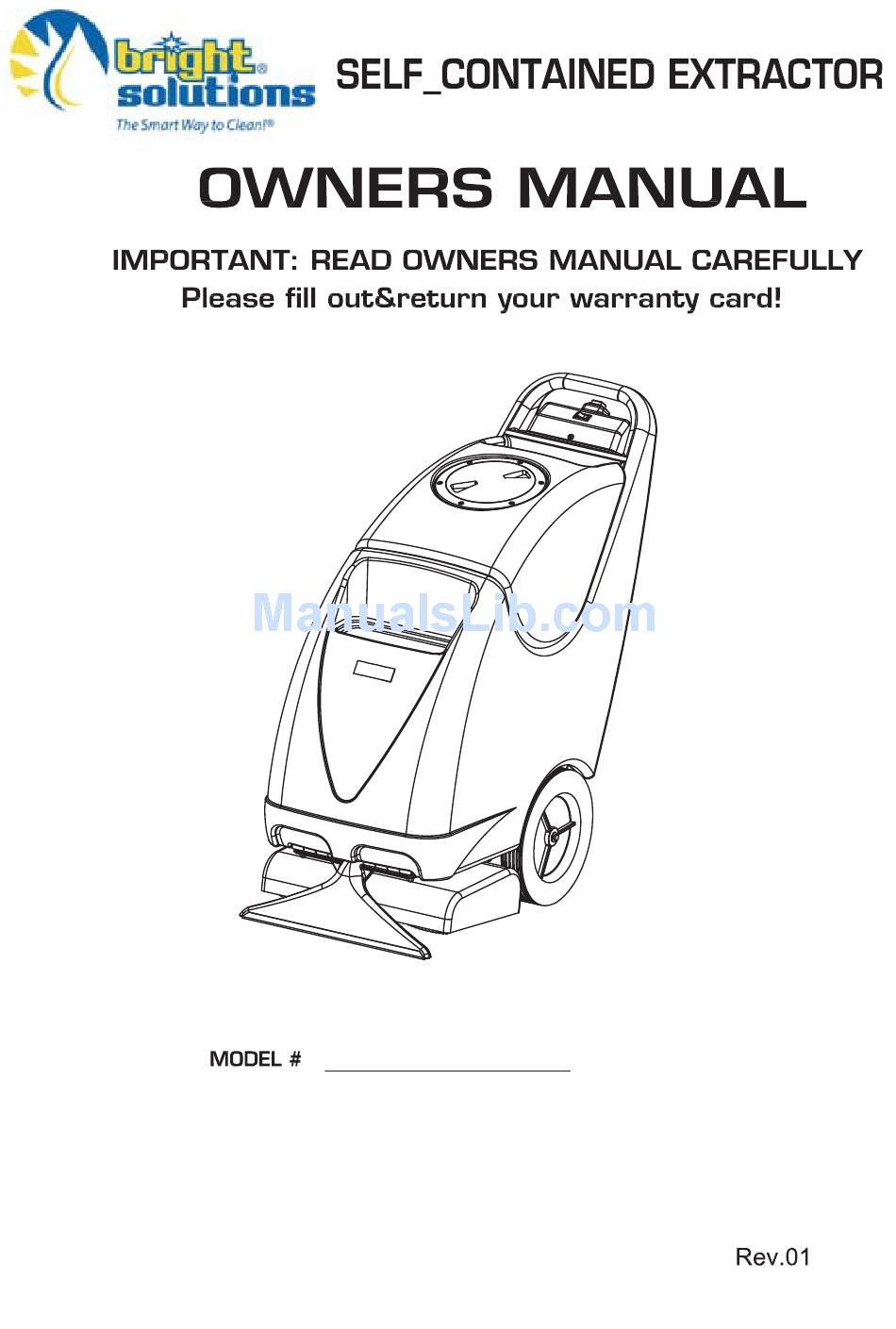

  • Page 1 BSL1610SE (03-13) www.mybrightsolutions.com VV67149BSL...

  • Page 2: Table Of Contents

    ” TABLE OF CONTENTS Machine Components Safety Precautions Machine Set Up Machine Operation Machine Maintenance & Storage Troubleshooting Parts Lists 9-20 Wiring Diagram...

  • Page 3: Machine Components

    ” MACHINE COMPONENTS 1) Vacuum / pump on/off switch 7) Spray jets 2) Brush circuit breaker 8) Brush assembly 3) Brush / spray on/off button 9) Pickup head 4) Drain hose 10) Solution tank fill port 5) Accessory tool solution hookup 11) Recovery tank lid 6) Brush raise and lower foot pedal...

  • Page 4: Safety Precautions

    ” understand operators manual SAFETY PRECAUTIONS - In flammable or explosive areas. - With damaged or modified GROUNDING INSTRUCTIONS cord or plug. General – This carped extraction - If not in proper operating machine shall be grounded while in condition. use to protect the operator from - In outdoor areas.

  • Page 5: Machine Set Up

    ” SLIDER EXTRACTOR SETUP MACHINE OPERATION !!! Read operators manual thoroughly prior to operating or PRIOR TO EXTRACTING CARPETS servicing this machine!!! 1) Inspect power cable and Carefully check the shipping carton extension cable for damage. for signs of damage. Report any Replace cable if damage is found.

  • Page 6: Machine Maintenance & Storage

    ” 3) Continually check for foam buildup DRAINING TANKS in recovery tank. Use a distributor recommended foam control DRAINING SOLUTION TANK solution. 1) Disconnect vacuum hose from back NOTE: Excessive foam buildup will not of machine and connect the activate the float shut-off and may “bleeder”...
  • Page 7 ” Mixing Instructions: DAILY MAINTENANCE a) Premix 16 oz. or an acetic acid 1) When cleaning operation is solution with 2 gallons of water complete for the day, drain and rinse and pour into solution tank. the recovery tank thoroughly with b) Turn vacuum / pump switch on clean water.

  • Page 8: Basic Troubleshooting

    ” BASIC TROUBLESHOOTING PROBLEM CAUSE SOLUTION Machine doesn't work Not plugged in to power source Plug into a grounded outlet Faulty power cable Contact Distributor Faulty extension power cable Replace with new extension power cable Building circuit breaker tripped Reset circuit breaker Solution pump not Vacuum / pump switch not on Turn on switch...

  • Page 9: Parts Lists

    Solution and Recovery Tank Assembly ”...
  • Page 10 ” PART DIA NO DESCRIPTION NUMBER REQ'D VV67161 CLEAR DOME, FRICTION FIT VV67163 GASKET, CLEAR DOME SEAT SCREW IN LID VV96002 VV67109 BEND, TUBE VV67301 COUPLER VV67302 GASKET, COUPLER VV67108 ELBOW VF81226 COUPLER VAC HOSE VV67705 DRAIN HOSE VV67113-1 VAC HOSE VV10113 CLAMP, HOSE 2"...
  • Page 11 ” PART DIA NO DESCRIPTION NUMBER REQ'D VV80125 COUPLING VV10411 STRAINER, LINE VV67101 SOLUTION TANK VF47035 LOGO VV67107 FILTER VA13471 SCREW, ST5X10 VV67102 RECOVERY TANK VF81504 FLOAT, SHUT-OFF VV67305 BEND WASHER PLAIN ¢4¢12X1 VV13664 VF13491 SCREW M4X12 SST VV67162 RUBBER HINGE VF81403A ELBOW, 90º, BRASS VV67708...
  • Page 13 0!24 $%3#2)04)/. $)! ./ 2%1 $ .5-"%2 '3940)6 59-'/ '322)'8 ;%7,)6 40%-2 ¶ <¶ < ;%7,)6 40%-2 ¶ <¶ < )0&3; 786)'8 Ž &%6& ,37) '0%14 ,37) ,37) ,-+, 46)7796) &%6& 4914 73098-32 730)23-( ,> '322)'836 8,6)) ;%= '322)'836 &%6& 4914 13928-2+ *6%1) 4914 4914 +%7/)8 :%' 13836...
  • Page 14 PART DESCRIPTION DIA NO REQ'D NUMBER '0%14 7'6); 6,1 1 < 786%-2)6 7'6); 6,1 1 < 298 2=032 -27)68 1 74%')6 7'6); 1 < ,)< *338 78)4 7'6); 6,1 1 < %28-7/-( 40%8) ;%7,)6 ;,))0 %0 ;,))0 &70 ;%7,)6 ¶ 7'6);...
  • Page 15 ” Brush Housing Assembly...
  • Page 16 ” PART DIA NO DESCRIPTION NUMBER REQ'D VV67403-2A LIFT BAR VV99926-1 RECTIFIER VV13601 WASHER,LOCK,SST,Ø5 VV13633 NUT,SST,M5 VV13634 SCREW,SST,PH,M5X30 VA13475 SCREW,PH,SST,M5X25 VV67407 SPRING VV20501 SCREW,PH,SST,M5X14 VV13662 WASHER,PLAIN,Ø5XØ12X1 VV67401 MOUTING BASE,BRUSH VV80128 BARB,HOSE VV67423 INSERT,SPRAYER BODY VV67421 SPRAYER BODY VV67422 SPRAY TIP VV67435 MOTOR,110V VV67433...
  • Page 17 ” Upholstery Tool Assembly...
  • Page 18 ” PART DIA NO DESCRIPTION NUMBER REQ'D VV40328 UPHOLSTERY TOOL VV40328-6 WINDOW,HAND TOOL VV20071 SCREW,5/16-18X5/8"L,HH VV20298 WASHER LOCK 5/16“L SST VV60531 GASKET VV80159 NOZZLE SPRAY TIP 80º VV80105 BUSHING BRASS VV80115 ELBOW STREET 45 DEGREES VV10933 TRIGGER VALVE VV80128 BARB HOSE VV10114 CLAMP HOSE 3/8”...
  • Page 19 ” Hose Assembly...
  • Page 20 ” PART DIA NO DESCRIPTION NUMBER REQ'D VV60220 CUFF, 1 1/2" VV67703 HOSE VACUUM VV20652 TIE CABLE VV80241 HOSE BARB,MAIL PLUG SST VV10114 CLAMP HOSE 3/8”,SST VV67704 HOSE SOLUTION 16'LONG VV80128 HOSE BARB RD80208 COUPLER QUICK CONNECT VV67703A VACUUM HOSE ASSEMBLY VV67704A SOLUTION HOSE ASSEMBLY...

  • Page 21: Wiring Diagram

    ” Wiring Diagram...
