Summary of Contents for Expert EX-9132B

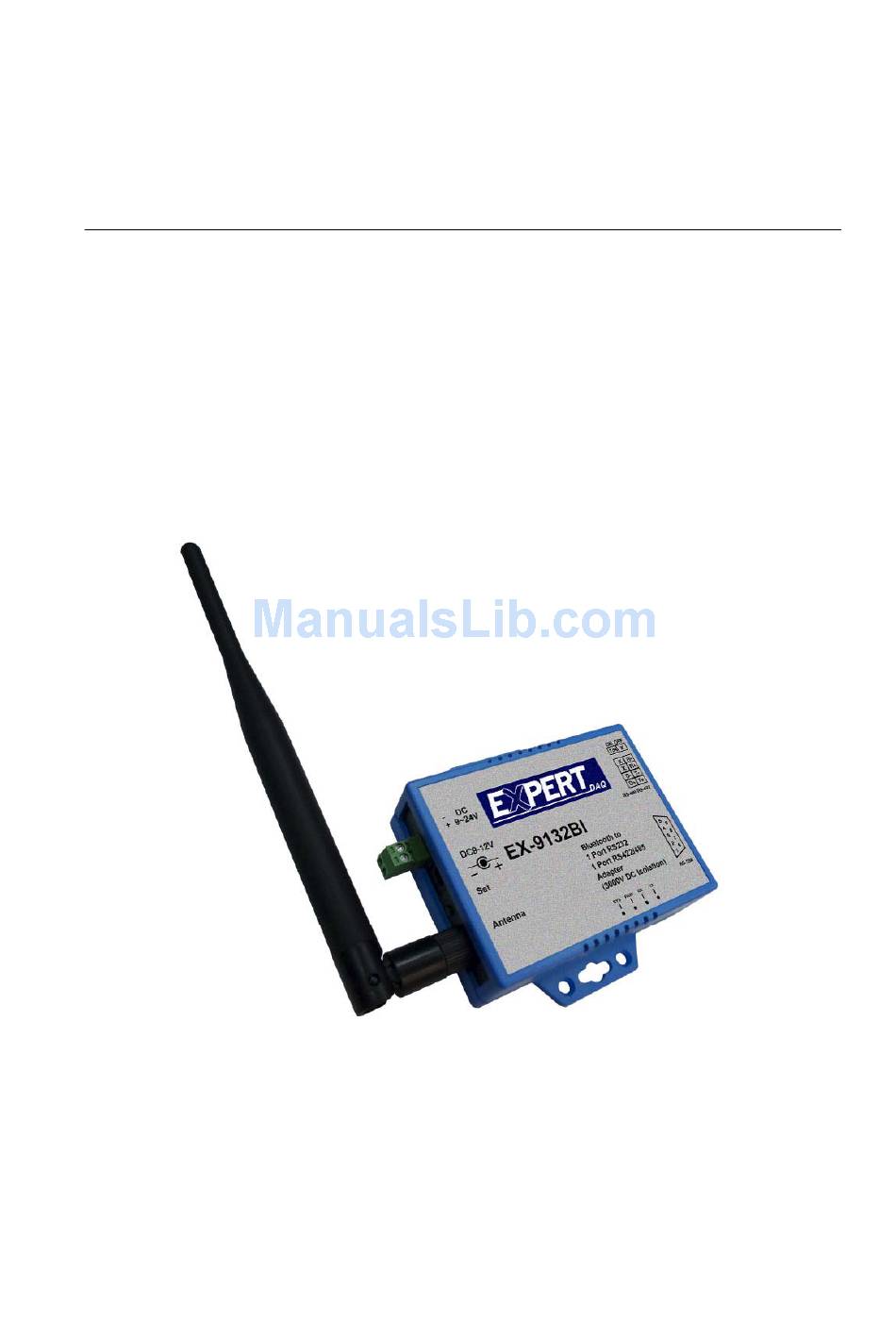

- Page 1 Bluetooth to RS-232&RS422/485 EX-9132B/BI Bluetooth Adapter Operation Manual First Edition, Jun 2008...
-
Page 2: Table Of Contents
5. Hardware Installation …………………………………… 6. BT RS232 Config Tool Installation & Setup ……… 11 Tool Installation ……………………………………………… EX-9132B/BI Config Tool Parameters Configuration .……… Apply “Connect” ……………………………………………… 14 Apply “Write” ………………………………………………… Apply “Read” ………………………………………………… Appendix A - Pin Outs and Cable Wiring ……………... -
Page 3: Introduction
Introduction Thank you for your purchase of EX-9132B/BI as the Bluetooth To Serial Adapter. Featuring Bluetooth wireless technology, it is for replacement of standard RS232 or industrial RS422/485 cable perfectly, with standard RS232 and industrial RS422/485 interfaces, so can be easily adopted for industrial machines with RS232 or RS422/485 interfaces. -
Page 4: Package Checklist
Package checklist EX-9132B/BI product is shipped with the following items: 1 unit of EX-9132B/BI Bluetooth to RS232 / 422 / 485 converter 1 unit of Power Adaptor (9V DC, 200mA) User Operation Manual Software CD NOTE: Notify your sales representative if any of the above items is missing or... -
Page 5: Product Specification
Product Specification Serial Port No. of Ports : RS-232 / 422 / 485 * 1 Port ● Port Type : DB9 Female ● Builtn RS-422/RS-485 Terminal Resister (Surge Protection) ● Speed : 1200 bps¡ ã 115.2 K bps ● Parity : None , Odd , Even ●... - Page 6 SYS (red), Pair (green), Rx (red), Tx (green) Environment : Operating Temperature: 0¢ J ¡ ã 60¢ J Storage Temperature : -25¢ J ¡ ã 70¢ J Dimensions : 90 * 65 * 27 mm ( W * D * H ) WEIGHT : 200 gm Regulatory Approvals : EMC : FCC Class A, CE Class A...
-
Page 7: Product Panel Views Description
RS-232 DCn Power Outlet The EX-9132B/BI Bluetooth to RS232 / 422 / 485 is powered by a single 9V DC (Inner positive/outer negative) power supply and 200mA of current. A suitable power supply adapter is part of the package. Connect the power line to the power outlet beside of antenna connector and put the adapter into the socket. -
Page 8: Antenna Connecter
Antenna Connector Antenna The antenna is a standard SMA jack. Simply connect it to a 2.0dBi dipole antenna (Standard Rubber Duck) and it is 50 Ohms impedance and can support 2.4GHz frequency. Serial I/O Port Serial I/O Port Terminator RS232 Serial I/O Port RS-485/RS-422... -
Page 9: Serial I/O Port Of Rs232&Rs422/485
1 & 2 to opposite position. Set Button Set Button The purpose is for synchronizing between EX-9132B/BI device and “BT RS232 Config Tool” software. After finishing the parameter setup of “BT RS232 Config Tool” software, when you click the icon of “Connect” in “BT RS232 Config Tool”... -
Page 10: Led Indicators
LED Indicators SYS (Red)¡ G It is the power indicator, when the power is on then the LED will blink once per second. Pair (Green)¡ G Before connecting to synchronize between the device and the “BT RS232 Config Tool” software, the green LED will be blinking After connecting to synchronize between the device and the “BT RS232 Config Tool”... -
Page 11: Hardware Installation
RS232 device you are going to connect in DTE or DCE mode to work with it. At DCE device side meaning is to connect a DTE EX-9132B/BI to the remote DCE RS232 device (such as a Modem). On the contrary, DTE device side to connect a DCE EX-9132B/BI to any DTE device, such as a computer device. -
Page 12: Bt Rs232 Config Tool Installation & Setup
BT RS232 Config Tool Installation & Setup When setting up EX-9132B/BI adapter for the first time, you have to install and run “BT1.exe” as “BT RS232 config tool” first in your computer device. The utility CD is enclosed in the device box. Before you use EX-9132B/BI adapter, you have to pair it with another EX-9132B/BI device. -
Page 13: Ex-9132B/Bi Config Tool Parameters Configuration
BT RS232 Config Tool Parameters Configuration After double click the icon of BT1 as “BT RS232 Config Tool”, the configuration screen will be pop-up as the above picture. A. COM Port Select COM port number, you have to avoid the port conflict with other device in computer and use available port number B. - Page 14 “Slave” and the device will be play like a DCE - Data Communication Equipment (such as a Modem) You can setup your EX-9132B/BI device as what type of the RS232 device you are going to connect in DTE or DCE mode to work with it.
-
Page 15: Apply "Connect
Apply “Connect” After finish the parameters configuration, click the icon of “Connect” in BT RS232 Config Tool screen and meanwhile press the Synchronous button immediately on the left side of the device. And then the next screen of parameters configuration is pop-up. The icon of “Connect” is changed to “Disconnect”... -
Page 16: Apply "Write
Apply “Write” To click the item of “Write”, the meaning is to save all parameters after configuring into the “BT RS232 Config Tool”. Apply “Read” To click the item of “Read”, the meaning is to load all parameters as last time saving from the “BT RS232 Config Tool”. -
Page 17: Appendix A - Pin Outs And Cable Wiring
PIN 6 : DTR PIN 7 : CTS PIN 8 : RTS PIN 9 : Power ( optional ) □ □ RS-232 Wiring Diagram □ Serial Device EX-9132B/BI 2 RX 3 TX 3 TX 2 RX 5 GND 5 GND (Flow Control) -
Page 18: Rs-422/485 Pin Assignment
PIN 3 : R+ PIN 4 : R- RS-485 : PIN 1 : D+ PIN2 : D- □ □ RS-422 Wiring Diagram □ Serial Device EX-9132B/BI 3 R+ 4 R- 1 T+ 2 T- □ □ RS-485 Wiring Diagram □...
