Summary of Contents for Clever Acoustics CRAM21

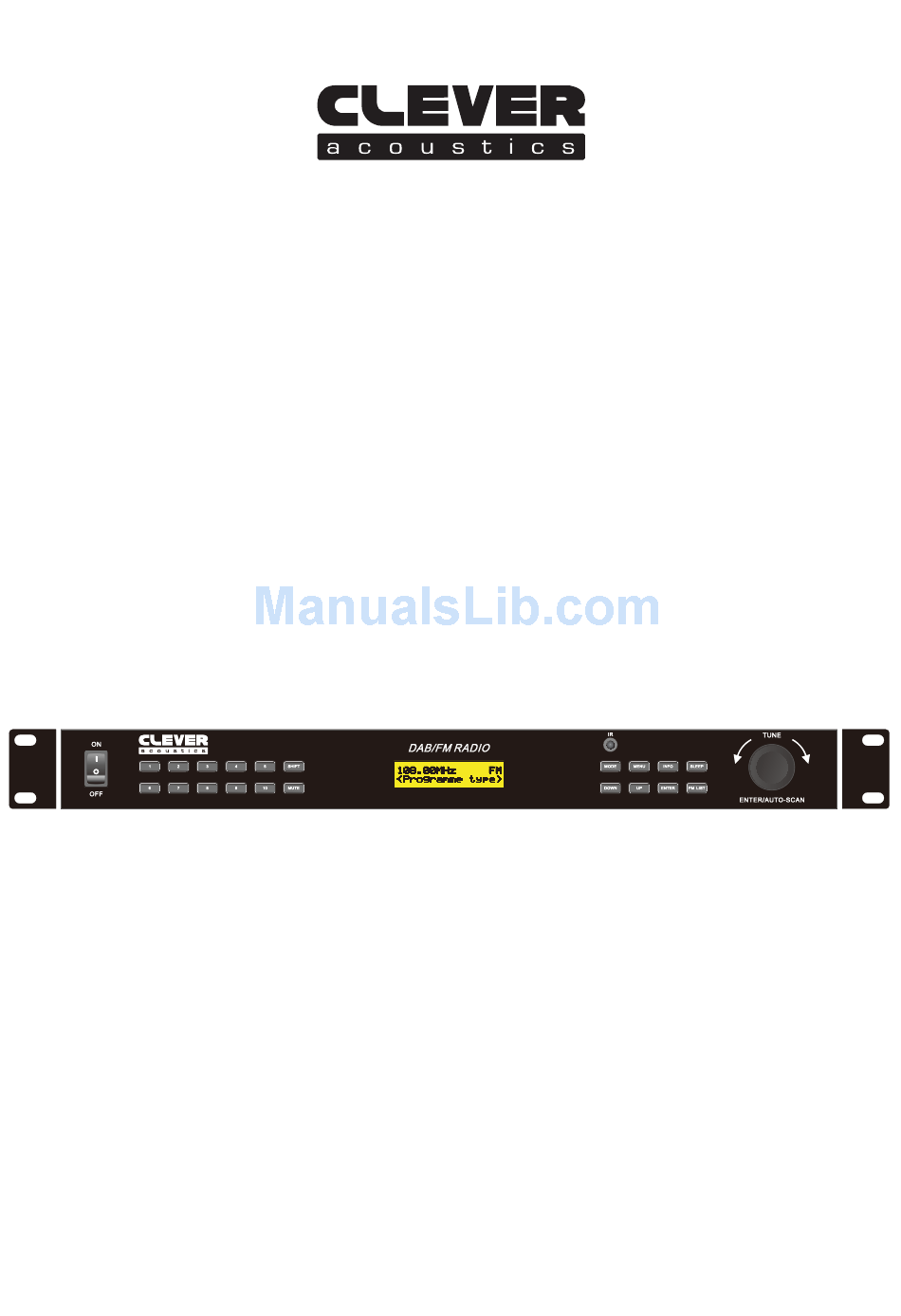

- Page 1 DAB 50 DAB/FM Tuner User Manual DAB 50 www.cleveracoustics.co.uk Order code: CRAM21...
-
Page 2: Safety Advice
Safety advice WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! • Before your initial start-up, please make sure that there is no damage caused during transportation. • Should there be any damage, consult your dealer and do not use the equipment. • To maintain the equipment in good working condition and to ensure safe operation, it is necessary for the user to follow the safety instructions and warning notes written in this manual. • Please note that damages caused by user modifications to this equipment are not subject to warranty. CAUTION! CAUTION! TAKE CARE USING KEEP THIS EQUIPMENT THIS EQUIPMENT! AWAY FROM RAIN, HIGH VOLTAGE-RISK MOISTURE AND LIQUIDS OF ELECTRIC SHOCK!! IMPORTANT:... - Page 3 Product overview & technical specifications DAB 50 DAB/FM Tuner This DAB/FM Tuner is warranted from defects for one year from the date of purchase. Should your DAB/FM Tuner require service, either within or beyond that warranty period, please contact your Prolight Dealer. This unit includes a host of features, along with an impressive list of specifications, which are detailed over the next pages. Please take the time to read this document completely prior to installation of this product. • DAB and FM radio tuner DAB 50 • Auto/manual tuning • 20 preset memory (10 DAB, 10 FM) • LCD screen www.cleveracoustics.co.uk • Radio station display • Radio text (scrolling) • Automatic radio controlled time and date • Stereo outputs via balamced XLR or unbalanced RCA • IR remote control (batteries not included) • 1U 19” rack mountable with removable rack ears • Illuminated buttons for operation in dark environments Specifications CDMP 50 Inputs FM 75Ω unbalanced antenna terminal Outputs 2 x balanced XLR (L+R), and unbalanced RCA (L+R) Power supply 240V AC Power consumption 50VA Dimensions (H x W x D) 44 x 484 x 185mm Weight 3.35kg www.cleveracoustics.co.uk...
- Page 4 Panel & connection identification DAB 50 DAB 50 www.cleveracoustics.co.uk www.cleveracoustics.co.uk In the box: 1 x fixture, 1 x power cable, IR remote, telescopic FM antenna & 1 x user manual 01 - On/off power button 08 - DOWN buttom 15 - Rotary tuner 02 - Preset memory buttons 09 - MENU button 16 - Antenna 03 - SHIFT button 10 - UP button 17 - RCA output 04 - MUTE button 11 - INFO button 18 - XLR output 05 - LCD display 12 - ENTER button 19 - IEC in socket 06 - MODE button...
- Page 5 Layout identification Layout identification: 19. Mains inlet Combined IEC and fuse holder for mains power connection. 1. On/off power button Use this to power the unit on/off. 19. IR remote For full IR remote button functions see page 6. 2. Preset memory buttons Press to access programmed stations. 3. SHIFT button Press to jump preset by 10, press and hold for FM scan list. 4. MUTE button Press to mute output, press again to un-mute. 5. LCD display Shows frequency and/or station information. 6. MODE button Toggles between DAB and FM modes. 7. Remote sensor Receives control signal from the handheld remote.
-
Page 6: Remote Control Function Buttons
Button functions & operation instructions Remote control function buttons Buttons Functions Preset buttons Press to access programmed stations AUTO SCAN Press to auto-scan for available stations MODE Toggles between DAB and FM modes MENU Changes menu options for on-screen editing INFO In FM mode, changes RDS options In DAB mode, changed LCD display ENTER Press to confirm selection Press to manually tune to higher channels, press and hold to auto-scan PRESET Press to select preset station DOWN Press to manually tune to lower channels, press and hold to auto-scan SLEEP Press to enter sleep mode and then use UP/DOWN keys to set sleep time SHIFT Press to jump preset by 10, press and hold for FM scan list MUTE Press to mute output, press again to un-mute FM LIST Press to display the list of FM stations scanned Operation instructions 1. Connect the rear outputs (17/18) to a line input on the mixer or mixer-amp using a high quality audio cables. 2. Extend the rear antenna (16) or in places of poor reception, replace this with an F connector lead to a well sited aerial for better reception. -
Page 7: Weee Notice
WEEE notice Correct Disposal of this Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed of with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. www.cleveracoustics.co.uk DAB 50 DAB/FM Tuner User Manual...
