FIGURE 1
Possible monitor
mounting positions
(monitor appears larger for
illustration purposes)
Installation for Vehicles with License Plate on Lift Gate
1. Route cable from main unit through lift gate and gate hinge.
Continue routing wire to driver's side reverse light assembly.
2. Once connected to the reverse light, continue to route cable
along floor board or across roof line to complete installation.
Installation for Trucks
1. Route cable from main unit to the underneath side of
the truck. Run cable along frame and connect to frame
with cable ties. Continue routing cable into driver
compartment where front door hinges from the main
body of the truck. Connect cable to monitor.
Locate the reverse light wire and splice
the red wire to the reverse light wire
Installation for Cars
1. Route cable from main unit to driver side reverse light
assembly.
2. Once connected to reverse light, continue to route
cable along floor board or across roof line to complete
installation.
Secure license plate bracket with
provided screws
Advertisement
Subscribe to Our Youtube Channel

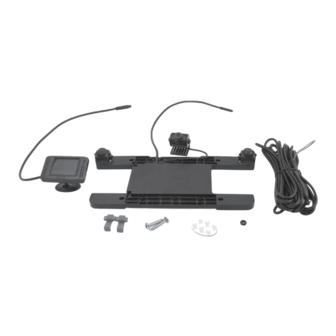

Summary of Contents for NVision rear view camera system

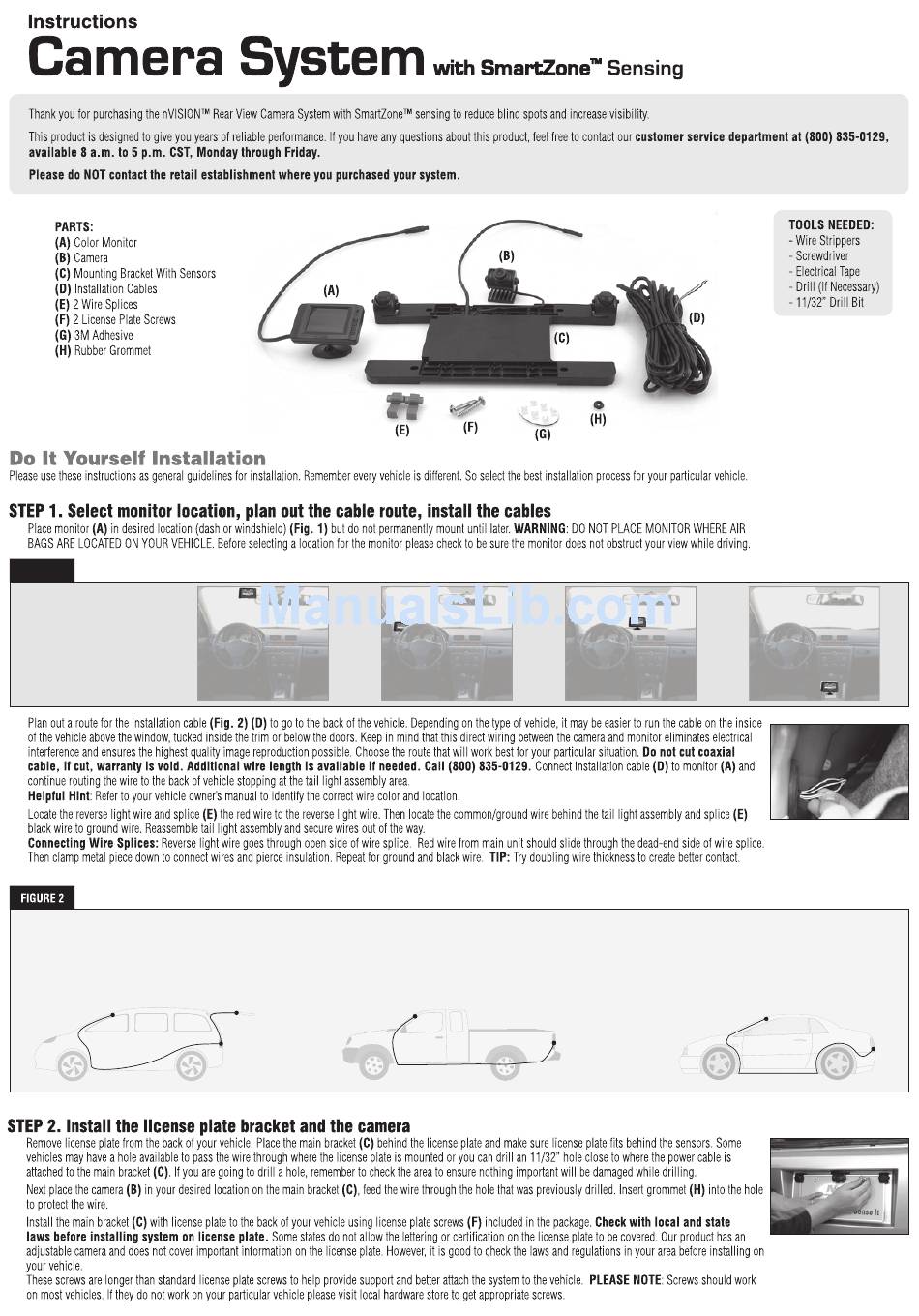

- Page 1 FIGURE 1 Possible monitor mounting positions (monitor appears larger for illustration purposes) Locate the reverse light wire and splice the red wire to the reverse light wire Installation for Trucks Installation for Cars Installation for Vehicles with License Plate on Lift Gate 1.
- Page 2 Connect wire from main bracket to the wire coming from the monitor – Buttons The volume can be turned up through this button without entering MENU. Volume adjustments can be made by pressing “+/-“ buttons. MENU M Button Function Options: Brightness, Contrast, Volume, and Reset. If the button is pressed once, it will switch to another option.
