Summary of Contents for Lloyds Pharmacy LTD1

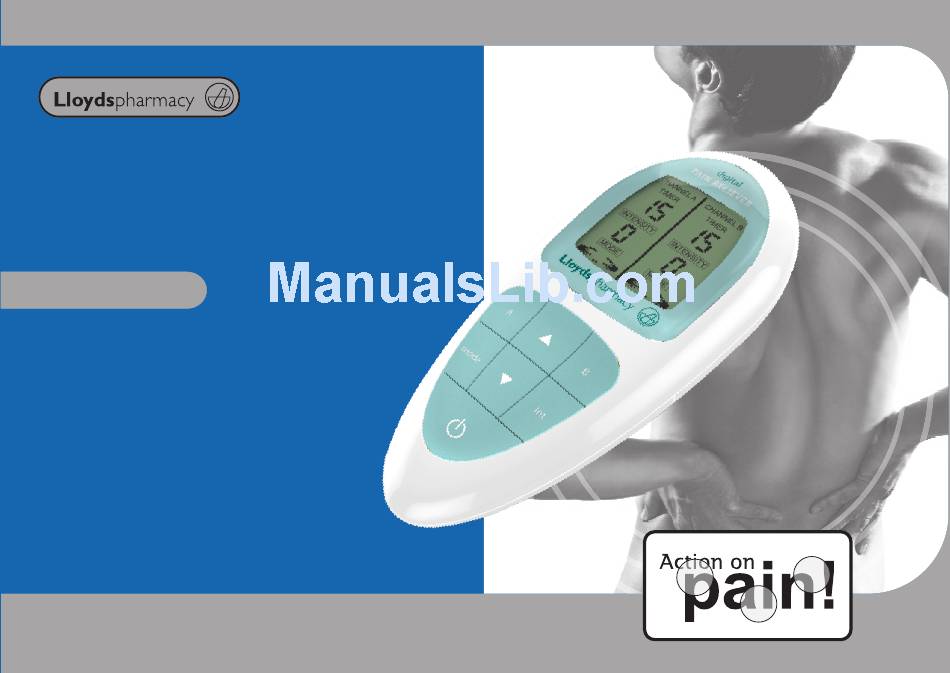

- Page 1 Dual Channel TENS Digital Pain Reliever User Manual Approved by Model LTD1 RCN 1088789...
-
Page 2: Table Of Contents
Contents Introduction Parts Features General Warnings and Safety 5 - 6 7 - 9 Using your Dual Channel TENS Digital Pain Reliever Programme Selection 10 - 11 Gel Pad Positioning Battery Information Specification Troubleshooting Maintenance and Cautions Warranty... -
Page 3: Introduction
Thank you for purchasing the Lloydspharmacy Dual Channel TENS Digital Pain Reliever (Model LTD1). The Dual Channel TENS Digital Pain Reliever is effective in relieving pain. TENS stands for Transcutaneous Electrical Nerve Stimulation. TENS is recognised as a safe and highly effective method of relieving pain. TENS is now regularly recommended by doctors, physiotherapists and pharmacists throughout the UK. -
Page 4: Parts
Main Unit Cables x 2 Gel pads x 4 OUTPUT PLUG SOCKETS (CHANNELS A & B) LCD SCREEN REMAINING MASSAGE TIME DISPLAY TIME DISPLAY DOT (FLASHES ONCE PER SECOND) OUTPUT INTENSITY DISPLAY MODE DISPLAY CHANNEL A SELECTION UP BUTTON BUTTON CHANNEL B MODE SELECTION BUTTON... -
Page 5: Features
2 output channels Each output channel can be adjusted independently 8 mode settings to provide different pain relief and massage effects 8 output intensities to suit different parts of the body and pain Touch control buttons and large LCD display making the unit user friendly 4 gel pads Automatic therapy time setting for 15 minutes A safe and effective method of relieving pain... -
Page 6: General Warnings And Safety
General Warnings and Safety Before you start: Please carefully read and understand the following warnings and cautions to ensure the safe and correct use of this device and to prevent injury. • Make sure the batteries are installed correctly. • Connect the cable to the gel pads and then connect to the unit (see page 7 for more details). •... - Page 7 General Warnings and Safety • Do not use the device with an electrocardiograph meter (ECG) or any other medical apparatus. • Do not use the device with any topically applied creams or ointments etc. • Do not place gel pads on the head, face, throat, back of neck, heart, chest area, eyes, oral cavity, sexual organs or onto the spine or bones.
-
Page 8: Connect The Gel Pads To The Output Cable
Using your Dual Channel TENS Digital Pain Reliever How to connect the gel pads to the output cable: Preparation before using the unit 1. This unit requires 4 x AAA batteries (not included). 2. To insert/replace batteries, remove the battery compartment cover at the back of the unit and insert the batteries, observing correct polarity. - Page 9 Using your Dual Channel TENS Digital Pain Reliever Clip here Clip on pocket On hand Not designed for belt On table...
-
Page 10: Using Your Dual Channel Tens Digital Pain Reliever
Using your Dual Channel TENS Digital Pain Reliever Please ensure the gel pads are correctly attached and placed on the desired area before switching the unit on. 1: Press the “ON/OFF” button to switch the unit on. 2: Press the “A” button to select channel A. “CHANNEL A” will be displayed on the left hand side of the LCD. -
Page 11: Programme Selection
Programme Selection One of the following symbols will be displayed in the LCD, depending on which mode setting is chosen. DURATION PROGRAM MODE PROGRAM FOR: (mins) SELECTION FUNCTION TAPPING PAIN RELIEF (SLOW) TAPPING PAIN RELIEF (FAST) VIBRATING PAIN RELIEF/MASSAGE (SLOW) VIBRATING PAIN RELIEF/MASSAGE (MEDIUM) - Page 12 Programme Selection • The output intensity will be displayed on the LCD as a number from 1 – 8. (1 is the lowest and 8 is the highest). • The unit has a memory function - if a particular mode setting is chosen then it will remain on that mode even when the unit is switched off and switched back on.
-
Page 13: Gel Pad Positioning
Gel Pad Positioning Legs and Feet Lower back Upper back NOTE: DO NOT PLACE ON SPINE For other areas of pain, place the gel pads around the area of pain 4 - 6 inches apart (approximately). -
Page 14: Battery Information
Battery Information 1. Please use 4 x AAA batteries in the unit (not included). 2. Remove the batteries if the product is not in use for long periods of time. 3. Do not mix old and new batteries or different types of batteries. 4. -
Page 15: Specification
• Power Source: DC: 6.0V 4 x AAA batteries (not included) • Frequency: 4~128Hz • Band width: 60-200µs • Output current: Max.30mA±20% • Output voltage: 40V(P-P) by 500 load±20% • Size: 60(w) mm x 140 (h) mm x 26 (d) mm (approx.) •... -
Page 16: Troubleshooting
Troubleshooting Problem Check points Possible solution Are the batteries exhausted? Replace the batteries. The unit does not switch on Are the batteries installed correctly? Insert the batteries observing correct polarity. Is the cable properly connected? Firmly connect the cable. No output stimulus/sensation Have you removed the transparent Remove the protective film. -
Page 17: Maintenance And Cautions
• Do not immerse device in water or any liquid. Do not drop device or throw it from a height. • After using the device, please remove output plug from output socket and re-attach the pads to the protective transparent film. •... -
Page 18: Warranty
This product is guaranteed for a period of one year from the date of purchase against mechanical and electrical manufacturing defects. There are no user serviceable parts inside the instrument. Any attempted repair by unauthorised persons invalidates the warranty. This does not affect your statutory rights. Harvard Medical Devices Ltd. - Page 19 Replacement Gel Pads Approved by Available accessories RCN 1088789 Founded in 1998 Action on Pain is a national charity providing support and advice for those affected by chronic pain. We produce a range of informative booklets as well as operating PainLine - our telephone helpline providing practical and confidential advice.
