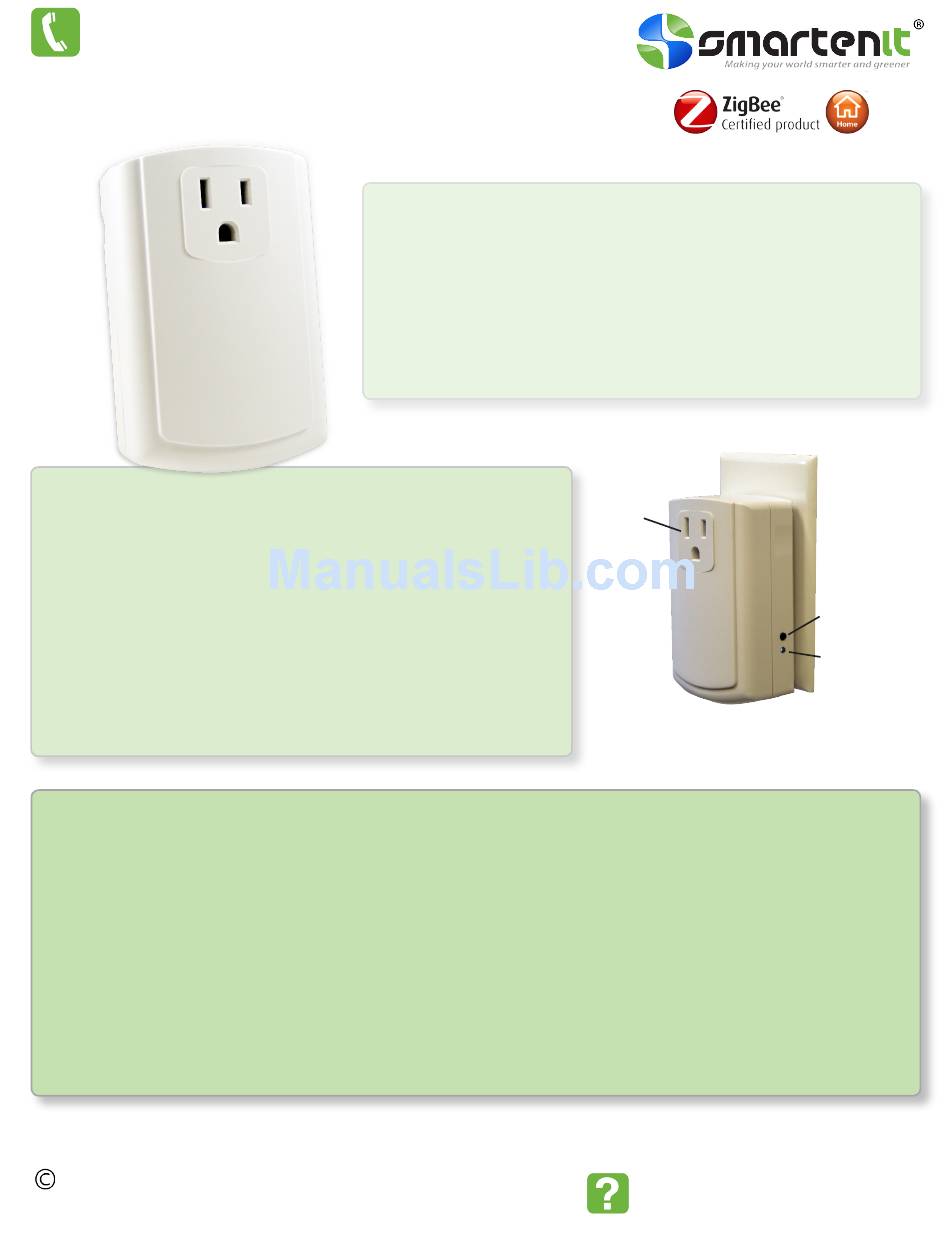

Smartenit ZBMPlug15 Quick Start Manual

Zigbee ha wireless metering smart plug

Hide thumbs

Technical Support

(949) 429-3303

Smartenit.com

Quick Start Guide

ZigBee HA Wireless Metering Smart Plug

Installation

The ZBMPlug15 must be installed indoors or in a weather proof enclosure

1. Reset to Factory Defaults

• Press and hold the Program Button while plugging the ZBMPlug15

into a 120V* AC receptacle and release after 1-2 seconds.

• The Status LED will blink rapidly indicating the ZBMPlug15 has

been reset and is searching for an open HA network to join.

(*240VAC input is acceptable, but the unit is equipped for North American receptacles)

2. Plug desired lamp or appliance into the Controlled Outlet.

(**Do not exceed 450W of incandescent lighting or 15A of resistive load**)

Set-up

1) Joining the ZBMPlug15 to the Network

• Open a ZigBee HA router or coordinator to permit joining of your ZBMPlug15 to the network.

• When the ZBMPlug15 begins to join, the Status LED blinking rate will slow until it finally stops when successfully joined.

• If the device continues to blink rapidly, ensure that your ZigBee HA router or coordinator is still open for join and posi-

tion the ZBMPlug15 as close to the router or coordinator as possible to eliminate the possibility for any range issues.

2) Binding the ZBMPlug15 to other devices

• To bind the ZBMPlug15 to a ZigBee HA controller, quickly tap the Program Button once then hold for 3 seconds and

release. The Status LED will blink one short blip. Then press the Program Button on the controller device, such as a

switch, according to the instructions of that device.

• The duration of binding is determined by the coordinator.

2014 Compacta International, Ltd. - Rev.

ZBMPlug15

and Smartenit are trademarks of Compacta International, Ltd.

ZigBee is a registered trademark of the ZigBee Alliance

ZBMPlug15

Product Brief

The ZBMPlug15 enables remote control and monitoring of lamps and

appliances, making them part of a home automation network.

The smart plug also measures the power delivered. This enables the

intelligent management of lighting and other appliances to maximize

energy conservation while taking advantage of the lowest rates offered by

electric utilities. Use of the ZigBee

compatibility with the emerging standards for smart homes/buildings being

deployed around the world.

(device must already be joined to network)

4/2014

Model #5010Q

Home Automation (HA) Profile ensures

Controlled

Outlet

For more information, please visit our Wiki

http://wiki.smartenit.com

Program

Button

Status LED
