Summary of Contents for E-Boda The Beat 200

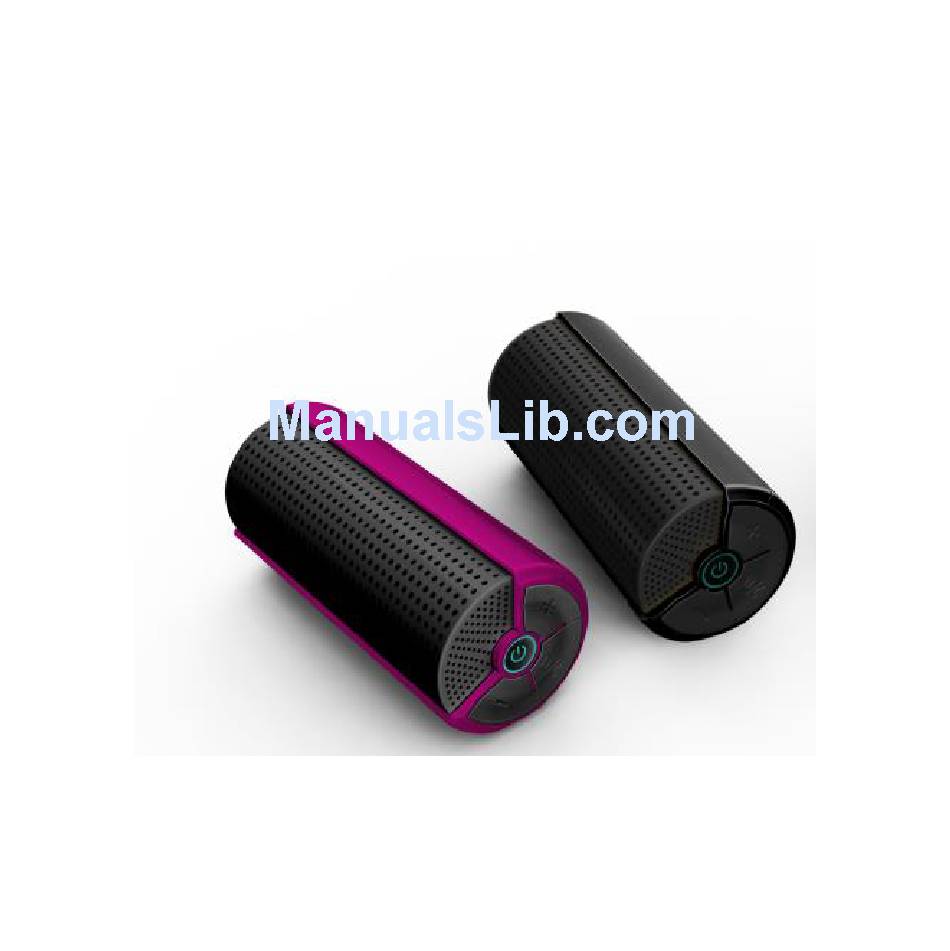

- Page 1 User Manual Bluetooth Speaker E-Boda The Beat 200...
- Page 3 ON/OFF button Previous/Volume – Next/Volume + Play/Pause/Hands freee Micro USB charging port AUX in Port AUX indicator light (Green)/ Power on indicator light (Green) Charging (Red) Bluetooth LED (Blue) 10. Microphone...
- Page 4 Specifications Bluetooth Range: 33 ft (10 m) Playback Time: approx. 4 Hrs Dimensions: 7.2 x 2.6 x 2.2 (inch ) (183 x 65 x 55 mm) Weight: 0.53 oz. (.240 gr.) Battery: Li-Ion, 600 mAh Charging: 5 V, 500mA Operation Powering On -Press the Power key shortly to turn on the speaker, the Blue LED will start to flash while the Green LED stays illuminated.
- Page 5 - The unit will automatically go into “Pairing Mode” when it is powered ON. - Go into your Bluetooth device settings menu and look for “The Beat 200”. - When the device connected, the Blue LED light will keep on.
- Page 6 Begin Streaming Music The E-Boda The Beat 200 can be operated and controlled via your Bluetooth device or on the top side controls on the unit itself. - Press “ ” to start playing music. - Press “ ” shortly for Volume up.
- Page 7 Aux-In Mode - Plug in the supplied 3.5 mm cable into The Speaker. The other end is connected to your device. The Green LED will only illuminate when in “Aux” mode. *Please note that only “Volume +/-” will function on your mobile device. Track control does not function when in Aux-In mode.
-
Page 8: Troubleshooting
LED Status Blue LED flashing & Green LED solid Bluetooth Mode Green LED on solid Aux Mode, Charging Completed Red LED Charging Troubleshooting The speaker doesn’t connect to Speaker needs to be device connected/re-paired to device A tone is heard every few seconds Speaker needs to be charged The speaker will not power on Speaker needs to be charged...
