W Audio CR-6 User Manual

Professional 19” rack mixer
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

Order Code: MIXE01
ENGLISH
w w w . p r o l i g h t . c o . u k

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CR-6 and is the answer not in the manual?

Questions and answers

Related Manuals for W Audio CR-6

Summary of Contents for W Audio CR-6

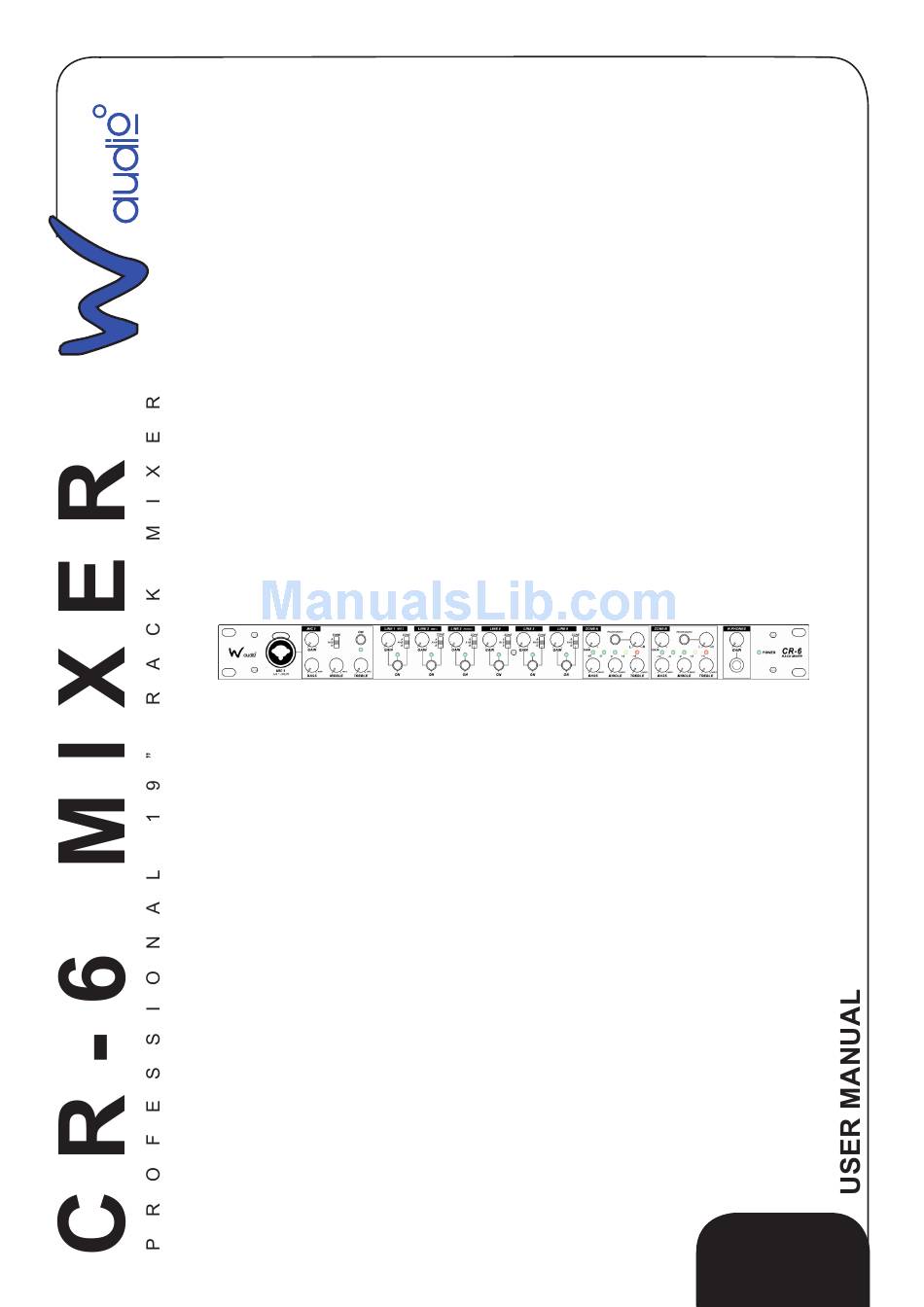

  • Page 1 Order Code: MIXE01 ENGLISH w w w . p r o l i g h t . c o . u k...
  • Page 2 WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! CAUTION! Keep this equipment away from rain, moisture and liquids. SAFETY INSTRUCTIONS Every person involved with the installation, operation & maintenance of this equipment should: Be competent Follow the instructions of this manual CAUTION! TAKE CARE USING THIS EQUIPMENT!
  • Page 3 IMPORTANT: The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual or any unauthorised modification to the equipment. • Never let the power-cable come into contact with other cables. Handle the power-cable and all mains voltage connections with particular caution! •...
  • Page 4 Features • Six lines including one phono, three microphone inputs • Microphone 1 is equipped with auto-override, sensitivity adjustment, delay time, EQ, and gain. • Balanced microphone inputs on front and rear panels • (Front panel) Channel on/off switches • Dual zone assignment for all inputs •...
  • Page 5 Features Rear view: 14. Power Switch: Turns the unit on and off. 15. Power supply input: Insert the power adapter before switching on. 16. Balanced Zone B outputs: 1/4” stereo balanced 1/4” jack connectors controlled by the Zone B knob. 17.
  • Page 6 Connections (set up) There are many options available for your individual needs and the diagram below is just one example for your reference. Make sure all knobs are at “ zero “ and all devices are off. First, connect all input sources; next, connect the stereo outputs to the power amplifiers and/or audio receivers such as CD players.

  • Page 7: Specifications

    Specifications 10k input impedance Line 140mV rms sensitivity ( for 1.4V balanced output ) 10K input impedance un-balanced Mic 1 Inputs 1.5mV rms sensitivity ( for 1.4V balanced output); 60mV rms max input 10K input impedance Mic2/ Mic3 1.5mV rms sensitivity ( for 1.4V balanced output); 80mV rms max input Line 9V rms max...
