ENGINE INSTRUCTIONS
ENGINE INSTRUCTIONS

INTRODUCTION

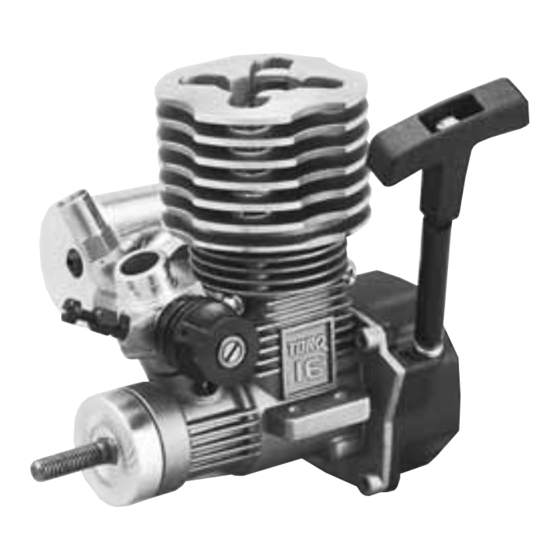

You are the proud owner of a DuraTrax engine – designed to provide
easy starts and all the power you'll need for thrilling R/C action.
The following instructions contain information you'll need to break-in,
operate and maintain your new engine like a pro. Read and follow them
carefully, and your engine will provide a long life of strong, dependable
performance.

FOR YOUR SAFETY

• Model engine fuel is poisonous and must be kept in a clearly marked
container, stored away from the reach of children. Avoid getting fuel into
your eyes or mouth.
• Because model engine fuel is highly flammable, it should also be kept
away from anything that might cause it to ignite (including open flames,
excessive heat, or any objects and materials which could produce a
spark). Smoking must not be permitted near the fuel.
• R/C model engine exhaust, like that of automobile engines, contains
deadly carbon monoxide. Do not run the engine in enclosed spaces –
operate it only in open, well-ventilated areas.
• Your engine will become very hot as it runs. Touching any part – particu-
larly the muffler (silencer), cylinder head or exhaust header pipe – could
result in a serious burn. Avoid contact with the engine until it has cooled.
• Protect onlookers – especially small children – by making sure that
they remain at least 20 feet (60 meters) away while you start the engine.
®
• This engine was designed only to power R/C model vehicles and
should not be used for any other purpose.
• Never pull the starter cord out more than 10 inches (25cm). To rewind
the cord, continue holding the handle and let the recoil action pull it
smoothly back into the starter unit. Do not abruptly release the handle.

The High-Speed Needle

The "high-speed" needle is sticking up from the side of the carb. It is
located in the brass housing, just above the fuel inlet. It controls the fuel
to air mixture of the carb. The needle is pre-set for break-in from the fac-
tory at 2-3/4 turns out from the fully closed position of the carb. Once the
engine is broken-in, the high-speed needle would typically run from

Warranty

• DuraTrax will warranty this engine for 90 days after the pur-
®
chase date from defects in materials or workmanship. DuraTrax
will either repair or replace, at no charge, the incorrectly made
part.
• Make sure you save the receipt or invoice you were given
when you bought your engine! It is your proof of purchase and
we must see it before we can honor the warranty.
• To return your Torq 16 for repairs covered under warranty you
should send your engine to:
Hobby Services
1610 Interstate Drive
Champaign, Illinois 61822
Attn: Service Department
Phone: (217) 398-0007 9:00 am - 5:00 pm Central Time M-F
E-mail: hobbyservices@hobbico.com
Repair service is available anytime.
• After the 90 day warranty, you can still have your Torq 16
repaired for a small charge by the experts at DuraTrax's
authorized repair facility, Hobby Services, listed above.
To speed up the repair process, please follow these instruc-
tions:
Send written instructions which include: a list of all items returned,
a THOROUGH explanation of the problem, the service needed
and your phone number during the day. If you expect the repair to
be covered under warranty, be sure to include a proof of date of
purchase (your store receipt or purchase invoice). Also be sure to
include your full return address.

ADDITIONAL PRECAUTIONS

CARBURETOR SETTINGS
