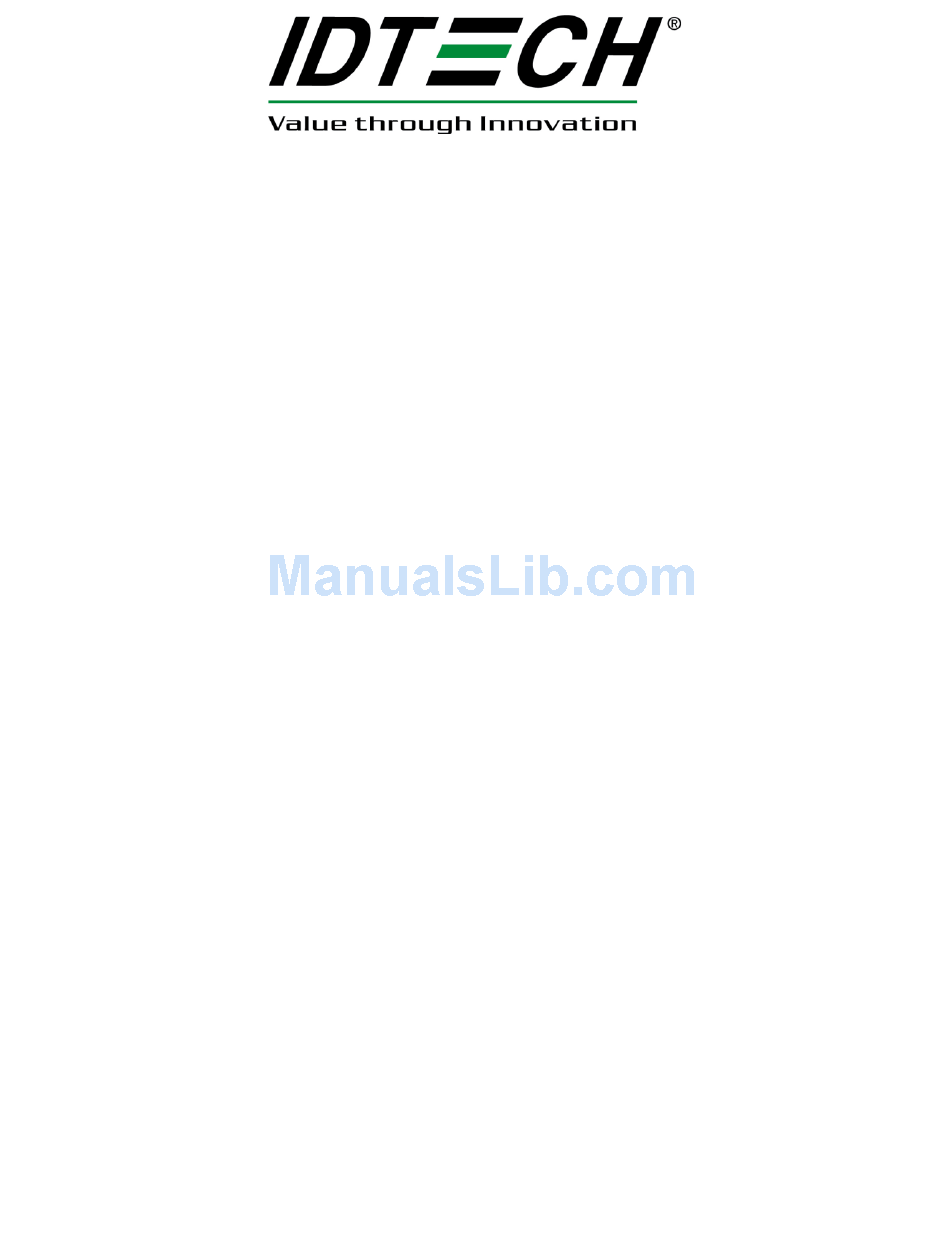

USER MANUAL
iMag, iMag Pro (II)
Magnetic Stripe Reader for
Apple Devices
80097503-001-F
10/24/2013

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iMag and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for IDTECH iMag

Summary of Contents for IDTECH iMag

  • Page 1 USER MANUAL iMag, iMag Pro (II) Magnetic Stripe Reader for Apple Devices 80097503-001-F 10/24/2013...

  • Page 2: Table Of Contents

    Table of Contents Introduction ....................... 3 Features and Benefits ....................3 Specifications ......................3 iMag/ iMag Pro/iMag Pro II Firmware Command ..........4 Setting Command ....................4 Get Firmware Version ..................4 Get Setting ......................5 Function ID Table ....................5 4.4.1...

  • Page 3: Introduction

    Pro(II) User Manual 1 Introduction ID TECH iMag is a snap-on magnetic stripe reader designed to work with iPhone and iPod Touch. iMag Pro works with all Apple mobile devices including the iPad. The reader delivers superior reading performance with the ability to encrypt sensitive card data.

  • Page 4: Imag/ Imag Pro/Imag Pro Ii Firmware Command

    <STX><R><FmVerID><ETX><LRC 1> Response <ACK> <STX><Version String><ETX><LRC 2> Version String will be in format of “ID TECH iMag Swipe Reader x.y.z” x.y.z is the major and minor version number. Copyright © 2010-2013, International Technologies & Systems Corp. All rights reserved. Page 4 of 15...

  • Page 5: Get Setting

    Pro(II) User Manual 4.3 Get Setting This command will send current setting to application. Command <STX> <R> <ReviewID> <ETX> <LRC 1> Response <ACK> <STX> <FuncID> <Len> <FuncData> <ETX> <LRC 2> <FuncID>, <Len> and <FuncData> definition are same as described above.

  • Page 6: Read Securitylevelid

    Pro(II) User Manual OUT: 06 Read EncryptionID: CMD: 02 52 4C 03 1F OUT: 06 02 4C 01 31 03 7D Set AES CMD: 02 53 4C 01 32 03 2D OUT: 06 Read EncryptionID: CMD: 02 52 4C 03 1F OUT: 06 02 4C 01 32 03 7E 4.4.2 Read SecurityLevelID...

  • Page 7: Data Output Format

    Pro(II) User Manual 5 Data Output Format 5.1 iMag/ iMag Pro(II) Unencrypted Data Output Format Track 1: <Start Sentinel 1><T Data><End Sentinel><Track Separator> Track 2: <Start Sentinel 2><T Data><End Sentinel><Track Separator> Track 3: <Start Sentinel 3><T Data><End Sentinel><Terminator>...

  • Page 8: Imag/ Imag Pro(Ii) Encrypted Data Output Format

    Pro(II) User Manual 5.2 iMag/ iMag Pro(II) Encrypted Data Output Format iMag/ iMag Pro uses ID TECH enhanced data encryption format. In this format, all tracks of the data are encrypted. Output Format: <STX><LenL><LenH><Card Data><CheckLRC><CheckSum><ETX> Data Length low byte...
  • Page 9 Pro(II) User Manual 03h / 83h Other 04h / 84h Raw; un-decoded format For Type 04 or 84 Raw data format, all tracks are encrypted and no mask data is sent. No track indicator ‘01’, ‘02’ or ‘03’ in front of each track.

  • Page 10: Decryption Example

    Pro(II) User Manual Bit 5: 1— track 3 hash data present Bit 6: 1—session ID present Bit 7: 1—KSN present General concept for each track: 1. If encrypted, no clear data will be sent 2. Clear data always sent if no encrypted data 3.
  • Page 11 Pro(II) User Manual 01—high byte of total length 80—card type byte (interpretation new format ABA card) 3F—3 tracks of data all good 48—length of track 1 23—length of track 2 6B—length of track 3 03—tracks 1 and 2 have masked/clear data BF—bit 7=1—KSN included...
  • Page 12 Pro(II) User Manual 184318C5209E55AD Track 3 encrypted length 0x6B rounded up to 8 bytes =0x70 (64 decimal) 44A9CCF6A78AC240F791B63284E15B4019102BA6C505814B585816CA3C2D2F42 A99B1B9773EF1B116E005B7CD8681860D174E6AD316A0ECDBC687115FC89360A EE7E430140A7B791589CCAADB6D6872B78433C3A25DA9DDAE83F12FEFAB530 405B701131D2FBAAD970248A45600093 Track 1 data hashed length 20 bytes 3418AC88F65E1DB7ED4D10973F99DFC8463FF6DF Track 2 data hashed length 20 bytes 113B6226C4898A9D355057ECAF11A5598F02CA31 Track 3 data hashed length 20 bytes...
  • Page 13 Pro(II) User Manual 2542343236363834313038383838393939395E42555348204A522F47454F52474520572 E4D525E303830393130313130303030313130303030303030303034363030303030303F Track 2 decrypted data in hex including padding zeros 3B343236363834313038383838393939393D3038303931303131303030303034363F300 000000000 Track 3 decrypted data in hex including padding zeros 3B333333333333333333333736373637363037303730373736373637363333333333333 333333337363736373630373037303737363736373633333333333333333333373637363 73630373037303737363736373633333333333333333333373637363736303730373F32 0000000000 Copyright © 2010-2013, International Technologies & Systems Corp. All rights reserved.

  • Page 14: Appendix A Imag Pro Envelope Drawing

    Pro(II) User Manual Appendix A iMag Pro Envelope Drawing Copyright © 2010-2013, International Technologies & Systems Corp. All rights reserved. Page 14 of 15...

  • Page 15: Appendix B Imag Pro Ii Envelope Drawing

    Pro(II) User Manual Appendix B iMag Pro II Envelope Drawing Copyright © 2010-2013, International Technologies & Systems Corp. All rights reserved. Page 15 of 15...
