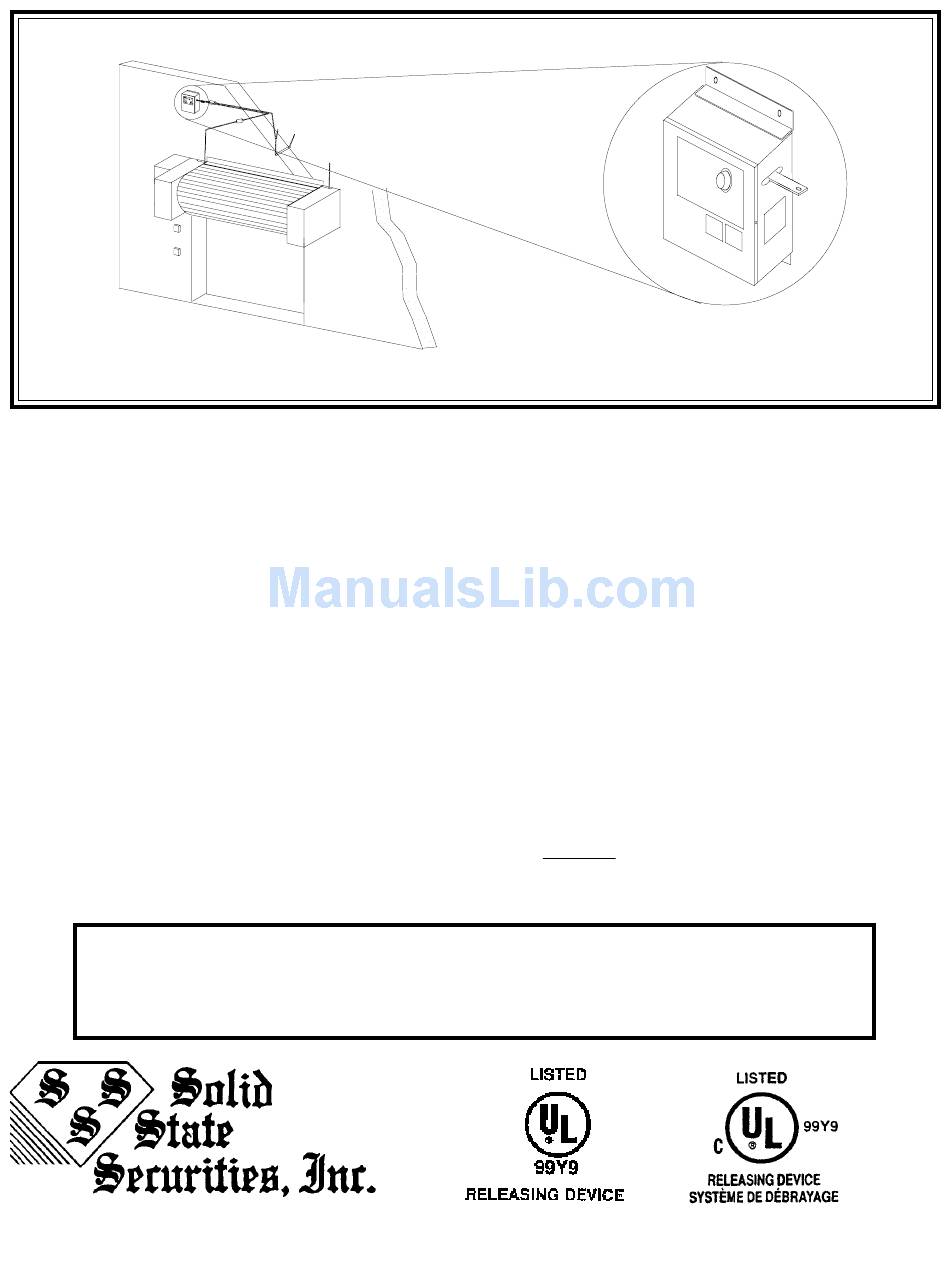

SS90-WPS MODEL A/B INSTALLATION MANUAL
GENERAL DESCRIPTION:
The Solid State Securities "SS90" World Power Series Time Delay Release Devices are designed for use on rolling doors,
single-slide and center parting level and inclined track doors. All models are normally energized Fail-Safe Releasing
Devices incorporating state of the art electronic control circuitry. The "SS90" Series Release Devices respond to emergency
conditions generated by manual or automatic normally closed initiating devices and shall be used in conjunction with a
temperature fuse link system.
The "SS90" Series Release Device *features include; world power source capability allowing the same unit to be used on
24VDC, 24VAC or 120VAC 50 or 60HZ., separate adjustable time delays for alarm and power loss, motor voltage sensing,
form-C relay output, proximity/door edge input and trouble diagnostic capabilities. Models A and B can be wired for two
or four wire configuration. *Check model label on unit to be installed to verify applicable features.
CAUTION: Review all installation instructions, procedures, cautions and warnings contained within this manual
prior to installing and/or servicing this product. As with all releasing device systems, maximum fire protection is
provided when installed in accordance with factory specifications and used with fuse link systems.
Fail-safe operation can only be provided with input power applied. DO NOT install this unit without fuse links.
TEST SYSTEM AT LEAST ONCE EVERY 90 DAYS TO ASSURE PROPER OPERATION.
Installation and testing to factory specifications shall be performed by factory authorized personnel for
proper operation in accordance with all of the latest National Fire Protection Association (NFPA),
Underwriters Laboratories (UL), National Electrical Code (NEC), local, state, county, district and/or other
applicable building and fire standards, guidelines, regulations and codes including, but not limited to, all
appendices and amendments and the requirements of the local authority having jurisdiction (AHJ).
TECHNICAL SUPPORT (570) 455-0577
HAZLETON, PENNA 18201
http://www.sssiusa.com - E-Mail: ss90@sssiusa.com
SOLID STATE SECURITIES, INC.
THE "SS90" SERIES
RELEASE DEVICES
MADE IN THE U.S.A.
© 1999 SSSI, PATENTS PENDING ALL RIGHTSRESERVED
1
S/N____________________
P/N: REV1.a

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SS90 and is the answer not in the manual?

Questions and answers

Summary of Contents for SOLID STATE SECURITIES SS90

  • Page 1 GENERAL DESCRIPTION: S/N____________________ The Solid State Securities “SS90" World Power Series Time Delay Release Devices are designed for use on rolling doors, single-slide and center parting level and inclined track doors. All models are normally energized Fail-Safe Releasing Devices incorporating state of the art electronic control circuitry. The "SS90" Series Release Devices respond to emergency conditions generated by manual or automatic normally closed initiating devices and shall be used in conjunction with a temperature fuse link system.
  • Page 2: Section A. Mounting Procedure (Figure 1)

    TB1 of multiple release devices. Contact tech support for wiring instructions where multiple doors must close from a single initiating device. OPTIONS: SS90-B-WPS only. *Close Limit Detection (Lower limit/Proximity switch) -This option interfaces to electrical contact type lower limit sensing devices and/or magnetic proximity type switches.
  • Page 3: Typical Installation

    * Actual configuration may differ. This unit may be rotated 90 degrees CW for a vertical pull. See door manufacturer recommendations and NFPA 80 for use of this product with specific door. DO NOT install this unit without fuse links. INSIDE VIEW SS90-WPS FIGURE 2 END LINK...
  • Page 4 Verify all connections made within unit. Close hinged cover and secure screw on lid after all connections are made. DO NOT LEAVE COVER OPEN AFTER CONNECTIONS ARE MADE! "SS90" SERIES RELEASE DEVICE ELECTRICAL AND MECHANICAL CHARACTERISTICS OPERATING VOLTAGES MODEL SS90A-WPS .....
  • Page 5 ELECTRICAL CONNECTIONS (TYPICAL) - FIGURE 4 02/16/98 FOUR WIRE- INDEPENDENT ALARM & POWER LOSS DELAYS Refer to Section C - Electrical Connections pages 2&3 for complete SS90 wiring instructions. Reference all footnotes below for additional installation information. End of line relay (4)(8) Per U.L.
  • Page 6 FIGURE 4A - TWO WIRE/SINGLE DELAY High voltage connections 02/16/98 Initiating Device (Smoke detector, etc.) Model A/B PC MOUNT 120VAC Input power Break wire for proper supervision. CHASSIS MOUNT Do not loop wire around terminals WPS PC MOUNT NOT USED Low voltage connections Initiating Device (Smoke detector, etc.) Model A/B...
  • Page 7: Section D. Test Procedures

    When power is applied to unit under test the Power LED (red) will be lit on the bottom of the release device. Testing of the "SS90" release device is independent of, and shall in no way be interpreted as an alternative method of, testing of the fire alarm system, motorized operator and/or any other system component employed on the fire door or counter fire door installation.
  • Page 8: Maintenance Requirements

    The "SS90" WPS Model release devices have no scheduled maintenance requirements. The unit has been designed and tested for use in indoor locations. Solid State Securities recommends weekly testing of the unit, but test intervals shall ultimately be subject to criteria established by the Final Authority Having Jurisdiction (AHJ).
  • Page 9 "SS90" WPS MODELS A & B TROUBLESHOOTING GUIDE Verify that desired options are available on unit before troubleshooting. Refer to electrical connection information and the maintenance and service page of this manual for fuse locations. Troubleshooting shall be performed by factory authorized personnel only.
  • Page 10 NOTES/TEST RECORDS Copy this sheet and attach to manual for additional test data as required. Maintain test records in a secure location for future reference. UNIT SERIAL NUMBER: ________________________ TEST DATE PERFORMED BY WITNESSED BY COMMENTS...
  • Page 11 NOTES...
