Summary of Contents for PhD Solutions MXC-424-HDTL

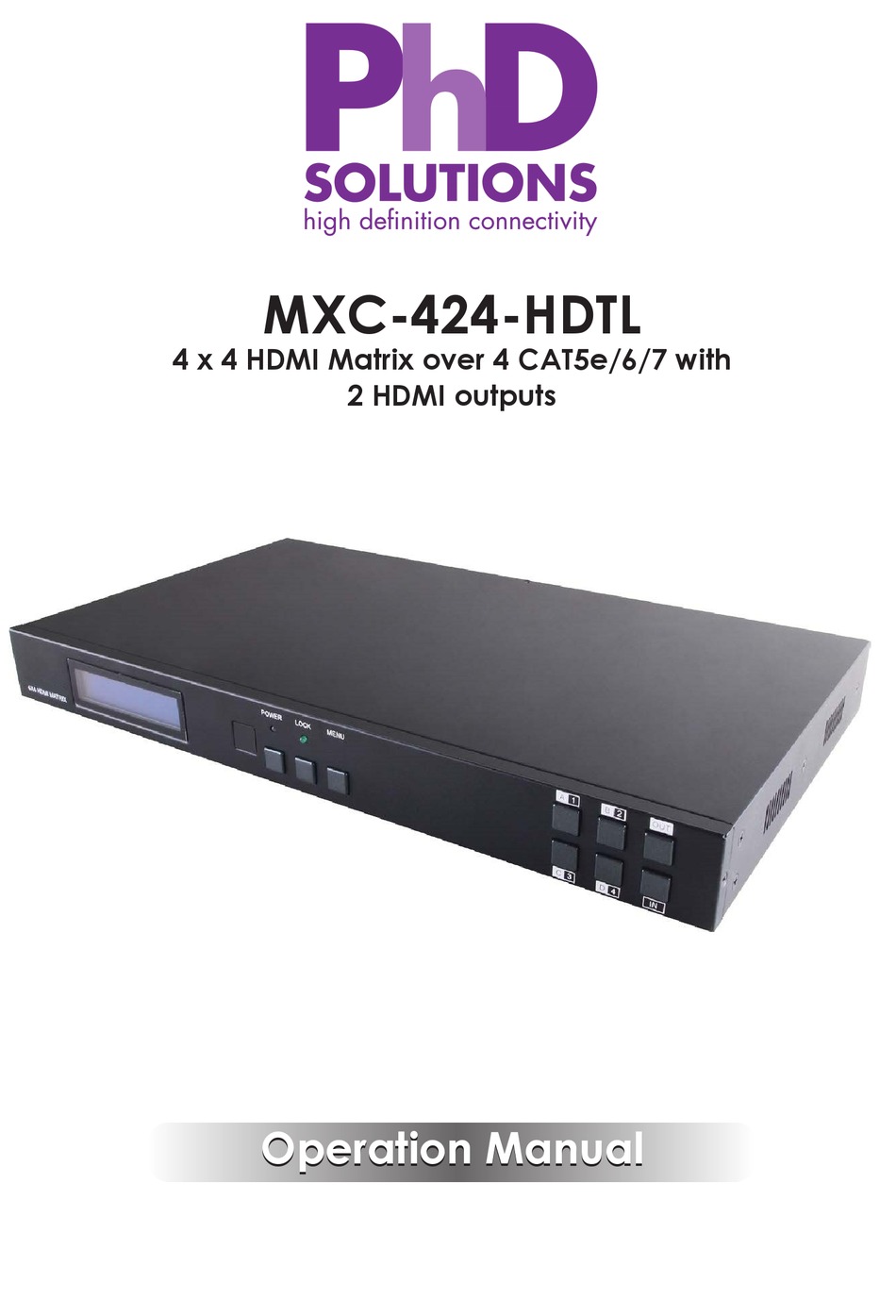

  • Page 1 MXC-424-HDTL CMSI-424L 4 x 4 HDMI Matrix over 4 CAT5e/6/7 with 2 HDMI outputs Operation Manual Operation Manual...
  • Page 3: Safety Precautions

    SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fi re, electrical shock and injury to persons.
  • Page 4: Table Of Contents

    CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......2 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Front Panel ........3 6.2 Rear Panel .........4 6.3 Side Panel .........5 6.4 Remote Control ........5 6.5 IR Pin Assignment ......6 6.6 RS-232 Protocols .......6...
  • Page 5: Introduction

    1. INTRODUCTION The 4x4 HDMI Matrix over 4 CAT5e/6/7 with 2 HDMI outputs supports resolutions up to 1080p Full HD and 1920x1200@60Hz with multichannel digital audio from up to four high defi nition sources to up to four CAT5e/6/7 output and 2 HDMI synchronized with 2 CAT5e/6/7 output ports.
  • Page 6: System Requirements

    4. SYSTEM REQUIREMENTS • Input source equipments with HDMI connection cables • Industry CAT5e/6/7 cable. • HDMI over CAT5e/6/7 receivers with industrial CAT5e/6/7 cables • Output displays or audio receiver equipments with HDMI connection cables. 5. FEATURES • HDMI, HDCP1.1 and DVI compliant •...
  • Page 7: Operation Controls And Functions

    6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel POWER LOCK MENU -424 4X4 HDMI MATRIX LCM: This monitor displays your setting information with each input and output selection. IR: This IR window accepts the remote control signal of this device only.
  • Page 8: Rear Panel

    6.2 Rear Panel IR OUT IR IN IR OUT IR IN IR IN IR OUT HDMI OUT CAT5e/6 OUT CAT5e/6 OUT IR IN IR OUT IR OUT HDMI OUT CAT5e/6 OUT CAT5e/6 OUT IR IN HDMI IN 1 HDMI IN 2 HDMI IN 3 HDMI IN 4 DC 24V...
  • Page 9: Side Panel

    DC24V: This slot is to plug the power cord with adaptor included in the package and then connect them with AC wall outlet for power supply. 6.3 Side Panel Ventilator: These are fan ventilator area, DO NOT block these area or cover it with any object.
  • Page 10: Ir Pin Assignment

    6.5 IR Pin Assignment IR Blaster Power 5 V IR Blaster Signal IR Extender IR Signal Power 5 V Grounding 6.6 RS-232 Protocols MXC-424-HDTL CMSI-424L Remote Control Console Assignment Assignment ► ◄ Baud Rate: 19200bps Data bit: 8 bits Parity: None...
  • Page 11: Rs-232 & Telnet Commands

    6.7 RS-232 & Telnet Commands Command Description A1~A4 Switch output A to 1~4 B1~B4 Switch output B to 1~4 C1~C4 Switch output C to 1~4 D1~D4 Switch output D to 1~4 AB...1~CD...4 Switch output ABCD... to 1~4 SETIP<IP><SubNet><GW> Setting IP. SubNet. GateWay (Static IP) RSTIP IP Confi...
  • Page 12: Telnet Control

    6.8 Telnet Control Before attempting to use the telnet control, please ensure that both the Matrix (via the 'LAN /CONTROL' port) and the PC/Laptop are connected to the active networks. To access the telnet control in Windows 7, click on the 'Start' menu and type "cmd"...
  • Page 13 Once in the command line interface (CLI) type "telnet", then the IP address of the unit and "23", then hit enter. Note: The IP address of the Matrix can be displayed on the device's LCM monitor by pressing the Menu button twice. This will bring us into the device which we wish to control.
  • Page 14: Web Gui Control

    6.9 Web GUI Control On a PC/Laptop that is connected to the same active network as the Matrix, open a web browser and type device's IP address on the web address entry bar. The browser will display the device's status, control and User setting pages.
  • Page 15 Clicking on the 'User Setting' tab allows you to reset the IP confi guration. The system will ask for a reboot of the device every time any of the settings are changed. The IP address needed to access the Web GUI control will also need to be changed accordingly on the web address entry bar.
  • Page 16: Connection Diagram

    7. CONNECTION DIAGRAM RS-232 Equipped PC or Notebook IR1 Extender IR1 Extender IR1 Extender IR1 Extender HDMI Out HDMI Out HDMI Out HDMI Out RS232 Out IR2 Blaster RS232 Out IR2 Blaster RS232 Out IR2 Blaster RS232 Out IR2 Blaster IR OUT IR IN HDMI OUT...
  • Page 17: Specifi Cations

    8. SPECIFICATIONS Video Bandwidth 225 MHz/6.75Gbps Input Ports 4 x HDMI, 5 x IR Extender, 1 x CONTROL 1 x RS-232, 1 x Mini USB B type(for fi rmware update only) Output Ports 4 x CAT5e/6/7, 2 x HDMI, 5 x IR Blaster ESD Protection Human body model: ±8 kV (air-gap discharge)
  • Page 18: Acronyms

    9. ACRONYMS ACRONYM COMPLETE TERM Digital Theater System EDID Extedned Display Identification Data HDCP High-bandwidth Digital Content Protection HDMI High-Definition Multimedia Interface...
  • Page 19 PhD Solutions Product Warranty Should you feel your product does not function adequately due to defects in materials or workmanship, PhD Solutions (hereby referred to as “the warrantor”) will, for the length of the period indicated below: Repair the product with new or refurbished parts.
  • Page 20: Warranty Limits And Exclusions

    Return to Supplier When shipping the unit, carefully pack and send it prepaid (preferably in the original packaging) with a tracking number and adequate insurance. Please include a document or letter detailing the reason for return and include a daytime telephone number and/or email address where you can be contacted. If repair is required during the limited warranty period, the purchaser will be required to provide a sales receipt or other proof of purchase, indicating date and location of purchase as well as the price paid for the product.
  • Page 21 Premium High Definition Solutions Home page: http://www.phdsolutions.co...
