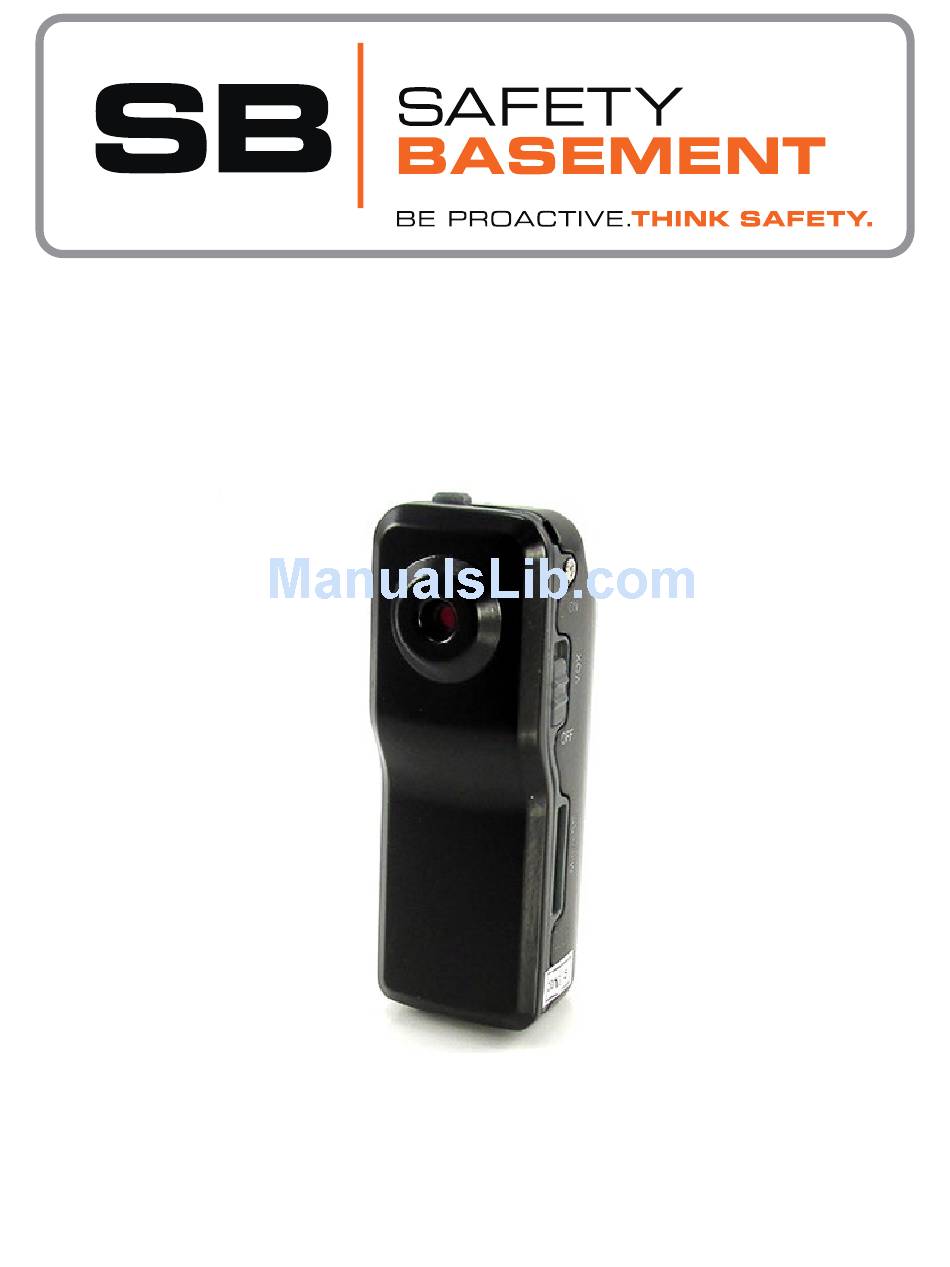

INSTRUCTION MANUAL
The Original Camstick Pro with 16GB
SB-DVR80
Revised: August 1, 2013
Thank you for purchasing from SafetyBasement.com! We appreciate your business.
We made this simple manual to help you enjoy your new product as quickly and easily as
possible.
Be sure to check the TECH SUPPORT tab on your product page at SafetyBasement.com
for the latest available manual.
Advertisement
Table of Contents
Summary of Contents for Safety Basement SB-DVR80
-
Page 1: Instruction Manual
INSTRUCTION MANUAL The Original Camstick Pro with 16GB SB-DVR80 Revised: August 1, 2013 Thank you for purchasing from SafetyBasement.com! We appreciate your business. We made this simple manual to help you enjoy your new product as quickly and easily as possible. -
Page 2: What's In The Box
PRODUCT MANUAL The Original Camstick Pro : SB-DVR80 WHAT’S IN THE BOX Dash Mount Camstick Pro (includes screws, etc) Carry Pouch Clip SD Card & Adapter Wall Rubberized USB Cable (appearance Charger Wrap may vary) BEFORE USE - CHARGE IT Use the included wall adapter and USB cable to charge your DVR80. -
Page 3: Product Reference
PRODUCT MANUAL The Original Camstick Pro : SB-DVR80 PRODUCT REFERENCE Camera Lens Voice Activation Power Switch Switch SD Card Slot USB Port Microphone RECORD Button Status Light (Blue / Green / Red) Page 3 www.SafetyBasement.com Phone: 877-345-2336 Fax: 888-236-2524... - Page 4 PRODUCT MANUAL The Original Camstick Pro : SB-DVR80 SD CARD Your camera requires a micro SD memory card, up to 32 GB in size. Your card is installed with the gold connectors facing UP, as shown in the photo. Gently insert the SD card into the SD card slot.
- Page 5 PRODUCT MANUAL The Original Camstick Pro : SB-DVR80 CONNECT CAMERA TO PC To do the next few steps, you’ll need to connect your camera to your PC. Be sure that you have installed your SD card first. Connect the USB cable to the port on the camera.
- Page 6 PRODUCT MANUAL The Original Camstick Pro : SB-DVR80 DOWNLOADS NOTE! You may not need the files located on our site to use your DVR80. Your camera should work automatically with Windows 7 and 8 without installing any drivers. You should try the camera first BEFORE trying to install any drivers.
- Page 7 PRODUCT MANUAL The Original Camstick Pro : SB-DVR80 SET THE TIMESTAMP When your camera connects to your PC, it will appear as an External Drive or Removable Disk, such as shown here. You should see the TIME.TXT file, which is generated by the camera automatically.
-
Page 8: Recording Video
PRODUCT MANUAL The Original Camstick Pro : SB-DVR80 RECORDING VIDEO To record video; 1. Slide the power switch UP to the ON position. The status light will turn blue. You are now in Stand By Mode. 2. Press the grey RECORD button at the top of the camera. -
Page 9: Status Lights
PRODUCT MANUAL The Original Camstick Pro : SB-DVR80 WHERE ARE MY FILES? Your video recordings are located inside the DCIM folder. You should COPY these files to your PC for archiving and best playback. Then, delete the files to make room for more. - Page 10 PRODUCT MANUAL The Original Camstick Pro : SB-DVR80 USE AS A WEBCAM Your camera can be used as a webcam. You should know that the DVR80 is a UVC device, a Universal Video Class device. This means that it should work on recent versions of Windows and Mac OS X without needing additional drivers.
- Page 11 PRODUCT MANUAL The Original Camstick Pro : SB-DVR80 SUGGESTED SOFTWARE Your Windows PC or Mac has built-in software that will play most of the files created by devices like yours. However, if you are having problems playing your files, or need more options, please download and try these programs.
-
Page 12: Device Specifications
PRODUCT MANUAL The Original Camstick Pro : SB-DVR80 DEVICE SPECIFICATIONS Format .AVI Codec MJPG Bit Rate 2,345 Kbps Dimensions 640x480 pixels Display Ratio Frame Rate 30 frames per second Audio Format Audio Bit Rate 128 Kbps Page 12 www.SafetyBasement.com Phone: 877-345-2336 Fax: 888-236-2524... - Page 13 PRODUCT MANUAL The Original Camstick Pro : SB-DVR80 DEVICE SPECIFICATIONS Memory Built In Memory Expansion up to 32GB micro SD card (16GB in- cluded) Battery Type Internal Rechargeable Charger Type via USB port or wall adapter Please check our site for the latest available manual for this product.
