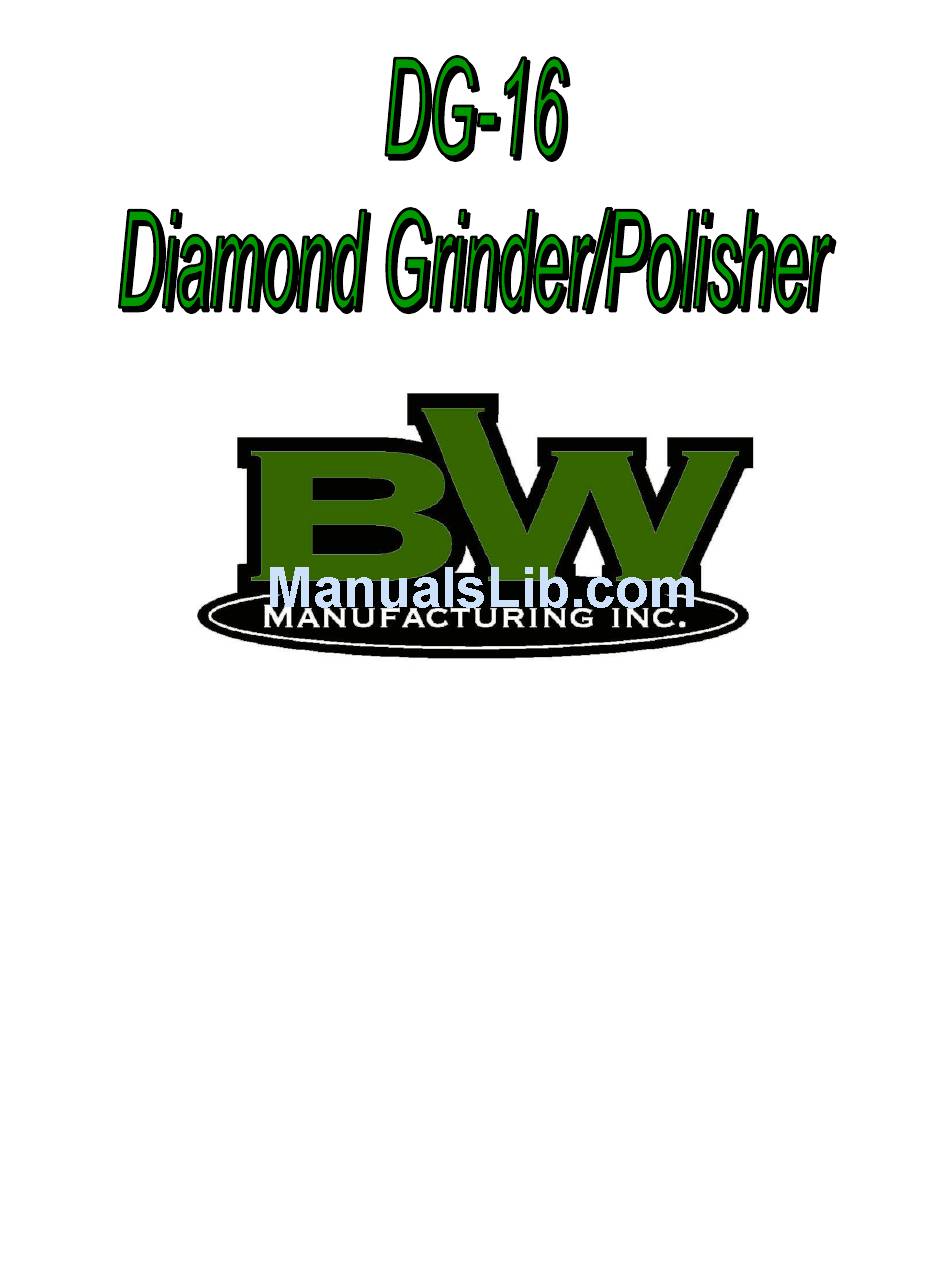

Summary of Contents for BW Manufacturing DG-16
- Page 1 3706 Mill Creek Drive NE Comstock Park, MI 49321 VOICE: (616) 447-9076 FAX: (616) 447-9078 E-mail: info@bwmanufacturing.com www.bwmanufacturing.com Version 09/2014 U-01...
-
Page 2: Table Of Contents
Index INTRODUCTION………………………………PAGE 3 TERMS & CONDITIONS OF SALE....PAGE 4 & 5 SAFETY & HAZARDOUS WARNING....PAGE 6 OPERATION & MAINT.……………………..…PAGE 7 & 8 GRINDING & POLISHING INSTRUCTIONS…PAGE 9 GRINDER/POLISHER PARTS …………...PAGE 10 & 14 GRINDER/POLISHER ACCESSORIES....PAGE 15 & 16... -
Page 3: Introduction
INTRODUCTION FORWARD WARNING READ THIS MANUAL CAREFULLY PRIOR TO OPERATING THE EQUIPMENT IN ORDER TO UNDERSTAND HOW TO OPERATE AND SERVICE THE EQUIPMENT CORRECTLY. FAILURE TO PROPERLY REVIEW THIS MANUAL COULD RESULT IN PERSONAL INJURY OR EQUIPMENT DAM- AGE. This manual should be considered a permanent part of the equipment and should remain with the equipment at all times. -
Page 4: Terms & Conditions Of Sale
TERMS AND CONDITIONS OF SALE 1. Parties. “Seller” means BW Manufacturing, Inc. “Buyer” means any entity or individual purchasing goods from Seller. 2. Terms and Conditions of Sale. These Terms and Conditions of Sale define the relationship of Buyer and Seller and apply to... - Page 5 10. No Consequential Damages. IN NO EVENT WILL SELLER BE LIABLE OR RESPONSIBLE FOR ANY SPECIAL, INCI- DENTAL, CONSEQUENTIAL, EXEMPLARY, OR PUNITIVE DAMAGES, OR FOR EXPENSE OCCASIONED BY THE USE OF DEFECTIVE EQUIPMENT. 11. Delivery. Any delivery dates or other schedule of performance by Seller are approximations, and the sole obligation of Seller with respect to the schedule of delivery or performance will be to use commercially reasonable efforts to deliver the Equipment, or otherwise to perform, consistent with the reasonable demands of its business.
-
Page 6: Safety & Hazardous Warning
BW Manufacturing, Inc. preparation equipment. It is also the responsibility of any contractor using preparation equipment to inform its employees or subcontractors of all potential health risks associated with op- erating preparation equipment and to ensure its employees or subcontractors are protected from exposure to harmful materials. -
Page 7: Operation & Maint
DG-16 Diamond Grinder/polisher Operating & Maintenance Instructions Starting & Operating Instructions Connect vacuum hose to dust port (1), plug ma- chine into power supply (2), flip switch to start motor (3), flip handle (4) to engage diamonds, check amp gauge (5) for proper operation, to adjust grinding pressure use the adjustment knob (6) to proper amperage draw. - Page 8 DG-16 Diamond Grinder/polisher Operating & Maintenance Instructions Greasing The Main Shaft Bearings Grease main shaft bearings (A) every 8 hours of operation Brush Seal Adjustment Loosen brush seal clamp ring (A) and lower brush seal (B) to make contact with the floor.
-
Page 9: Grinding & Polishing Instructions
DG-16 Diamond Grinding & Polishing Instructions Recommended procedure for heavy grinding to polish finish. DG-16-2 DG-16-4 Diamond/Polishing Pad R-07-30 Diamond segment 10 to 18 amps 4 to 6 amps R-07-80 Diamond segment 10 to 18 amps 4 to 6 amps... -
Page 10: Grinder/Polisher Parts
DG-16 Diamond Grinder/polisher Parts Dia. DG-16-1 1. R-30-AS Frame Cover 2. G-108 Amp Gauge 3. R-25-AS Raise Handle 4. R-111 Raise Handle Grip 5. R-18-AS Motor Cover 6. S-067 Adjustment Knob 7. R-11-AS Handle 8. U-05 Stationary Caster 9. R-16-AS Brush Seal Clamp 10. - Page 11 DG-16 Diamond Grinder/polisher Parts Dia. DG-16-4 1. C-1681 Bushing (8 per mach.) 2. R-25-AS Raise Handle 3. R-29-AS Pivot Arm 4. D-1295 Taper Lock Bushing 5. R-118 Sheave 6. R-115 Belt (ELECTRIC) 7. D-1300 Idler Pulley 8. A-8637 Conduit Elbow 9.
- Page 12 DG-16 Diamond Grinder/polisher Parts Dia. DG-16-6 1. R-11-GAS Handle 2. S-067 Adjustment Knob 3. R-102 Gas Engine 4. R-25-AS Raise Handle Dia. DG-16-7 1. R-102 Gas Engine 2. R-103 Throttle Cable 3. U-19-AS Throttle Mount Dia. DG-16-8 1. R-06 Adjuster Rod 2.
- Page 13 DG-16 Diamond Grinder/polisher Parts Dia. DG-16-9 1. G-108 Amp Gauge 2. G-108 Amp Gauge (underside) Dia. DG-16-10 1. R-27 Hub Seal 2. R-01-AS Hub Seal Ring 1. D-1309 Snap Ring Dia. DG-16-11 2. D-1290 Bearing 3. R-36 Bearing Housing 4. D-1290 Bearing 5.
- Page 14 DG-16 Diamond Grinder/polisher Parts Dia. DG-16-12 1. R-07-___ Diamond Cutter (3 per set) (DG-16 requires 1 set) 2. 5/16-18X3/4 SHCS Diamond Mount Bolt 3. R-21-AS Diamond Mount Plate 4. R-112 Rubber Bushing (hard - blue & white dots) (center) R-119 Rubber Bushing (soft - red &...
-
Page 15: Grinder/Polisher Accessories
DG-16 Diamond Grinder/polisher accessories Flat Diamond Cutters for heavy removal and flattening of rough concrete Hard Concrete Diamonds Part# Description (Sold in sets of 3) R-07-30-S Coarse (RED) R-07-80-S Medium (YELLOW) R-07-140-S Med/Fine (BLUE) R-07-180-S Fine (BLACK) Soft Concrete Diamonds... - Page 16 DG-16 Diamond Grinder/polisher accessories Round Mounts Sold in sets of 3 R-07-P2AS-S 3” Mount 3” Polishing pads RP-50 3” 50 Grit (6 per set) RP-120 3” 120 Grit (6 per set) RP-220 3” 220 Grit (6 per set) RP-400 3” 400 Grit (6 per set) RP-800 3”...
- Page 17 DG-16 Diamond Grinder/polisher Page Left Intentionally Blank...
