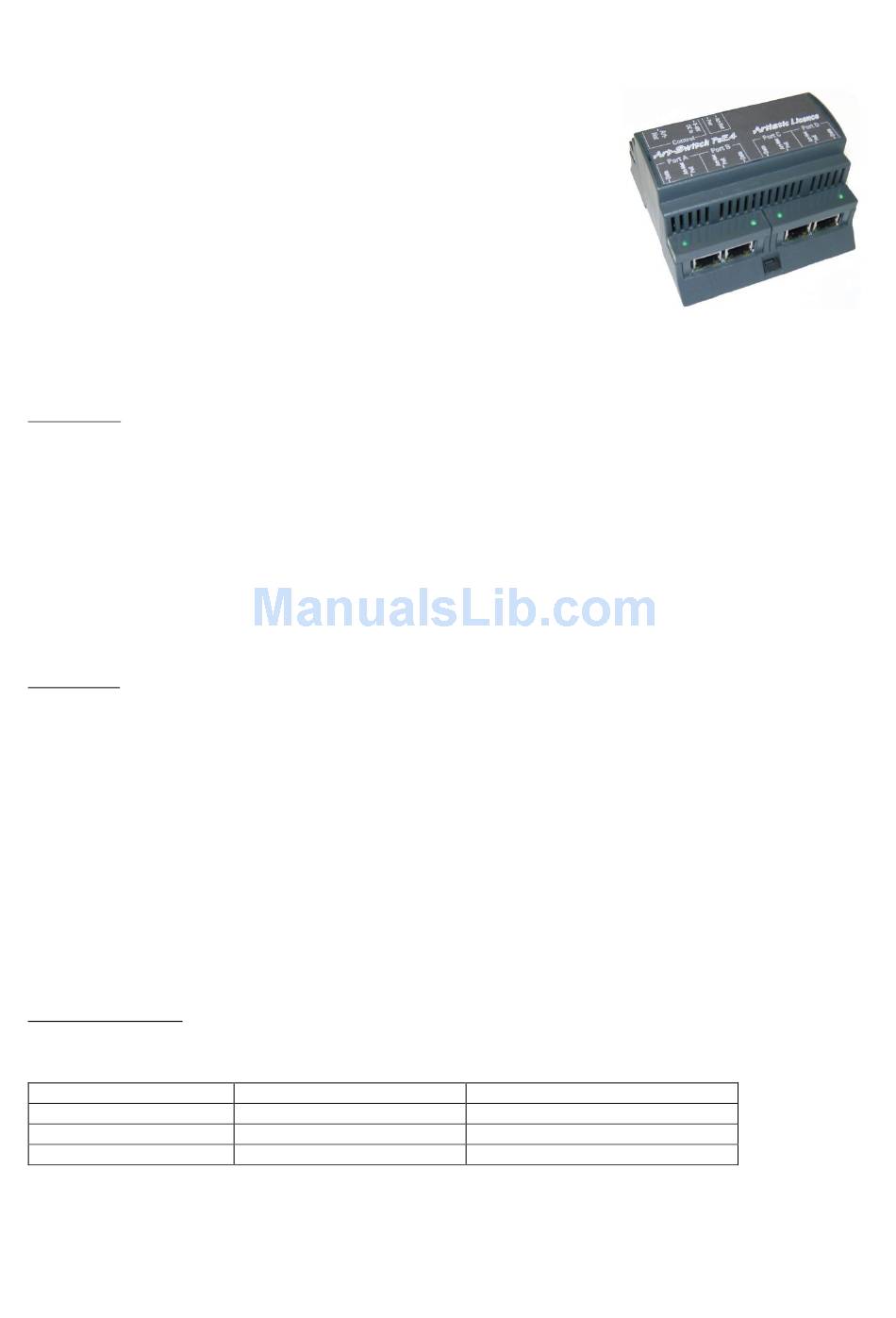

Artistic Licence Art-Switch PoE4 User Manual

Art-Switch PoE4 is a DIN-Rail Ethernet switch. It provides five 10/100BaseT Ethernet
TM
ports, four of which support Power over Ethernet (PoE).
Art-Switch PoE4 is housed in a small robust DIN-Rail case that can also be surface mounted.
All Ethernet connections are made via RJ45's. Each port has individual indicators to show
speed of connection, PoE use and activity.
The input power required is 48V DC and is via an un-pluggable screw terminal connector
(supplied). Art-Switch is capable of auto configuration per port, which includes speed, duplex
and cable type.
The PoE output on the four ports complies with the IEEE802.3af standard. Art-Switch is capable of providing power and data to four other
products in the Art-Range such as Art-Lynx O/P or Art-Relay. It can also be used with any PoE or Ethernet compatible nodes.

Key Features:


5 port Ethernet Switch

10BaseT / 100BaseT, Half / Full-Duplex

IEEE802.3af PoE capable (4 port)

DIN-Rail or surface mount

Art-Net compatible

Individual port speed, activity & PoE indicators

Auto-sensing per port

Auto-uplink detection (cable type)

Power Device (PD) Detection and Classfication

Specification:

Input Voltage:
Input Current:
Internal Input Fuse:
Input Connector (Power):
Input Connector (Data):
Output Voltage (PoE):
Output Connector:
Max Wire Size:
Duty Cycle:
Dimensions:
IP:
Listings:
PoE Classification

Power Supply Options:

(order separately)
Art-Switch PoE4 requires 48V DC to operate.
PSU Option
PSU-48-1.25-DR
PSU-48-5-DR
PSU-48-10-DR
Note: When connecting a PSU to an Art-Switch care must be taken to ensure the correct cable is used and inductors are fitted close to
the unit if the environment has large switching loads in close proximity.
Copyright © Artistic Licence Engineering Ltd. All rights reserved.
Art-Switch PoE4 User Guide
48V DC
1.5A maximum
Electronic Resettable Fuse
2pin Screw Terminal
RJ45
48VDC (complies with IEEE802.3af)
RJ45 (Data & Power)
2.5mm
2
80% @ 25˚C
DIN Rail (W 160mm x H 110mm x D 62mm)
Indoor use only
CE, FCC
Class 0 to Class 4 supported
Number of Units
1
3
6
Case Style
DIN-Rail
DIN-Rail
DIN-Rail
(Version 1-2)
