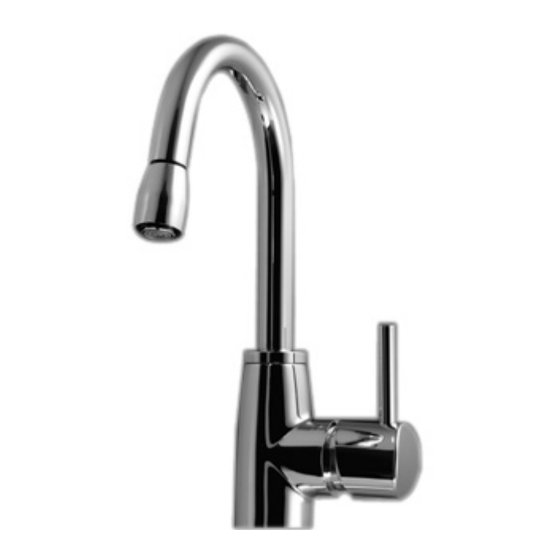

KWC Systema 10.501.012 Specification Sheet

KWC SYSTEMA
Item No.
10.501.012.000
A 7 ⅞"
10.501.012.700
A 7 ⅞"
Flow rate 1.8 gpm (60 psi)
Finish
chrome
solid stainless steel
Kitchen
Single-lever mixer
ƒ lever installation only possible on the right side
ƒ pull-down spray
– up to 23 ⅝" pull-out length
ƒ hose guide, swiveling 160°
ƒ KWC universal cartridge with ceramic discs
– flow rate and temperature continuously variable
– temperature and flow rate limitation
ƒ copper tubes ø⅜"
ƒ fastening by means of threaded sleeve M33 x 1.5
ƒ mounting hole size ø1 ⅜"
