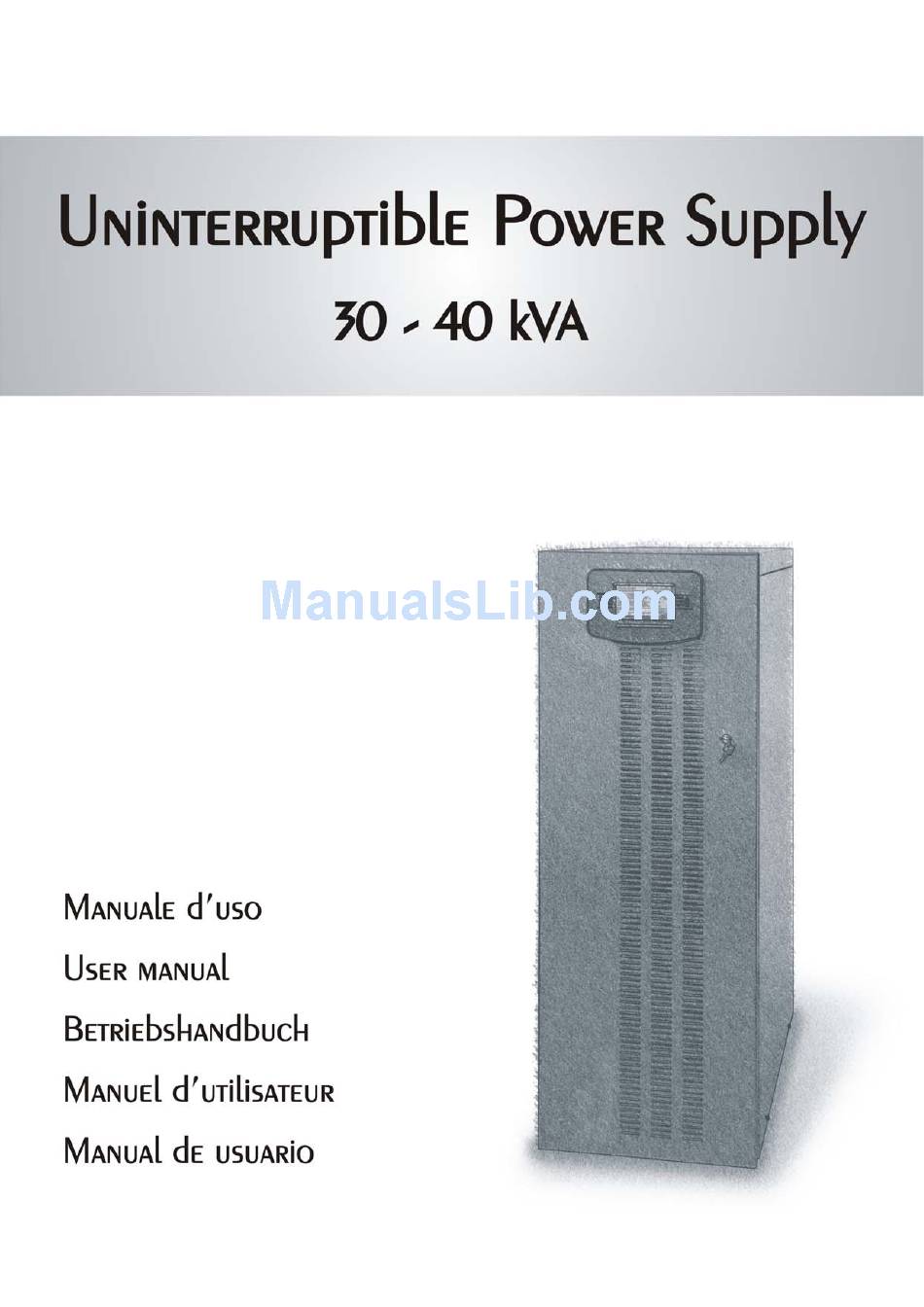

EcoPowerSupplies 40 kVA User Manual

Ecopowersupplies 30-40 kva ups user manual
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 40 kVA and is the answer not in the manual?

Questions and answers

Summary of Contents for EcoPowerSupplies 40 kVA

  • Page 2 NTRODUCTION Thank you for choosing our product. Our company is specialised in the design, development and production of Uninterruptible Power Supplies (UPS) The UPS described in this manual is a high quality, meticulously designed product, built to guarantee the best performance. This manual contains detailed instructions on how to use and install this product.

  • Page 3: Table Of Contents

    ONTENTS OVERVIEW   UPS 30 – 40   FRONT VIEWS   OF THE   IEWS OF THE CONNECTIONS   EAR VIEW OF THE   IEW OF THE CONTROL PANEL   EPARATE BYPASS INPUT OPTIONAL INSTALLATION     TORAGE OF THE  ...
  • Page 4   RELIMINARY OPERATIONS AND FIRST START   AINS START   ATTERY START   WITCHING OFF THE   RAPHIC DISPLAY   ENU DISPLAY   PERATING MODE (SWMB)   AINTENANCE BYPASS   EDUNDANT AUXILIARY POWER SUPPLY FOR AUTOMATIC BYPASS “ ” “ ”...

  • Page 5: Overview

    OVERVIEW UPS 30 - 40 The UPSs in the 30 – 40 series have been designed using state-of-the-art technology, in order to ensure the best performance for the user. The use of the new control boards based on microprocessor architecture (DSP + μP inside), together with the adoption of specific circuit solutions that use last-generation components, have allowed to reach high performances such as: ZERO IMPACT SOURCE: ensures low input distortion, a power factor close to 1, and maximum generator set compatibility.

  • Page 6: Front Views Of The Ups

    FRONT VIEWS OF THE Control panel with graphic display Wheels for moving the UPS Front door with lock Brake rod Ventilation grid...
  • Page 7 From the left: Input isolator / Separate bypass isolator (optional) / Slot for auxiliary communication board Manual bypass isolator / Output isolator From the left: Battery start button (COLD START) / R.E.P.O. (Remote Emergency Power Off) connector / Contact Terminal cover holder for AS400 / USB communication port / RS232 communication port Battery fuse holder isolator...

  • Page 8: Views Of The Ups Connections

    IEWS OF THE CONNECTIONS Power connections: EXTERNAL BATTERY, INPUT, SEPARATE BYPASS (optional), OUTPUT Connection for external synchronization signal Connection for remote maintenance bypass command Connection for external Battery Box temperature probe...

  • Page 9: Rear View Of The Ups

    EAR VIEW OF THE Parallel board slot (optional) Power board fans Powershare socket / Power out socket Battery charger fan Power relay board slot (optional)

  • Page 10: View Of The Control Panel

    IEW OF THE CONTROL PANEL Mains power LED Low battery LED Battery power LED ECO mode LED Load on bypass LED Graphic display Stand-by / alarm LED F1, F2, F3, F4 FUNCTION KEYS. The function of each key is indicated at the bottom of the display and it varies according to the menu.

  • Page 11: Separate Bypass Input ( Optional )

    EPARATE BYPASS INPUT OPTIONAL THE OPTIONAL VERSION OF THE UPS SERIES HAS SEPARATE BYPASS AND INPUT LINES. The UPS series with Separate Bypass allows a separate connection between the input and the bypass lines. The UPS output is synchronised with the bypass line, in order to avoid incorrect voltage changeovers during the alternate phases, in case an automatic bypass or a maintenance isolator closure occurs.

  • Page 12: Installation

    INSTALLATION ALL OPERATIONS DESCRIBED IN THIS SECTION MUST BE CARRIED OUT BY QUALIFIED PERSONNEL ONLY. The company assumes no responsibility for any damage caused by flawed connections or by operations that are not described in this manual. TORAGE OF THE The storage area must respect the following characteristics: Temperature: 0°÷40°C (32°÷104°F)

  • Page 13: Electromagnetic Compatibility

    LECTROMAGNETIC COMPATIBILITY This UPS product conforms to the current electromagnetic compatibility (EMC) regulations (C2 class). It may cause radio interference in the home environment. The user may have to adopt supplementary measures. This product is for professional use in industrial and commercial environments. Connections to USB and RS232 connectors must be made with the cables provided, or at least with shielded cables less than 3 metres long.

  • Page 14: Removing The Ups From The Pallet

    EMOVING THE FROM THE PALLET CAUTION! TO AVOID HARMING PEOPLE AND/OR DAMAGING THE EQUIPMENT, FOLLOW CAREFULLY THE FOLLOWING INSTRUCTIONS. SOME OF THESE INSTRUCTIONS NEED TO BE CARRIED OUT BY TWO PEOPLE. Cut the straps and remove the cardboard box by Remove the 2 brackets securing the UPS to the pallet by sliding it upwards.

  • Page 15: Preliminary Check Of Contents

    RELIMINARY CHECK OF CONTENTS Once the package has been opened, proceed to checking the contents: metal slides, guarantee document, user manual, cd-rom containing the UPS management software, serial connecting cable, 4 battery fuses (to be inserted in the "SWBATT" fuse holders), door key. OSITIONING THE When positioning the equipment, the following points should be taken into account: The wheels are intended for accurate positioning, therefore for small movements only.

  • Page 16: Electrical Connections

    LECTRICAL CONNECTIONS WARNING: a 4-wire three-phase distribution system is required. The UPS must be connected to a power supply line made up of 3 phases + neutral + PE (protective earth) of TT, TN or IT type. Therefore, the phase rotation must be respected. Optional TRANSFORMER BOXES to convert the distribution systems from 3 wires to 4 wires are available.
  • Page 17 UPS with no modification of the neutral regime and with separate bypass input UPS with input galvanic isolation and with separate bypass input UPS with output galvanic isolation and separate bypass input...
  • Page 18 Separate bypass on separate lines: When the separate bypass option is present, protective devices should be placed on both the main power supply line and the bypass line. Note: The neutral of the input line and that of the bypass are commoned inside the equipment, therefore they must refer to the same potential.

  • Page 19: Ups Internal Protections

    INTERNAL PROTECTIONS The table below shows the sizes of the UPS isolators and the battery fuses (SWBATT) which are all accessible from the front of the UPS. Moreover, the table shows the maximum input and the nominal output currents. Fuses must be replaced with ones of the same type and of the same rating, as shown in the table. Isolators and currents Non-automatic switches Battery isolator...

  • Page 20: External Protection Devices

    XTERNAL PROTECTION DEVICES MAGNETOTHERMAL In order to set up the power line, install a magnetothermal switch upstream from the UPS with intervention curve B or C. Please follow the indications in the table below: Automatic external protections UPS Mod. Mains input Separate bypass input (optional) 30kVA 100A...

  • Page 21: Cross Section Of The Cables

    ROSS SECTION OF THE CABLES We recommend that the INPUT/OUTPUT and the BATTERY cables pass under the UPS. As for the dimensioning of the cross section of the input and output cables, please refer to the following table: Cross section of cables (mm INPUT mains / OUTPUT...

  • Page 22: Connections Of The Model With Separate Bypass

    ONNECTIONS OF THE MODEL WITH SEPARATE BYPASS The very first connection to be carried out is that of the protection conductor (earth cable), which must be connected to the terminal marked PE. The UPS must not operate without being connected to an earthing system THE INPUT AND THE BYPASS NEUTRALS MUST ALWAYS BE CONNECTED.

  • Page 23: Remote Maintenance Bypass Connection

    EMOTE MAINTENANCE BYPASS CONNECTION An additional maintenance bypass may be installed on a peripheral switchboard (see diagram below), for example, o allow replacing the UPS without interrupting the power supply to the load. Note: The Company provides this accessory already pre-assembled in an IP65 plastic box. It is essential to connect the "SERVICE BYPASS"...

  • Page 24: Connecting The Ups To The Battery Box ( Optional )

    ONNECTING THE TO THE ATTERY OPTIONAL THE CONNECTION BETWEEN THE UPS AND THE BATTERY BOX MUST BE MADE WITH THE DEVICES SWITCHED OFF AND UNPLUGGED FROM THE MAINS UPS SHUTDOWN PROCEDURE: Turn off all the devices connected to the USP, or use (if installed) the remote bypass option. Turn off the UPS following the correct procedure (see “Switching off the UPS”, in the “USE”...

  • Page 25: Setting The Nominal Battery Capacity - Software Configuration

    – ETTING THE NOMINAL BATTERY CAPACITY SOFTWARE CONFIGURATION Once the BATTERY BOX has been installed, it is necessary to configure the UPS to update the nominal capacity value (total Ah of batteries inside the UPS + external batteries). This configuration can be carried out either by using the advanced configuration software UPS Tools in the CD-ROM provided with the UPS, or directly from the UPS control panel.

  • Page 26: Use

    ESCRIPTION The purpose of this UPS is to ensure a perfect power supply voltage for the devices connected to it, whether mains power is present, or not. Once it has been connected and powered, the UPS generates a sinusoidal alternating voltage with stable amplitude and frequency, regardless of any sudden change or variation in the mains supply.

  • Page 27: Preliminary Operations And First Start - Up

    RELIMINARY OPERATIONS AND FIRST START Visual check of the connection Make sure that all the connections have been made by following carefully the instructions given in the "Connections" paragraph. Check that all the isolators are open. Closure of the battery fuse holders Close the 4 battery fuse holders (SWBATT) as shown in the figure below.
  • Page 28 After a few seconds, check that the display is turned on and that the UPS enters STAND-BY mode. If an error message appears on display indicating a wrong cyclic sense of the input phases, perform the following operations: Open all the input and output isolators Wait for the display to turn off Open the battery fuse holders Open all the protections upstream the UPS...

  • Page 29: Mains Start - Up

    AINS START Close the SWIN and SWBYP (if present) and leave the SWMB maintenance isolator open. After a few moments the UPS will be activated. The condensers are pre-charged and the "Lock / stand-by" led will start to flash: The UPS is in stand-by mode. Press the button to access the start-up menu.

  • Page 30: Graphic Display

    RAPHIC DISPLAY Located at the centre of the control panel there is a large graphic display, which provides, in the foreground and in real-time, a detailed overview of the UPS status. The user can switch on and off the UPS, consult the electrical measurements of the mains, output, battery etc.

  • Page 31: Menu Display

    ENU DISPLAY...

  • Page 32: Operating Mode

    PERATING MODE The mode that guarantees the maximum protection for the load is the ON LINE mode, in which the Energy for the load undergoes a double conversion and is reconstructed at the output in a perfectly sinusoidal manner, with the frequency and the voltage set by a precise digital control of the DSP regardless of the input (V.F.I.).

  • Page 33: Redundant Auxiliary Power Supply For Automatic Bypass

    EDUNDANT AUXILIARY POWER SUPPLY FOR AUTOMATIC BYPASS This UPS is provided with a redundant auxiliary power supply which allows the UPS to run on an automatic bypass, even in the event of faults on the main auxiliary power supply. If a fault occurs in the UPS, shutting off the main auxiliary power supply, the load will be powered anyway by the automatic bypass.

  • Page 34: Configuring The Ups

    ONFIGURING THE The table below shows all the possible configurations available to better adapt the UPS to the user’s needs. Indicates that the configuration can be changed from the control panel, as well as from the (Control Panel) = configuration software. Indicates that the configuration can be changed from the configuration software only.
  • Page 35 FUNCTION DESCRIPTION DEFAULT POSSIBLE CONFIGURATIONS MOD. Advanced Functions • ± 0.25% Selects the allowed input • ± 0.5% frequency range for Input frequency ± 5% switching to bypass and • ± 0.75% tolerance for output synchronisation • ± 1 ÷ ±10 in steps of 1% Selects the voltage range Low: 180V...

  • Page 36: Communication Ports

    OMMUNICATION PORTS In the upper part of the UPS, behind the door (see "Views of the UPS") there are the following communication ports: Serial port, available with RS232 connector and USB connector. NOTE: the choice of one connector automatically excludes the other. Expansion slots for additional COMMUNICATION SLOT interface boards AS400 port Moreover, on the rear of the UPS it is possible to install as an option the power relay board (4 programmable contacts, 250Vac,...

  • Page 37: As400 Port

    AS400 P AS400 PORT PIN # NAME TYPE FUNCTION POWER Isolated auxiliary power supply +15V±5% 80mA max Ground to which the isolated auxiliary power supply (15V) POWER and the remote commands (Remote ON, Remote BYPASS, Remote OFF) refer By connecting pin 2 to pin 15 for at least 3 seconds the UPS REMOTE ON INPUT #1 is turned on...

  • Page 38: Buzzer

    UZZER The status and the faults of the UPS are signalled by the buzzer, which will emit a sound according to the various operating conditions of the UPS. The various kinds of sounds are described below: Sound A: This signal is emitted when the UPS is turned on or off using the apposite buttons. A single beep confirms the start- up, the activation of the battery test, and the cancellation of the programmed switch-off.

  • Page 39: Software

    OFTWARE ONITORING AND CONTROL SOFTWARE The monitoring software guarantees an effective and user-friendly management of the UPS, by displaying all the most important information such as input voltage, load applied, and battery capacity. It can also perform automatically shutdown operations, send e-mails, sms and network messages when specific user-selected events occur.

  • Page 40: Troubleshooting

    TROUBLESHOOTING An irregular operation of the UPS is frequently not due to malfunctions, but to simple problems, inconveniences or distractions. Therefore, the user is advised to consult the table below providing useful information on how to solve the most common problems.
  • Page 41 PROBLEM POSSIBLE CAUSE SOLUTION THE JUMPER IS MISSING FROM THE R.E.P.O. Assemble the jumper or make sure that it is inserted THE DISPLAY SHOWS CONNECTOR (see “FRONT correctly. VIEWS OF THE UPS”) OR IT IS NOT INSERTED CORRECTLY MAINTENANCE BYPASS Open the isolator (SWMB) located behind the door.
  • Page 42 PROBLEM POSSIBLE CAUSE SOLUTION PROTECTION DEVICE Restore the protection device upstream. WARNING: UPSTREAM FROM THE check that there is no overload or short circuit at the BYPASS LINE OPEN (ONLY IF output of the UPS THE DISPLAY SHOWS BYPASS IS SEPARATE) ONE OR MORE OF THE FOLLOWING CODES: BYPASS ISOLATOR OPEN...
  • Page 43 PROBLEM POSSIBLE CAUSE SOLUTION THE DISPLAY SHOWS It is recommended to replace the batteries of the UPS, ONE OR MORE OF THE since they ate no longer able to maintain the charge for FOLLOWING CODES: THE BATTERIES HAVE a sufficient autonomy. FAILED THE PERIODIC A39, A40 EFFICIENCY TEST...

  • Page 44: Status / Alarm Codes

    TATUS ALARM CODES By using a sophisticated self-diagnostic system, this UPS can check and indicate on the display panel its status and any error and/or fault occurred during operation. Whenever a problem arises, the UPS signals the event by showing the code and the corresponding alarm on the display.
  • Page 45 Anomalies: these are “minor” problems, which do not bring the UPS to a halt, but can reduce its performance or inhibit the use of some of its functions. CODE DESCRIPTION Inverter not synchronised External synchronism failed Overvoltage on input line of Phase1 Overvoltage on input line of Phase2 Overvoltage on input line of Phase3 Undervoltage on input line of Phase1...
  • Page 46 Faults: These are more critical problems compared to the “Anomalies”, as if they persist they may bring the UPS to a halt even in a very short time. CODE DESCRIPTION Internal communication error Wrong cyclic sense of the input phases Phase1 input fuse broken or input relay locked (will not close) Phase 2 input fuse broken or input relay locked (will not close) Phase3 input fuse broken or input relay locked (will not close)
  • Page 47 Locks: these codes indicate that the UPS, or one of its parts, is locked. Usually, they are preceded by an alarm signal. In case of faults and consequent locking of the inverter, the latter will be turned off and the load will be powered via the bypass line (this procedure is excluded for locks caused by serious and persistent overloads and for those caused by a short circuit).

  • Page 48: Technical Data

    TECHNICAL DATA UPS Models INPUT STAGE Nominal voltage 380-400-415 Vac 3-phase with neutral (4 wire) Nominal frequency 50-60Hz Accepted input voltage tolerance due to no ± 20% @ 100% load intervention of the battery (referred to -40% +20% @50% load 400Vac) Accepted input frequency tolerance due to no ±...
  • Page 49 UPS Models BATTERY CHARGER STAGE ±240Vdc Nominal voltage Maximum recharge current Battery charger algorithm Two levels with temperature compensation Analogue switching current under μP control Technology (PWM voltage and charge current adjustment) Input voltage tolerance for recharging at 345-480Vac maximum current MODES AND EFFICIENCY True on line double conversion ECO mode...
  • Page 50 - 0MNUT3MNPA -...
