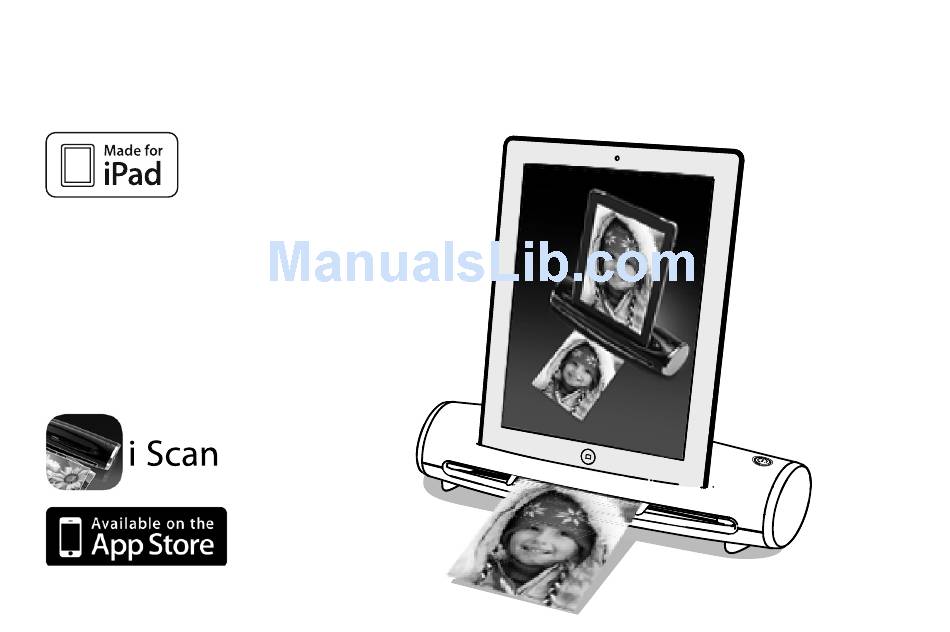

Docking Scanner
User Guide
The "Made for iPad" logo means
that an electronic accessory
has been designed to connect
specifi cally to iPad and has been
certifi ed by the developer to meet
Apple performance standards.
Apple is not responsible for
the operation of this device or
its compliance with safety and
regulatory standards. Please note
that the use of this accessory
with iPad may affect wireless
performance.
Works with
Work with
-
Scanner App
All trademarks are the property
of their respective owners and all
rights are acknowledged.
v1.1
Advertisement
Table of Contents
Summary of Contents for Not Only TV iScanner
-
Page 1: User Guide
Docking Scanner User Guide The "Made for iPad" logo means that an electronic accessory has been designed to connect specifi cally to iPad and has been certifi ed by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. -
Page 2: Important Safety Instructions
Important Safety Instructions • Keep away from water or moisture and dusty areas. • Never store in hot and very cold areas. • Ambient temperature ranges from 0°C to +35°C (32°F~+95°F). • Only use attachments/accessories specifi ed by the manufacturer. •... -
Page 3: Table Of Contents
Table of Contents Important Safety Instructions ....................... 2 Table of Contents ..........................3 Quick Getting Started ........................... 4 Unpack ..............................5 Overview .............................. 6 Power Source ............................7 Power On / Off ............................. 8 Connect to iPad ........................... 8 Download & Install Scanner App (i-Scan App) ..................9 Scan .............................. -
Page 4: Quick Getting Started
Quick Getting Started 3. Dock iPad 2. Turn on Power 1. Attach USB Cable iPad supplied USB Power Adapter 4. Install i-Scan App 5. Insert Photo and Scan 6. Preview and Save from App store... -
Page 5: Unpack
Unpack The following items should include in your packaging: Scanner USB Cable Calibration Sheet Roller Cleaner Quick Start Guide 5"x7" Lens Cleaner Photo Protective Sleeve Quick Start Guide... -
Page 6: Overview
Overview Front Rear iPad Dock Connector Power Button Feed Slot Power Exit Slot Stand Paper Paper Mini USB Guide Guide port (for power input only) -
Page 7: Power Source
Power Source • The scanner incorporates a mini USB port which is designed for power input only. • The scanner requires 10.5 watts (5V 2.1A) of power via iPad USB Power Adapter that came with your iPad packaging. The USB Power Adapter is the 1. -
Page 8: Power On / Off
Power On / Off Connect to iPad • Turn on your iPad and • Press the Power connect it carefully to the button to turn on iPad dock connector of the the scanner. To turn scanner. Make sure it sits off, long press for fi... -
Page 9: Download & Install Scanner App (I-Scan App)
Download & Install Scanner App (i-Scan App) Power on the iPad, the message on the right will prompt on the iPad screen guiding you to the App store for i-Scan App download. Follow the on-screen instructions to complete the installation. Upon completion, the i-Scan App icon will * The message appears only if the... -
Page 10: Scan
Save Scan 1. Insert a photo/document facing UP into the feed Tap the button. The image will slot until it is gripped by the roller. be saved to your iPad accordingly. 2. Adjust the paper guide against the edges of the •... -
Page 11: App Launch Message On Ipad Ios 5
App Launch Message on iPad iOS 5 The scanner includes the ability to auto launch the i-Scan app when your iPad is docked and turned on. If your iPad is running on iOS 5, the message on the right will pop up asking if you want to launch the app, tap Allow. -
Page 12: Tips & Hints
Tips & Hints No power. • The USB cable is not plugged into the mini USB port on the unit and/or USB power adapter properly. • Make sure you have turned on the Power button on the unit. iPad scanner does not response when iPad is docked. •... - Page 13 iPad scanner is slow or hung up. • When the power LED is fl ashing and/or a busy icon (" " ) appears, do not press any buttons, nor unplug iPad and the power source. • If the scanner is not working properly (e.g. the busy icon " "...
-
Page 14: Specifi Cations
Specifi cations Scanner Type Color CIS Sheet-fed scanner Light Source LED (R, G, B) Scan Size Up to Legal (8.5" L x 14" W) size Scan Mode Color Scan Resolution: 300 dpi Scan Speed 6 ppm @ A4 color 300 dpi Ports USB mini-B ;... -
Page 15: Appendix 1: Calibrate
Appendix 1: Calibrate • To get the best scan quality, please perform the steps below from time to time. • Remove the fi lm on the calibration sheet before use. • Make sure the calibration sheet is clean and free of dust before use. 1. -
Page 16: Appendix 2: Use The Photo Protective Sleeve
Appendix 2: Use the Photo Protective Sleeve • Some old photos or documents might become fragile. To protect them from possible damage during scanning, use a photo protective sleeve to help. • Remove the fi lm on the photo protective sleeve before use. •... -
Page 17: Appendix 3: Clean
Appendix 3: Clean • To get the best scan quality, please perform the steps below from time to time. • Make sure the roller cleaner and lens cleaner are clean and free of dust before use. Use a roller cleaner 1. -
Page 18: Rear Side
Use a lens cleaner Rear side 1. Power off the scanner. 2. Hold the grip handle of the lens cleaner with the sponge side facing DOWN. 3. Insert fi rmly the lens cleaner with the fabric side facing UP into the exit slot. 4. -
Page 19: Appendix 4: Charging Your Ipad
Appendix 4: Charging your iPad • The docked iPad starts charging when the iPad Scanner is turned-off and the power is supplied to the mini USB port constantly. Power LED indicator Scanner Status USB Power Adapter Steady Blue Ready for use Pluged No light iPad Charging...
