ClimateMaster EarthPure Installation Instructions

Climatemaster 2" polarized-media electronic air cleaner

Installation

Instructions

Consumer

Information

Section I. Installation Instructions

1) Turn the thermostat fan switch to the "OFF" position.

2) Turn off power to the heating and cooling system.

3) Remove the existing filter from the heating and cooling system or return air grille.

4) Wiring to the on-board transformer or terminal board:

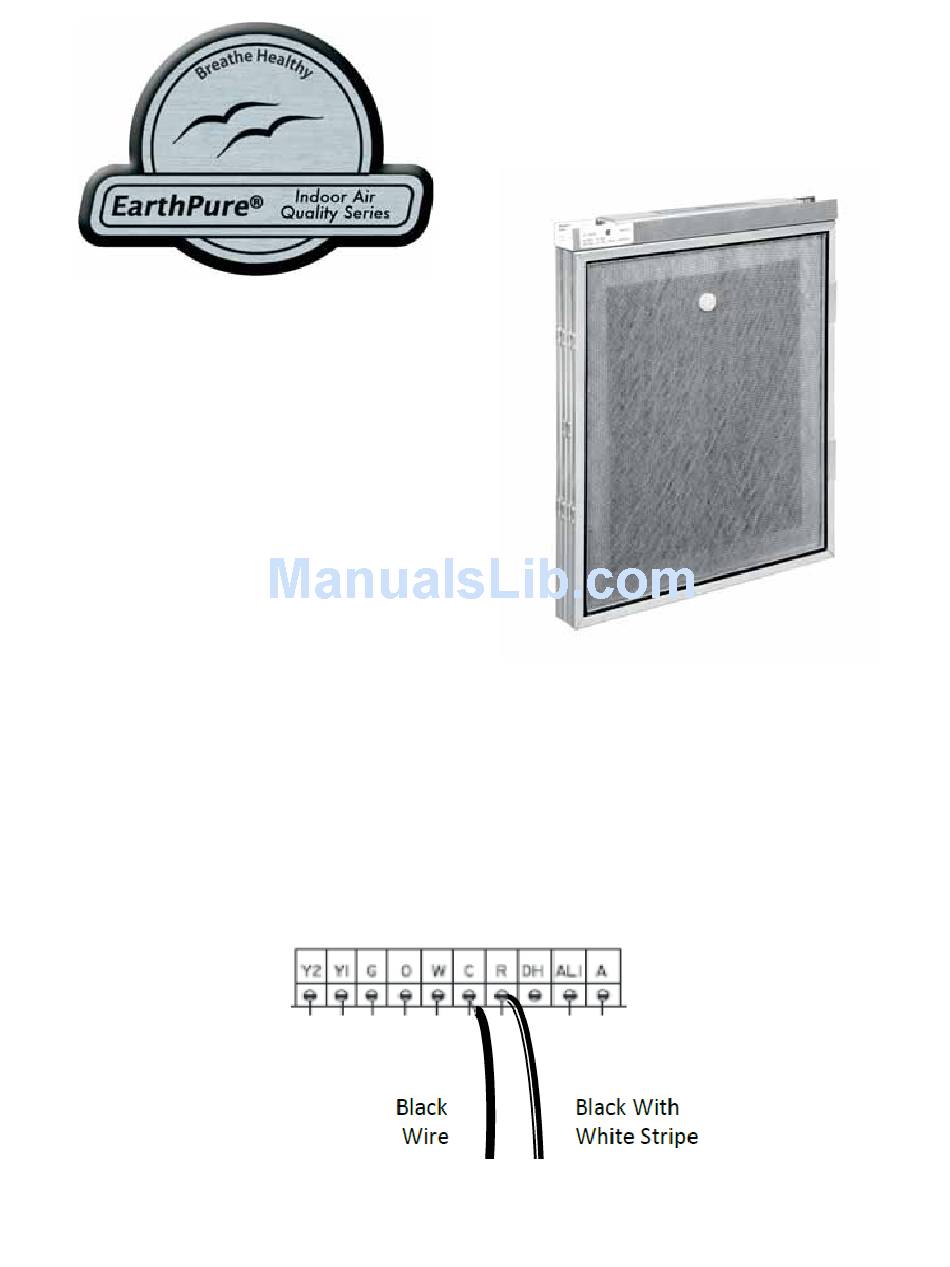

If there is a terminal strip such as the one shown below, connect the black wire of the power

cord to the "Common" terminal (typically the "C" terminal) and the black wire with the white stripe

to the "Hot" 24vac terminal (typically the "R" terminal). Output from the 24vac transformer may

vary due to local line voltage fluctuations. Outputs of up to 28vac are acceptable.

2" Polarized-Media

Electronic Air Cleaner

Table of Contents

Need help?

Do you have a question about the EarthPure and is the answer not in the manual?

Page 1 2” Polarized-Media Electronic Air Cleaner Installation Instructions & Consumer Information Section I. Installation Instructions 1) Turn the thermostat fan switch to the “OFF” position. 2) Turn off power to the heating and cooling system. 3) Remove the existing filter from the heating and cooling system or return air grille. 4) Wiring to the on-board transformer or terminal board: If there is a terminal strip such as the one shown below, connect the black wire of the power cord to the “Common”...
Page 2 If the terminals are unmarked, or to confirm the markings, use a voltmeter to find the Common and “Hot” 24vac terminals: a. Turn off the power to the heating and cooling system and the transformer. b. With the voltmeter set to "Continuity", check for continuity between each terminal and the metal frame of the heating and cooling system.
Page 3 Section III. Maintenance and Media Pad Replacement Replacement Media Pads are available from your heating and air conditioning contractor. WARNING: WHENEVER INSTALLING OR REMOVING THE AIR CLEANER, THE POWER TO THE HEATING AND COOLING SYSTEM MUST BE TURNED OFF. CARE SHOULD BE TAKEN NOT TO LET THE JACK TOUCH ANY GROUNDED OR METAL SURFACES.
Page 4 1) Maintenance is limited to periodic replacement of the air cleaner media pads. This is typically done every 3 to 6 months. 2) Use only genuine EarthPure Replacement Media Pads from your ClimateMaster dealer. For a dealer near you, visit cmdealernet.com.
