N
M
P
I G H T
A R E
R O

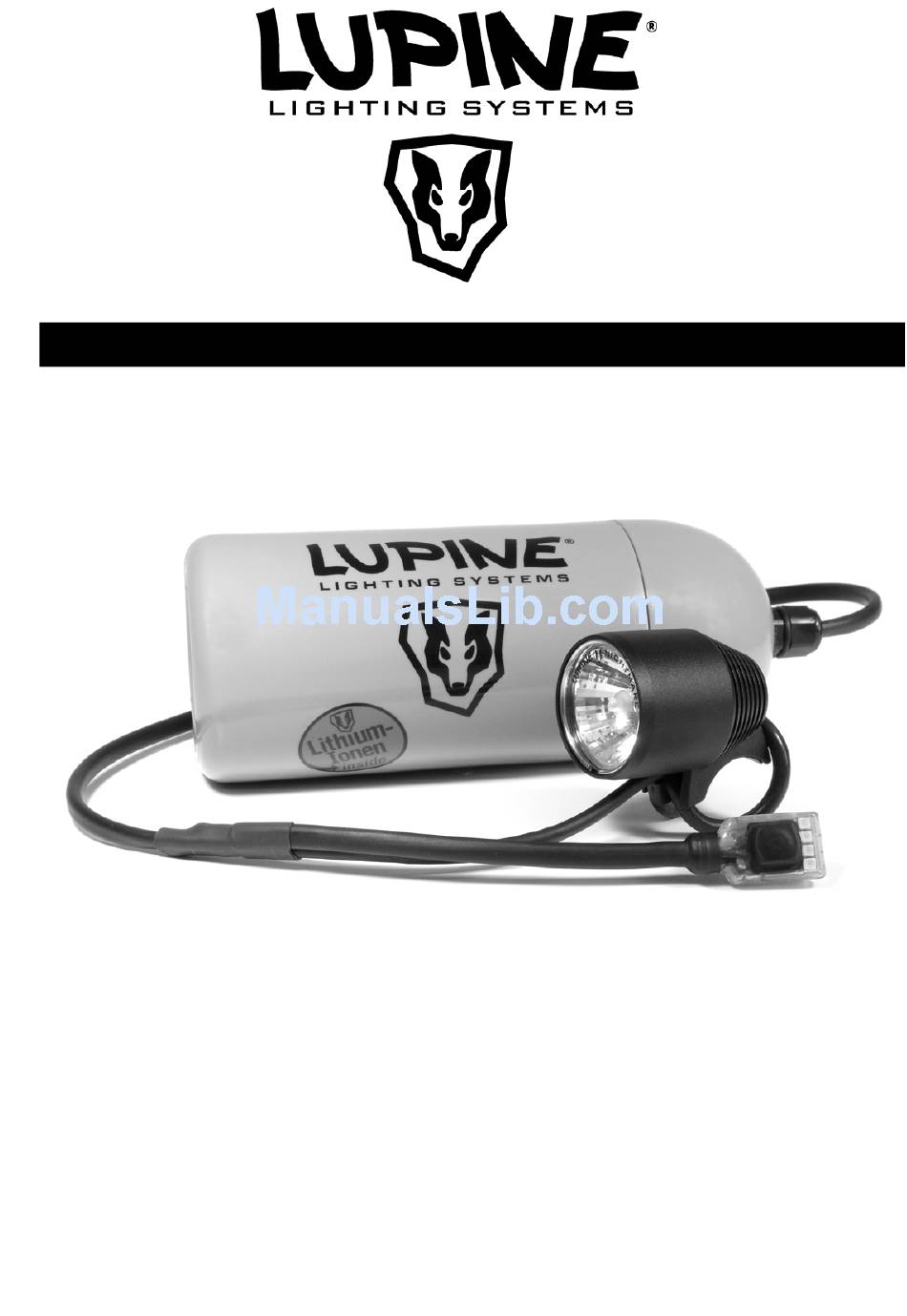

I n s t r u c t i o n M a n u a l
(Read before use!)
Content of package:
25 W Halogen Lighting System (SR-Bulb) with PCS V3.3 remote controller,
Li-Ion bottle battery 10 Ah / 7.2V,
Lupine Micro-Charger V1
2A
Velcro straps, O - ring for handlebars
Instruction Manual (this document)
Technical Information PCS v3.3
Advertisement
Table of Contents
Related Manuals for Lupine NightMare Pro
Summary of Contents for Lupine NightMare Pro
- Page 1 (Read before use!) Content of package: 25 W Halogen Lighting System (SR-Bulb) with PCS V3.3 remote controller, Li-Ion bottle battery 10 Ah / 7.2V, Lupine Micro-Charger V1 Velcro straps, O - ring for handlebars Instruction Manual (this document) Technical Information PCS v3.3...
-
Page 2: Read Before Use
(see chapter 4 "Charging"). The rechargeable Li-Ion battery will reach its full power after 1 charge cycles. It might become hot! The Nightmare Pro is not a simple torch. The lamp housing can become very hot, if used without airflow. Do not touch the lamp during or immediately after use. Dazzling: The Nightmare Pro is a powerful lighting system. -
Page 3: Using The Light
Make sure that the battery cables are routed in such a way that they will not become tangled in any moving parts. Now plug the rechargeable battery to the lamp and your NightMare Pro is ready to go. Adjusting the cable length: Some spare length of cable is retained into the top of the battery bottle. -
Page 4: Charging The Rechargeable Battery
4.) C HARGING THE RECHARGEABLE BATTERY Components: The charging system of the NightMare Pro consists of two components: - AC/DC adaptor - Micro-Charger The Micro-Charger was developed for use with Lupine’s high current Li-Ion rechargeable batteries from AC/DC adaptor or with additional available 12 V car adaptor. -
Page 5: Care And Storage
Keep the rechargeable battery plugged into the Micro-Charger until the green LED lights. Charging is now complete; the battery is full and is now ready for use. Reading the charged capacity: After disconnecting the battery the Micro-Charger will indicate the charged capacity as follows: First, the orange LED will blink 1 time per complete ampere hour,... -
Page 6: Troubleshooting
Pull the pins of the bulb-reflector out of the terminal block. Slide the pins of the new bulb carefully into place. Adjust the bulb-reflector as before and replace the glass and ring. Insert the holder and tighten the screw with moderate force. Your Lupine is now finished and ready to blaze the trails again. -
Page 7: Technical Data
7.) T ECHNICAL Lamp: Weight complete with rechargeable battery: 580g Capacity of rechargeable battery / Voltage: 10 Ah 7.2 V Li-Ion Burn time 25 W: 2 hours 30 Minutes Burn time 9 W: 5 hours 10 Minutes Temperature range: - 25°C - +70°C Beam angle: 18°... - Page 8 Lupine Lighting Systems GmbH Winnberger Weg 11 D-92318 Neumarkt Germany Fon: 0049 91 81 509490 Fax: 0049 91 81 5094915 e-mail: info@lupine.de net: www.lupine.de I G H T A R E...
