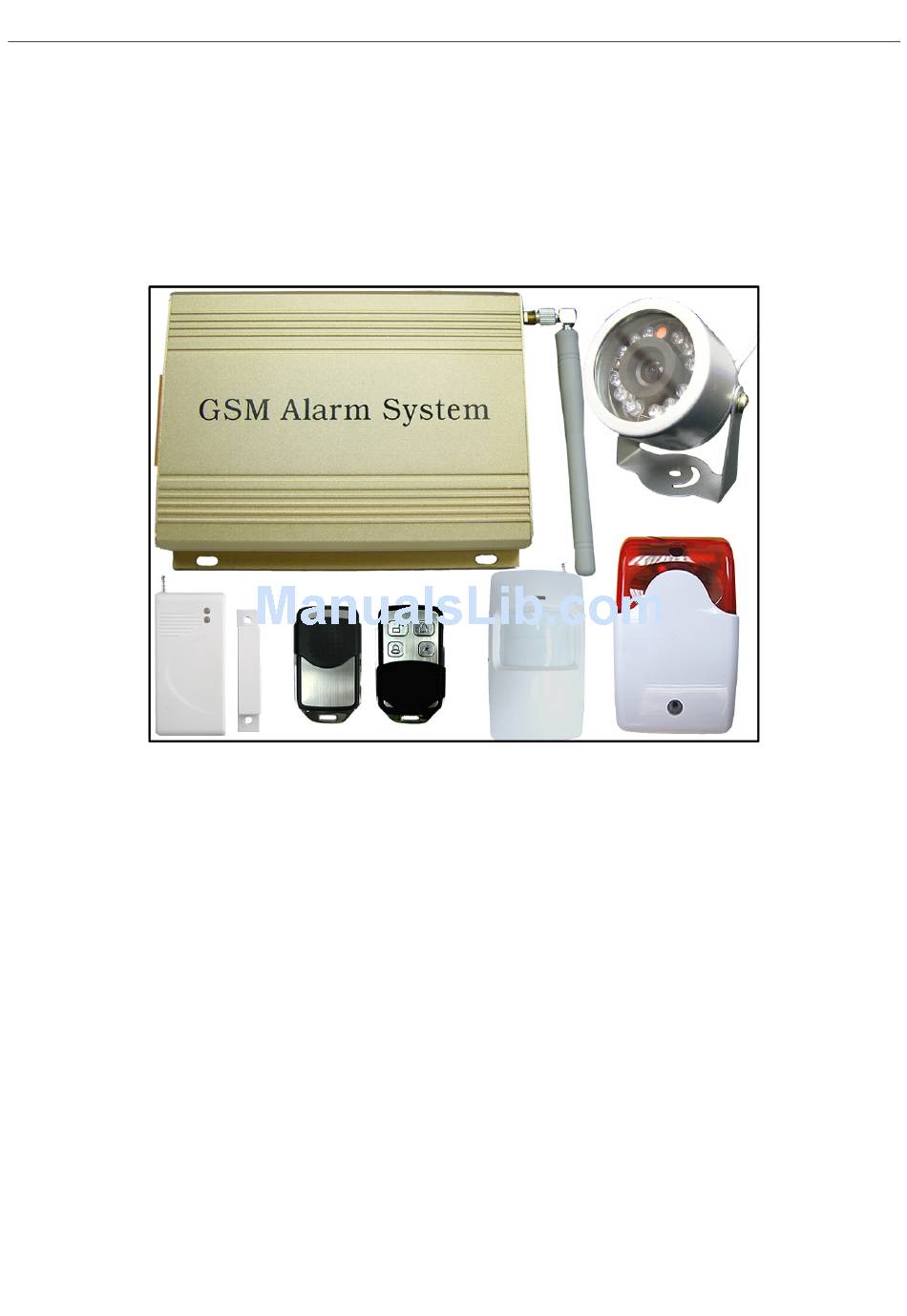

TY GSM CALL/SMS/MMS Auto-dial Alarm System
TY GSM CALL/SMS/MMS

Alarm System

Installation and User Manual

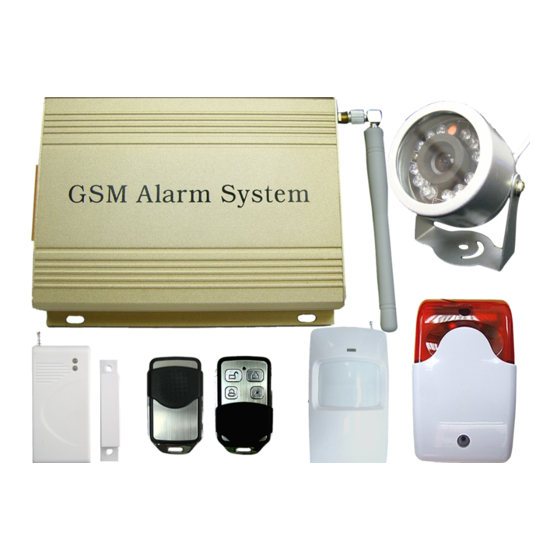

The excellent GSM + Camera alarm system bases on the GSM network. Integrated with
advanced communication technology, it can automatically capture a photo with the
intruder or burglar, then save it to SD card and send it to user's cell phone. So the user
can see who breaks into the property. This is an unique design out of all the security
products!

Product Features:

1. AUTO CALL/ SMS/ MMS MESSAGE ALARM ALERT FUNCTION.
2. Include digital camera with VGA resolution and IR LEDs for night vision.
3. Camera can capture photo automatically when motion is detected.
4. The system supports 900/ 1800/ 1900 MHz GSM SIM cards (with MMS function).
5. Wireless device operation frequency 433MHz.
6. Remote command access to the system via phone call or SMS message (arm/disarm/listen-in/take photo/etc).
7. Support up to 2G SD Card which can store about 28,800 photos.
8. Pictures to be transmitted can be adjusted to QCIF (160x128), CIF (320x240), or VGA (640x480).
9. Can capture thief's photo and send to owner's cell phone or email box, which provides evidence for case.
10. Metal case - more protection.
11. 16 wireless and 2 wired distinguishable guard zones - wireless/ wired sensors can be used with the system.
12. Auto-dial and text function: can preset 5 telephone numbers in the unit. Will auto-dial/ send text message/
send MMS to the numbers when the alarm set off.
www.novibo.com
1
V2.0_JUL_2012

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TY GSM CALL/SMS/MMS and is the answer not in the manual?

Questions and answers

Related Manuals for Novibo TY GSM CALL/SMS/MMS

Summary of Contents for Novibo TY GSM CALL/SMS/MMS

  • Page 1: Alarm System

    TY GSM CALL/SMS/MMS Auto-dial Alarm System TY GSM CALL/SMS/MMS Alarm System Installation and User Manual The excellent GSM + Camera alarm system bases on the GSM network. Integrated with advanced communication technology, it can automatically capture a photo with the intruder or burglar, then save it to SD card and send it to user's cell phone.
  • Page 2 TY GSM CALL/SMS/MMS Auto-dial Alarm System 13. Can program 4 groups of text message in the unit. 14. One siren port with Silent Alarm Function - alarm can be triggered without sound and make calls to the preset numbers in order to arrest the thief silently.

  • Page 3: Installation Guide

    TY GSM CALL/SMS/MMS Auto-dial Alarm System Installation Guide 1. Insert a SIM card to the main host Press the yellow button next to the card slot gently with a small screwdriver. The SIM card tray will come out. Put the SIM card in correct direction (metal contacts face down) and insert into the system carefully.

  • Page 4: Operating The System

    TY GSM CALL/SMS/MMS Auto-dial Alarm System 6. How to distinguish the LED on the main host? LED during power on: When the system is supplied with power, the LED first turns to static red color for about 5 seconds and the system turns on the GSM module.
  • Page 5 TY GSM CALL/SMS/MMS Auto-dial Alarm System System Commands (* represents default setting): Command Function Description Command Function Description 1#1# System Arm 1#0# System Disarm* 2#--# Take and send photos (1 - 20), ex. 2#1# → Take one photo and send (to phone and email)
  • Page 6 TY GSM CALL/SMS/MMS Auto-dial Alarm System Send SMS to delete a stored phone number: 123456#51## delete the 1 alarm phone number. → Other phone numbers can be deleted using similar method but changing to 52##, 53##, 54##, and 55##. Send a SMS to acquire the phone numbers stored: 123456#50##.

  • Page 7: Advanced Instructions

    TY GSM CALL/SMS/MMS Auto-dial Alarm System 123456#43## Set MMS user password (empty) → 123456#44#10.0.0.172# Set IP address → 123456#45#9201# Set Port → 123456#46#http://mmsc.monternet.com# Set MMS Server → v. Check the present state of alarm host settings: User can only send password# to check out the present state of alarm host settings. The replied message is...
  • Page 8 TY GSM CALL/SMS/MMS Auto-dial Alarm System 2. When the alarm system is in arm status, the red light flashes slowly if the wired/wireless sensors trigger the alarm or user pass by the camera. The alarm system will send alarm information by SMS, MMS and dial to stored phone numbers.

  • Page 9: Technical Parameters

    TY GSM CALL/SMS/MMS Auto-dial Alarm System Technical Parameters GSM Alarm Module Operating Voltage: DC12V Power: 110-240VAC to 12VDC Power Adapter, 2A Wireless Receiving Distance: 80m open space Support PHASE 2/2 agreement (including data business) GSM Frequency: 900 / 1800 / 1900 MHz...
  • Page 10 1. Check the sensor battery. 2. Re-match the sensor to the system according to adding a new sensor section. Please let us know if you have any question (sales@novibo.com), we are very happy to assist you. For MMS Parameters, you can download at: http://ad.novibo.com/download/MMS_Parameters.pdf...
