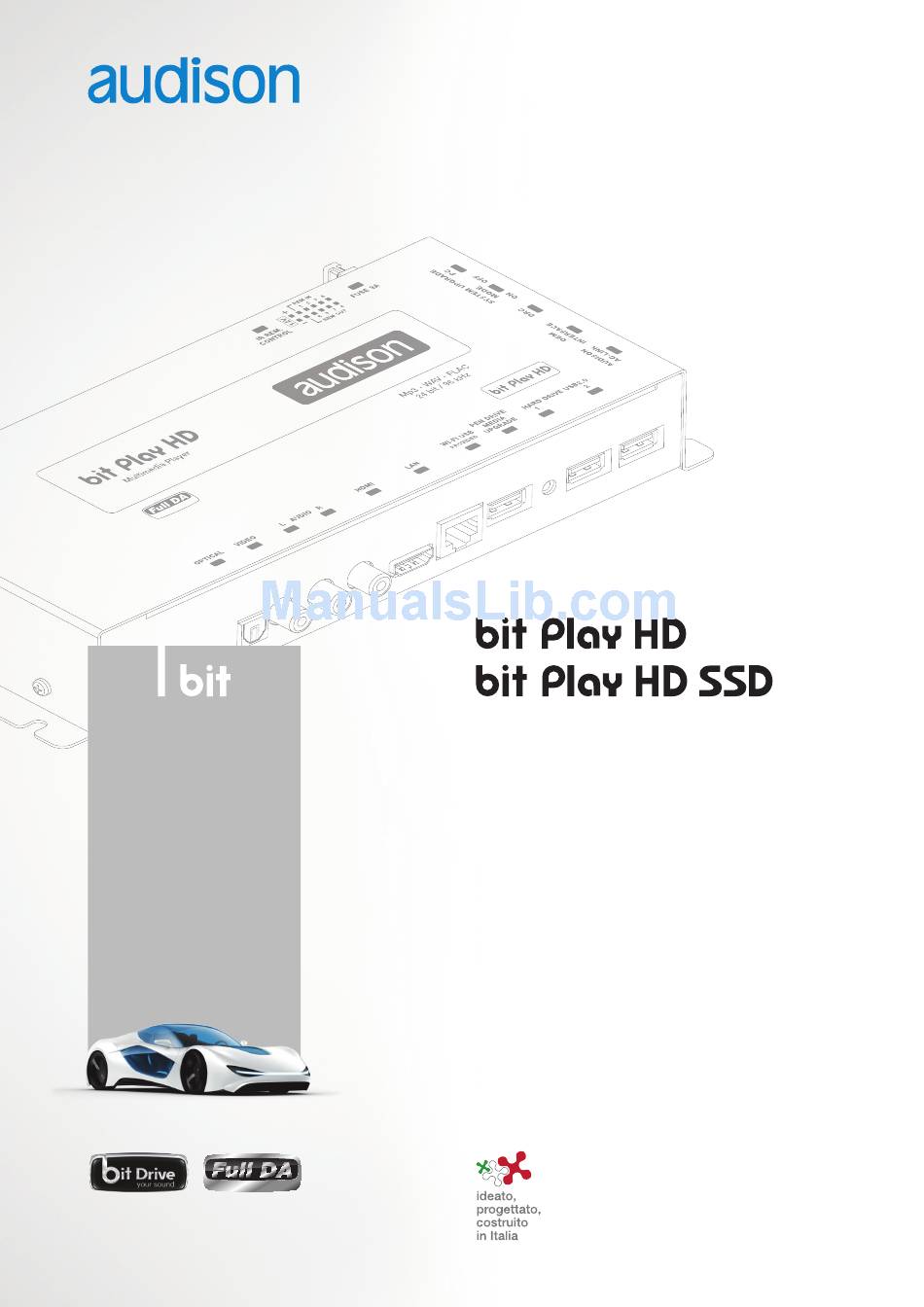

- Page 1 USER’S ManUal rel. 1.0...
-
Page 2: Table Of Contents
USER’S MANUAL / bit Play HD Index 1. bit Play HD - bit Play HD SSD DESCRIPTION ........................3 1.1 SAFETY CONSIDERATIONS ............................3 1.2 CONTENT OF THE PACKAGING ............................. 4 1.3 DIMENSIONIS AND FASTENING ............................ 5 2. DESCRIPTION OF THE CONNECTION PANELS ......................... 6 3. -

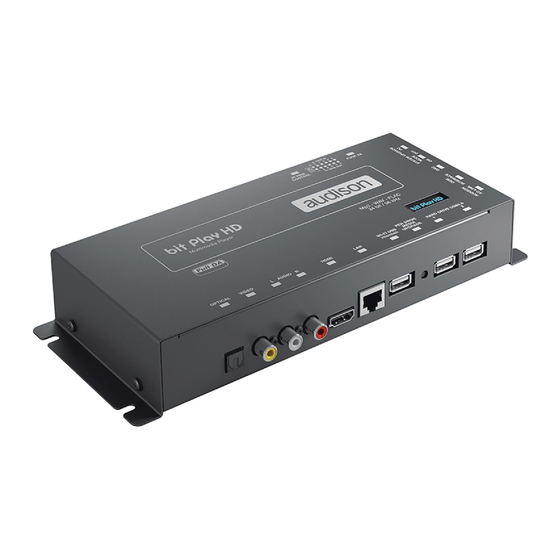

Page 3: Bit Play Hd - Bit Play Hd Ssd Description
2. Operate the bit Play HD only when the internal temperature is between 0°C (32°F) and 55°C (131°F). The bit Play HD must be a minimum of 3 cm (1.5”) from other structures and there must be good air circulation around the chassis. -
Page 4: Content Of The Packaging
CONTENT OF THE PACKAGING - bit Play HD: - 2,5” SATA 250GB SSD HARD DISK (only for the bit Play HD SSD): - N°4 Hard Disk assembling/fastening screws (only for the bit Play HD): - Input/Rem cable with multi-pin connector: - USB extension cable 2 m. -
Page 5: Dimensionis And Fastening
USER’S MANUAL / bit Play HD / DIMENSIONS AND FASTENING Dimensions: 249 mm (9.80 in.) 239 mm (9.4 in.) 47 mm (1.85 in.) 15 mm (0.59 in.) 40 mm (1.57 in.) 8 mm (0.31 in.) USR User Remote Control ARC Advanced Remote Control... -
Page 6: Description Of The Connection Panels
USER’S MANUAL / bit Play HD / 2. DESCRIPTION OF THE CONNECTION PANELS The bit Play HD comes with a 12-pin multi-pin connector through which you can manage the power and different control connections. FRONT WIEW Max 20 cm / 7.5 in. - Page 7 STEERING WHEEL CONTROL: Terminals used for future use. IR REM CONTROL: Connector for the infrared receiver of the bit Play HD remote control. Point the remote at the sensor from within 2 meters. Use only the remotes supplied in the package (see sections 3.1 and 3.2)
- Page 8 AUDISON AC-LINK: Connection plug to control the volume of Audison processors with an AC LINK connection. By connecting the AC LINK cable and the DRC to the bit Play HD, it is possible to build a system with High Definition volume control (see section 4.2.3)
-
Page 9: Remote Description
Repeat Audio/Video tracks. * WARNING: Batteries not included in the package. NOTES ON USING THE REMOTE. 1. Point the remote at the bit Play HD control infrared sensor which can receive input at 30° in all directions. INSERT THE REMOVE THE BATTERIES. -
Page 10: Usr (User Remote Control) Remote
Increase audio volume. * WARNING: Batteries not included in the package. NOTES ON USING THE REMOTE. 1. Point the remote at the bit Play HD control infrared sensor which can receive input at 30° in all directions. INSERT THE REMOVE THE BATTERY. -
Page 11: Connections
TURN THE bit Play HD ON AND OFF The bit Play HD is on when the upper logo turns blue. You can turn it on/off by connect the Remote In terminal to an external source or the car subkey terminal. -
Page 12: Audio Output Signals
USER’S MANUAL / bit Play HD / AUDIO OUTPUT SIGNALS 4.2.1 ANALOG OUTPUT SIGNALS ANALOG OUTPUT TO ANALOG OUTPUT TO ANALOG OUTPUT TO bit One AUX INPUTS bit Ten AUX INPUTS PRE-AMPLIFIER INPUTS REM IN REM IN REM IN IR REM. -
Page 13: S/Pdif Digital Output Signals With Hi-Definition Volume Control
TOS LINK TOS LINK Connector Connector Optical fiber Optical fiber Optical fiber Optical fiber TOS LINK Connector TOS LINK Connector AC LINK cable TOS LINK Connector TOS LINK Connector AC LINK cable Set to MAX the bit play HD Volume... -
Page 14: Video Output Signals
USER’S MANUAL / bit Play HD / VIDEO OUTPUT SIGNALS 4.3.1 COMPOSITE VIDEO SIGNAL BRAKE GREEN ORANGE 1A MONITOR BRAKE GREEN ORANGE 1A MONITOR Ground Ground BRAKE GREEN ORANGE 1A MONITOR BRAKE GREEN ORANGE 1A MONITOR REM IN REM IN Ground IR REM. -
Page 15: Aux/Optical Input Auto Switch
USER’S MANUAL / bit Play HD / AUX/OPTICAL INPUT AUTO SWITCH AUX SELECT with bit Ten D AUX SELECT with AP bit OPTICAL / AUX SEL brown OPTICAL / AUX SEL brown OPTICAL / AUX SEL brown OPTICAL / AUX SEL brown... -
Page 16: Storage Devices/External File Reading
USER’S MANUAL / bit Play HD / STORAGE DEVICES/EXTERNAL FILE READING External USB PEN DRIVE REM IN IR REM. FUSE 3A CONTROL 5 6 7 8 REM OUT Multimedia Player Mp3 - WAV - FLAC 24 bit / 96 kHz... -
Page 17: Infrared Receiver
USER’S MANUAL / bit Play HD / INFRARED RECEIVER LED STATUS ... WAIT bit Play HD OPERATE INFRARED RECEIVER REM IN IR REM. FUSE 3A CONTROL 5 6 7 8 REM OUT Multimedia Player Mp3 - WAV - FLAC 24 bit / 96 kHz... -
Page 18: How To Use The Bit Play Hd With An External Monitor
A. Transfer the multimedia (audio/video/photo) files to a USB storage device. B. Connect the bit Play HD to the USB storage device using the HARD DRIVE USB 2.0 plugs. C. Select “File Manager” from the main menu of the bit Play HD... - Page 19 (see point 3) A B C D E SETTINGS: By clicking on the Settings menu, you can select the bit Play HD system settings. The navigation buttons on the remote allow you to navigate the submenus: Audio; Video; Network; Advanced; System.
-
Page 20: How To Use The Bit Play Hd On Mobile Devices
WI-FI network of your smartphone or tablet. Once you install the bit Play HD player in your car, this App will let you listen to the music stored in your smartphone or tablet directly through your car audio system. -
Page 21: Audison App For Android
This “File Manager” allows you to browse the storage directory of the mobile device and select the files to play. bit Play HD menu This “File Manager” allows you to browse the storage directory of the bit Play HD and select the files to play. - Page 22 A. Transfer the multimedia (audio/video/photo) files to a USB storage device. B. Connect the bit Play HD to the USB storage device using the HARD DRIVE USB 2.0 plugs. C. From the OPTIONS menu of the App, select the USB storage device where the files to be transferred are stored D.
- Page 23 USER’S MANUAL / bit Play HD / E. Select the HDD destination directory for the files/folders previously selected and then select “PASTE”. F. Select “OK” if you want to keep copying the files, or “CANCEL” if you want to stop the operation.
-
Page 24: Main System Settings
USER’S MANUAL / bit Play HD / 7. MAIN SYSTEM SETTINGS INTERNAL HDD INSTALLATION STEP 1 STEP 2 Max 2TB support STEP 3 STEP 4 Included in the package STEP 5 STEP 6... -
Page 25: Internal Hdd Format
USER’S MANUAL / bit Play HD / 7.1.1 INTERNAL HDD FORMAT After installing the hard drive in the bit Play HD proceed as follows: (see section 7.1) 1. Turn on the bit Play HD SSD. 2. Use the remote control to select:... -
Page 26: External Monitor Graphic Resolution
USER’S MANUAL / bit Play HD / EXTERNAL MONITOR GRAPHIC RESOLUTION Procedure by remote control To change the VIDEO resolution, press the button on the ARC remote, until a suitable resolution for your monitor is displayed. It is also possible to select the size of the VIDEO depending on the monitor you are using, via the remote control button 16:9. -
Page 27: Select System Language
USER’S MANUAL / bit Play HD / SELECT SYSTEM LANGUAGE Use the remote control to select: SETUP MENU’ LANGUAGE Select the desired language SELECT AUDIO/VIDEO LANGUAGE Use the remote control to select: SETUP Choose the default video language Choose the... -
Page 28: Restoring Factory Settings
USER’S MANUAL / bit Play HD / RESTORING FACTORY SETTINGS Use the remote control to select: SETUP FACTORY DEFAULT to confirm... -
Page 29: Troubleshooting
4. Connect the USB flash drive to the “WI-FI USB” connector. 5. Press the “PEN DRIVE UPGRADE MEDIA” button releasing it about 30 seconds after turning the bit Play HD on. 6. Release the “PEN DRIVE MEDIA UPGRADE” button when the window shown below is displayed. -
Page 30: Faq
Which solid state drives (SSD) are compatible 2.5-inch SATA interface SSDs. with the bit Play HD? The SSD HDD to be installed inside the bit Play HD must be 2.5 Can I install a 3.5-inch SSD unit? inches. Bigger HDD cases are not compatible. - Page 31 • Connect the USB device (USB pen drive, USB external HDD, etc.) containing the files/folders you want to copy to the bit Play HD; • From the main menu of the bit Play HD, select the menu “File Manager”; • Select the USB device;...
- Page 32 “OFF” position. DISPLAY • Make sure the monitor is turned on. The monitor connected to the bit Play HD doesn’t • Check that the video cable is properly connected. display anything. • Set a suitable video resolution for the monitor used.
- Page 33 • Check that the internal SSD unit is correctly installed. You cannot play the files stored on the mobile • Check that the file format is supported by the bit Play HD; device. • Use an App able to play the content stored on the mobile device.
-
Page 34: Technical Specifications
3) File management of bit Play HD storage contents, with copy, delete and move functions Control Connection Media Storage 1) 240GB SSD 2.5’’ (Included in bit Play HD SSD, internal, up to 2TB support) Audison AC Link 1 x RJ12 - To Audison AC link provided devices... - Page 35 PART OF ELETTROMEDIA 62018 Potenza Picena (MC) Italy T +39 0733 870 870 - F +39 0733 870 880 www.elettromedia.it...
