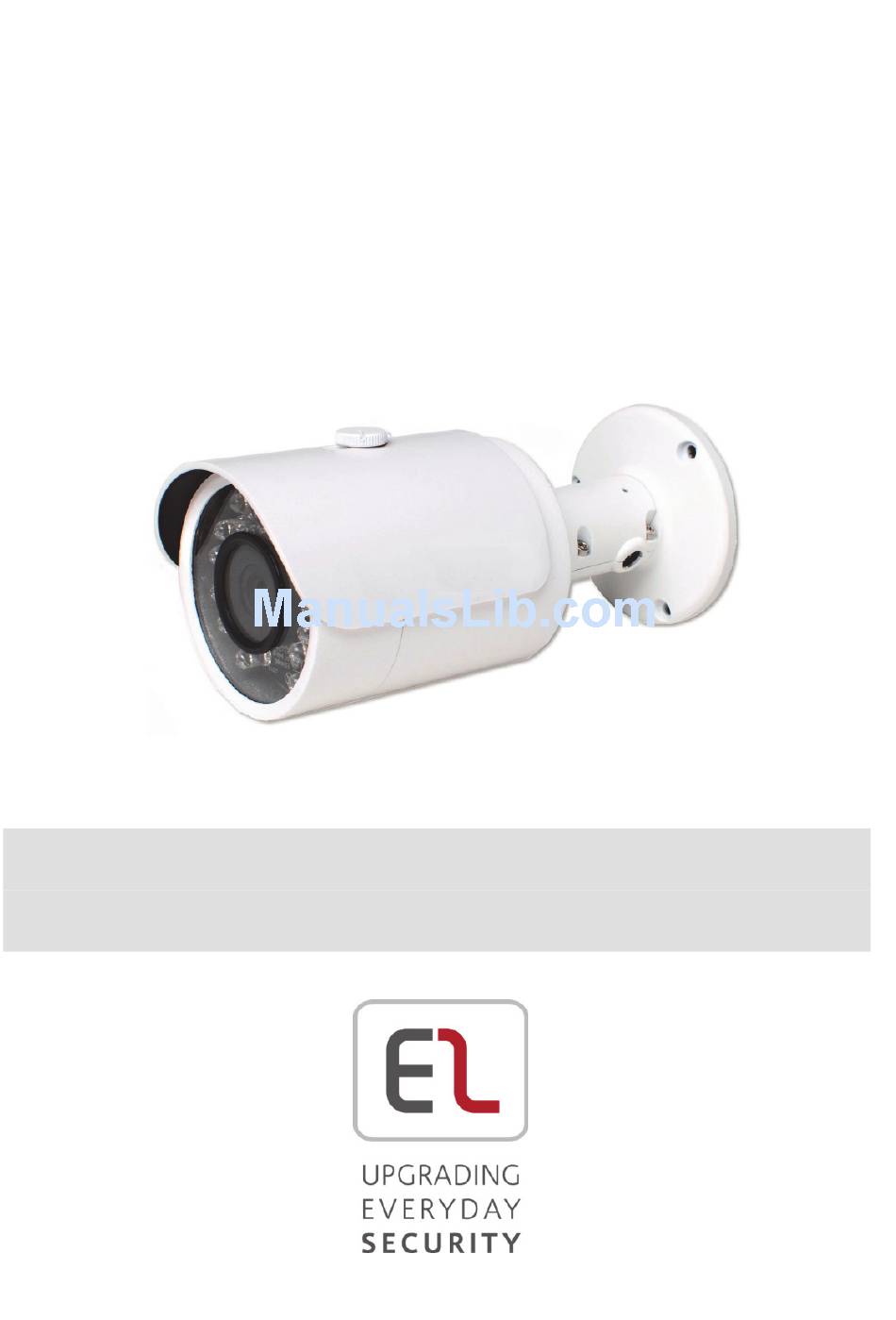

- Page 1 InSight Visual Verification Platform Bullet Outdoor IP Camera Installation Guide...
- Page 2 Safety Precautions These instructions are intended to ensure that the user can use the product correctly to avoid danger or property loss. WARNINGS: Installation or usage of this product that is not in accordance with the intended use as defined by the supplier and as described in the instructional materials can result in damage, injury, or death.
-
Page 3: Table Of Contents
Defining IP Camera Settings ..................7 Defining Camera Event Settings ................11 Product Specification ....................13 Performance ......................13 NOTES ........................... 15 Electronics Line 3000 Ltd. Limited Warranty ............. 16 Contacting your Installer / Supplier-Agent ..............17 Contacting Electronics Line 3000 Ltd................. 18... -
Page 4: Safety Precautions
Introduction Electronics Line presents InSight, a revolutionary live video verification solution which seamlessly integrates IP Cameras within Electronic Line’s professional security systems. Powered by MyELAS (Electronics Line Application Server), InSight provides an unprecedented level of security and live video monitoring capabilities to monitoring stations and end-users alike. -
Page 5: Ip Camera Components And Dimensions
IP Camera Components and Dimensions Figure 1 IP Camera Components Label Port Name Function Connector Description Network port Ethernet Connects to standard Ethernet port cable DC12V Power input port Power Input DC 12V power port Figure 2 IP Camera Dimensions... -
Page 6: Ip Camera Mounting And Installation
IP Camera Mounting and Installation After reading the installation instructions and before installing your IP camera, prepare a plan for mounting the IP camera at your protected site. Correct placement of your IP camera is crucial for optimal security-monitoring performance. First, determine which areas need to be protected and then map out the most optimal areas for installing your IP camera. - Page 7 Step Description Place the installation positioning template on the installation surface such as ceiling or wall. Make holes in the installation surface according to the installation positioning template. Insert the expansion bolts from the accessories bag into the holes you just made. Position the IP camera base over the holes Use the screws from the accessories bag to secure the IP camera firmly.
-
Page 8: Powering-Up The Ip Camera
Powering-up the IP Camera Connect the power adapter to an electrical outlet. NOTE – The IP camera can also be powered through PoE (Power over Ethernet), which simplifies the installation (for LAN network connection only). If your network connection is PoE compatible, you only need to connect the network cable and not the power cable (Refer to Connecting to a LAN Network). -
Page 9: Ip Cameras And The Myelas Web Application
IP Cameras and the MyELAS Web Application The My ELAS Web Application provides an interface to your control panel from a local or remote PC via the Web. This enables you to add IP cameras and define camera and event alarm trigger settings. IMPORTANT –... - Page 10 Figure 6 Main page 3. On the Main page, click Cameras, the Cameras page is displayed. Figure 7 Cameras page 4. Click Add Camera; Step 1 of the Add Camera wizard is displayed. Figure 8 Add Camera Wizard – Step 1...
- Page 11 5. Connect the IP camera to a free port on a compatible AP (Access Point), e.g. gateway or router and click Next. Step 2 of the Add Camera wizard is displayed. Figure 9 Add Camera Wizard – Step 2 6. Enter the Camera ID (MAC Address) as displayed on the box or on the back cover of the IP camera and click Next.
- Page 12 NOTE – If your network is password protected, a password must be entered into the displayed password field. 9. Once the camera is ready for use, the defined IP camera is displayed in the IP Cameras page. Figure 12 IP Cameras page NOTE –...
-
Page 13: Defining Camera Event Settings
Defining Camera Event Settings Any event associated to a specific detector can trigger an alarm. To define camera event settings: 1. On the Main page, click Camera Events, the Camera Events page is displayed. Figure 13 Camera Event page 2. Click the required Camera; the Select Detectors dialog box appears. Figure 14 Select Detector 3. - Page 14 4. Once finished, click Save. The defined camera events are displayed in the Camera Event page. Figure 15 Camera Event page NOTE – You also have the options to edit or to delete the selected camera event.
-
Page 15: Product Specification
Product Specification Performance Please refer to the following table for product performance specification. Parameter Main Processor TI Davinci high performance DSP Embedded LINUX Support real-time network monitor, local record, and remote operation at the System Resources same time. User Interface Remote operation interface such as WEB, DSS, PSS. - Page 16 Parameter Sensitivity level ranges from 1 to 6. Each sensitivity level is the percentage of the privacy mask zone. Camera Masking Activation event: alarm device, audio/video storage, image snapshot, log, email SMTP function and etc. Alarm Port 1-channel input and 1-channel output (on-off ) Record Priority Support remote record only Manual>Video detect>Schedule...
-
Page 17: Notes
NOTES... -
Page 18: Electronics Line 3000 Ltd. Limited Warranty
Electronics Line 3000 Ltd. Limited Warranty EL and its subsidiaries and affiliates ("Seller") warrants its products to be free from defects in materials and workmanship under normal use for 24 months from the date of production. Because Seller does not install or connect the... -
Page 19: Contacting Your Installer / Supplier-Agent
Contacting your Installer / Supplier-Agent When calling for service, ordering components, or for questions related to your camera, please contact us for assistance: Company/agent address, phone, e-mail address: Contact / department: Hours of business: Website URL: Company logo: Other supplier-specific information:... -
Page 20: Contacting Electronics Line 3000 Ltd
14 Hachoma St., 75655 Rishon Le Zion, Israel Tel: (+972-3) 963-7777 Fax: (+972-3) 961-6584 All rights reserved. No part of this document may be reproduced in any form without prior written permission from the publisher. © Electronics Line 3000 Ltd 04/2014 5IN2207...
