Summary of Contents for Airtecnics Minibel 600 A

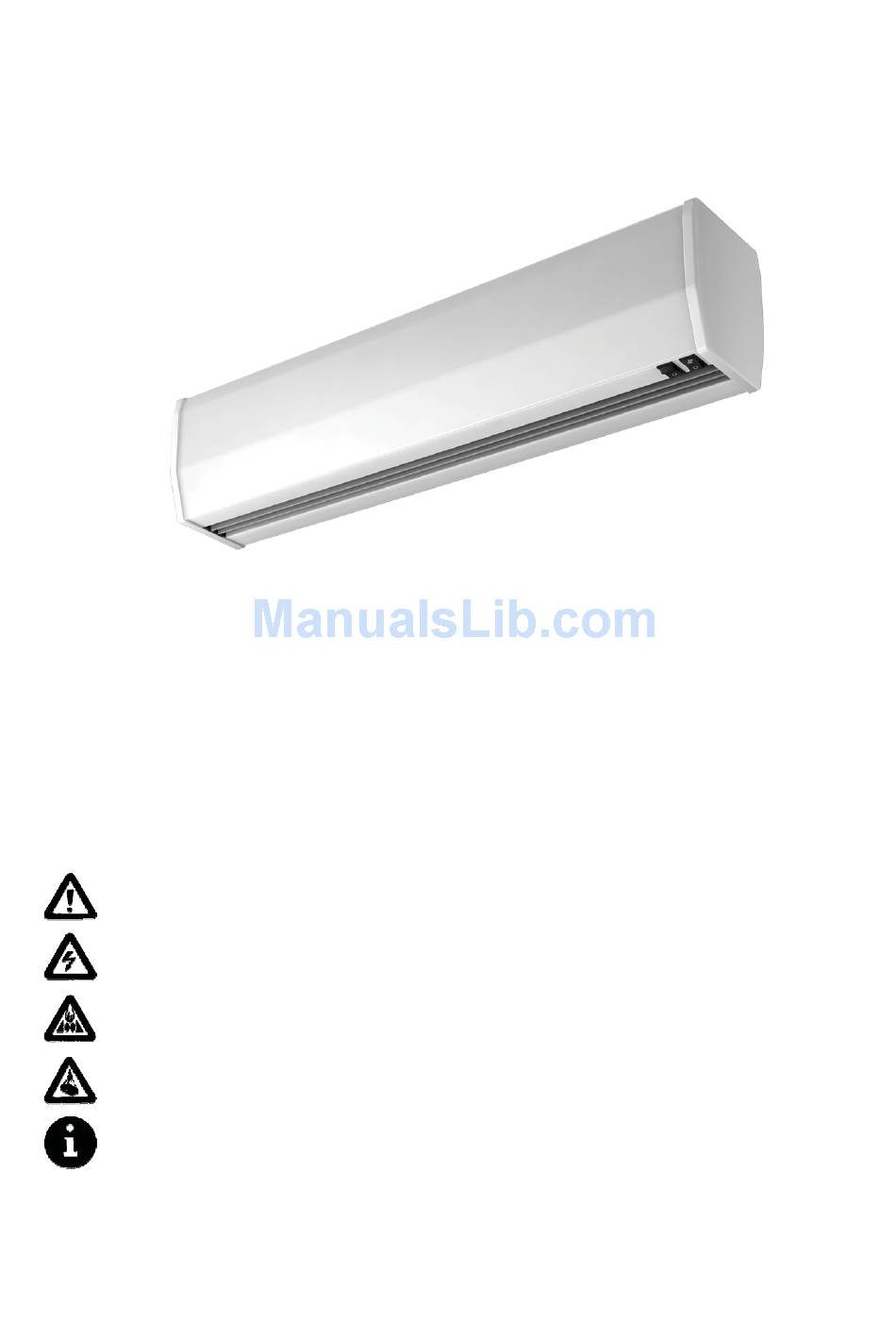

- Page 1 INSTRUCTION MANUAL MINIBEL air curtains SECURITY ADVICE SYMBOLS ¡Attention, Danger, Safety Advice! ¡Danger from electric current or high voltage! ¡Injuries risk! ¡Danger! Do not step under hanging load. Important information AIRDOM05037-R9(28/09/11)
- Page 2 Power Supply The Minibel air curtains are supplied with a hose-cable of 1,5 m length (without plug), Ready to be connected to a connections box. It can be connected to a socket. Mounting The air curtain is provided with 8 suspension points: 4 located at the back to be fixed to the wall and 4 on the top to be fixed to the ceiling (see exact situation in the air curtains characteristics page).
- Page 3 Lineal blow-out jets with anodized aluminium lamellas, airfoil type. • Integrated switches for ventilation and heating control. • Connection cable of 1,5m length included. SPECIFICATIONS Minibel 600 A Minibel 600 E Minibel 900 A Minibel 900 E Voltage 230~1 230~1 230~1 230~1...
- Page 4 WORKING INSTRUCTIONS Minibel air curtains have one ventilation speed, and the ones with heating have also one heating stage. The air curtains have a switch to control the ventilation and heating functions. MINIBEL E 1 switch with three positions: OFF, ventilation, ventilation + heating MINIBEL A 1 switch with two positions: ON/OFF ventilation MAINTENANCE INSTRUCTIONS...
- Page 5 REPAIRS Installation and electrical connections must be done by qualified workers and following these instructions. Before any repairs are undertaken, please : • Inform people that there is work in progress. • Disconnect the power supply and protect the thermal magnet (so nobody can restart it accidentally).
- Page 6 Fans replacement Remove the screws that fix the ventilation train and remove it carefully. Disconnect the terminal fastons. Replace the broken fan. Battery replacement To replace the battery, disconnect the connection cables and remove the supports.
- Page 7 Air curtain identification: Each air curtain is identified by a unique serial number printed in a label located inside the door service. There is also indicated the model and their technical characteristics (flow, fans technical characteristics and power heating) It is indispensable to have this number to facilitate possible replacements or technical information of the air curtain in question GUARANTEE...
