Summary of Contents for RF Application RFM-11031K
-
Page 1: User Manual

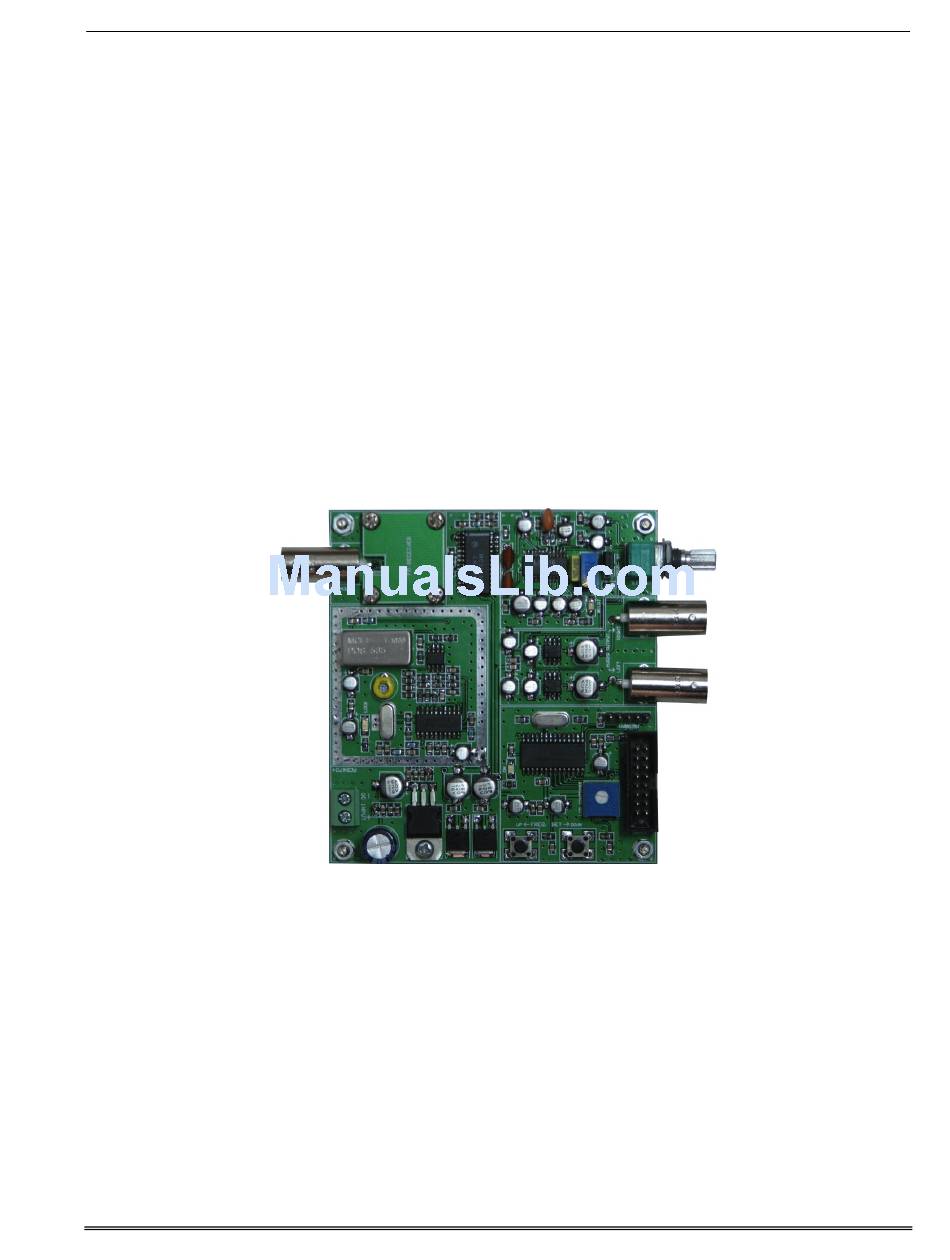

FM Receiver user manual FM Receiver Model: RFM-11031K Model: RFM-11032K Model: RFM-11033K Model: RFM-11034K Model: RFM-11035K Model: RFM-11036K User Manual RF Application Co.,Ltd. All rights reserved. Version 1.0 -Page 1-... -
Page 2: General Information
A well-regulated power supply should be used. Be sure that the power source does not carry high voltage or reverse polarity transients on the line, since semiconductors in the receiver can be damaged. -VCC +VCC RF Application Co.,Ltd. All rights reserved. Version 1.0 -Page 2-... - Page 3 We do not recommend trying to use direct coax soldered to board or another type of connector. The method designed into the board results in lowest loss practical. Antenna input RF Application Co.,Ltd. All rights reserved. Version 1.0 -Page 3-...
- Page 4 After you turn on, The LCD can be displayed as: Then the LCD will displayed as: The PLL of receiver will tune. After the PLL is locked to the frequency, LCD will be displayed as: RF Application Co.,Ltd. All rights reserved. Version 1.0 -Page 4-...
- Page 5 The VCO will oscillate frequency different from the receiver frequency such as, if you want to receiver at 330.000MHz, The VCO will oscillate as 319.300 MHz (300.000-10.700 MHz) Frequency adjustment correction RF Application Co.,Ltd. All rights reserved. Version 1.0 -Page 5-...
- Page 6 Mono / Stereo mode You can select of receiver to mono or stereo mode by jumper. Mono or stereo Stereo and pilot adjustment You can adjust to stereo clearance by potentiometer. Stereo adjustments RF Application Co.,Ltd. All rights reserved. Version 1.0 -Page 6-...
- Page 7 Other usual practices for mobile installations are recommended, such as connecting the + power and ground return lines directly to the battery in-stead of using cigarette lighter sockets or dash board wiring. RF Application Co.,Ltd. All rights reserved. Version 1.0 -Page 7-...
