Hosen lighting Technology Limited

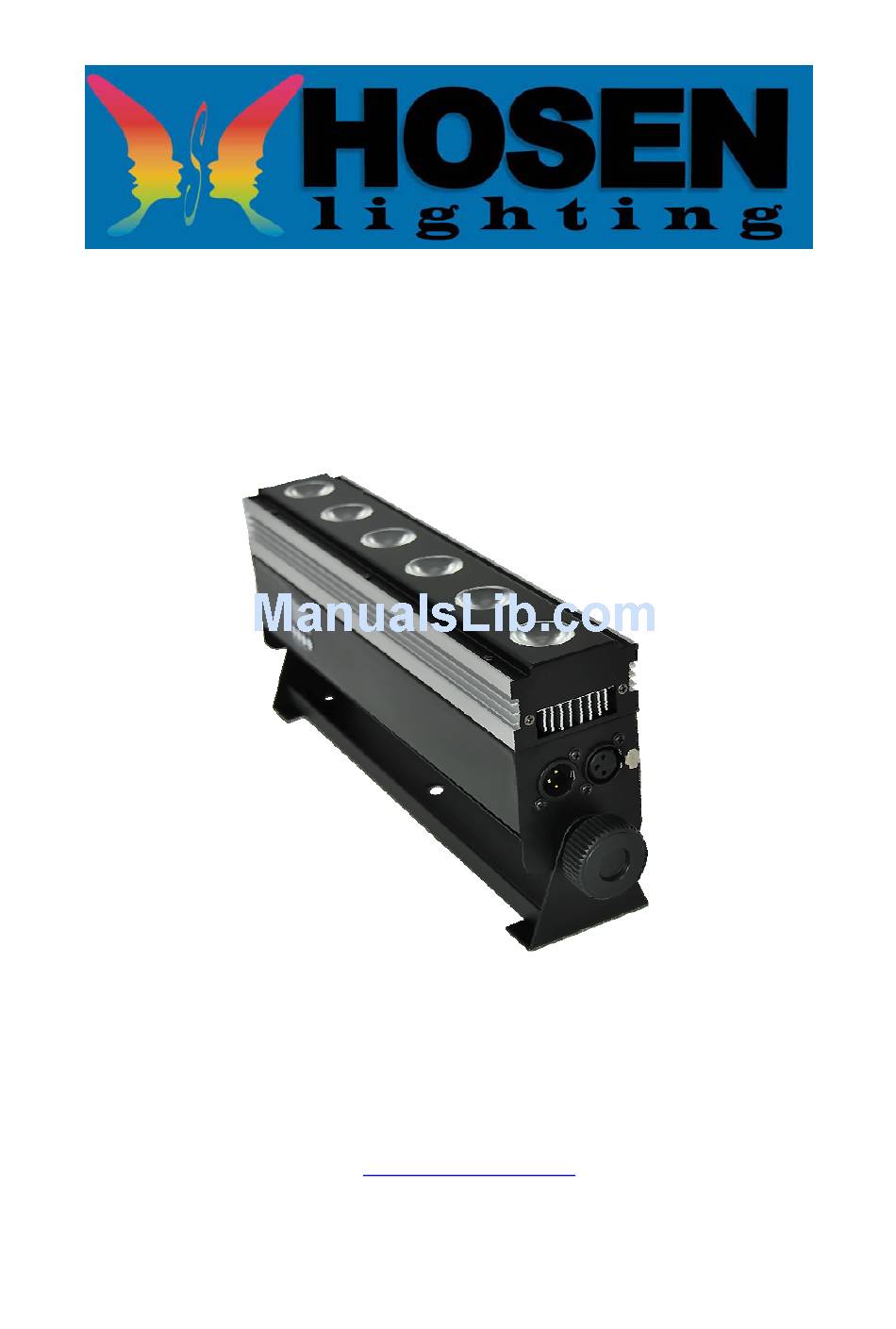

RGBW 8W6PCS Indoor Wall Washer
Support Telephone: +86‐20‐37707017
Support Email: support@hosenlighting.com (QQ、Skype)
Copyright: The data at Hosen lighting Technology Limited common to all, to prohibit any
unauthorized copying, printing and dissemination.
User Manual
HSLW0610
Website: http://www.hosenlighting.com
Advertisement
Table of Contents
Summary of Contents for Hosen HS-LW0610
- Page 1 Hosen lighting Technology Limited ...
-
Page 2: Table Of Contents
Hosen lighting Technology Limited Contents Contents ............................1 1. Packing List..........................1 2. Schematic Diagram........................1 3. Product Features ........................2 4. Specifications ..........................2 4.1. Physical Specifications....................2 4.2. Electrical Specifications ....................2 5. Installation Method........................2 5.1. Installation Steps ......................2 5.2. Fixture Linking .......................3 5.3. AC Power ........................3 6. Safety Instructions........................3 7. Operation Instruction........................3 8. Maintenance and cleaning......................4 9. Warranty ...........................4 ... -
Page 3: Product Features
Hosen lighting Technology Limited 3. Product Features Unlimited programming effects Special lighting effect 32‐bit color (16.7 million color combinations) Modular & highly portable No technical experience required Quick and easy installation More affordable than any existing solutions Sealed for long, durable lifetime No bulbs to replace Indoor use in well temperate rooms 4. Specifications 4.1. Physical Specifications Product Series: Traditional Stage Lighting Item No.: HS‐LW0610 Size: 380LX68WX155H Net Weight: 2.3Kg Gross Weight: 3.0Kg ... -
Page 4: Fixture Linking
Hosen lighting Technology Limited side into OUT signal connector in the DMX 512 board(signal input: 1=>Ground, 2=>Data, 3=>data+). To connect the cable and put into power, them the light stays in the status to receive the operation signal like: Music, Automatic, and DMX512ect. Take note: Please out off the power line if you will not operate it for a certain time. 5.2. Fixture Linking To run your light shows of one or more fixtures using DMX‐512 controller or to run synchronized shows on two or more fixtures in master/slave operating mode, you need DMX cables to link the units from DMX IN to DMX OUT. Notice: the length of signal cables should be within 100meters, to prevent the signal interference by other appliances because of the long signal cables. 5.3. AC Power The fixture is designed to work on 100‐240V 50/60Hz.Before applying power to a unit, check that the source voltage matches the unit’s requirement. 6. Safety Instructions This device has left the factory in perfect condition .in order to maintain this condition and to ensure a safe operation , it is absolutely necessary for the user to follow the safety instructions and warning notes written in this user manual If the device has been exposed to temperature changes due to environmental changes, do ... -
Page 5: Maintenance And Cleaning
Hosen lighting Technology Limited to the people. Make sure the installation place is in good safety condition before installing the fixture. Make sure the lens are in good condition. It’s recommended to replace the units if there are any damages or severe scratch Make sure the fixture is operated by qualified personnel who know the fixture before using. Keep the original packages if any second shipment is needed. Don’t try to change the fixtures without any instruction by the manufacturer or the appointed repairing agencies. In is not in warranty range if there are any malfunction from not following the user manual to operate or any illegal operation ,like shock short circuit ,electronic shock ,lamp broke ,etc. 8. Maintenance and cleaning The following points have to be considered during the inspection: All screws for installing the devices or parts of the device have to be tightly connected and must not be corroded. There must not be any deformations on the housing. Fixations and installation spots (ceiling, suspension, trussing). Mechanically moved parts must not show any traces of wearing and must not rotate with unbalances. The electric power supply cables must not show any damage, material fatigue or sediments. Further instructions depending on the installation spot and usage have to be adhering by a skilled installer and any safety problems have to be removed. In order to make the lights in good condition and extend the life time .we suggest a regular cleaning to the lights Clean the inside and outside lens each week to avoid the weakness of the lights due to ... -
Page 6: Technical Support
Hosen lighting Technology Limited 10. Technical Support Support Telephone: +86‐20‐37707017 Support Email: support@hosenlighting.com (QQ、MSN as same) Website: http://www.hosenlighting.com Working Time: (BeiJing Time) Monday to Friday 08:00~12:00 13:30~17:30 18:30~20:30 Saturday 09:00~12:00 13:30~17:00 Note: all the rest of China's holidays! Support Telephone: +86‐20‐37707017 Support Email: support@hosenlighting.com (QQ、MSN as same) 11. Disclaimer While every care has been taken with the details on this specification sheet, we take no responsibility for any inaccuracies caused during installation. We reserve the right to change these specifications without notice to always ensure that the customer is receiving a superior ... -
Page 7: Dmx Channel Explanation
Hosen lighting Technology Limited 12.2. DMX Channel Explanation CHANNEL Value Function Autorun Mode CH1= 0-127 0-127 Autorun mode (open) 1-64 Color fade effect 65-128 Color jump change effect 129-192 Sound active mode 1 193-255 Sound active mode 2 0--255 Speed of autorun ... -
Page 8: Amendment Log
Hosen lighting Technology Limited 0-255 All blue dimmer 0-255 All white dimmer 0-255 Strobe speed 13. Amendment Log Ver.: 1.0.12.12 2012‐12‐12 Create the manual for the product. 2013‐04‐02 Modified LEDs 8W/PCS Ver.:1.0.13.0402 RGBW 4In1 8W6PCS Indoor Wall Washer Current 7 Page，Total 7Page(s) ...
