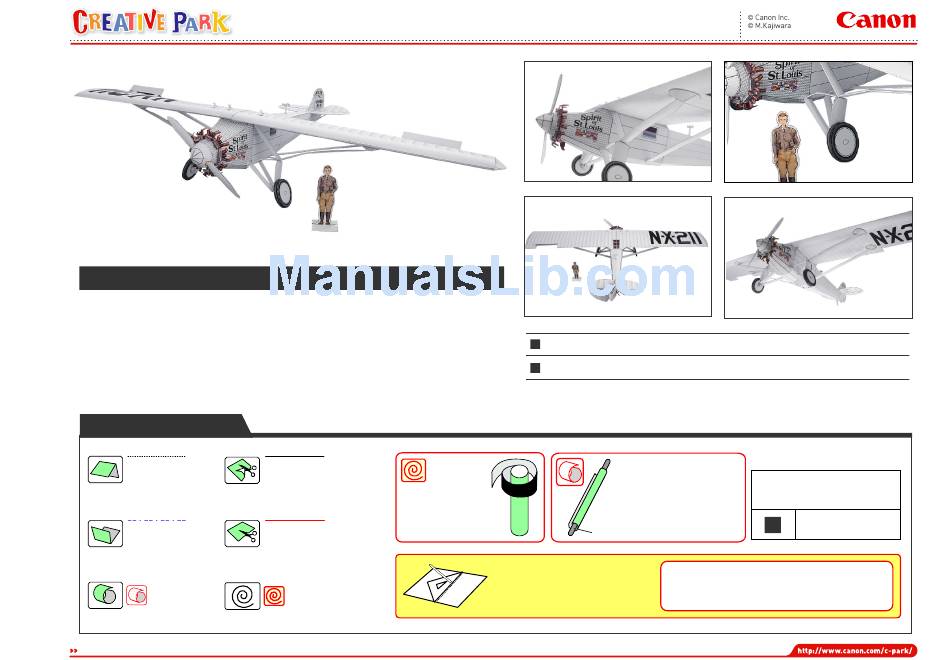

Spirit of St. Louis : Assembly Instructions
Spirit of St. Louis
The Spirit of St. Louis (also known as the Ryan NYP-1) is a single-engine plane that was successfully
flown by Charles Lindbergh as a solo non-stop transatlantic flight. The main external features of the
craft were its lack of front windshield, and its wings, which were extremely long compared to its body.
The aircraft took off from New York's Long Island and flew 5,810km to Paris. The journey took 33
hours, 29 minutes and 29.8 seconds, which was regarded as quite fast at the time. It was the first solo,
non-stop flight to travel this route.
This papercraft Spirit of St. Louis is about one twenty eighth the size of the real Spirit of St. Louis.
*This model was designed for Papercraft and may differ from the original in some respects.
Assembly Instructions
Mountain fold
(Dotted line)
Valley fold
(Dashed and dotted line)
Completed parts
become a cylinder
You may like to use
a metal rod as a guide.
PAGE01
Scissors line
(Solid line)
Wrap around and glue
to the top of the cylinder.
Cut in Line
(Red solid line)
Layer wrapping (roll)
Wrap around and glue to the
cylinder,to use as a glue tab
Parts list (Assembly Instructions) : Twelve A4 sheets
No. of Parts: 177
*Bulid the model by carefully reading the Assembly Instructions,
in the parts sheet page
order.
How to make the cylinders
This craft involves making cylinders
with diameters of 3 to 7mm, so it may
be helpful to have some rods of sizes
about 0.5mm thinner handy.
Guide rod
Glue, scissors and other tools may be dangerous to
Trace along the folds with a ruler and
young children so be sure to keep them out of the
a used pen (no ink) to get a sharper,
reach of young children.
easier fold.
Glue tab notation key
Each glue tab has a symbol and
number printed on it.
Glue with in the same part.
Glue
Advertisement
Related Manuals for Creative Park Spirit of St. Louis
Summary of Contents for Creative Park Spirit of St. Louis
- Page 1 No. of Parts: 177 This papercraft Spirit of St. Louis is about one twenty eighth the size of the real Spirit of St. Louis. *Bulid the model by carefully reading the Assembly Instructions, *This model was designed for Papercraft and may differ from the original in some respects.
- Page 2 Spirit of St. Louis : Assembly Instructions 2-P-1 2-A/2-B 2-C/2-D 2-F/2-E 2-P-2 2-X-1 2-X-1 2-P-2 2-Z-2 2-Z-1 2-Y-1 Scissors line Mountain fold Valley fold Cut in Line Cut out PAGE02...
- Page 3 Spirit of St. Louis : Assembly Instructions 3-E/3-A 2-P/Q is moveable. 3-S-1/3-S 3-E-1/3-A-1 2-Q-1 Insert the protruding parts of 3-B into the holes on 3-A/3-A-1/3-E/3-E-1, fold them and attach them to the 2-K/2-K-1 protruding parts of 3-D. 2-L/2-L-1 Do not put glue on 3-A/3-A-1/3-E/3-E-1.
- Page 4 Spirit of St. Louis : Assembly Instructions Attach 2-O in line with the fold lines on 3-F and 3-G. 4-C-1 4-D-1 4-E-1 Scissors line Mountain fold Valley fold Cut in Line Cut out PAGE04...
- Page 5 Spirit of St. Louis : Assembly Instructions 4-O/4-P Cross-sectional diagram of how to glue the engine parts Push in towards With the bumpy ends omitted the center. Bend towards Glue the the back. center joining parts together. Align these parts on 4-P/4-O.
- Page 6 Spirit of St. Louis : Assembly Instructions *Do not glue 4-J. Cut a slot. Add a curve to the 4-Z glue tabs. Glue the 4-Z glue tab parts to the inside of 4-H. *Do not glue 4-J/4-K. *Insert 4-U/4-W into the slots on 4-H and attach.
- Page 7 Spirit of St. Louis : Assembly Instructions *Make 10 pairs altogether of 5-D/6-D/5-E/6-E. 5-D/6-D 5-E/6-E 5-B/6-B 5-C/6-C 5-I/6-G Where to attach 5-F/5-G. 5-H/6-F 5-A/6-A 5-C/6-C 5-F/5G Make two pairs. Scissors line Mountain fold Valley fold Cut in Line Cut out...
- Page 8 Spirit of St. Louis : Assembly Instructions Place 5-A/6-A on the template on page 7 of the parts sheet as shown in the figure below and attach them in line with the black lines. *The 5-A/6-A wing is assembled in the same way.
- Page 9 Spirit of St. Louis : Assembly Instructions 5-A/6-A Align the tip of 3-L with the wings, fold the edge forward and attach. Wings 3-U/3-U-1 6-I/6-H 3-J/3-Y 4-A/4-B 3-J/3-Y 4-S/4-T 3-X/3-X-1 3-U-1 Wrap around 4-S/4-T 4-A/4-B and attach. 3-W/3-W-1 3-U/ 4-A/4-B...
- Page 10 Spirit of St. Louis : Assembly Instructions Put glue on 4-G/4-F and attach. Wrap 3-T/3-Z around 3-U and attach. Slot 7-E onto 4-A/4-B, Slot 7-E onto 7-C/7-D, and attach to the body. and attach to the body. Body Glue spot Attach to the body.
- Page 11 Spirit of St. Louis : Assembly Instructions 7-F/7-G 7-F/7-G 7-F/7-G 7-F/7-G Main axis side 7-F/7-G Front view of axle positioning Scissors line Mountain fold Valley fold Cut in Line Cut out PAGE11...
- Page 12 Spirit of St. Louis : Assembly Instructions Scissors line Mountain fold Valley fold Cut in Line Cut out PAGE12...
