Summary of Contents for Holtz RayView
-

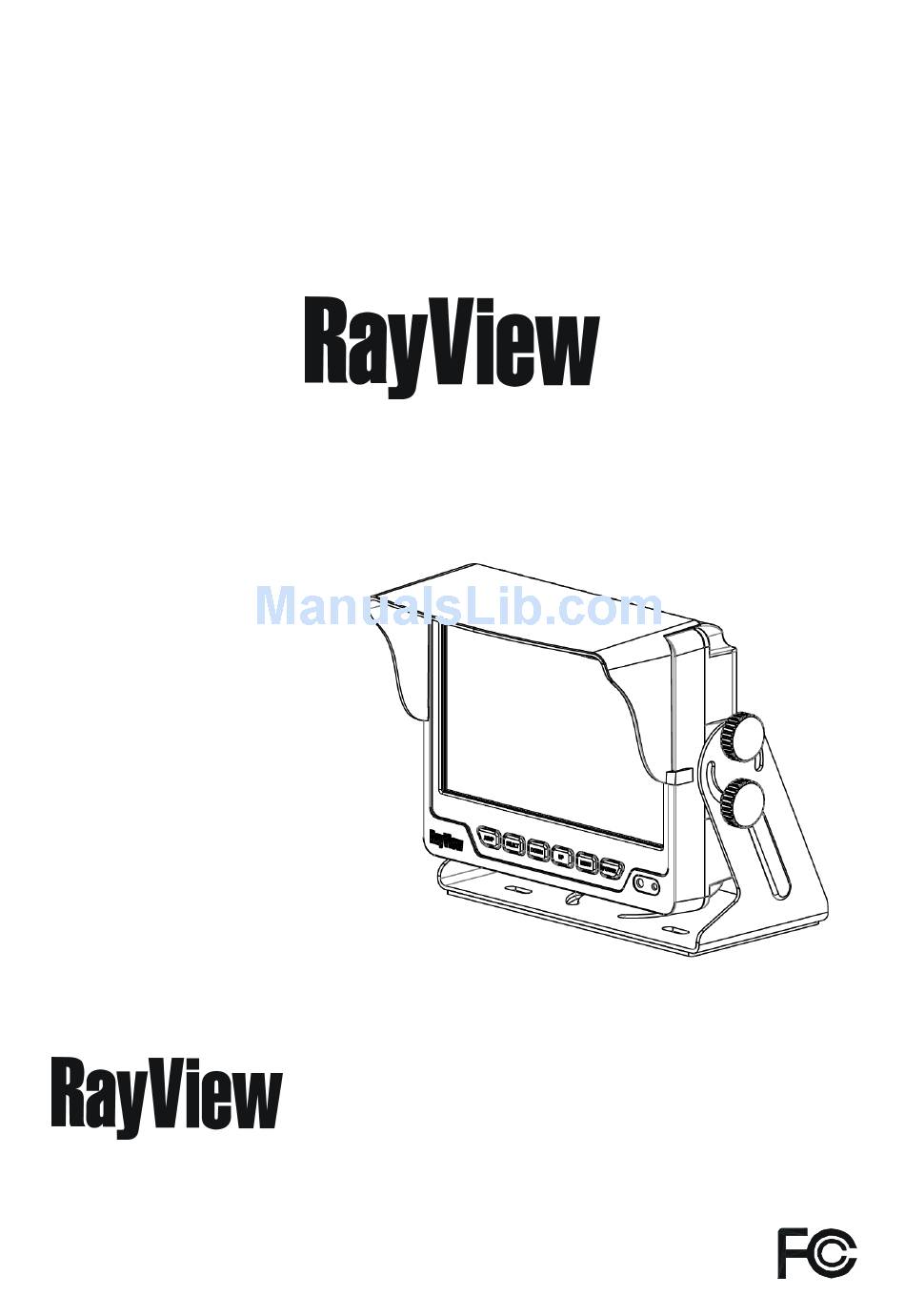

Page 1: User Manual
Thank you for purchasing our product. Please read this User’s Manual before using the product. Change without Notice 7” Q TFT LCD MONITOR (LED Backlight) USER MANUAL Holtz Industries, INC. 200 South Terrace Court Newark Ohio 43055 Tel: 1-800-535-0104... -
Page 2: Safety Precaution
Safety Precautions Federal Communications Commission (FCC) Statement This Equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 3: Table Of Contents
Table of Content Safety Precaution.……..……………………………………………………………… 2 Table of Content.….…………………………………………………………………… 3 Features...……………………………………………………………………………… 4 Package Contents…….………………………………………………………….…… 4 TFT Installation………………………………………………………………………… 5 Signal Cable Description……..………………………………………………….…… 6 Control Cable Description……..……………………………………………………… 8 Front Panel Control.…………………………………………………………………… 9 OSD Menu ………………………..…..………………………………………….. 10 Video Setting Menu……………………………………………………….………. 11 Display Setting Menu……………………………………………………………… 12 Camera Setting Menu……………………………………………………………. -
Page 4: Features
Features Advanced OSD Menu for easy use Support up to 4 CCD Camera Inputs (Mini din Connector) Extra RCA Input for Multimedia (VCD, DVD, Game Device) Provide 1 Live Video / Audio Signal Output / Cam Out Auto Detection for NTSC / PAL System Signal Trigger for CAM A / CAM B / CAM C /CAM R / AV View Auto Brightness Adjustment by light sensor OSD Control for Individual Normal / Mirror Camera Image... -
Page 5: Tft Installation
TFT Installation Step 1 Check the package and make sure all parts are included Step 2 Clip the sun-hood on to the monitor Step 3 Make sure it is installed properly Step 4 Install the monitor on to the bracket Step 5 Adjust the monitor to an appropriate / comfortable viewing angle before tightening the screws... -
Page 6: Signal Cable Description
Signal Cable Description 1. CAM A (Mini din) For 1st camera connection 2. CAM B (Mini din) For 2nd camera connection 3. CAM C (Mini din) For 3rd camera connection 4. CAM R (Mini din) For 4th camera connection 5. LIVE VIDEO OUT (White Color RCA Jack) On screen video loop out (for recording, second monitor or other device) 6. - Page 7 Mini Din Pin Assignment * Type 1 (Standard): 1. ----- 4. GND 2. ----- 5. +12V 3. Audio 6. Video (Optional) *Type 2 1. GND 4. +12V 2. ------ 5. ------- 3. Video 6. Audio Function of the Audio Cam A Audio from Cam A Cam B Audio from Cam B...
-
Page 8: Control Cable Description
Control cable Description Don’t connect the red wire (power wire) of this product directly to the battery. Connect the red wire of this product to the ACC of the ignition key switch. Failure to do so may result in permanent damage of the product. -
Page 9: Front Panel Control
Front Panel Control POWER Press the power button to activate the monitor or to keep the monitor under stand by mode. Red light for stand by, Green light is turn on. MENU Press the menu button to pop up OSD menu. Scroll up the function item or increase value. -
Page 10: Osd Menu
JUMP Press this button, it can switch CAM A, CAM B, CAM R recurrently. With pull hand break and check the Jump option is ON, press this button to select image sequence QUAD SEQ CAM A+B CAM C+R CAM A+R CAM R+B CAM A+C CAM C+B CAM R/AB CAM R+AB CAM A... -
Page 11: Video Setting Menu
Video Setting Menu This menu set up contains different setting for the TFT LCD. Brightness Provide adjustment for shade and brightness level of TFT display. Setting value from 0 ~ 100. Default value is 50. Contrast Provide adjustment for the light and dark level of the TFT display. Setting value from 0 ~ 100. -
Page 12: Display Setting Menu
Display Setting Menu This menu set up contains the on screen identification and the activation of the distance gage. Light Sensor Select “Auto” to activate the auto brightness adjustment function for screen. Or select “Night” to reduce the brightness for screen.Default value is Day. CAM Display Select “ON”... -
Page 13: Camera Setting Menu
Camera Setting Menu This menu set up contains the on Camera and Jump setting. Normal/Mirror Set the all camera’s display mode. ► CAM A Select “Mirror” to activate the mirror function for different cameras or “Normal” for a normal image. Default value is Normal. - Page 14 Jump Jump provide automatically channel switch function. Setting value from SEQ, A+B, C+R, A+R, R+B, A+C, C+B, R/AB, R+AB ,A ,B , C, R, QUAD. Default value is QUAD. Dir Image The screen image setting of this panel during left / right turn: TRIPLE: When you are making a right turn or left turn, the screen of panel will display triple images for left hand side, right hand side and rear view when you are making a right turn...
- Page 15 R+AB: Screen will display triple image from Cam R、Cam A、Cam B. Default value is R. CAM Out Composite video loop out to recorder, monitor or other device. QUAD Recording or viewing from the output device in quad mode CAM A Recording or viewing from the output device for CAM A image CAM B...
-
Page 16: Information
Information Menu This menu can set device to default value and leave the OSD menu. Default Recall factory default. Exit Exit OSD menu to live screen. -
Page 17: Vehicle Installation
Vehicle Installation Cam era Green Y ellow Y ellow Green a. Install Camera R (for rear view) b. Use a measuring tool to mark out the distance behind the vehicle. c. Adjust the viewing angle of the camera so that the distance gage shown from the TFT match to the distance marks behind the vehicle. -
Page 18: Specification
Specification Channel Display Full Only Screen size 7 inch Active area 153.6(H) x 86.64(V) Pixel Pitch 0.192(H) x 0.1805(V) Resolution 800(H) x 480(V) Viewing angle UP:70° / Down:60° / Left: 75° / Right:75° Power source: DC9.6V ~DC32V 500:1※ ※ ※ ※ Contrast ratio ※... -
Page 19: Attachment
Attachment Attachment 1: Dimension Chart... - Page 20 Attachment 2: Installation Chart 85-ML074Q-A001G-B...
