Summary of Contents for Infasecure 527

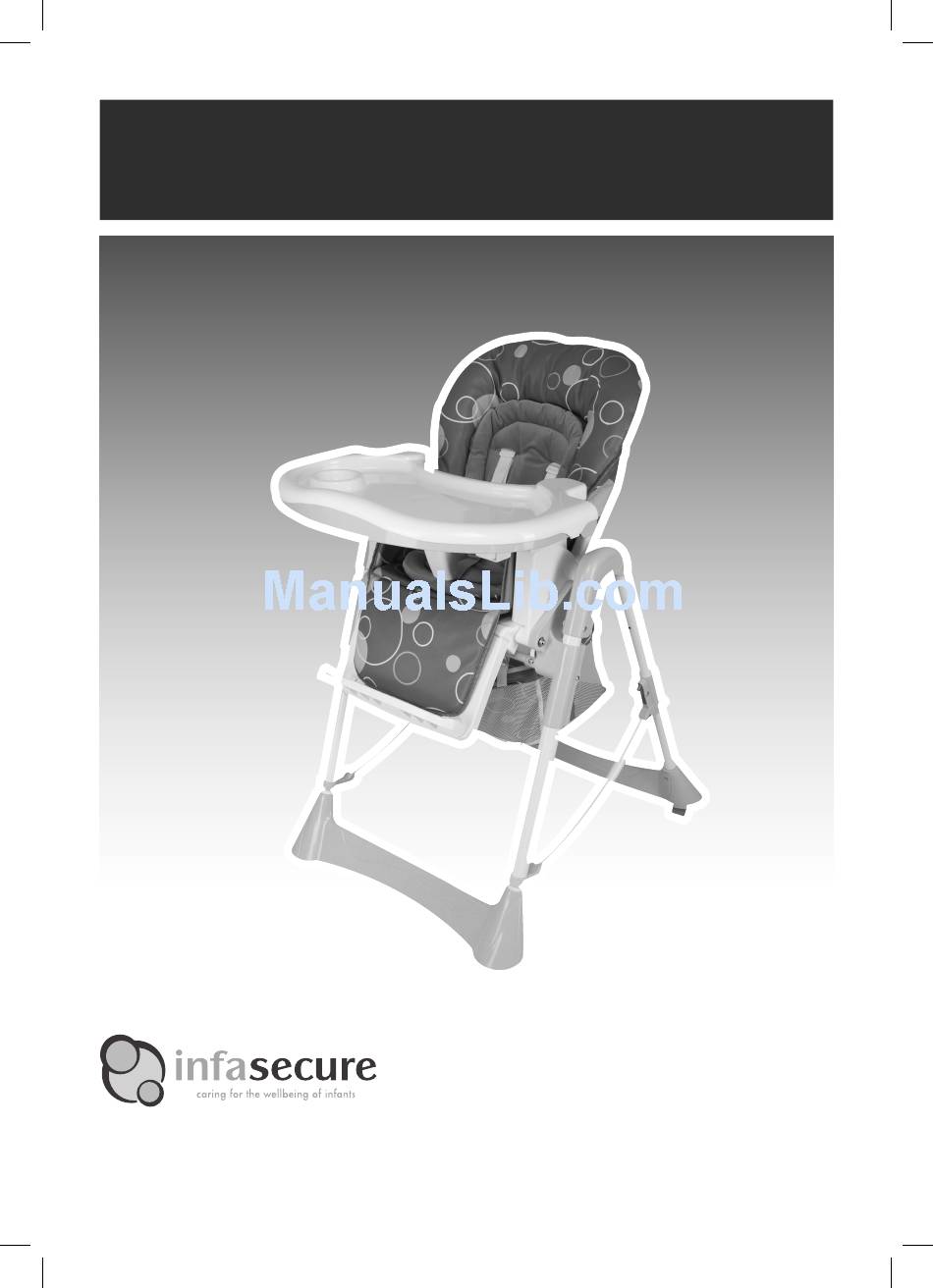

- Page 1 High/Low Chair Assembly Instructions For models 527, 528 and 529 P.O. Box 487, Emu Plains NSW 2750 Service No: 02 4728 8090...
- Page 2 Before assembly study the diagrams and read the instructions thoroughly. Identify and check against the list below. If any parts are missing or appear to be faulty or damaged, please contact INFASECURE Service Department on (02) 4728 8090. Parts List...
-
Page 3: Figure
IMPORTANT: PLEASE READ INSTRUCTIONS CAREFULLY. KEEP FOR FUTURE REFERENCE. WARNINGS • DO NOT LEAVE CHILDREN UNATTENDED. • FOLLOW THE MANUFACTURER’S INSTRUCTIONS. • THE HARNESS MUST ALWAYS BE USED AND CORRECTLY FITTED – MOST INJURIES FROM HIGH CHAIRS ARE CAUSED BY FALLS . •... - Page 4 Insert cross bar into ‘A’ frames and align the holes to allow the bolts to pass through. Attach using nut and washer then fasten the nut with the appropriate tools [Figure 2]. (Tools not supplied). Figure 2 Press both red buttons on the rear tubular legs and slide them down to open the frame as shown [Figure 3].
-
Page 5: Hook The Rear Straps Onto The Knobs Found At The Rear Of The Seat [Figure
Secure the seat to the ‘A’ frame by sliding the axle rod through the seat support and aligned seat [Figure 6]. Attach nuts to each end to hold the rod in place. Figure 6 To attach the basket loop the clip straps over the seat locking bar located under the seat [Figure 7]. - Page 6 10. Position the footplate into the correct height slots for your child [Figure 10]. Figure 10 11. Position cover onto seat body and allign so that holes are accessible [Figure 11]. Figure 11 12. Insert each harness part into the alligning holes, push through until the end plastic clip protrudes out the back of the seat [Figure 12].
- Page 7 14. To install the tray pull the release handle located under the front of tray and slide it onto the arms of chair using guide provided on the underside of tray. The tray has a three-position adjustment mechanism and can therefore be adjusted to three different positions [Figure 14].
- Page 8 Folding Legs 18. Before folding the highchair, fi rst remove the tray and store it on the tray hooks on the back legs of the highchair [see Figure 15]. To fold away press the red buttons located on the rear legs and slide upwards to fold legs together [Figure 18].
- Page 9 Congratulations. You have completed the assembly instructions. Your highchair is now ready for use. Please read all the safety warnings on page 3 and store instructions in a safe place. End Clip Shoulder Strap Adjuster Shoulder Strap Clips Waist Strap End Clip Buckle Housing (B)
- Page 10 CARE AND CLEANING Only use warm soapy water for cleaning. Dry immediately after. Do not leave in direct sunlight for prolonged periods as fading may occur. Do not use abrasive cleaner or bleach. For further enquiries please contact the Infa Service Department on (02) 4728 8090.
- Page 12 INFASECURE PTY LTD Phone: 02 4728 8080 Fax: 02 4728 8040 Customer Service Phone: 02 4728 8090 ABN: 52 149 173 660 Head Offi ce And Registered Address: 110-114 Old Bathurst Rd, Emu Plains, NSW, 2750 P.O Box 487, Emu Plains, NSW, 2750 www.infasecure.com.au...
