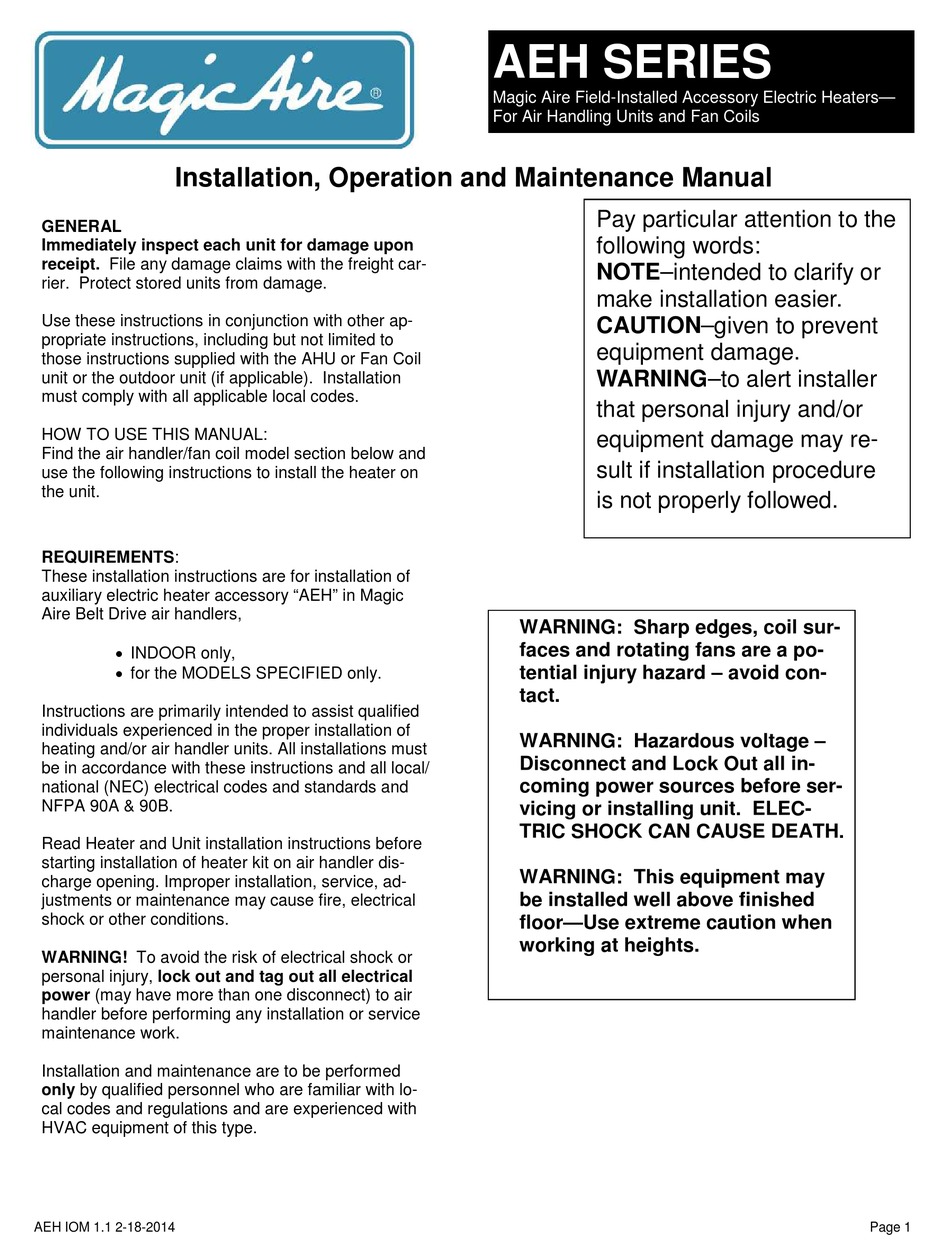

Installation, Operation and Maintenance Manual

GENERAL

Immediately inspect each unit for damage upon
receipt. File any damage claims with the freight car-
rier. Protect stored units from damage.
Use these instructions in conjunction with other ap-
propriate instructions, including but not limited to
those instructions supplied with the AHU or Fan Coil
unit or the outdoor unit (if applicable). Installation
must comply with all applicable local codes.
HOW TO USE THIS MANUAL:
Find the air handler/fan coil model section below and
use the following instructions to install the heater on
the unit.
REQUIREMENTS:
These installation instructions are for installation of
auxiliary electric heater accessory "AEH" in Magic
Aire Belt Drive air handlers,
 INDOOR only,
 for the MODELS SPECIFIED only.
Instructions are primarily intended to assist qualified
individuals experienced in the proper installation of
heating and/or air handler units. All installations must
be in accordance with these instructions and all local/
national (NEC) electrical codes and standards and
NFPA 90A & 90B.
Read Heater and Unit installation instructions before
starting installation of heater kit on air handler dis-
charge opening. Improper installation, service, ad-
justments or maintenance may cause fire, electrical
shock or other conditions.
WARNING! To avoid the risk of electrical shock or
personal injury, lock out and tag out all electrical
power (may have more than one disconnect) to air
handler before performing any installation or service
maintenance work.
Installation and maintenance are to be performed
only by qualified personnel who are familiar with lo-
cal codes and regulations and are experienced with
HVAC equipment of this type.
AEH IOM 1.1 2-18-2014
AEH SERIES
Magic Aire Field-Installed Accessory Electric Heaters—
For Air Handling Units and Fan Coils
Pay particular attention to the
following words:
NOTE–intended to clarify or
make installation easier.
CAUTION–given to prevent
equipment damage.
WARNING–to alert installer
that personal injury and/or
equipment damage may re-
sult if installation procedure
is not properly followed.
WARNING: Sharp edges, coil sur-
faces and rotating fans are a po-
tential injury hazard – avoid con-
tact.
WARNING: Hazardous voltage –
Disconnect and Lock Out all in-
coming power sources before ser-
vicing or installing unit. ELEC-
TRIC SHOCK CAN CAUSE DEATH.
WARNING: This equipment may
be installed well above finished
floor—Use extreme caution when
working at heights.
Page 1
