Summary of Contents for Nixeus Fusion HD

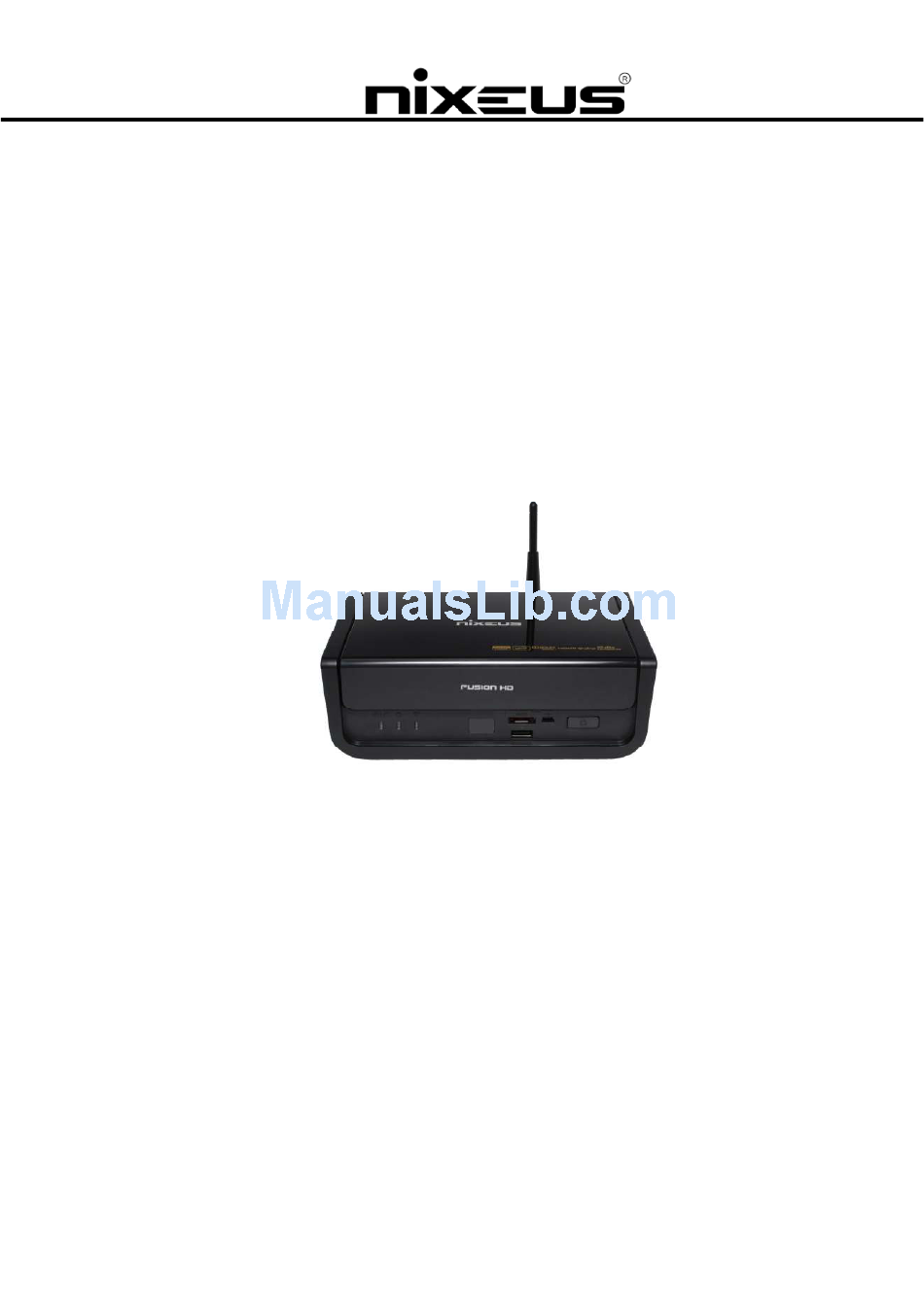

- Page 1 Fusion HD Fusion HD Fusion HD Fusion HD Quick Start Guide Quick Start Guide Quick Start Guide Quick Start Guide Nixeus Technology, Inc. Version 1.1...
-
Page 2: About This Guide
The user manual will describe the unit in more detail. Please go to www.nixeus.com to download it. For quick help, press the “ ” button on the remote control. (This key function will be supported later through firmware upgrade.) Nixeus Technology, Inc. -
Page 3: Safety Information
41°F~95°F To reduce the risk of fire, electric shock, or interference, do not expose this appliance to rain, liquid, moisture, excessive heat, or naked flame. For technical support, please go to http://www.nixeus.com Nixeus Technology, Inc. - Page 4 A Class 1 laser product is safe under reasonable foreseeable conditions of operation as described by IEC 60825-1 and 21 CFR 1040.10. However, it is recommended that you not direct the laser beam (which is emitted from the bottom of the device) at anyone’s eyes. Nixeus Technology, Inc.
-
Page 5: Package Contents
Package Contents The product package should contain the following items: Fusion HD media player • Remote Control/AAA batteries * 2 • USB Wi-Fi Dongle • 12V/2.5A Power supply • Mini USB to A type USB cable • HDD SATA Data and power cable (attached in the box) •... -
Page 6: Hardware Overview
●: The device is in stand by or in the process of turning on. “Orange” ●The device is operating. “Green” ○ Remote control LED ○ Remote sensor ○ eSATA port ○ USB host port ○ USB client port ○ Power On /Off button Nixeus Technology, Inc. -
Page 7: Rear View
Do Not press the On/Off button for more than 5 seconds when the unit is operating, because this will force the unit to power-off and some data may be lost (eg. BitTorrent downloaded data) Nixeus Technology, Inc. -
Page 8: Installation And Connection
Setup’ to select Analog or Digital Audio Output. The A/V Phone jack is for connecting your unit to the CVBS/Analog audio RCA connectors on your TV. The adapter cable pictured below is included in the product package. Nixeus Technology, Inc. -
Page 9: Storage Devices
The USB host port can be used to connect external HDD enclosures, flash drives, Wi-Fi Dongles, Mice or keyboards to the unit. Network Connection The Ethernet port or wireless dongle are used to connect the unit to your home network router for local area network (LAN) or Internet connections. Nixeus Technology, Inc. -
Page 10: Hdd Installation
HDD Installation To install a HDD into your unit, follow the instructions below. Use a screwdriver to remove the screws on the device. Carefully remove the top cover. Fit the HDD in as shown below. Nixeus Technology, Inc. - Page 11 Connect the power/data cable to the HDD. Using a screwdriver, secure the HDD to the unit with the 4 screws provided. Refit the cover back onto the unit and secure in place with the screws previously removed. Nixeus Technology, Inc.
-
Page 12: Remote Control
The remote control is used to navigate menus and to select and watch videos, listen to music, or view photos on your TV. Please refer to the user manual for full details on each of the buttons. Nixeus Technology, Inc. - Page 13 Nixeus Technology, Inc.
- Page 14 Rotate the picture being viewed. 1. Go to the Menu of DVD films. MENU 2. Choose directory levels when navigating. Set/Cancel A-B repeat mode. SLOW/SLIDE Slow forward/backward the media with speed 1/2x, 1/4x,1/8x Go to the specified time of current file. Nixeus Technology, Inc.
-
Page 15: Tv Mode Setup
The default display of the unit is Composite (CVBS). If you use HDMI, use the remote control to press the “Output” button and you can cycle through the TV output modes to get the correct display mode. Nixeus Technology, Inc. -
Page 16: Wired Network Setup
Networking An example of a network with peripheral devices attached is below. NETWORK DIAGRAM Wired Network Setup Press the “Setup” hotkey on the remote control or select “SETUP” mode from the Main Menu. Nixeus Technology, Inc. - Page 17 Select “Network Setup” to configure and make changes to your network settings. Once in “Network Setup”, Select “IP Setup”, and Enable DHCP or set your static IP address according to your network settings. Nixeus Technology, Inc.
-
Page 18: Wireless Network Setup
Playback of normal video (eg. AVI or XviD) and music and photo viewing is recommended with the wireless connection. 1. Press the “Setup” hotkey on the remote control or select “SETUP” from the Main Menu. Nixeus Technology, Inc. - Page 19 2. Select “Network Wizard” from setup main menu to start the setup wizard. 3. Once the wizard has started, choose the “Wireless” option. 4. Select to look for all the available wireless networks and choose the one you wish to use. Nixeus Technology, Inc.
- Page 20 7. The Key Length of each Key Format is described in the table below. For WPA and WPA2 format, the unit will detect and switch automatically. Key Format Key Length WEP64(ASCII) 5 digits WEP64(HEX) 10 digits WEP128(ASCII) 13 digits WEP128(HEX) 26 digits WPA-PSK/WPA2-PSK 8 digits or more Nixeus Technology, Inc.
-
Page 21: Upnp Servers
The unit will automatically detect all available UPnP AV compliant content servers on boot-up and list them on the UPnP column of the main menu. No additional setup is necessary. TVersity is a popular and free UPnP server software. Please refer to http://tversity.com more information and to download the software. Nixeus Technology, Inc. - Page 22 Network Shared Folders (Samba Client) The Samba Client protocol allows the Fusion HD to access media files from samba shares on windows based PCs on the network As long as there is a connection to your network and there are no firewalls blocking the shares from remote sites, there are no additional steps needed to enable this feature.
- Page 23 The number of USB ports can be extended by using an externally powered USB hub, please take into consideration the extra power consumption of the additional devices as the unit itself supplies only a limited amount of power to the USB port. Nixeus Technology, Inc.
- Page 24 1. Go to “Removable Device” on the Main Page. 2. Select the name of your storage device from the list and press “COPY”. 3. Select the source and destination then Press “OK” to proceed or “No” to go back. Nixeus Technology, Inc.
- Page 25 The following example is an alternative way based on the Microsoft Windows XP platform. Please note that when both eSATA HDD and USB disks exist, the eSATA device will be the sole storage device in this instance 1. Click the “My Network Places” icon on your PC. My Network Places Nixeus Technology, Inc.
- Page 26 2. Click “Entire Network” → “Workgroup” Nixeus Technology, Inc.
- Page 27 3. The units default local network location is “Workgroup”. Double click “Workgroup” and you should see the unit listed as an icon. 4. Double click the icon and a login menu will pop up. Input the default user name and password “admin” and click “OK” to continue. Nixeus Technology, Inc.
- Page 28 5. You can use a mouse to copy, move and delete your media files between your PC the units local HDD. Music, Photo & Video Playback For detailed information on supported file formats, refer to the user manual. Some the functions that are more regularly used are highlighted in the following pages: Nixeus Technology, Inc.
-
Page 29: Viewing Video Information
Viewing Video Information 1. Press the “Info” button to display the video information. 2. Press the button again to see any additional info. Nixeus Technology, Inc. - Page 30 ‘BACK’ button numerous times. Then it will be quicker to go back to where you were in a long directory path by pressing the ‘VIDEO’, ‘MUSIC’ or ‘PICTURE’ hot keys again. ----- For more information in detail, please refer to the User Manual ----- Nixeus Technology, Inc.
