- Page 1 Amplifi er A-1200 Hi-Fi stereo amplifi er Similiar to illustration Available in: Black Edition › White Edition › Silver Edition Instruction manual...
-
Page 2: Table Of Contents
Explanation of symbols Chapter 2 Safety information Before use Chapter 3 The device Features The A-1200 Description of remote controls Inserting batteries into the remote controls/Battery information Chapter 4 Setup Chapter 5 Connections Connecting the device to a power supply... -
Page 3: Chapter 1 Intended Use
Intended use Dear Customer: The X4-TECH hi-fi amplifi er A-1200 is intended for the amplifi cation of low-level audio signals in home audio systems, which are intensifi ed and transferred between signal sources and lou- Thank you for deciding on purchasing this quality product from X4-TECH. -
Page 4: Chapter 2 Safety Information
Safety information Dear Customer: › Always pull on the plug’s grips and never on the cable to remove from a wall outlet. The following safety and hazard warnings are not only for the protection of your device, but also › Unplug the device from the power outlet, if it is not in use for a longer period of time. serve as a protection against potential health hazards. -
Page 5: Before Use
› Never touch the power plug with damp or wet hands. There is the risk of electric Before use shock! Please read this instruction manual thoroughly before operating this device and retain it for fur- › Make sure the device is properly ventilated during operation and never operate it in ther reference, questions and use. -
Page 6: Chapter 3 The Device

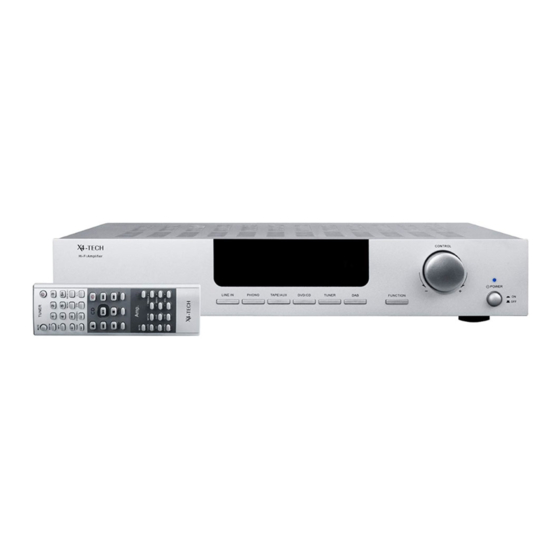

› Phono, DVD/CD, Tuner, Tape/AUX, DAB, Line in connectors › Loudness function for enhanced sound eff ects › Headphone connector › Infrared system remote control Rear panel The A-1200 Front panel 1. Power inlet 2. Warning symbol 3. Loudspeaker outputs 4. -
Page 7: Description Of Remote Controls
Model 1 Starts/Pauses playing a CD This remote control is suitable for use with the following X4-TECH Hi-Fi components/systems: the TU-1200, the silver A-1200, the silver CD-1200M and the Hi-Fi Sound System 1200. 13. Stops playing a CD Tuner TU-1200 1. - Page 8 This remote control is suitable for use with the Regulates bass settings following X4-TECH Hi-Fi components/systems: the IR-1200, the A-1200, the CD-1200M and the 12. Source selection Hi-Fi Sound System 1200IR. You can use these buttons to select the signal input to be used on your amplifi er:...
-
Page 9: Inserting Batteries Into The Remote Controls/Battery Information
18. ST/MO Inserting batteries into the remote control/Battery information Switches between a two-channel stereo and one-channel mono operation mode Inserting/changing batteries 19. / Play/Pause › Carefully remove the battery compartment lid on the back of the remote control. Starts/Pauses playback ›... -
Page 10: Chapter 4 Setup
Setup › The device should be set up on a stable and level surface. Make sure that proper ventilation is provided to ensure adequate air circulation and that a minimum distance of 10 cm is maintained above and behind the device. If you would like to place further hi-fi components on top of the amplifi er, make sure that you enlarge the distance behind the device to avoid excessive heat build-up. -
Page 11: Chapter 5 Connections
Connections Connecting the device to a power supply Only use speakers with a suffi cient power rating (2 x 40 watts RMS at 8 ohm and 2 x 50 watts RMS at 4 ohm). Ensure that the power cable is unplugged before connecting further components. Components already connected to the device should also be unplugged from the po- wer supply. -
Page 12: Chapter 6 General Operation
General operation Turning on and playing an audio source Sound settings Check that all connections are secure and proper, before turning the device on for the Press the „FUNCTION“ button on the device to select one of the following setting modes: fi rst time. -
Page 13: Chapter 7 Troubleshooting
Troubleshooting The device you have just purchased is equipped with state-of-the-art technology and is safe to Playback occurs without bass. operate. Nevertheless, problems or malfunctions may occur. › Connected loudspeaker poles are reversed (+ and – are mixed up). › The „BASS“ control on the amplifi er has been set to minimum. Before contacting a service technician, refer to the following possible solutions: Playback occurs without treble. -
Page 14: Chapter 8 Maintenance And Cleaning
Maintenance and cleaning Carry out a technical safety inspection on a regular basis, e.g. check if the power cable or housing Cleaning the device may have become damaged. Unplug the power cable before cleaning. Always use a soft and dry cloth to clean the unit’s ex- terior. -
Page 15: Chapter 9 Specifi Cations
› All brands mentioned are property of X4-TECH or of their respective owners. › Dimensions: 430 x 314 x 80 mm (incl. feet) › Weight: 5.9 kg › X4-TECH assumes no responsibility or liability for any errors or inaccuracies that may appear in › Remote control: System remote control this instruction manual. - Page 16 Version 1.2 – 6/2010 www.x4-tech.de...
