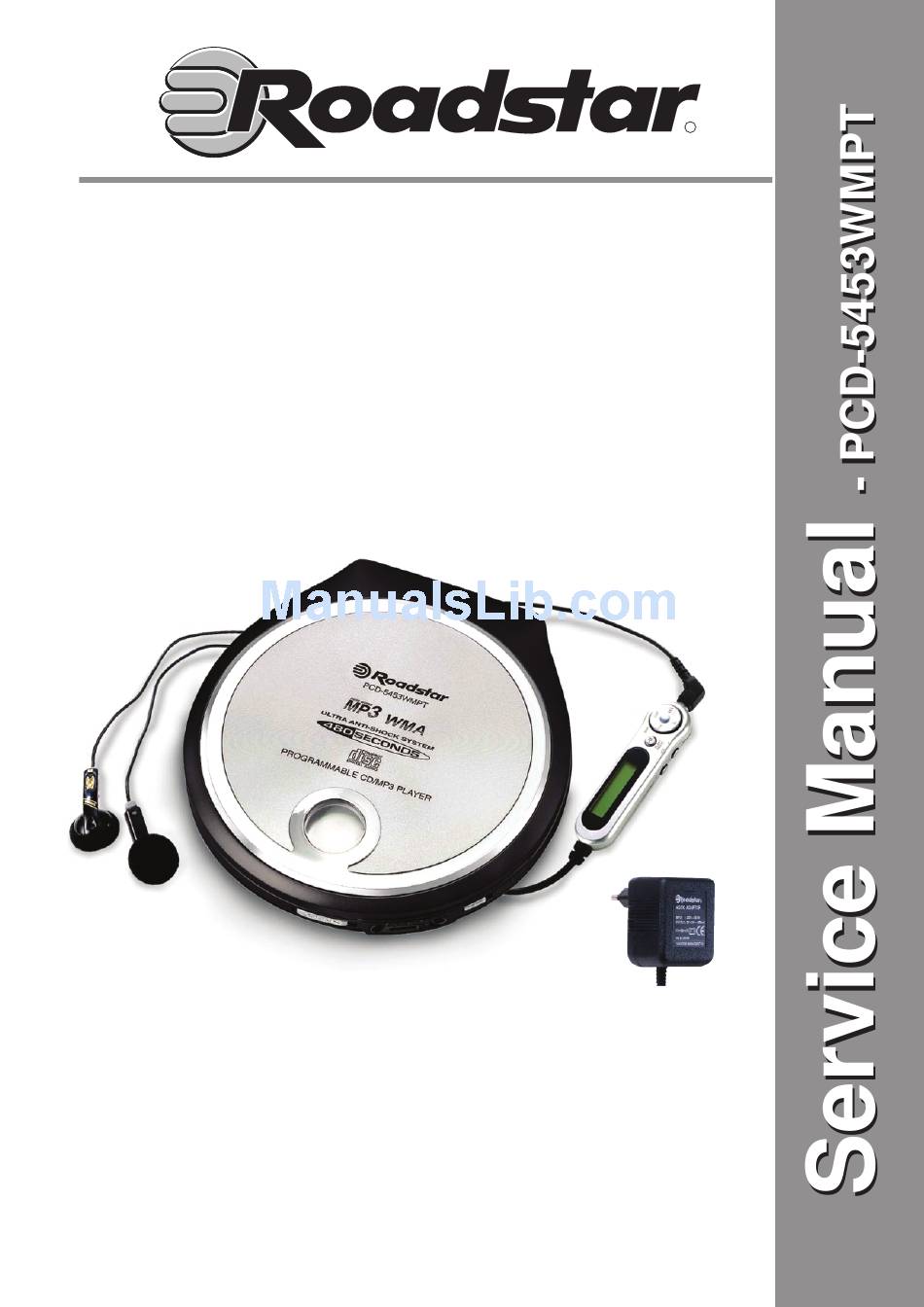

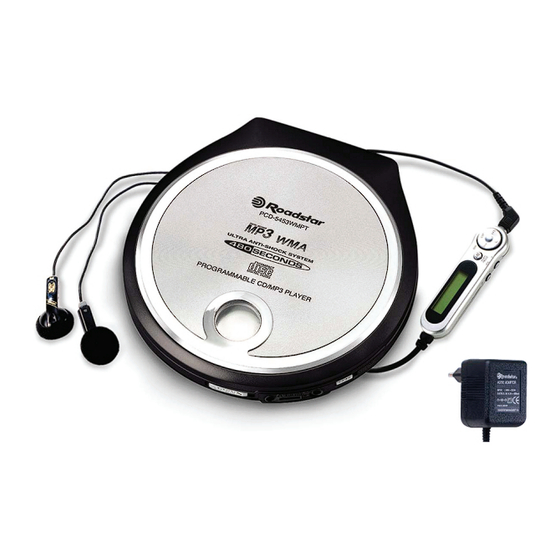

- Page 1 PCD-5453WMPT...
- Page 5 ITEM CODE DESCRIPTION 001-2100D-630 P.C.B MAIN BOARD 002-0016M-G00 I.C 16M SDRAM (FOR 50sec) 002-0416T-G00 I.C 64M SDRAM TMC TM545S416T-7 (FOR 170sec) 002-04453-D07 I.C BH4453F 002-06575-D07 I.C BH6575FV 002-09370-H00 I.C S5L9370 002-02201-G01 I.C TMD2201 (FOR WMA) 002-0825A-H00 I.C S3C825A (WHITE) (FOR WMA) 002-0825A-H00 I.C S3C825A (GREEN) (FOR MP3 VERSION)
- Page 6 ITEM CODE DESCRIPTION 011-B100A-200 RESISTOR CHIP 0603 ±5% 10 OHM R222.214.215.216 011-B101A-200 RESISTOR CHIP 0603 ±5% 100 OHM R212 011-B102A-200 RESISTOR CHIP 0603 ±5% 1K OHM R221.322.217.118.7.109 011-B103A-200 RESISTOR CHIP 0603 ±5% 10K OHM R5.6.119.120.112.117.220 011-B104A-200 RESISTOR CHIP 0603 ±5% 100K OHM R1.202.131.102.105.128 011-B105A-200 RESISTOR CHIP 0603 ±5% 1M OHM R312.303.304.116...
- Page 7 ITEM CODE DESCRIPTION 013-F476J-000 Chip ELEC CAP 47uF 6.3V 4x5.4mm C215.108.3.304.305 013-D106J-50A Tantal Chip CAP 10uF 6.3V +-20% "A-Size" C4.209 013-D475J-50A Tantal Chip CAP 4.7uF 6.3V +-20% "A-Size" C113 013-D476J-50B Tantal Chip CAP 47uF 6.3V +-20% "B-Size" C102.134.2.213 013-D476L-50B Tantal Chip CAP 47uF 10V +-20% "B-Size" C212 013-D107J-50B Tantal Chip CAP 100uF 6.3V +-20% "B-Size"...
- Page 8 ITEM CODE DESCRIPTION 036-G0050-180 Connector 18Pin Socket P=0.5mm SMD W/Lock 048-DC480-000 DC JACK DC-480 052-0TW60-350 3.5mm Switch Earphone TW-60 ACCORDING TO ORDER 061-12012-A00 NI-MH BATTERY 1.2V 1200mAH 66x16.5x6mm 201-E1350-062 AC Adaptor E1-35 230V 50Hz 4.5V DC 60mA "CE" ACCORDING TO ORDER 201-2323A-080 CAR DC CHARGER-ADAPTOR 12-24V TO 4.5V ACCORDING TO ORDER 203-2100S-C80 CD DECK DA50A (SANYO)
- Page 9 ITEM CODE DESCRIPTION 119 234-KA017-075 SCREW KA 1.7x7.5 WHITE 120 401-RM005-300 RM005-TOP-COVER PC 121 402-RM005-300 RM005-BOTTOM-COVER PC 122 411-RM005-200 RM005-LCD-LENS ACRYL 123 470-RM002-100 CLIP-RM002 REMOTE ABS 124 497-RM005-100 RM005-HOLD-KNOB ABS 125 498-RM005-100 RM005-STOP-KNOB ABS 126 499-RM005-100 RM005-ESP/PROG-KNOB ABS 127 500-RM005-100 RM005-VOLUME-KNOB ABS 128 504-RM005-100 RM005-PLAY-KNOB ABS 129 209-2009N-R00 OPEN SPRING 130 209-21020-P00 DOOR-SPRING...
- Page 10 ITEM CODE DESCRIPTION 149 401-2100B-100 BOTTOM-COVER ABS 150 401-2100M-100 MIDDLE-COVER ABS 151 401-2102M-100 MIDDLE-COVER-EX ABS 152 475-2102A-100 BLOCK-UP-PIECE 153 401-2102A-100 TOP-COVER ABS 154 407-2100A-100 BATTERY-COVER ABS 155 413-2102A-2CR WINDOW 156 423-2100A-100 BASS-BOOST-KNOB ABS 157 458-2100B-100 CHARGE-KNOB ABS 158 459-2100A-100 OPEN-KNOB ABS 159 483-2008B-1BK ORNAMENT 160 483-2102A-100 CHROME-ORNAMENT 161 502-2100A-100 TACT-SWITCH-CAP ABS...
