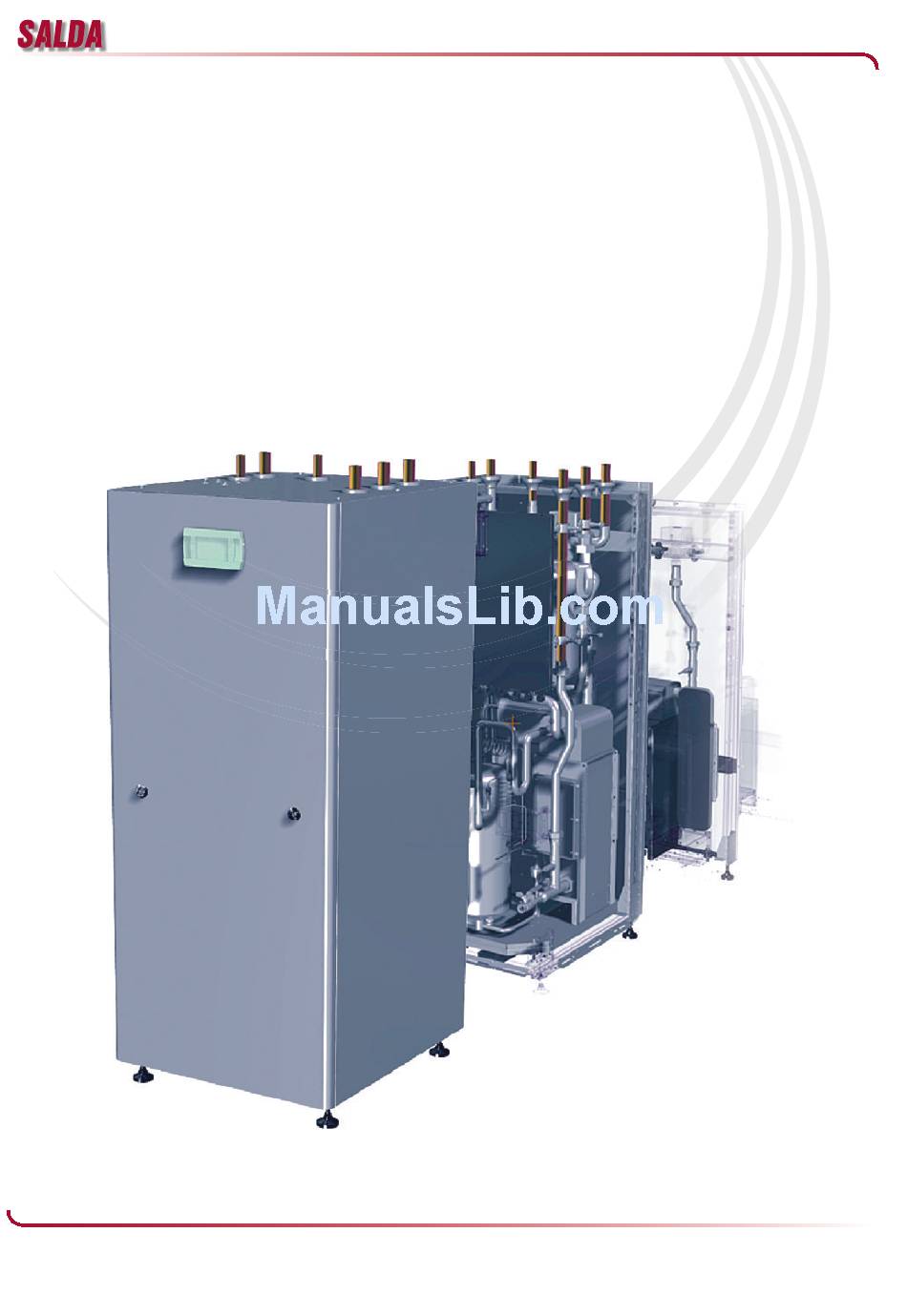

BRINE-WATER HEAT PUMPS
SIG 6-17
INSTALLATION AND MAINTENANCE MANUAL
Subject to technical modifi cation

Advertisement

loading
Need help?

Need help?

Do you have a question about the SIG 6-17 and is the answer not in the manual?

Questions and answers

Summary of Contents for Salda SIG 6-17

  • Page 1 BRINE-WATER HEAT PUMPS SIG 6-17 INSTALLATION AND MAINTENANCE MANUAL Subject to technical modifi cation...
  • Page 2 SIG 6-17 TABLE OF CONTENTS 1. Basic Information......................3 1.1. Safety Notes......................3 1.2 Intended Use......................3 1.3. Legal Provisions and Guidelines................3 1.4. Legal Guidelines, Rules, Warranty Terms, Receiving Inspection......3 1.4.1. General information....................3 1.4.2. Legal Guidelines and Rules................3 1.4.3. Receiving Inspection..................4 1.5. Energy-Effi cient Use of the Heat Pump............4 2.
  • Page 3 SIG 6-17 • Setup, installation, confi guration, and initial start up of the heat pump system must be carried out by a qualifi ed tech- nician applying the relevant statutory rules, regulations, and guide- lines, as well as the operating instructions.
  • Page 4 SIG 6-17 Our warranty does not cover damages caused by or due to the following reasons: • Unsuitable or improper use or operation; • Incorrect setup, adjustment, or incorrect initial startup by buyer or third parties; • Installation of third party parts;...
  • Page 5 SIG 6-17 Pic. 2.1 Before every transport, make sure the lifting or transport equipment has the lifting power needed to transport the re- spective equipment weight. All of the tasks described here must be carried out based on the relevant safety standards.
  • Page 6 SIG 6-17 The unit may only be installed indoors in rooms with low humidity on a level, smooth and horizontal surface. The en- tire base of the frame should lie directly on the fl oor to ensure a good soundproof seal. If this is not the case, additional sound insulation measures may be necessary.
  • Page 7 SIG 6-17 Antifreeze protection for installation locations prone to frost The antifreeze function of the heat pump controller is active whenever the controller and the heat circulating pumps are ready for operation. If the heat pump is taken out of service or in the event of a power failure, the system has to be drained.
  • Page 8 SIG 6-17 When fi lling the collector system mix the water with antifreeze in an open container. The mixture should be protect- ed against freezing down to about -15 °C. The brine is fi lled by connecting a fi lling pump.
  • Page 9 SIG 6-17 All electrical components required for the operation of the heat pump are located on the control panel.For detailed instructions concerning the connection and functioning of the heat pump controller refer to the operating manual sup- plied with the controller.
  • Page 10 SIG 6-17 ATTENTION! Remove the transportation screw before starting the heat pump (see pic. 5.1). Pic. 5.1 The heat pump is started up via the heat pump controller. ATTENTION! The heat pump must be started up in accordance with the installation and operating instructions of the heat pump controller.
  • Page 11 SIG 6-17 Residue from lubricants and sealants may also contaminate the heating water. In the case of severe contamination leading to a reduction in the performance of the liquifi er in the heat pump, the system must be cleaned by a heating technician.
  • Page 12 SIG 6-17 Before removing the heat pump, disconnect it from the power source and close all valves. Observe all environmen- tally-relevant requirements regarding the recovery, recycling and disposal of materials and components in accordance with all applicable standards. Particular attention should be paid to the proper disposal of refrigerants and refrigeration oils.
  • Page 13 SIG 6-17 Pic. 10.1 Outside temperature Temperature sensor sensor www.salda.lt...

  • Page 14: Power Consumption

    SIG 6-17 Heating capacity Brine in Cº Heating Tout – 35º C Heating Tout – 50ºC Power consumption Brine in Cº Heating Tout – 35ºC Heating Tout – 50ºC Coefficient of performance Brine in Cº Heating Tout – 35ºC Heating Tout – 50ºC Pic.
  • Page 15 SIG 6-17 Heating capacity Brine in Cº Heating Tout – 35º C Heating Tout – 50ºC Power consumption Brine in Cº Heating Tout – 35ºC Heating Tout – 50ºC Coefficient of performance Brine in Cº Heating Tout – 35ºC Heating Tout – 50ºC Pic.
  • Page 16 SIG 6-17 Heating capacity Brine in Cº Heating Tout – 35º C Heating Tout – 50ºC Power consumption Brine in Cº Heating Tout – 35ºC Heating Tout – 50ºC Coefficient of performance Brine in Cº Heating Tout – 35ºC Heating Tout – 50ºC Pic.
  • Page 17 SIG 6-17 Heating capacity Brine in Cº Heating Tout – 35º C Heating Tout – 50ºC Power consumption Brine in Cº Heating Tout – 35ºC Heating Tout – 50ºC Coefficient of performance Brine in Cº Heating Tout – 35ºC Heating Tout – 50ºC Pic.
  • Page 18 SIG 6-17 Heating capacity Brine in Cº Heating Tout – 35º C Heating Tout – 50ºC Power consumption Brine in Cº Heating Tout – 35ºC Heating Tout – 50ºC Coefficient of performance Brine in Cº Heating Tout – 35ºC Heating Tout – 50ºC Pic.
  • Page 19 SIG 6-17 Heating capacity Brine in Cº Heating Tout – 35º C Heating Tout – 50ºC Power consumption Brine in Cº Heating Tout – 35ºC Heating Tout – 50ºC Coefficient of performance Brine in Cº Heating Tout – 35ºC Heating Tout – 50ºC Pic.
  • Page 20 SIG 6-17 Pic. 10.4.1 www.salda.lt...
  • Page 21 SIG 6-17 Pic. 10.4.2 www.salda.lt...
  • Page 22 SIG 6-17 Pic. 10.4.3 www.salda.lt...
  • Page 23 SIG 6-17 marking title quantity Pic. 10.4.4 Circuit breaker 3P C16 Circuit breaker 1P C6 S2, S3 Circuit breaker 1P C2 Softarter SOLARSTAR17 Thermal relay NS2-25k 9-14A Aux contact NS2-AE11 phase sequence relay RM4 TG20 Transformers 230VAC/24VDC Relay RT424730 witk sock-...
  • Page 24 SIG 6-17 Pic. 10.5.1 Domestic hot water Pic. 10.5.2 Direct Heating system www.salda.lt...
  • Page 25 SIG 6-17 Pic. 10.5.3 Heating system with buffer tank or hydraulic separator and circulation pump Pic. 10.5.4 Heating system with buffer tank or hydraulic separator, mixing valve and circulation pump www.salda.lt...
  • Page 26 SIG 6-17 Pic. 10.5.5 Domestic hot water and Heating systems Pic. 10.5.6 Domestic hot water and Heating systems with buffer tank or hydraulic separator and circulation pump www.salda.lt...
  • Page 27 SIG 6-17 Pic. 10.5.7 Domestic hot water and Heating systems with buffer tank or hydraulic separator, mixing valve and circulation pump www.salda.lt...
