Summary of Contents for Maximum HomeStream

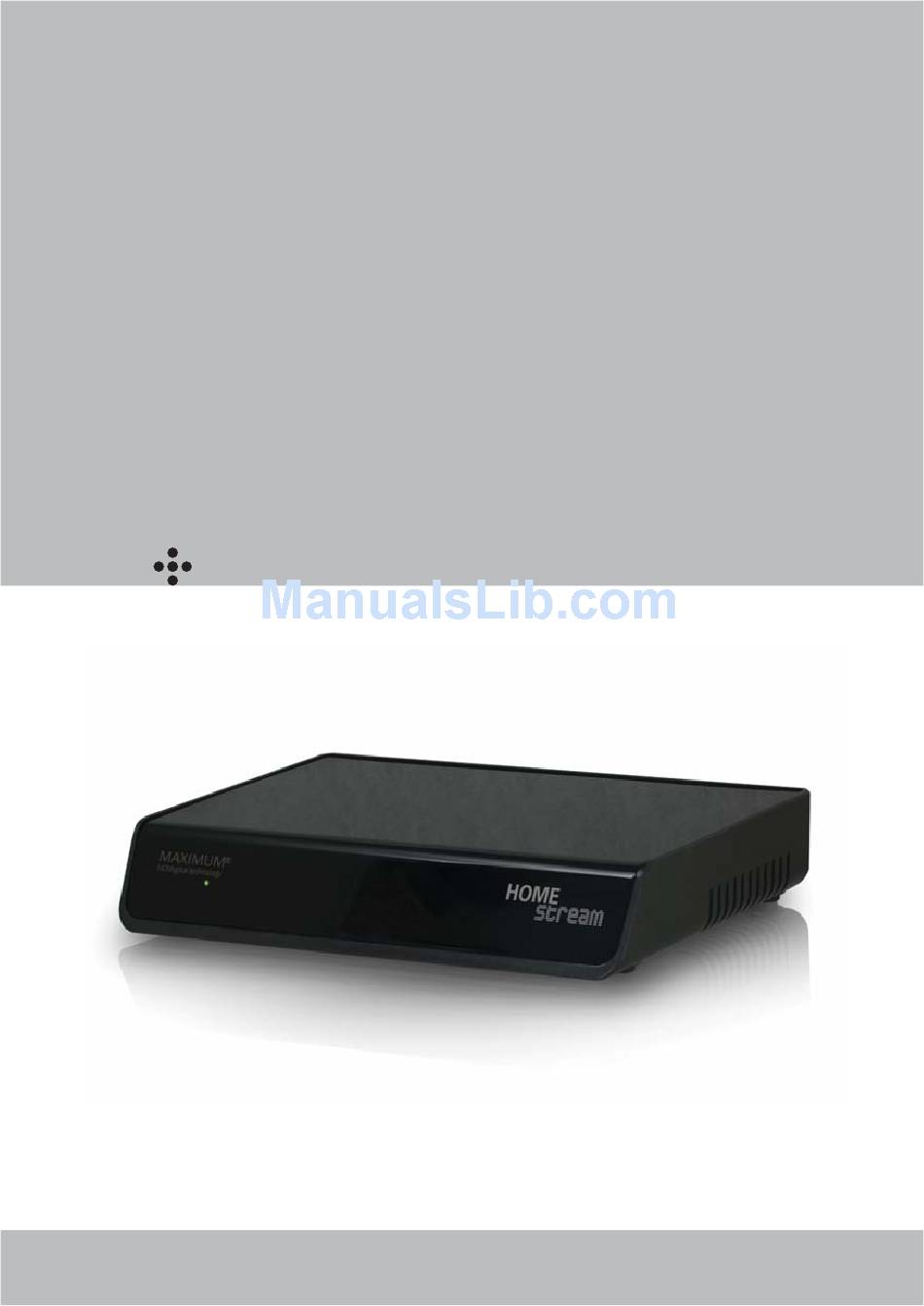

  • Page 1 Instruction manual HomeStream...

  • Page 2: Before Using The Product

    Before using the product Introduction Welcome. HomeStream is a set-top box that allows you to enjoy your own home entertain- ment contents from a remote location using the internet Take – Out the home contents With the HomeStream, your home A/V media content is available to you from any location with internet access.
  • Page 3 Before using the product Accessories A/V Cable IR Contorl Cable Installation CD HomeStream LAN Cable Instruction manual DC Adaptor (5V, 2A)

  • Page 4: Rear Panel

    1 blink indicates that the system is initializing 2 blinks indicate that the system is checking the connection between the HomeStream and the Router 3 blinks indicate that the system is checking the connection between the HomeStream and the Server...
  • Page 5 EXT.IR DC 5V IR Blaster Installation 1. Connect A/V out of an external A/V device and A/V input of the HomeStream with an Audio/Video cable 2. Insert the remote control IR cable into the IR connector on the HomeStream 3. Place the head of remote control IR cable against the IR sensor of the external...
  • Page 6 - AUDIO - VIDEO - AUDIO - Plug one end of the Ethernet cable into LAN port of the HomeStream and connect the other end to a port of your Router Notice A Router that allows UPnP is strongly recommended to automatic setup of the remote...
  • Page 7 Turn ON the power switch at the rear panel of the HomeStream. Then the LED light should turn on and blink a few times while checking the connection with the router. Tip : If the LED light does not turn on after powering up, check the HomeStream connection to the router Connecting Web Cam...
  • Page 8 Connecting A connection diagram of all the connection of the HomeStream Connect the TV, External device, router and the HomeStream as shown in the below picture Eksterne AV-enhed Router HomeStream...
  • Page 9 HomeStream Player Introduction HomeStream Player is the PC software that allows the HomeStream user to view the media contents of an external device connected to the HomeStream via the internet Main features of HomeStream (1) Take Out TV With HomeStream Player installed, any remote PC or labtop may be used to...

  • Page 10: Installation

    Installation HomeStream Installation Language selection Select your language preference and click “ OK “. Starting Setup Click “ Next “ to continue License Agreement Read over the End user License Agree- ment and click “ I agree “ to continue...
  • Page 11 Installation Installation Location selection Select the destination folder and click “ Install “ to continue Installation processing Click “ Next “ to activate the Setup Wizard...
  • Page 12 Installation HomeStream Setup Wizard Setup Wizard is a useful program for the user to setup the HomeStream and change the network information. This program can only be used in the local network Starting the Setup Wizard Click “ I want to begin register my “...
  • Page 13 Tip : How to reset While the HomeStream is working ON, press a reset hole in the rear panel for 4-5 seconds. Then the HomeStream gets rebooted. Click ‘ Next ‘ to continue . Checking the remote connection Click “...
  • Page 14 Installation HomeStream Setup Wizard ( More settings ) Manual setting of the network information ( In the event that “ Find HomeStream“ is failed ) Click “ Network Setup “ to invoke the Network Setup dialogue box And click “ Save to HomeStream“ to save...
  • Page 15 Change the network information Check “ I want to change the network information of HomeStream” to invoke the Network Setup dialogue box Enter the new Network information that you would like to change, and click “ Save to HomeStream“ to save your settings...
  • Page 16 Check the radio button “ I want to set ID and password of my HomeStream and click the Next button to continue Click “ Find HomeStream“ to find the network setting of HomeStream. Then click the Next button to continue...
  • Page 17 Installation Uninstallation Click “Start” -> Go to PROGRAM -> go to HomeStream -> select Uninstall Click “ Next “ to continue Click “ Unintall “ Click “ Close “ to complete the uninstallation...
  • Page 18 Installation In order to enjoy the HomeStream services remotely via the internet, it is required that you register your HomeStream first using the HomeStream Setup Registration while installing the HomeStream Setup Wizard For product registration, enter the following information and click “ Register “...
  • Page 19 Using the HomeStream Player HomeStream Player Log - In To activate the HomeStream Player Log-in window, complete either of the following: Enter your User ID and Password, then Click “ Log in“ When Login is successful, the Log in window changes to...

  • Page 20: Play Window

    Volume : Controls the volume ( Mute can be controlled using the PC remote controller ) HomeStream Service window button : Activates the Log In window or HomeStream Service window Running time and total playing time : Displays the run time of the playing file...
  • Page 21 Low ( 256 Kbps ) Normal ( 350 Kbps ) High ( 650 Kbps ) Very high ( 1.5 M ) Auto mode ( Default ) Update : Check the HomeStream version Help : Displays the version of the U Player...
  • Page 22 Log in : Click here once you have entered your login information Remember me : Check this box if you would like the HomeStream to remember your login for future use. Login as an admin : Check this box and enter the Administrator password in the Password box.
  • Page 23 Using the HomeStream Player Service Window – External AV : Setting the External Device Click External AV configuration The External Device setting window will be displayed. Choose your External Device in the List box and click the OK button Device Mapping will start and the External Device will be displayed.
  • Page 24 Service Window : Home View Click the list box and select Home View Click Play button The Home view will start streaming in the Play window In the event that the HomeStream Cam is not connected, a “ not available “ message is displayed...
  • Page 25 Using the HomeStream Player PC Remote Controller click Click the PC remote controller button to activate the PC remote controller PC Remote Controller description Power button : Powers on and off the External A/V device Close : closes the PC remote controller...

  • Page 26: Favorite Channel List

    Using the HomeStream Player Favorite Channel List Favorite Channel List : Adding a channel to the list click Enter a channel number using the Numeric keypad or go to a channel using Navigation keys Click the “ Add to Favorite list “ button...
  • Page 27 Using the HomeStream Player Favorite Channel List : playing a channel Select the desired channel and click the “ Play “ button or double-click the desired channel Play button Favorite Channel List : Deleting a channel Select a channel desired to be deleted from the list and click the “...
  • Page 28 Using the HomeStream Player Additional Key List Click to toggle the PC remote controller and additional key list Additional Key List : control an external A/V Device Select a key which you desire to control Click the “ Enter “ key...
  • Page 29 Using the HomeStream Player Log Out Method 1 Select “ log out “ in the list box of Service window The confirmation message will be displayed. Click “ Yes” to continue logging out of the HomeStream. Method 2 Close button...

  • Page 30: Firmware Update

    Check the radio button “ I want to Update the firmware of my HomeStream“ and click the Next button to continue Click “ Find HomeStream” to find the network setting of HomeStream. Then click the Next button to continue Enter the Administrator password to...
  • Page 31 Firmware Update The information for a new firmware is displayed. If you want to update the HomeStream with a new firmware, click “ Yes “ Check the radio button “ Local folder “ and click “ BROWSE” to search and select the firmware file.

  • Page 32: Troubleshooting

    No use in the company Note : There may be the firewall in the company, and the data of the HomeStream may be blocked. Ask a network administrator in your company he connection of the HomeStream is suddenly cut Possible Solution: Check the internet security or a personal firewall in your PC.
