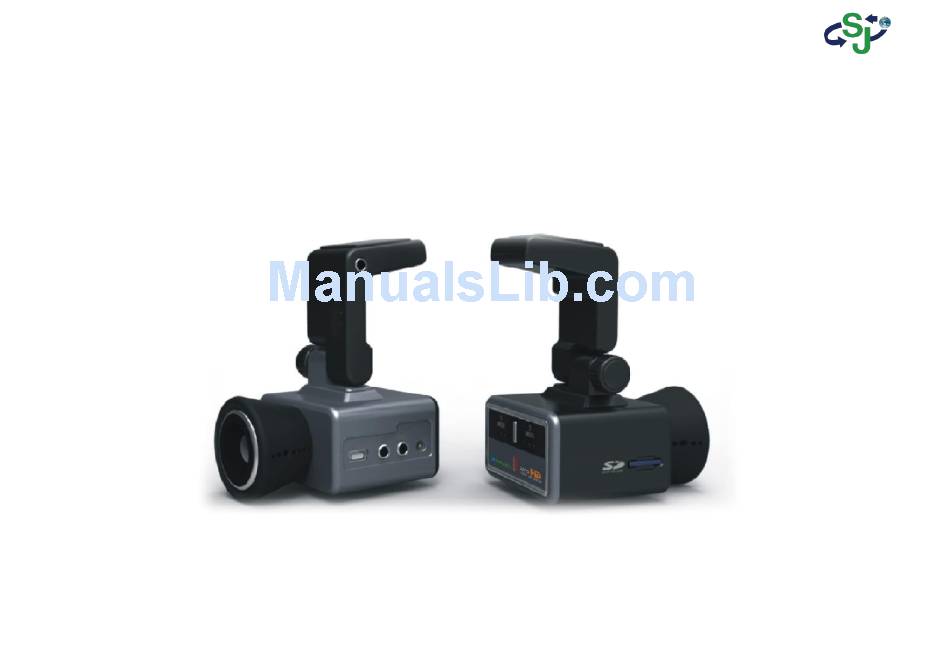

Page 1 SJ-KV202 User’s Manual Sheng Jay Automation Technologies Co., Ltd.
Page 2: Table Of Contents
Key Product Features How to Operate the Product Voice Guidance on Product States and LED Display Checking through the Micro SD Card PC Viewer Features Installing the PC Viewer PC Viewer Features Product Specifications Product Specifications Sheng Jay Automation Technologies Co., Ltd.
Page 3: Cautions Upon Use
Such as lead to fire or electric shock. Do not pour water onto the device. As the device is not waterproof, such acts could result in product malfunction and lead to fire or electric shock. Sheng Jay Automation Technologies Co., Ltd.
Page 4 The use of non-genuine power cables or connecting the cable to other products may result in malfunction or fire. If the product breaks, continued use may lead to hand or face injury. Visit a service center for repair before use. Sheng Jay Automation Technologies Co., Ltd.
Page 5 The method of installation may differ depending on the vehicle. User installations may result in vehicle and product malfunction. Damage to the vehicle and/or product caused by user installation/disassembly is the sole responsibility of the user. Sheng Jay Automation Technologies Co., Ltd.
Page 6 Buildings, underground roads, tunnels, and roadside trees could increase the margin of error or prevent the GPS from being properly received. The time required to receive the GPS signal from the point of turning on the device could be more than 10 minutes depending on the weather or environmental conditions. Sheng Jay Automation Technologies Co., Ltd.
Page 7: Package Components
• In case of missing components, please contact your place of purchase. • The contents of this user’s manual are subject to change without prior notice for product improvement. • Additional basic components are sold separately. Sheng Jay Automation Technologies Co., Ltd.
Page 8: Names Of Product Components
1) VIDEO Output port 10) GPS Input terminal 2) USB port 9) DC Power Input terminal 8) Microphone 4) Camera Lens 7) Micro SD Slot 3) Speaker 5) Record Button 5) Cancel Button 6) LED Sheng Jay Automation Technologies Co., Ltd.
Page 9 11) VIDEO input port The rear view camera is connected through the video input port. Structure that is convenient to attach to the room mirror. 12) Mount The mount is integrated with an external GPS. Sheng Jay Automation Technologies Co., Ltd.
Page 10: Installing In The Vehicle
(Here, heed caution so that there are no obstructions in front of the lens.) Once power is turned on, the product led will turn on and "Starting Infinite recording” voice guidance is provided and recording will start. Sheng Jay Automation Technologies Co., Ltd.
Page 11 Here, heed caution so that there • Firmly attach the device so that it does not move or fall off are no obstructions in front of the lens. while driving. Sheng Jay Automation Technologies Co., Ltd.
Page 12: Inserting The Memory Card
• Do not use the memory card used within the Black box for other purposes. Such could lead to abnormal operation. • When purchasing Micro SD cards, compatibility issues may exist even with some genuine products. If such occurs, visit your place of purchase. Sheng Jay Automation Technologies Co., Ltd.
Page 13: Using The Memory Card
- Infinite Mode : 75% 32GB - Parking Mode : 25% Max No. of Files 262 Files 64 Files 44 Files 298 Files 196 Files Recording times may partially change with future firmware updates. Sheng Jay Automation Technologies Co., Ltd.
Page 14: Firmware Update
Problems may occur within SD cards that have been used for prolonged periods of time. Cautions upon using • Regularly format the SD card for use. Memory Cards • For stable recording functionality, the entire capacity of the SD card is not used. Sheng Jay Automation Technologies Co., Ltd.
Page 15: Key Product Features
Configuration window video quality, sensor sensitivity, voice for personal privacy protection. recording settings and other settings. 4. Compatibility with various memory Supports 8GB, 16GB, 32GB memory cards. Sheng Jay Automation Technologies Co., Ltd.
Page 16 PC. Sheng Jay Automation Technologies Co., Ltd.
Page 17: How To Operate The Product
Infinite Recording voice guidance. Blocking Voice Recording For personal privacy protection, Voice Recording can be turned off by using the program Configuration window and setting the voice recording volume to 0. Sheng Jay Automation Technologies Co., Ltd.
Page 18 Parking mode event recording is comprised of impact detection event recording and motion event recording. Impact detection event recording is Parking Mode Event same as the impact detection event recording within infinite recording. Recording Motion event recording records only when movement is detected during parking. Sheng Jay Automation Technologies Co., Ltd.
Page 19: Voice Guidance On Product States And Led Display
] button will go to the following video file. Information : When connecting with the navigation, first consult with the navigation manufacturer. For some products, a RCA to STEREO (Y jack) must be purchase separately for connection. Sheng Jay Automation Technologies Co., Ltd.
Page 20 Start Parking Mode Changes from parking mode to event Fast blinking “An event has been detected.” Event (impact/motion) recording End Parking Mode Changes from event recording to parking Normal blinking Normal blinking Event recording Sheng Jay Automation Technologies Co., Ltd.
Page 21 When camera and recording device System Error “System error. System will restart.” reset has failed High temperature over 80 degrees High/Low Temperature State “The temperature protection feature will operate.” Low temperature under -20 degrees Sheng Jay Automation Technologies Co., Ltd.
Page 22: Checking Through The Micro Sdcard
Once connected with the PC, a removable disc will be started. As shown in the figure, pressing “open folder to view files” will display the folder. [ Micro SD card contents] [ DCIMA folder contents >] [ DCIM folder contents] Sheng Jay Automation Technologies Co., Ltd.
Page 23 Infinite recording files (inf) : Files recorded during infinite recording mode Manual recording files (man) : Files recorded manually during infinite recording mode Parking recording files (pak) : Files recorded during parking recording mode Sheng Jay Automation Technologies Co., Ltd.
Page 24 6) Once the installation setup is complete, click “Install” 3) Designate the folder where you wish to save. If to conduct installation. To return to a previous screen, click “Back”. there are no changes, click “Next”. Sheng Jay Automation Technologies Co., Ltd.
Page 25 2) Check the “I agree” box and click “Install”. 4) After installation is complete, click “Finish”. 6) Once the PC Viewer is properly installed, the PCViewer.exe and PCViewerConfEditor.exe files will be created, as shown in the figure. Sheng Jay Automation Technologies Co., Ltd.
Page 26: Pc Viewer Features
Speedometer / Compass: If GPS information exists within the video, displays the speed and direction. Video Capture: The currently playing video screen is saved or printed. Defog Decrease Play Stop Play next file Video Capture Compass speed(-5~+5) (File or Printer) Sheng Jay Automation Technologies Co., Ltd.
Page 27: Pc Viewer Features
Same as adding by using the + button. 2) Delete Video Files ① Use the ‘-’ button to delete ② Use the DEL key to delete Information : PC Viewer image and functions may partially change with future updates. Sheng Jay Automation Technologies Co., Ltd.
Page 28 Double-clicking the screen or pressing the ESC key will cancel Full Screen mode. Play Control Bar Moving the mouse towards the bottom-side of the screen will display the play control bar. Information: PC Viewer image and functions may partially change with future updates. Sheng Jay Automation Technologies Co., Ltd.
Page 29 At this time, the previous list is reset. 10. G-Sensor Information G-sensor information can be viewed by clicking the Sensor Tab. Information: PC Viewer image and functions may partially change with future updates. Sheng Jay Automation Technologies Co., Ltd.
Page 30 Saves setting and closes Configuration. Applies changes Changes file to save settings Restores default values Closes the Configuration screen Opens a Settings file Information: PC Viewer image and functions may partially change with future updates. Sheng Jay Automation Technologies Co., Ltd.
Page 31 Event Only during parking recording 4. Boot Recording : Enable/Disable automatic booting recordi 5. Preview Camera Selection : Select TV-out preview video Information: PC Viewer image and functions may partially change with future updates. Sheng Jay Automation Technologies Co., Ltd.
Page 32: Product Specifications
Voice recording (No-sound recording feature included) Sound Built-in Speaker 8ohm Voice Guidance Acceleration Sensor 3-Axis Acceleration Sensor +2g / -2g Input Support DC 12V / 24V Support Current Consumption MAX 400mA @12V Operating Temperature 0˚C ~ 55˚C Sheng Jay Automation Technologies Co., Ltd.
