- Page 1 Model 282 Operating Manual 28-OM131-1 English (Original)
-
Page 2: Table Of Contents
Contents Safety Information Description and Purpose of Machine Specification and Installation Machine Controls Pre-start Checks Instructions for Use Maintenance Troubleshooting Spare Parts List Wiring Diagram 12-13 Declaration of Conformity... -
Page 3: Safety Information
Safety Information It is important that this machine is installed, maintained and used correctly to avoid the risk of injury. This machine contains dangerous voltages and rotating mechanical parts. • Use the machine only for the purposes described in the Operating Manual •... -
Page 4: Description And Purpose Of Machine

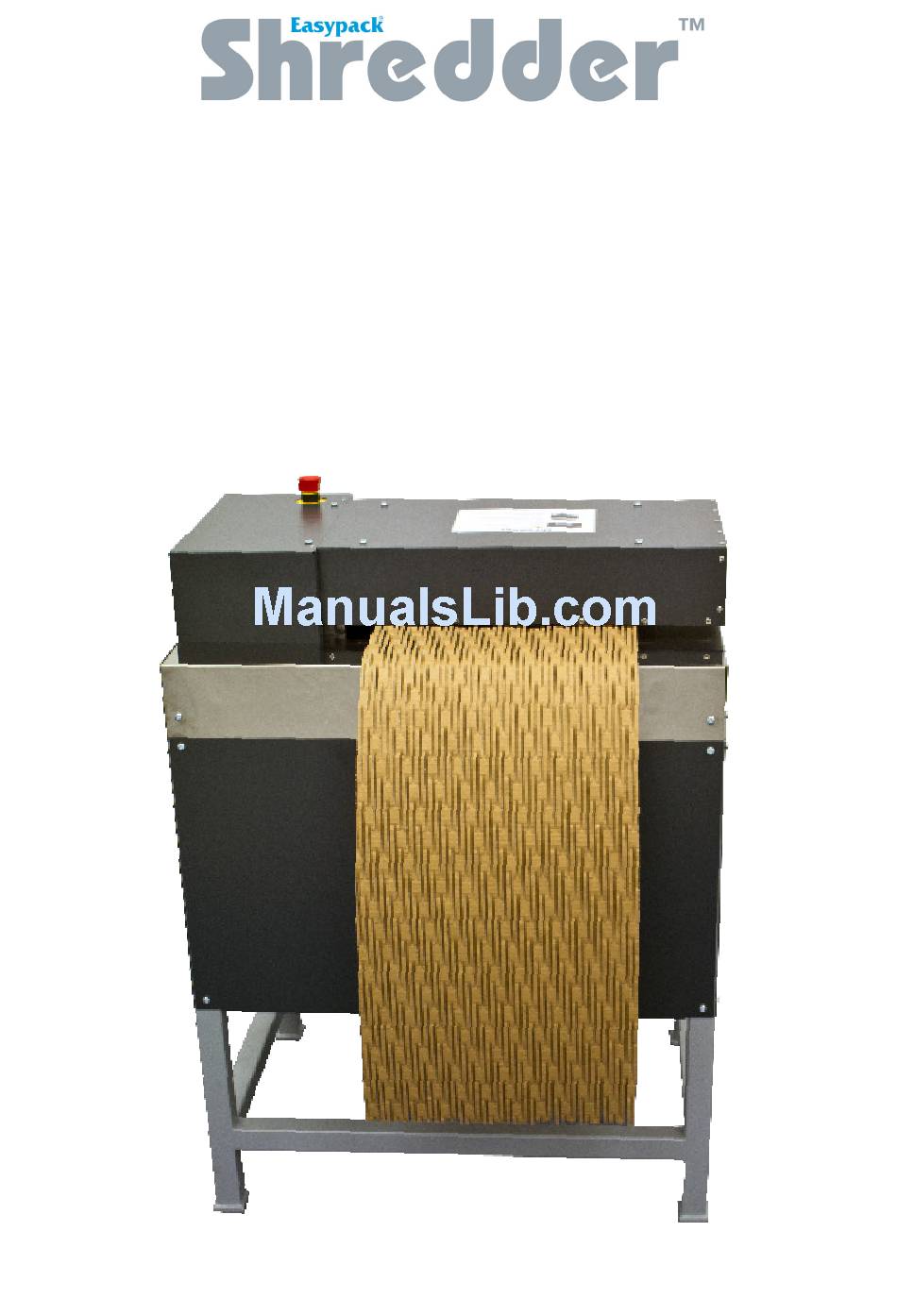

Description and Purpose of Machine The Easypack Shredder converts surplus corrugated cardboard boxes into protective void fill material for transit packing. The resulting lattice structure allows flexibility for packing a variety of shapes and sizes. It is tough enough to prevent damage to heavy items. -
Page 5: Specification And Installation
Specification and Installation Specification Dimensions 110mm (H) x 812 (W) x 612 (D) Weight 170kg Voltage 230V (±10%), 50Hz Max Power 1.5kW Cardboard Thickness 5-12.5mm thick Max cutting width 400mm wide Installation The Machine must only be installed and operated in an area that is suitable for its use, with ample space for feeding flat boxes, and collection of the shredded lattice. -
Page 6: Machine Controls
Machine Controls Emergency Stop Button Green ‘Start’ Button Red ‘Stop’ Button ‘Reverse’ Button Power Indicator Emergency Stop Button A red mushroom push button is mounted on top of the machine. When pressed it locks down and stops the machine. Turn clockwise to reset. Power Indicator A green neon indicator on the control panel illuminates when there is electrical power to the machine. -
Page 7: Pre-Start Checks
Pre-Start Checks The machine is connected to the mains supply, switched on and the neon indicator is illuminated The Emergency Stop button is released (turn clockwise) The Outfeed Slot is clear of restriction to allow the shredded cardboard to exit... -
Page 8: Instructions For Use
12.5mm - do not force cardboard into the Shredder. Any width cardboard can be fed into the shredder as it will cut off extra width. To stop the Shredder press the red ‘Stop’ button. Do not stop the Shredder whilst shredding cardboard unless it jams. -
Page 9: Maintenance
Maintenance Always disconnect the shredder from the power supply before removing any covers. The machine is to be serviced or repaired only by suitably trained or qualified personnel. Every week lubricate the shredding wheels via the outfeed slot with a lubricating spray e.g. -
Page 10: Troubleshooting
Cardboard path is clear of obstructions Cardboard is not more than 12.5mm thick If the above information does not clear the fault, contact Easypack for further assistance on 0845 838 0168. Please have the serial number of the Shredder available. -
Page 11: Spare Parts List
PANEL FRONT 28-333 FRONT PANEL SUB ASSY 28-334 PLATE EXTRACTOR HOLE COVER 28-335 ANGLE FEED HEIGHT RESTRICTOR 13mm 28-336 L-PIECE WIDTH RESTRICTOR SLIDE 28-338 PANEL UNDERMOTOR REAR 99-523 LABEL ISOLATE BEFORE REMOVING 99-1178 LABEL SHREDDER NAME PLATE AND WIDTH GUIDE... -
Page 12: Wiring Diagram
Wiring Diagram... -
Page 13: Wiring Diagram
Wiring Diagram... -
Page 14: Declaration Of Conformity
Unit 1, The io Centre, Whittle Way, Arlington Business Park, Stevenage, Hertfordshire, SG1 2BD, England Description of Product: Box Shredder Model No. & Serial No. The following transposed harmonised European Standards have been used: EN 12100: 2010 Safety of Machinery - Basic concepts, general principles (parts 1&2)
